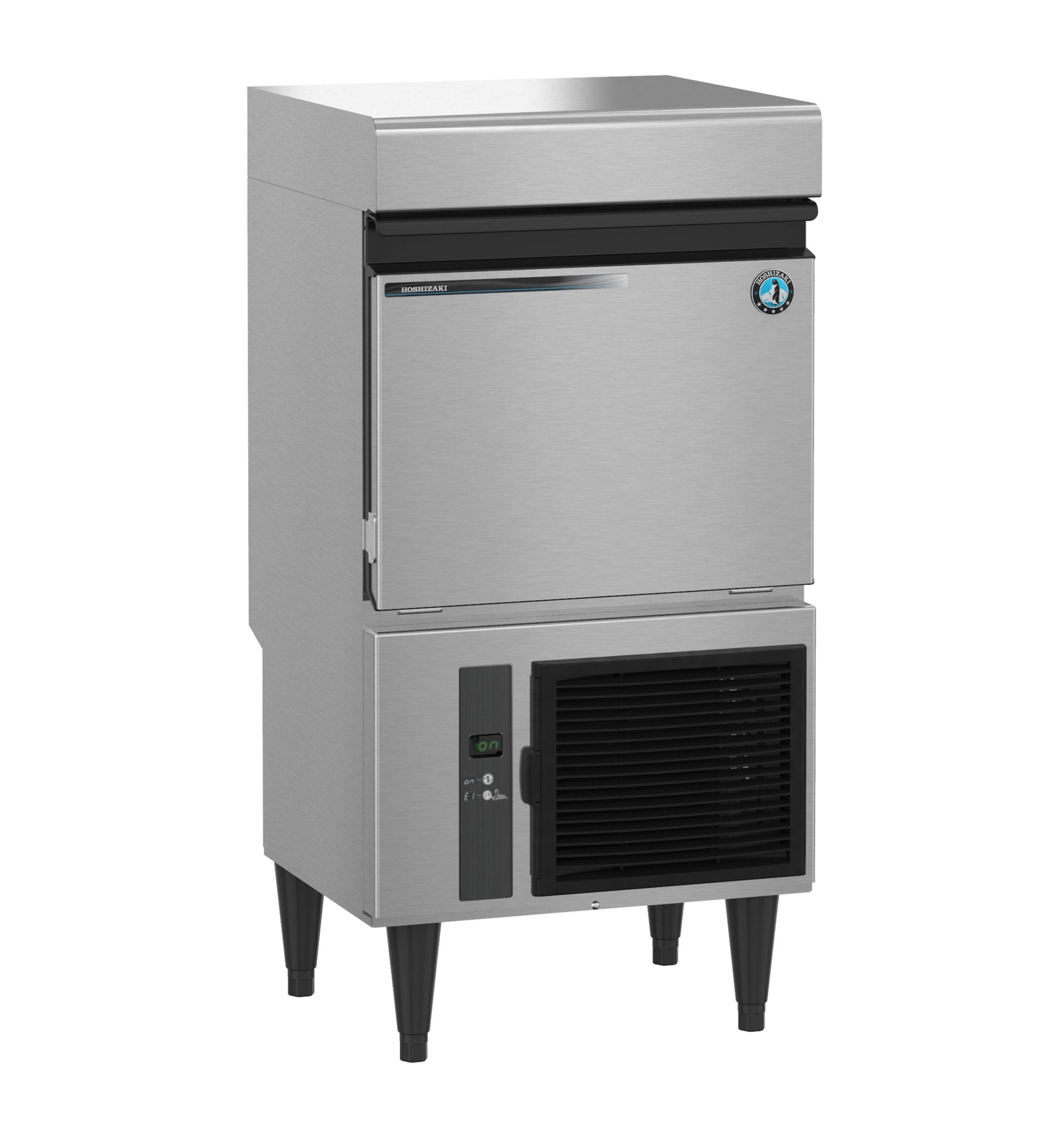

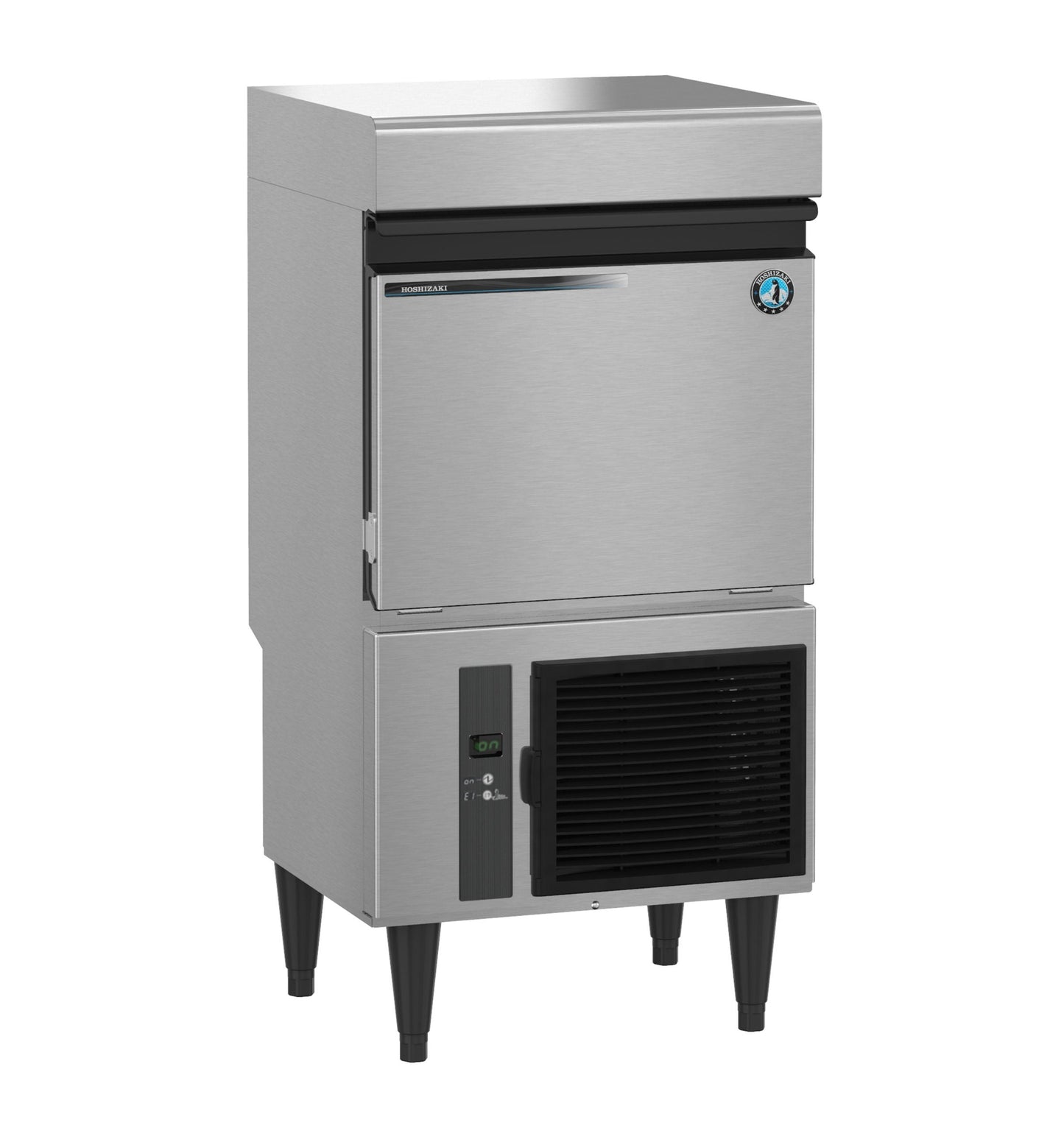

Hoshizaki 20" Wide Air-Cooled Square Cuber Ice Maker w/ Built-In Storage Bin - IM-50BAA-LM

Hoshizaki 20" Wide Air-Cooled Square Cuber Ice Maker w/ Built-In Storage Bin - IM-50BAA-LM

The IM-50BAA-LM is capable of producing approximately 50 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 22 lbs of built-in storage capacity* and its Small footprint can easily fit under a bar counter. The IM-50BAA-LM is Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (6.0 oz. / 170 g). Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice

Features

• Dimensions: 19-3/4″ W x 17-3/4″ D x 39- 1/2 ” H
• Up to 50 lbs of ice produced per 24 hours
• Up to 22 lbs of built-in storage capacity
• Produces individual clear, solid 1.9″ x 1.9″ x 2.3″ cubes
• Durable stainless steel exterior
• Front in, back out airflow
• Ice scoop included
• Foam injected polyurethane for insulation (HFC free)
• Small footprint can easily fit under a bar counter
• R-134a refrigerant (6.0 oz. / 170 g)
• Heat Rejection:1500 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 5 amps (15 Amp Max fuse)
• 15.7 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts warranty on Compressor, air-cooled condenser coil.


What Our Experts Think

• Compact air-cooled square cube ice maker with a built-in storage bin for all-in-one convenience.

• Produces up to 55 lbs. of crystal-clear square cubes per day with a 22-lb. storage capacity.

• Square ice cubes melt slowly, making them perfect for cocktails, spirits, and premium beverages.

• Durable stainless steel exterior ensures longevity, cleanliness, and a professional finish.

• Ideal for small bars, cafés, and hotel lounges that demand consistent, high-quality ice.

Q&A

• Q: How much ice can it produce daily?
  A: Up to 55 lbs. of square ice cubes every 24 hours.

• Q: What is the storage capacity?
  A: The built-in bin holds up to 22 lbs. of ice.

• Q: What type of ice does it make?
  A: Produces dense, crystal-clear square cubes perfect for upscale drinks.

• Q: Does it require a separate ice bin?
  A: No, the storage bin is built-in for convenience and compact use.

Maintenance Tips

• Clean and sanitize the unit regularly following Hoshizaki’s recommendations.

• Inspect and replace water filters periodically to maintain ice clarity and taste.

• Vacuum or brush condenser coils monthly for efficient cooling.

• Descale as needed to prevent mineral buildup from affecting performance.

• Empty and wipe the bin daily to ensure hygiene and ice freshness.
