Hoshizaki 48" Wide 3 Phase Remote-Cooled Crescent Cuber Ice Maker (Bin & Condenser Sold Separately) - KM-1301SRJZ3

Hoshizaki 48" Wide 3 Phase Remote-Cooled Crescent Cuber Ice Maker (Bin & Condenser Sold Separately) - KM-1301SRJZ3

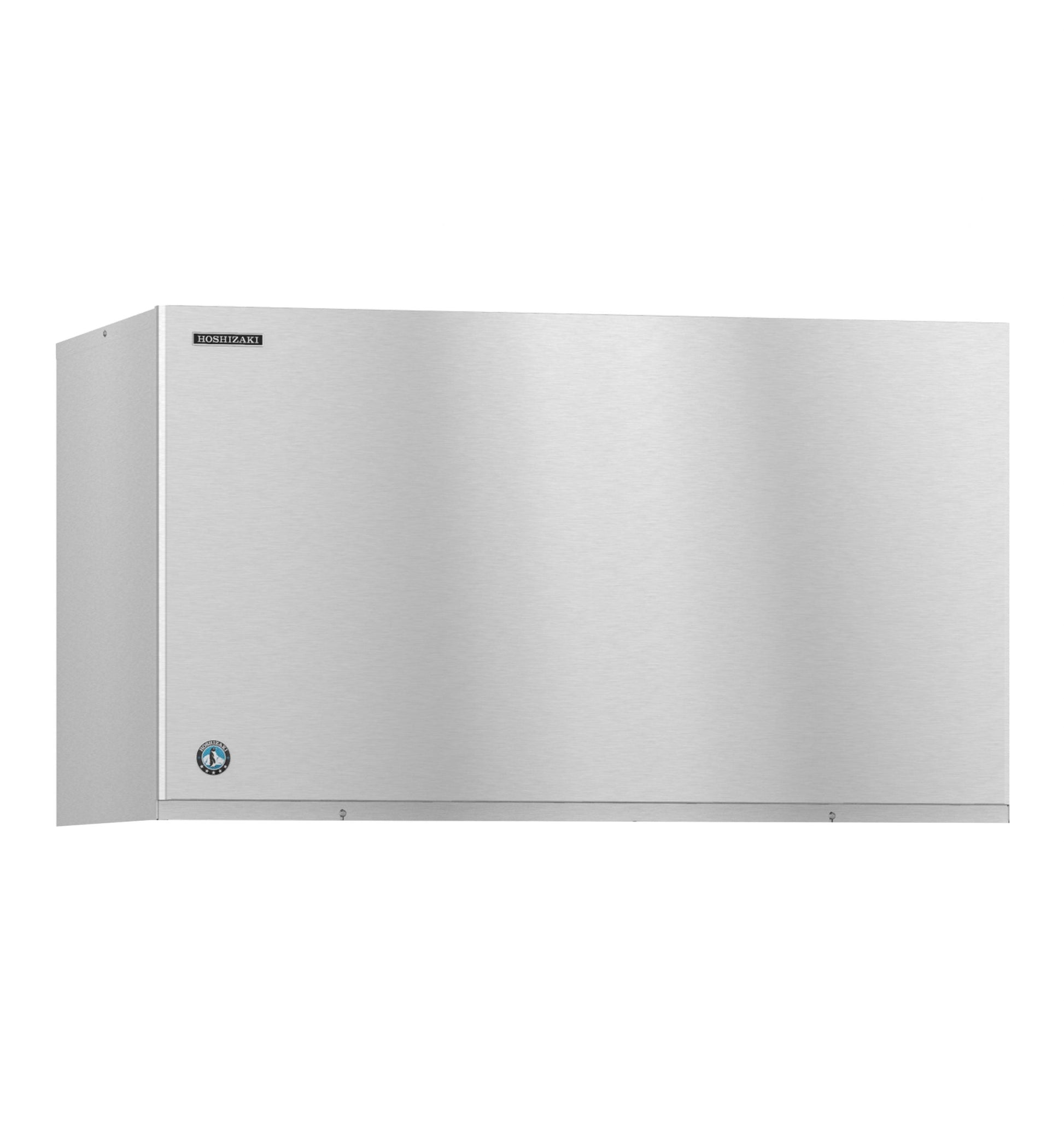

The KM-1301SRJZ3 is capable of producing approximately 1433 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-14FZ icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-1301SRJZ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Features

• Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
• Up to 1433 lbs of ice produced per 24 hours
• Stack 2 units for 2x the ice production
• Produces crescent shaped ice cubes
• Durable and tamper proof stainless steel exterior

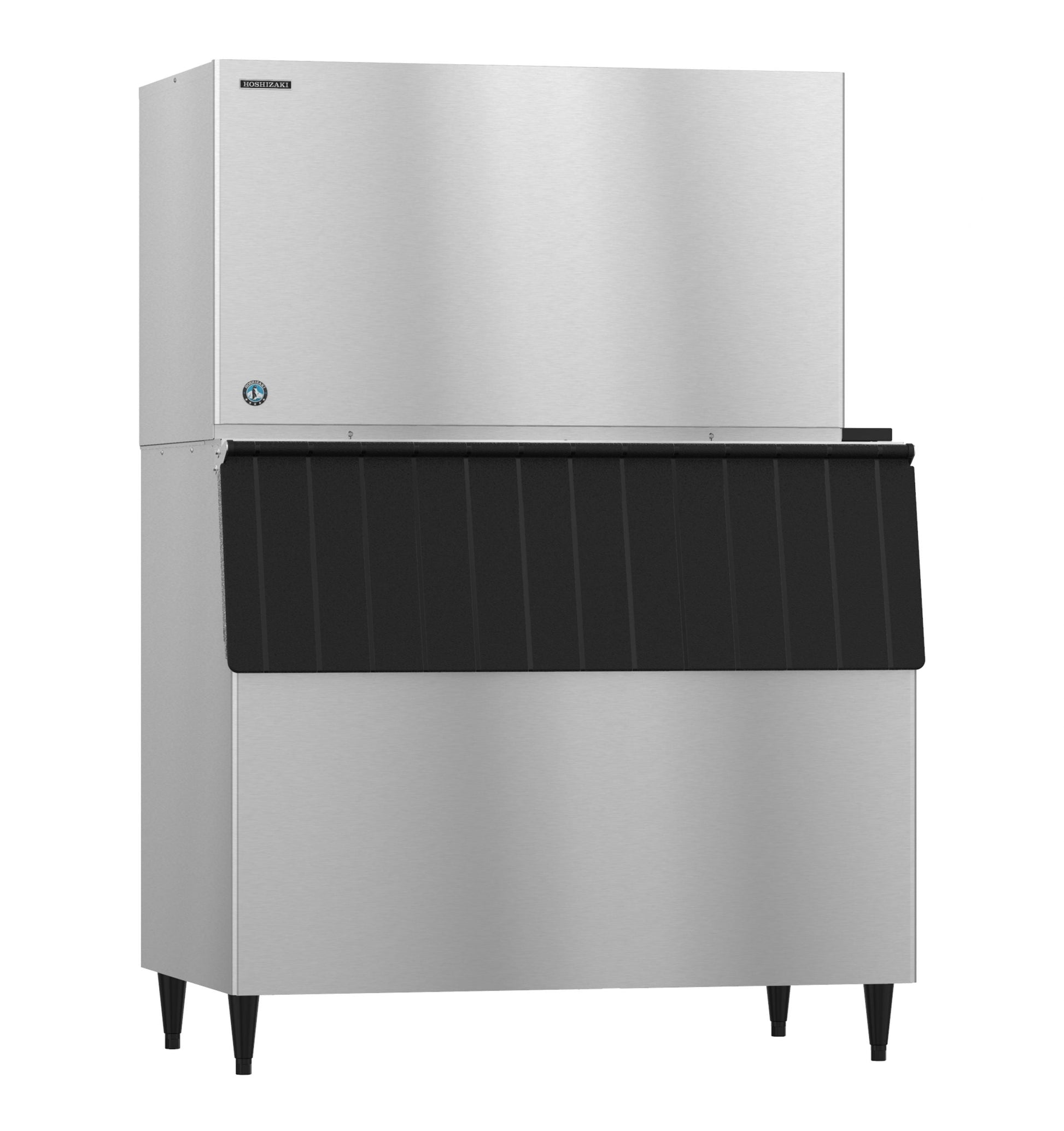

• Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck alert system
• CycleSaver design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (5 lbs. 15.2 oz. / 2700 g)
• Heat Rejection:18800 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 12.8 amps (20 Amp Max fuse)
• 3.83 kwh/100 lbs.@ 90/70
• Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included

• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.


What Our Experts Think

• Commercial-grade 3 phase remote-cooled crescent cuber ice maker designed for high-volume foodservice operations.

• Produces up to 1,301 lbs. of crescent-shaped ice per day, ideal for restaurants, hotels, and bars.

• Remote-cooled design reduces heat and noise in the workspace for more efficient operation.

• Durable stainless steel exterior ensures long-term performance and easy cleaning.

• Bin and condenser sold separately, providing flexible installation and storage solutions.

Q&A

• Q: How much ice can it produce daily?
  A: Up to 1,301 lbs. of crescent-shaped ice in 24 hours.

• Q: What type of cooling system does it use?
  A: Remote-cooled condenser for quiet and efficient operation.

• Q: Are the bin and condenser included?
  A: No, both are sold separately for customizable setup.

• Q: What type of ice does it make?
  A: Produces crescent-shaped cubes, perfect for beverage and high-volume service applications.

Maintenance Tips

• Clean and sanitize the ice maker regularly per Hoshizaki guidelines.

• Inspect water lines and filters periodically to maintain ice quality.

• Descale as needed to prevent mineral buildup and maintain consistent performance.

• Keep condenser coils and vents clear of debris to optimize efficiency.

• Schedule professional maintenance twice yearly to ensure peak output and long-term reliability.
