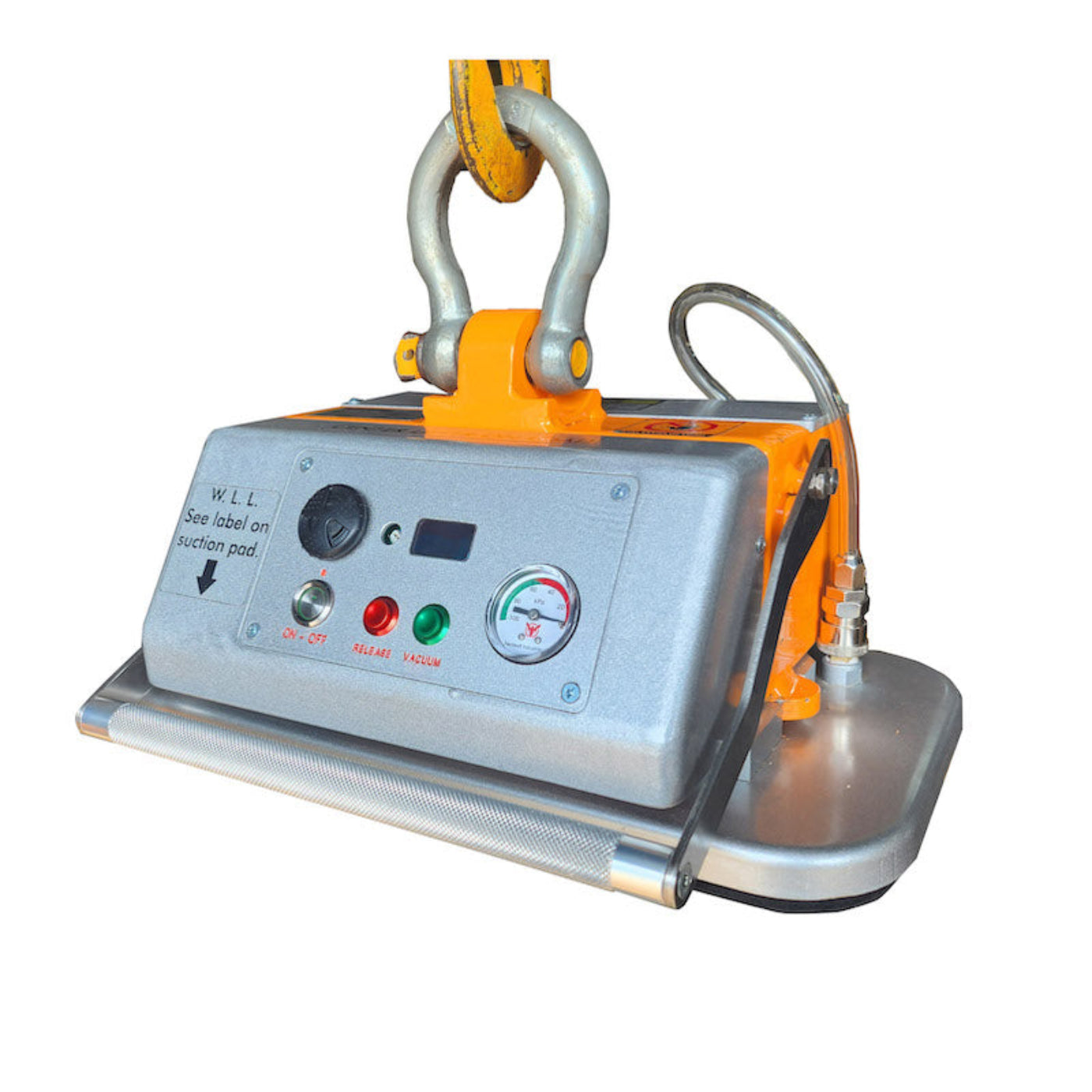

Aardwolf Handy Vacuum Lifter - ABHVL-380

Aardwolf Handy Vacuum Lifter - ABHVL-380

Work Load Limit: Capable of lifting up to 380 kg (838 lb) with the appropriate vacuum pad size, making it a reliable granite vacuum lifter for heavy-duty jobs.

Integrated Battery Vacuum System: Generates vacuum via a high-performance pump, eliminating the need for external pneumatic hoses.

Versatile Pads: Available in four different sizes, each designed to meet specific working load limits for various applications.

Easy Pad Changes: Engineered for quick assembly and hassle-free switching between pad sizes.

One-Press Operation: Simplifies the vacuum lifting and releasing process with a single press, ensuring smooth vertical handling.

Visual Monitor and Alarm System: Provides real-time feedback to maintain optimal vacuum levels and ensure safe operation.

Battery Backup: Offers uninterrupted functionality, even during power fluctuations.

Specifications

• Lifting capacity up to 380 kg / 838 lbs.

• Pad sizes from 125mm to 500mm wide

• Net weight: 18 kg / 39.6 lbs.

What our Experts Think

• Compact “On-the-Go” Lifting Power: The Aardwolf ABHVL-380 is designed as a portable, battery-powered vacuum lifter for handling stone slabs, concrete, and other heavy flat materials with ease and precision.
• Reliable 380 kg Working Capacity: Built to safely lift up to 380 kg (838 lb) depending on suction pad configuration, making it ideal for everyday fabrication and installation tasks.
• Fully Battery-Driven Vacuum System: Eliminates the need for air hoses or external compressors, using a clip-in rechargeable battery and integrated pump for consistent suction performance.
• Quick Pad Adaptability: Supports multiple interchangeable pad sizes, allowing it to handle different slab dimensions and surface finishes efficiently.
• Smart Safety Monitoring: Equipped with real-time audio/visual vacuum alerts, ensuring operators maintain secure lifting conditions throughout use.
• Flexible Job Site Integration: Designed to attach easily to cranes or hoists, making it suitable for workshops, fabrication shops, and on-site installation work.
• Durable & Workshop Ready: Compact but rugged construction ensures long-term reliability in demanding stone and construction environments.

Q&A

Q: What is the Aardwolf Handy Vacuum Lifter ABHVL-380?
A: A compact battery-powered vacuum lifter designed for safely lifting and handling stone slabs, concrete elements, and similar construction materials with smooth or rough surfaces.

Q: What is its lifting capacity?
A: Up to 380 kg (838 lb) depending on vacuum pad size and material type, making it suitable for medium-duty fabrication and installation work.

Q: How is it powered?
A: It uses a clip-in rechargeable battery system with an integrated vacuum pump, eliminating the need for external air hoses or power cords.

Q: What materials can it lift?
A: Designed for granite, marble, engineered stone, and concrete products, working on both smooth and textured surfaces using interchangeable pads.

Q: What safety features does it include?
A: It features real-time vacuum monitoring with audio and visual alarms, ensuring safe lifting conditions during operation.

Q: What are its key advantages?
A: It improves handling speed, reduces manual lifting risk, and increases efficiency in workshops, construction sites, and stone fabrication environments through quick pad changes and simple operation.

Maintenance Tips

• Inspect vacuum pads before each use for wear, cuts, hardening, or contamination that may reduce suction performance.
• Clean pads and sealing surfaces after every operation to remove dust, slurry, oil, and stone residue.
• Check vacuum hoses, fittings, and seals regularly for cracks, leaks, or loose connections.
• Test the vacuum gauge and audio/visual alarm system before lifting to ensure safe vacuum levels.
• Ensure the battery is fully charged, properly connected, and stored in a cool, dry environment when not in use.
• Inspect the vacuum pump and reservoir for stable pressure retention and any signs of leakage.
• Check lifting handle, frame, and hook points for deformation, cracks, or loose fasteners.
• Never exceed the rated load capacity (up to 380 kg depending on configuration and material conditions).
• Keep filters clean and free from dust or debris buildup to maintain consistent suction performance.
• Store the unit in a dry, protected location away from moisture, chemicals, and direct sunlight.
