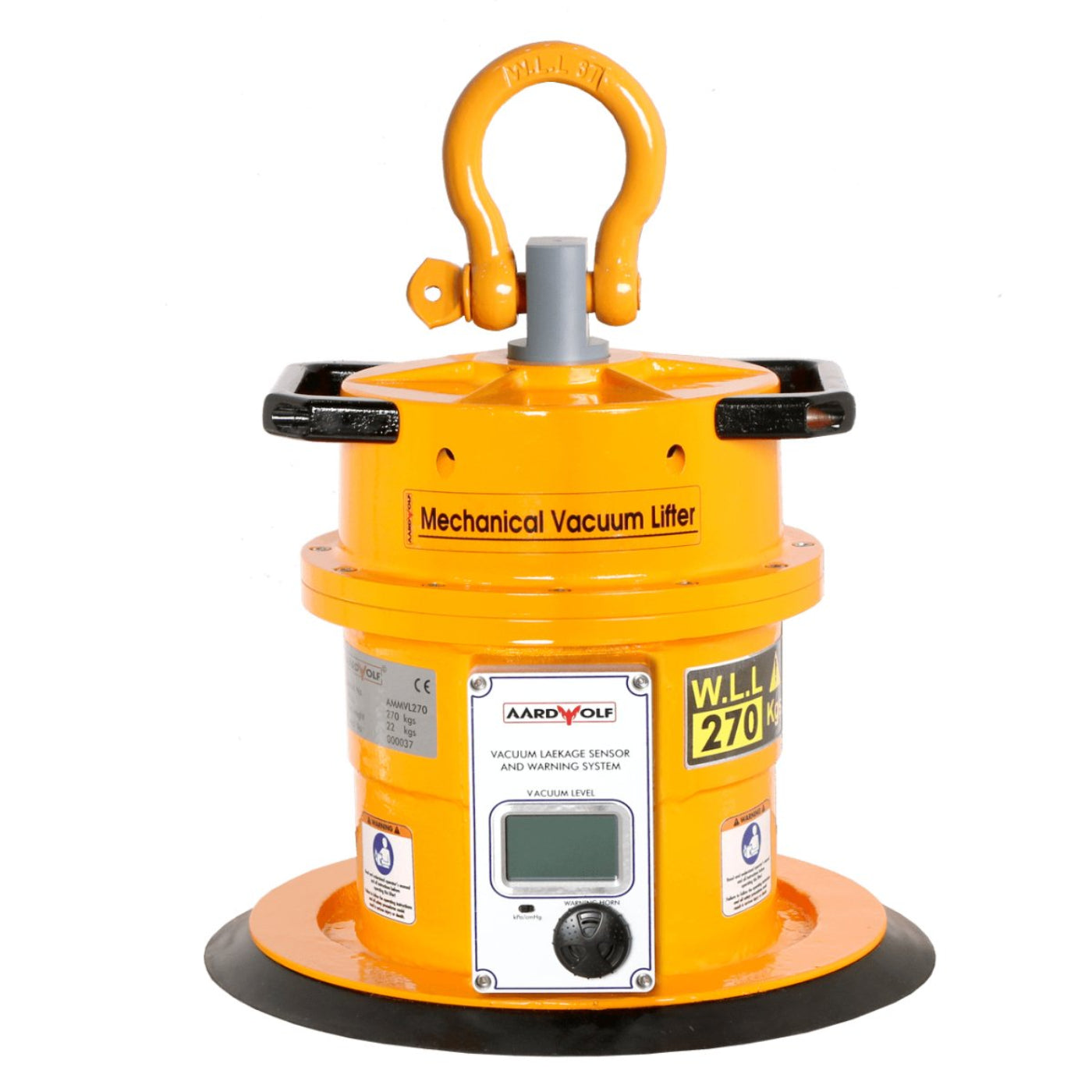

Aardwolf Mono Mechanical Vacuum Lifter 270 - AMMVL270

Aardwolf Mono Mechanical Vacuum Lifter 270 - AMMVL270

No power source required. Ideal for the horizontal handling of non-porous sheet and plate material such as diamond sawn or polished granite, polished engineered stone, all types of metals, plastics and fiberglass. An automatic self-cycling valve located in the bottom of the piston controls the vacuum grip-and-release cycle.

Features

• Self-powered and self-cycling
• Audio alarm system powered by a non-rechargeable 9V battery
• Immediately ready for operation
• Low maintenance
• Aluminium construction
• Lightweight

What our Experts Think

• Efficient single-pad vacuum lifting system, the Aardwolf AMMVL270 Mono Mechanical Vacuum Lifter is designed for safe horizontal handling of non-porous materials like granite, marble, engineered stone, metals, plastics, and fiberglass.
• No external power required, making it a fully mechanical, self-contained lifting tool ideal for workshop and site use where simplicity and reliability matter.
• Self-cycling vacuum mechanism automatically manages grip and release through an internal valve system, reducing operator effort and improving workflow speed.
• Strong working load capacity up to 270 kg (595 lb) supports heavy slab handling while maintaining stable, controlled lifting performance.
• Large 300 mm single suction pad provides secure contact area for flat, non-porous surfaces, improving grip stability during transport.
• Lightweight aluminum construction (~22 kg net weight) balances durability with portability for everyday fabrication use.
• Built-in audio alarm system (9V battery powered) alerts the operator to vacuum status, adding an extra layer of safety during handling operations.

Q&A

Q: What is the Aardwolf Mono Mechanical Vacuum Lifter 270 (AMMVL270) used for?
A: The AMMVL270 is designed for horizontal lifting and handling of non-porous sheet materials such as granite, engineered stone, metal, plastics, and fiberglass without requiring external power.

Q: How does the AMMVL270 vacuum lifter work?
A: It uses a self-powered mechanical vacuum system with an automatic self-cycling valve that controls grip and release during lifting operations, eliminating the need for electricity or air supply.

Q: What is the load capacity of the AMMVL270?
A: The lifter has a working load limit of 270 kg (595 lb), making it suitable for heavy sheet handling tasks.

Q: What is the pad size on the AMMVL270?
A: It features a single vacuum pad with a seal-to-seal diameter of approximately 300 mm (11.8 inches), providing strong surface contact for stable lifting.

Q: What power or maintenance does it require?
A: No power source is required for operation; only a 9V battery is used for the audio alarm system, and the unit is designed for low maintenance and immediate readiness.

Q: What are the key benefits of the AMMVL270?
A: It offers lightweight aluminum construction, self-cycling operation, and fast setup, making it efficient for workshops and on-site material handling where portability and simplicity are important.

Maintenance Tips

• Inspect vacuum pad for cracks, hardening, wear, or loss of suction efficiency before each use.
• Clean rubber suction surface after every operation to remove dust, slurry, and stone residue.
• Check vacuum seals, hoses, and connections for leaks or damage to maintain stable lifting force.
• Ensure mechanical pump/hand-operated vacuum system (if fitted) operates smoothly without sticking or pressure loss.
• Lubricate moving mechanical components and pump linkages periodically with light machine oil.
• Verify load capacity is not exceeded and lifting surface is flat, clean, and non-porous.
• Inspect gauges or indicators (if fitted) for correct vacuum pressure readings before lifting.
• Store unit in a dry, dust-free environment away from heat and direct sunlight to preserve rubber components.
• Replace worn suction pads or seals immediately to maintain safe lifting performance.
• Remove from service if vacuum loss, pad failure, or structural damage is detected.
