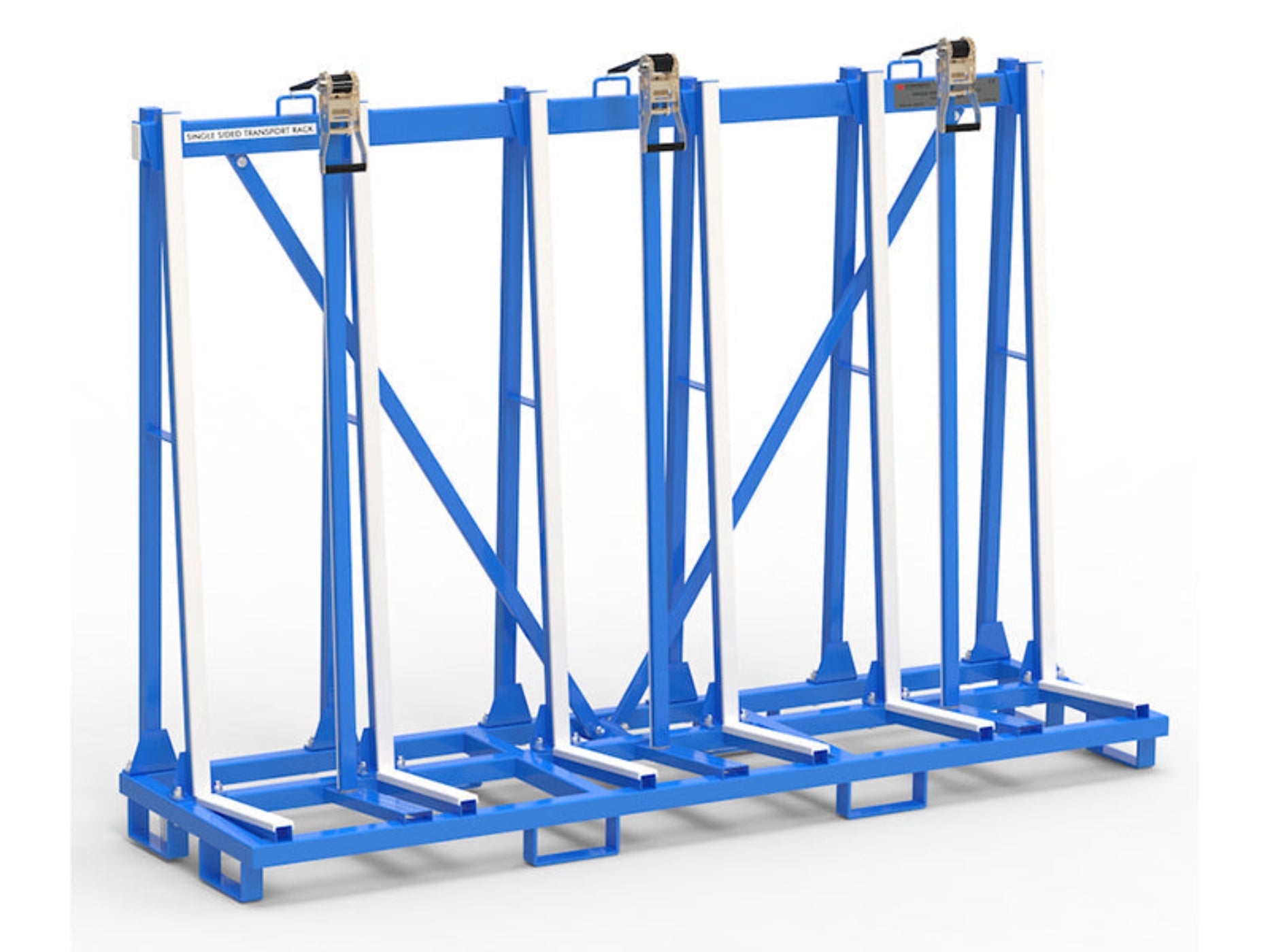

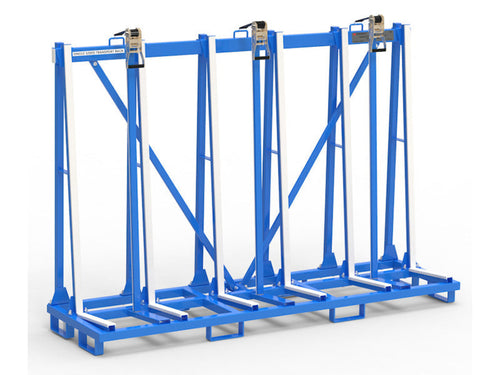

Aardwolf Single Side Transport Rack - SSTR-2440

Aardwolf Single Side Transport Rack - SSTR-2440

Features

• Heavy-duty construction is fabricated with 40mm (1.57”) square steel tubing.  Stronger than competitive models.
• Rubber strips mounted on the bottom and back support to protect materials from damage and no marks.
• Uprights mount in slotted holes for full-depth adjustments.
• Quick-release straps.
• Heavy-duty powder-coated finish.
• Ships are knocked down and the top A-frame assembly is one piece bolted to the frame to save on freight costs.

What our Experts Think

Q&A

Q: What is the Aardwolf Single Side Transport Rack – SSTR-2440 used for?
A: The SSTR-2440 is a heavy-duty rack designed for safe transport and storage of stone slabs, glass, and flat fabricated materials in workshops, warehouses, and job sites.

Q: What is the load capacity of the SSTR-2440?
A: It supports up to 2,500 kg (5,511 lb) working load capacity for heavy industrial use.

Q: What materials is it made from?
A: It is built from 40 mm square heavy-duty steel tubing with a durable powder-coated finish for long-term corrosion resistance.

Q: Does it protect materials during transport?
A: Yes, it features rubber-padded base and back supports plus straps to prevent scratching, chipping, or surface damage.

Q: What are its key dimensions?
A: The storage base width is about 388 mm per side, with a total length of 2440 mm configuration.

Q: Is the rack adjustable or easy to assemble?
A: Yes, uprights mount in slotted holes for adjustment, and it is shipped flat-packed with a bolt-on A-frame for quick assembly.

Maintenance Tips

• Clean after every use: Remove dust, stone debris, and slurry from the frame, especially around base supports and strap points.
• Inspect structure regularly: Check 40mm steel tubing, welds, and uprights for bends, cracks, or loosened bolts.
• Check rubber protection strips: Ensure rubber pads on base/back supports are intact to prevent slab damage and replace if worn.
• Tighten hardware: Periodically re-tighten bolts, slotted uprights, and frame connections after heavy loads or transport.
• Lubricate moving parts: Lightly lubricate adjustment points and moving fittings (avoid contaminating rubber contact areas).
• Inspect straps & ratchets: Replace any frayed, weakened, or slipping quick-release straps immediately.
• Protect coating: Maintain powder-coated finish by avoiding impacts and touching up scratches to prevent corrosion.
• Proper storage: Store on level ground in a dry, ventilated area to avoid rust and frame distortion.
