Aardwolf Swiftlift - ASVL-380

Aardwolf Swiftlift - ASVL-380

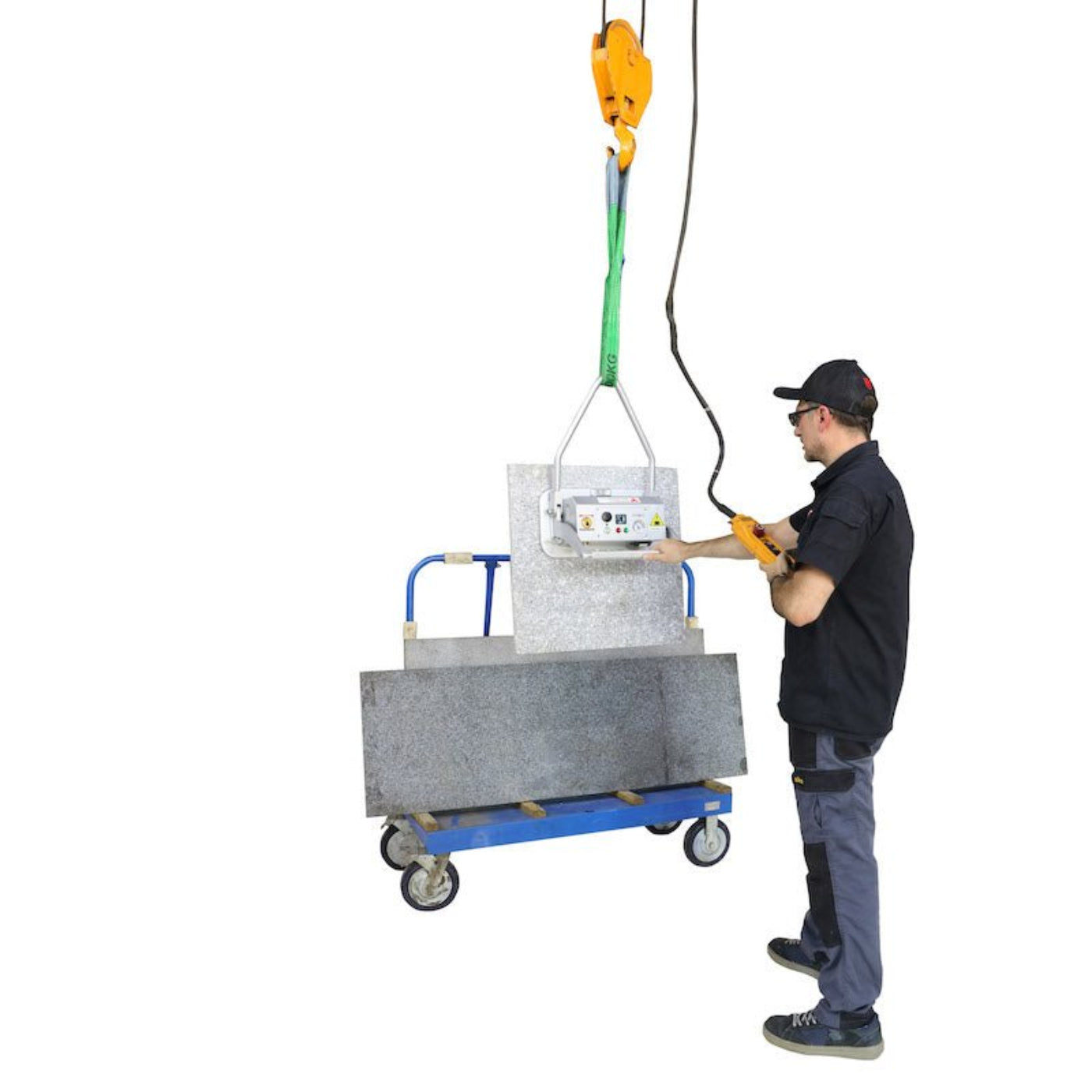

The operator is able to pick up workpieces from a horizontal position and easily change the load to a vertical position and place the workpiece onto a transport frame.

Powered by a clip-in 12V battery with energy-saving system allows you to work without recharging throughout the day. Clip-in battery can be replaced in a matter of seconds.

Features

• Powered by a 12V clip-in battery.
• Vacuum generated by high performance vacuum pump.
• Features both audio and visual alarm.
• Foam vacuum gasket suit smooth, flamed, and bush-hammered surfaces.

• Working load limit: Max 380 Kgs (depends on vacuum pad dimensions).

What our Experts Think

• Compact Bridge-Saw Workflow Tool: The Aardwolf Swiftlift ASVL-380 is designed for efficiently unloading cut stone slabs directly from bridge saw tables, helping streamline fabrication workflows and reduce manual handling.
• Strong Yet Lightweight Capacity: Despite its compact build, it delivers up to 380 kg (838 lb) working load capacity, making it suitable for medium-weight stone handling tasks in busy workshops.
• Battery-Powered Portability: Runs on a 12V clip-in rechargeable battery system with quick swap capability, allowing continuous operation throughout the day without downtime.
• Dual Safety Monitoring System: Equipped with audio and visual alarms plus vacuum reservoir backup, ensuring safe lifting even during temporary pressure fluctuations.
• Fast Vertical-to-Horizontal Handling: Designed to lift slabs from horizontal surfaces and rotate them smoothly into vertical positions for transport and installation.
• Surface Versatility: Foam gasket pads allow secure grip on smooth, flamed, and bush-hammered stone finishes, improving usability across different material types.

Q&A

Q: What is the Aardwolf Swiftlift ASVL-380?
A: The ASVL-380 is a compact, battery-powered vacuum lifter designed for unloading and handling cut stone pieces directly from bridge saw tables and moving them safely onto transport frames or racks.

Q: What is its lifting capacity?
A: It has a maximum working load limit of up to 380 kg (838 lb) depending on vacuum pad size and material conditions.

Q: What materials can it lift?
A: It is suitable for polished granite, marble, engineered stone, and other slab materials, including flamed and bush-hammered finishes using foam gasket pads.

Q: How is the ASVL-380 powered?
A: It runs on a 12V clip-in rechargeable battery system, allowing quick battery swaps for continuous operation throughout the workday.

Q: What are the key features?
A: Key features include a high-performance vacuum pump, audio-visual alarm system, energy-saving control, and foam vacuum gaskets for strong grip on rough and smooth surfaces.

Q: What is included with the unit?
A: It typically comes with 2 batteries, 1 charger, and 2 vacuum pads, enabling extended field use with minimal downtime.

Q: Why choose the Swiftlift ASVL-380?
A: It improves safety, reduces manual handling, and speeds up slab unloading and placement, making it ideal for stone fabrication shops and CNC bridge saw operations.

Maintenance Tips

• Inspect vacuum pads before each use for wear, cracks, contamination, or loss of elasticity that can reduce grip strength.
• Clean pads and sealing surfaces after every job to remove dust, slurry, oil, and stone residue for consistent suction performance.
• Check vacuum hoses, fittings, and seals regularly for leaks, loose connections, or damage.
• Test the vacuum gauge and audio/visual alarm system before operation to confirm safe vacuum levels.
• Ensure the 12V clip-in batteries are fully charged, properly seated, and stored in a cool, dry environment.
• Inspect the foam gasket and replace it if torn, hardened, or worn to maintain proper sealing on rough and flamed surfaces.
• Check the vacuum pump and reservoir (1L) for stable pressure retention and signs of leakage.
• Verify lifting frame, rotation/tilt mechanism, and hook points for wear, deformation, or loose fasteners.
• Keep filters clean and free from dust buildup to prevent reduced suction efficiency.
• Never exceed the rated working load capacity (up to 380 kg depending on pad size and orientation).
• Store the unit in a dry, protected area away from moisture, extreme heat, and chemicals.
