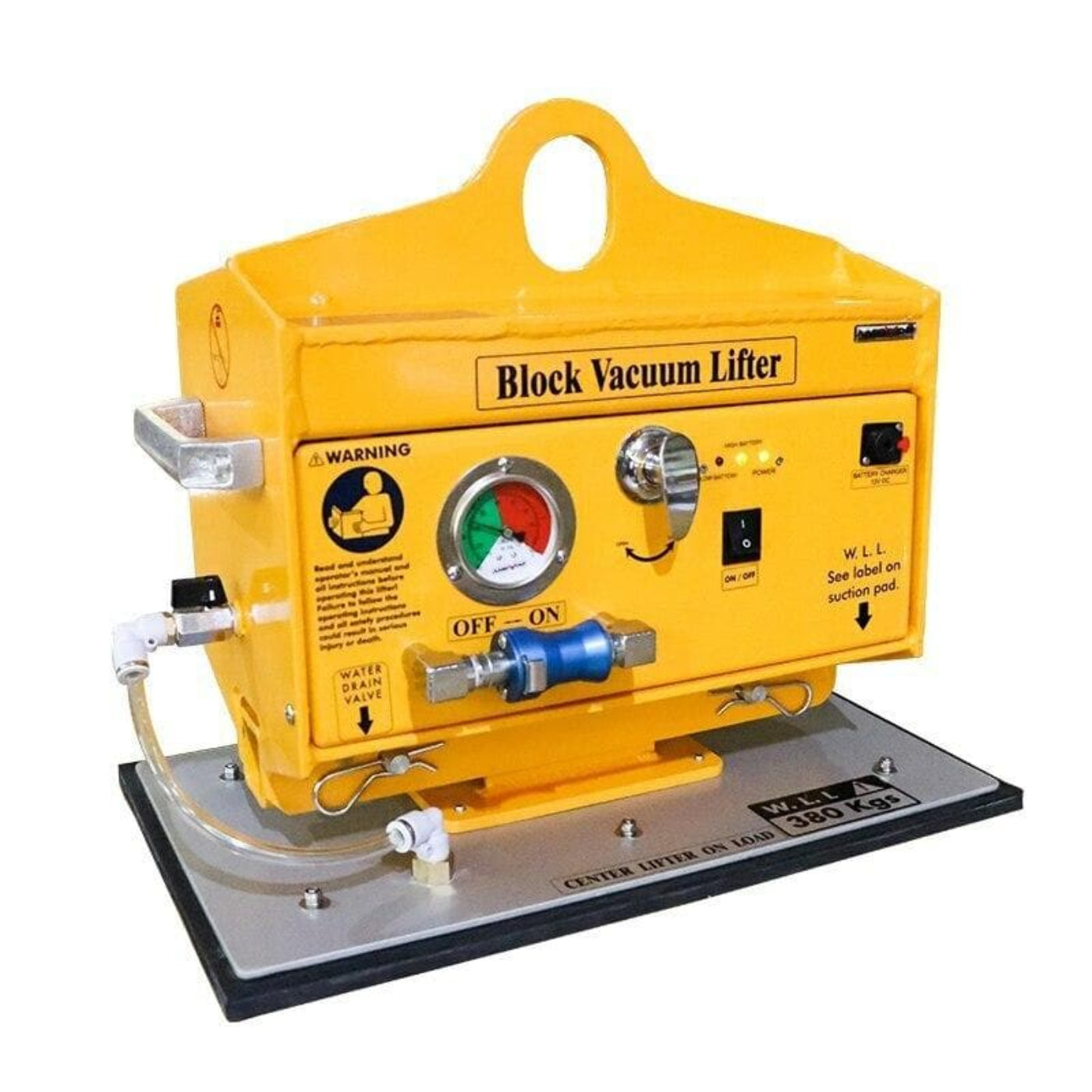

Aardwolf Vacuum Block Lifter 380kg - AVBL380

Aardwolf Vacuum Block Lifter 380kg - AVBL380

The fully loaded frame can easily be moved around the floors on different levels of construction sites.

Features

• Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.
• Load bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.
• It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.
• Has four lifting points at the corner of frame base for lifting loaded frames on and off trucks and onto building sites.
• Handles are located at the end of "A" frames.
• Wheels with brakes to ensure safety in operation.
• Four locking bars per frame mounted in slotted holes on the bottom.
• Powder-coated finish ensures an aesthetic feature as well as the durability of the product.

What our Experts Think

Q&A

Q1: What is the AVBL380 used for?
A: It is designed to lift and move heavy stone blocks, concrete blocks, and slabs safely using a vacuum suction system for cranes and lifting equipment.

Q2: What is the load capacity?
A: It can lift up to 380 kg (depending on suction pad size and material surface).

Q3: How does it operate?
A: It uses a battery-powered vacuum pump system that creates suction and automatically maintains pressure during lifting.

Q4: What materials can it handle?
A: Suitable for concrete blocks, granite, marble, and other stone slabs, including smooth and slightly rough surfaces.

Q5: What power system does it use?
A: It runs on a rechargeable 12V–24Ah battery with an integrated vacuum pump system.

Q6: What safety features are included?
A: It includes audio/visual alarms, vacuum pressure monitoring, and automatic pump control for safe operation.

Q7: Can it be used with cranes?
A: Yes, it is designed to connect easily to cranes, hoists, and lifting hooks for industrial use.

Q8: How long does the battery last?
A: Typical operating time is up to around 5 hours of continuous use, depending on load and conditions.

Maintenance Tips

• Clean vacuum pads regularly: Remove dust, sand, and stone residue to ensure a strong, airtight seal.
• Inspect rubber seals: Check suction pads and gaskets for cracks, wear, or deformation; replace if suction weakens.
• Check vacuum filter: Clean or replace filters frequently to maintain consistent airflow and suction power.
• Inspect vacuum hose & fittings: Ensure there are no leaks, cracks, or loose connections affecting pressure.
• Test vacuum gauge: Verify pressure levels before each use to ensure safe lifting capacity (380kg rated).
• Check pump system: Ensure vacuum pump runs smoothly without unusual noise or overheating.
• Drain moisture if applicable: Prevent internal corrosion by removing trapped moisture from the system.
• Inspect control valves & switches: Ensure quick response and proper sealing during operation.
• Store in dry, dust-free area: Protect components from moisture and contamination when not in use.
• Avoid overloading: Never exceed rated capacity to maintain safety and prevent system failure.
