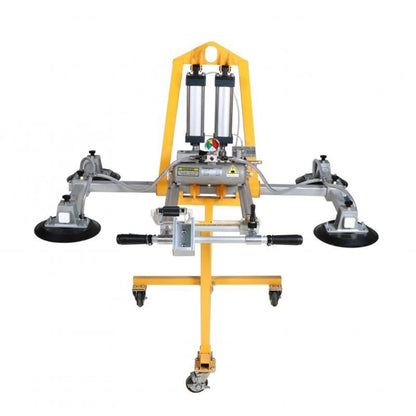

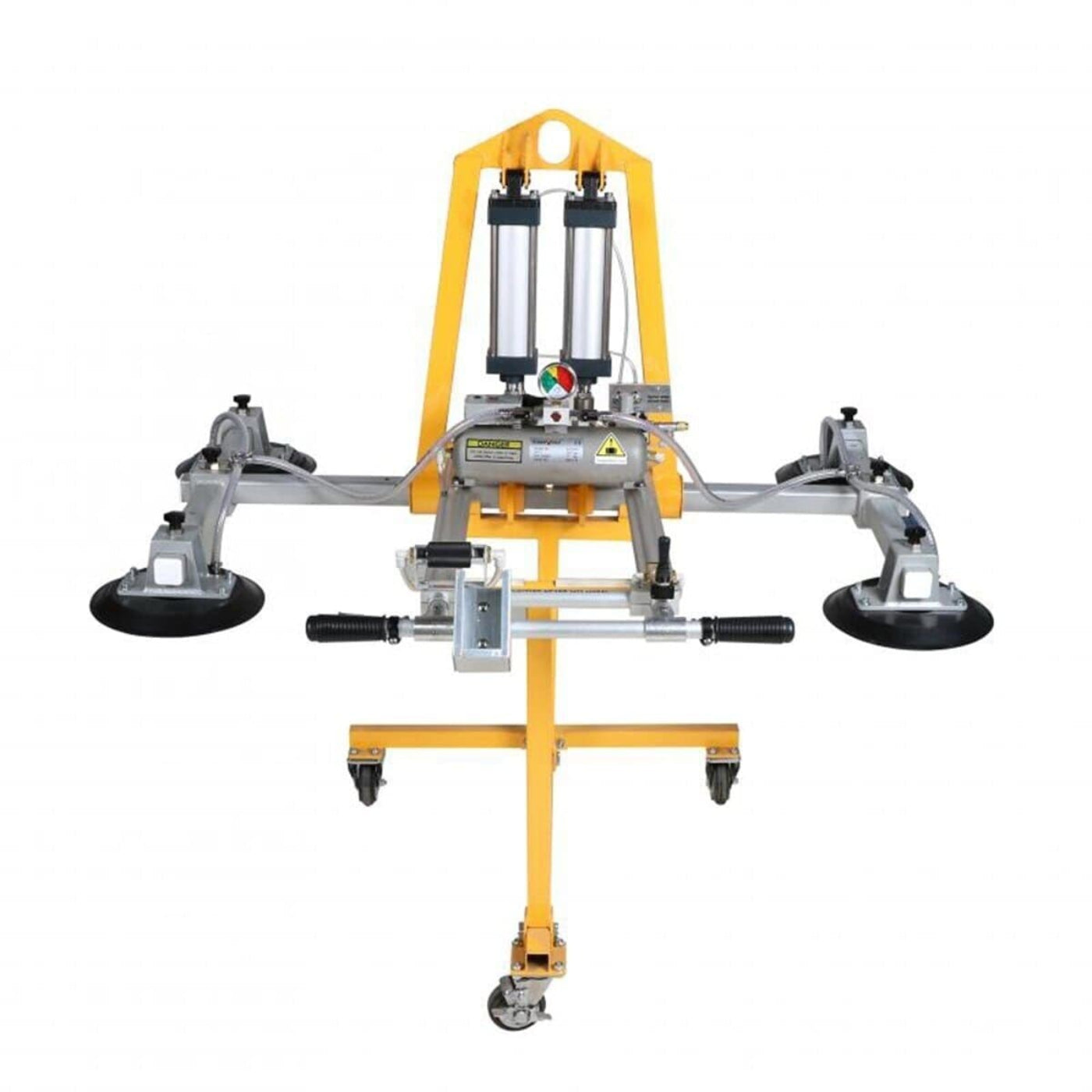

Aardwolf Vacuum Glass Lifter 400kg - AVGLP4-400

Aardwolf Vacuum Glass Lifter 400kg - AVGLP4-400

Pneumatically powered, the Vacuum Glass Lifter AVGLP4 is able to lift glass panels, even panels with a rough surface with a weight of up to 400kg. It features a rugged construction with the added ability to lift and tilt the panel materials.

Pneumatically powered, the Vacuum Glass Lifter is able to lift glass panels, even panels with a rough surface with a weight of up to 400kg. It features a rugged construction with the added ability to lift and tilt the panel materials.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90°.
• A stainless steel vacuum tank ensures safety in the event of an unexpected power outage.
• Automatic vacuum pumping if vacuum loss occurs.
• Acoustic and visual alarm system.
• Attach/release material with an ON/OFF slide valve.

What our Experts Think

• Reliable 4-pad pneumatic vacuum lifter, the Aardwolf AVGLP4-400 is engineered for safe lifting, tilting, and positioning of glass, granite, marble, and other non-porous panels in fabrication and installation environments.
• Strong dual-mode capacity, supporting up to 400 kg horizontal lifting and 200 kg vertical lifting, making it ideal for controlled slab handling during installation.
• 0–90° pneumatic tilting system enables smooth transition between vertical and horizontal positions, improving precision and reducing manual strain on installers.
• 4 large suction pads (~280 mm seal-to-seal) ensure stable grip and even load distribution across wide surface panels.
• Built-in safety architecture, including vacuum tank backup, automatic vacuum recovery, and audio-visual alarms, helps maintain load security even in pressure loss situations.
• Compressed-air powered operation (≈5 bar requirement) provides consistent suction performance for demanding site conditions.
• Rugged steel construction (~79 kg unit weight) balances durability with practical mobility for workshop and on-site use.

Q&A

Q: What is the Aardwolf Vacuum Glass Lifter 400kg (AVGLP4-400) used for?
A: The AVGLP4-400 is a pneumatic vacuum lifting system designed for safely lifting, transporting, and installing glass panels and other non-porous sheets such as stone or porcelain in workshops and construction sites.

Q: What is the load capacity of the AVGLP4-400?
A: It has a working load limit of 400 kg in horizontal use and up to 200 kg in vertical lifting, depending on orientation.

Q: How does the AVGLP4-400 operate?
A: It is powered by compressed air and uses a vacuum pad system to grip materials securely, with automatic vacuum recovery if pressure drops.

Q: Can the AVGLP4-400 tilt materials?
A: Yes. It features pneumatic tilting from 0° to 90°, allowing controlled movement between horizontal and vertical positions.

Q: How many suction pads does it have?
A: The system is equipped with 4 vacuum pads (about 280–300 mm seal-to-seal diameter) for stable lifting and balanced load distribution.

Q: What safety features are included?
A: It includes a vacuum tank for backup grip, automatic vacuum pumping in case of loss, and visual/audible alarms for operator safety.

Q: What materials can it handle?
A: It is suitable for glass panels and other smooth or lightly textured non-porous materials used in fabrication and architectural installation.

Maintenance Tips

• Inspect vacuum pads before each use for cracks, wear, hardening, or reduced sealing performance.
• Clean suction pads after every operation to remove dust, glass residue, and moisture.
• Check vacuum pump, hoses, seals, and fittings for leaks or pressure loss before lifting.
• Ensure vacuum gauge/indicator reaches and maintains the correct holding pressure.
• Verify battery (if equipped) is fully charged and electrical connections are clean and secure.
• Test alarms and safety systems regularly to confirm proper vacuum monitoring and warning response.
• Lubricate tilt, rotation, and moving joints periodically with light machine oil (keep off pads).
• Never exceed the rated 400 kg lifting capacity and ensure glass is clean, dry, and non-porous.
• Inspect frame, lifting hook, and swivel points for cracks, deformation, or wear.
• Store in a dry, dust-free environment away from direct sunlight to protect rubber and electronics.
• Remove from service immediately if vacuum loss, sensor failure, or structural damage is detected.
