Accucold- 4 Cu.Ft. Vaccine Freezer, ADA Height - AFZ5PVBIADADL2B
Accucold- 4 Cu.Ft. Vaccine Freezer, ADA Height - AFZ5PVBIADADL2B
Couldn't load pickup availability
Accucold- 4 Cu.Ft. Vaccine Freezer, ADA Height - AFZ5PVBIADADL2B
Accucold- 4 Cu.Ft. Vaccine Freezer, ADA Height - AFZ5PVBIADADL2B

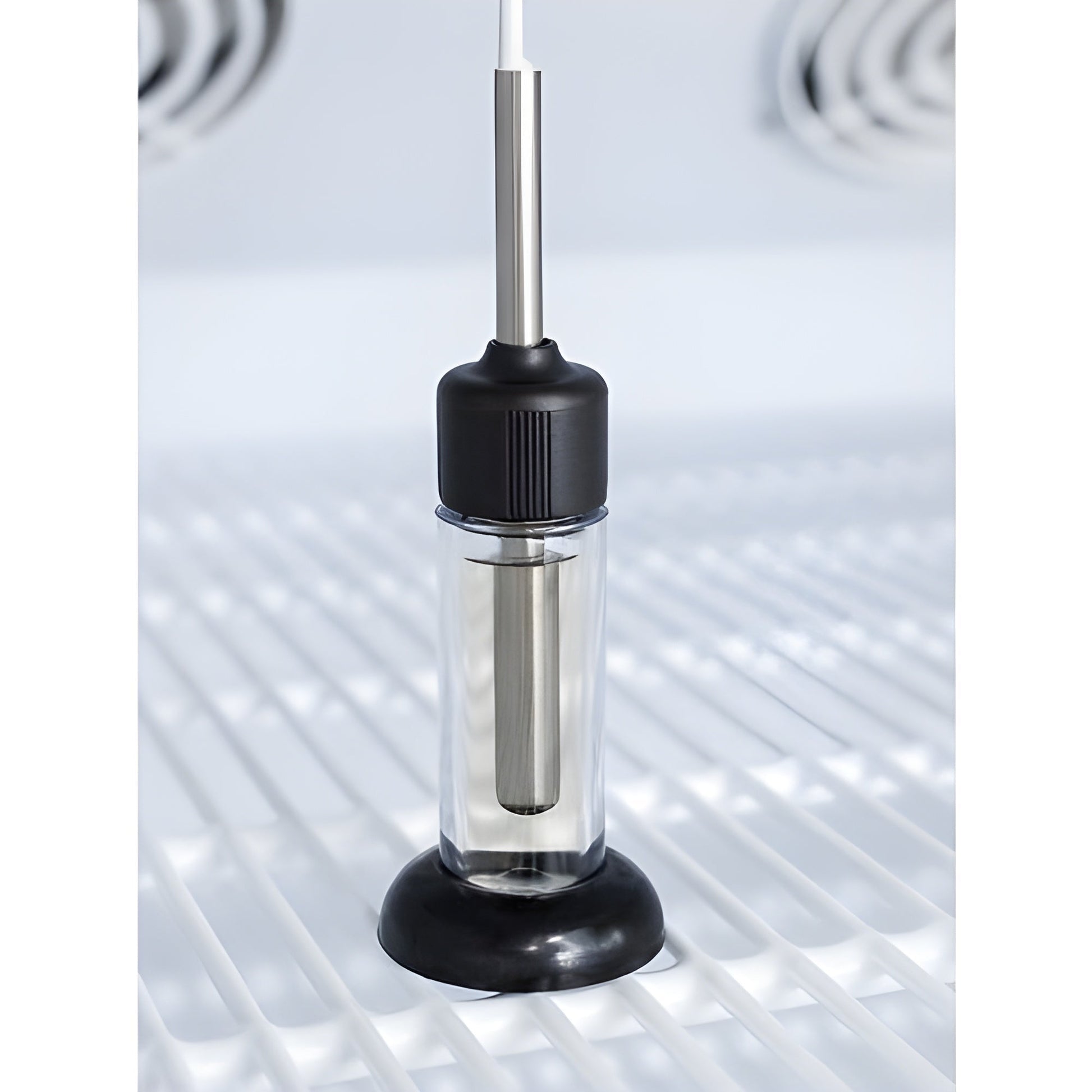

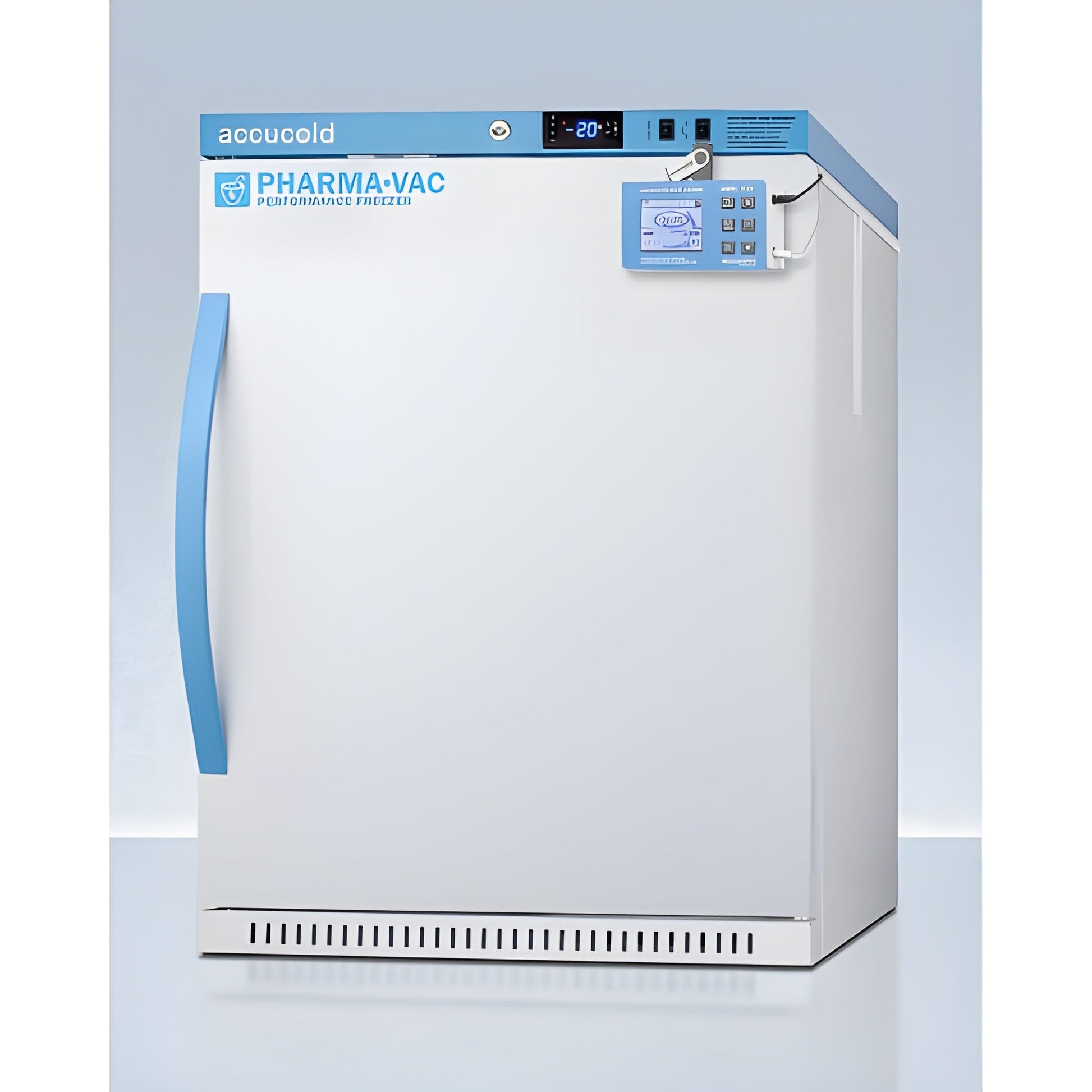

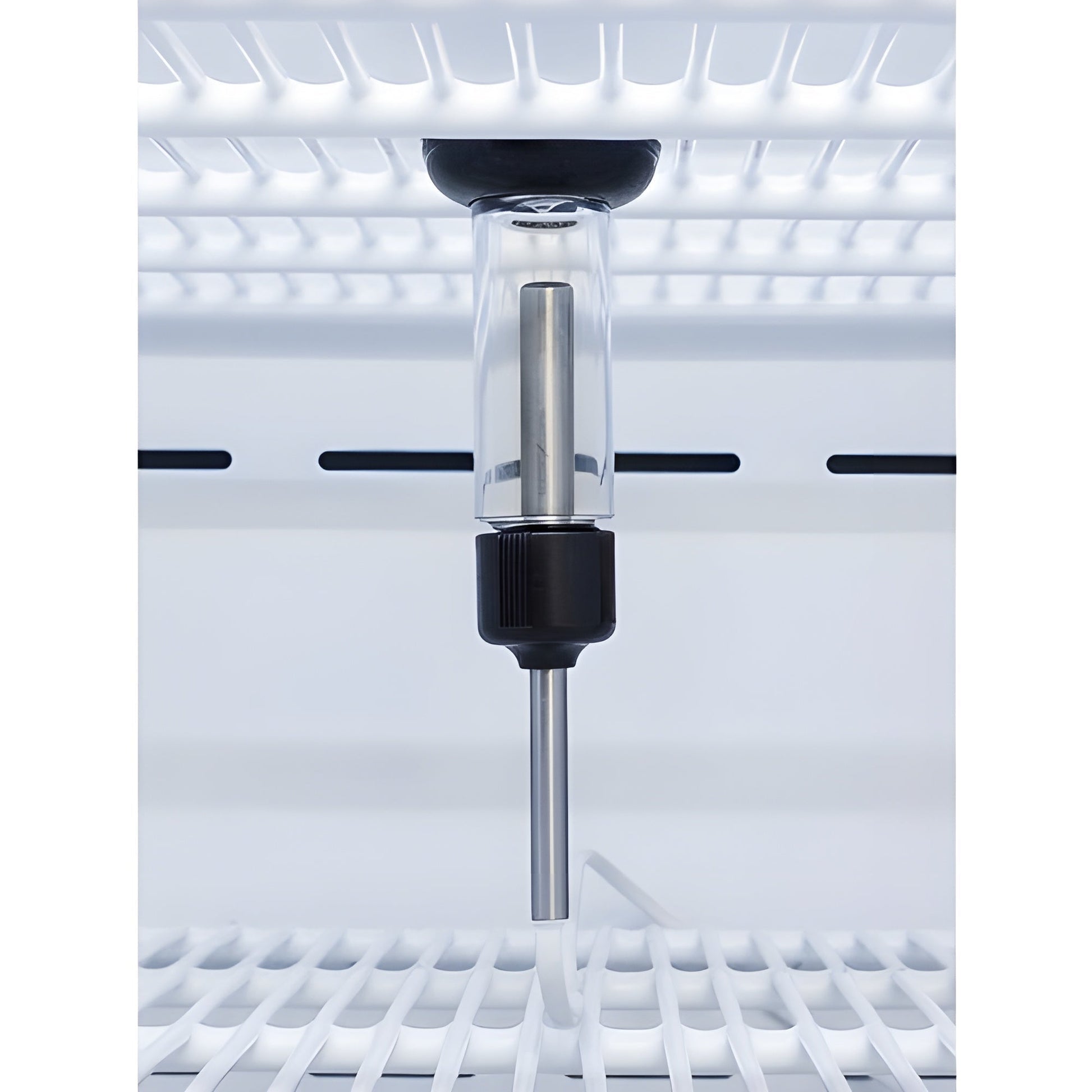

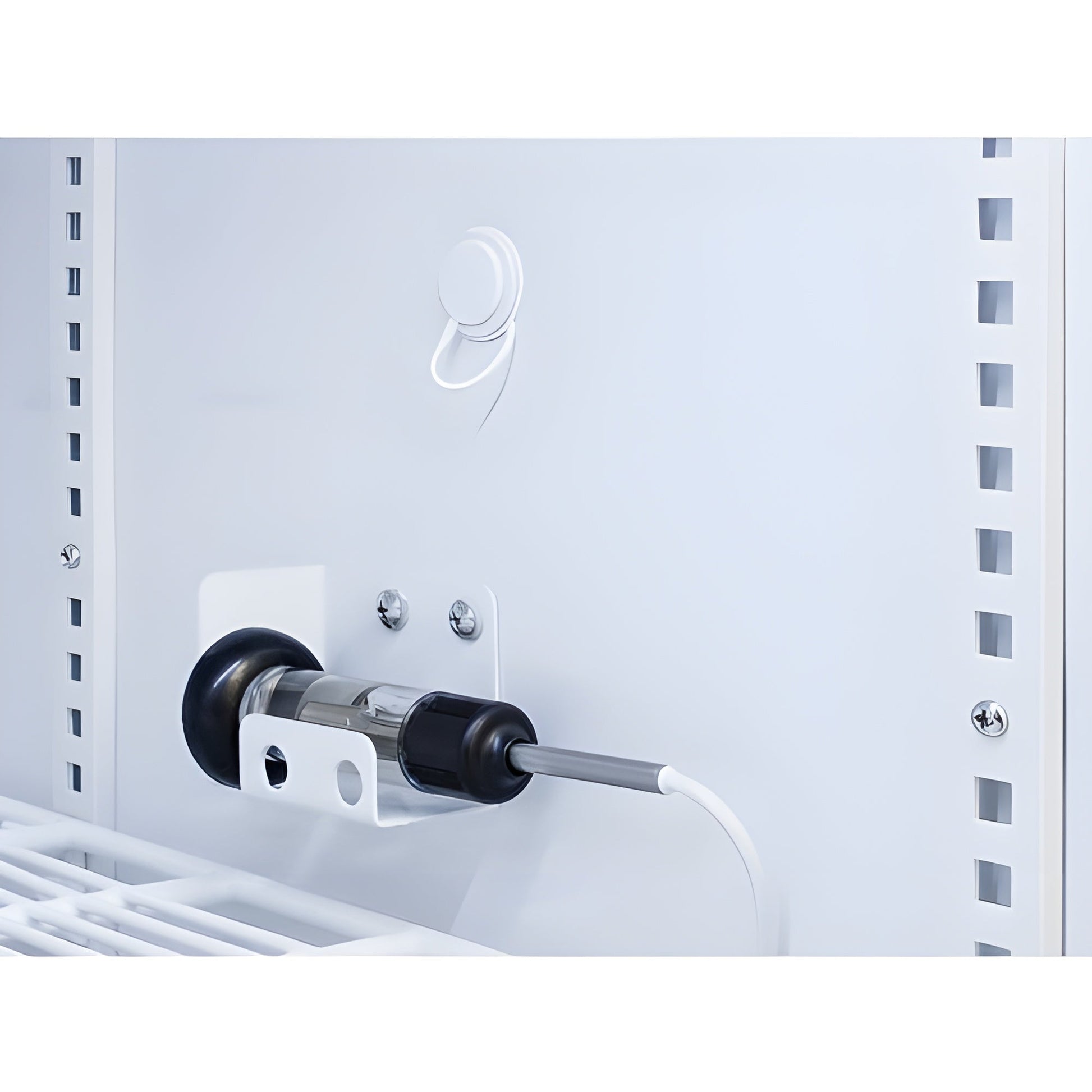

AFZ5PVBIADADL2B All-Freezer for Vaccine StorageThe AFZ5PVBIADADL2B is a 3.88 cu.ft. all-freezer designed for vaccines and pharmaceuticals, with a temperature range of -30°C to -10°C. Built for freestanding or recessed installation, it fits under lower counters per ADA guidelines. An externally located microprocessor temperature controller reduces door openings, while a buffered temperature probe in glycol ensures precise readings. The unit features a min/max temperature display in Celsius or Fahrenheit, plus alarms for power failure, door open, and sensor issues. Remote alarm contacts and a 1/2" probe port allow additional monitoring. A DL2B digital data logger records up to 32,000 data groups, viewable via USB or PC. The antimicrobial handle with silver ions helps maintain cleanliness. The self-closing door includes a factory-installed lock with two keys for security, and strong magnetic gaskets ensure a tight seal.
Features
Performance & Temperature Control:
- Purpose-Built Design: Engineered for pharmacy, medication, and vaccine storage, meeting CDC/VFC guidelines.
- Adjustable Temperature: Set interior temperatures between -30°C to -10ºC with intuitive controls.
- +/-1ºC Variation: Ensures minimal temperature fluctuations for precise storage conditions.
- Manual Defrost Operation: Static cooling system provides efficient and stable performance.
Alarms & Monitoring:
- Digital Data Logger (DDL) Included: NIST calibrated with user-set logging intervals, LCD display, and USB storage.
- Temperature Alarm: Visual and audible alerts if temperatures deviate from the set range.
- Open Door Alarm: Sounds after 4 minutes (adjustable from 1-99 minutes) if the door is left open.
- Power Failure Alarm: Battery-powered alarm signals power interruptions.
- Sensor Failure Alarm: Alerts if the temperature sensor is disrupted.

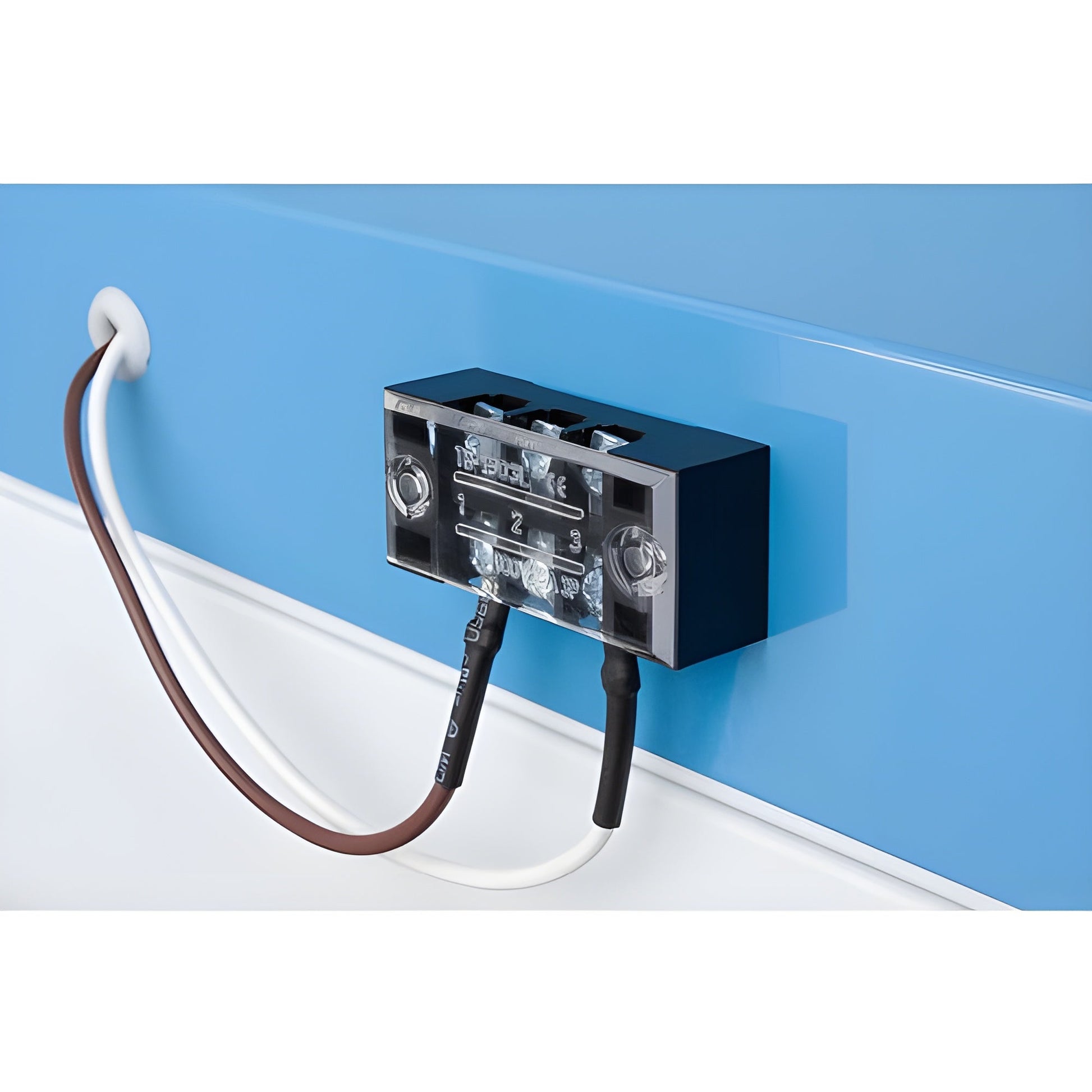

- Remote Alarm Contacts: Volt-free contact allows alarm forwarding to an external system.
- Resettable Min/Max Display: Records and displays low/high temperatures in 15-minute increments.
Security & Control:
- Factory-Installed Lock: Keyed lock for added security (includes 2 keys).
- Password Protection: Restricts parameter adjustments beyond the set point.

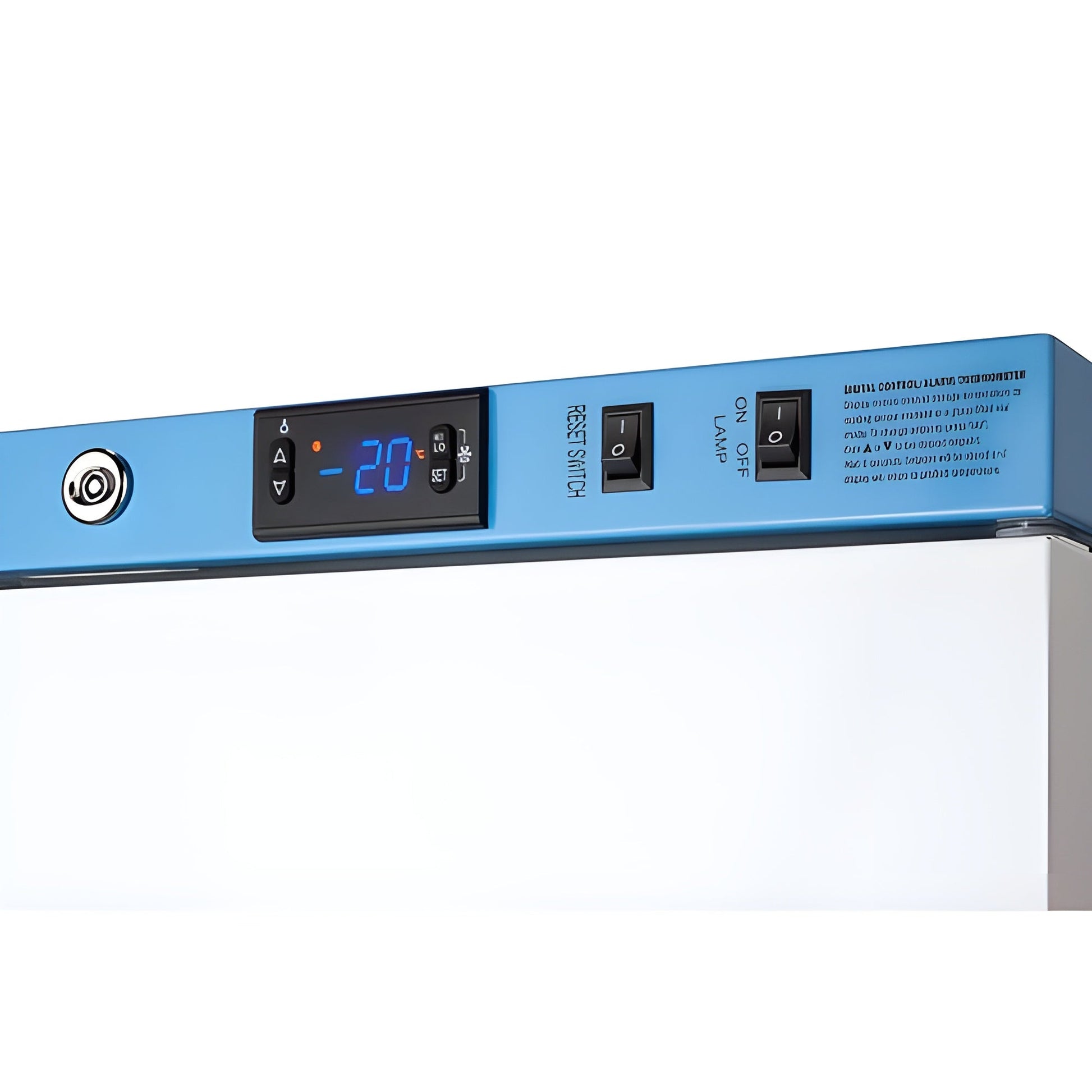

- Microprocessor Control Panel: Digital display with Celsius or Fahrenheit readout.
Construction & Durability:
- ADA Compliant: At just under 32", fits under ADA-compliant counters.
- Recessed or Freestanding Use: Versatile installation options.
- Antimicrobial Silver Ion-Coated Handle: Helps reduce the spread of germs.
- Durable Interior: White powder-coated metal walls for strength and temperature retention.
- Self-Closing Door: Provides added protection in high-traffic settings.
- Magnetic Door Gasket: Ensures a tight seal for energy efficiency.
Storage & Organization:

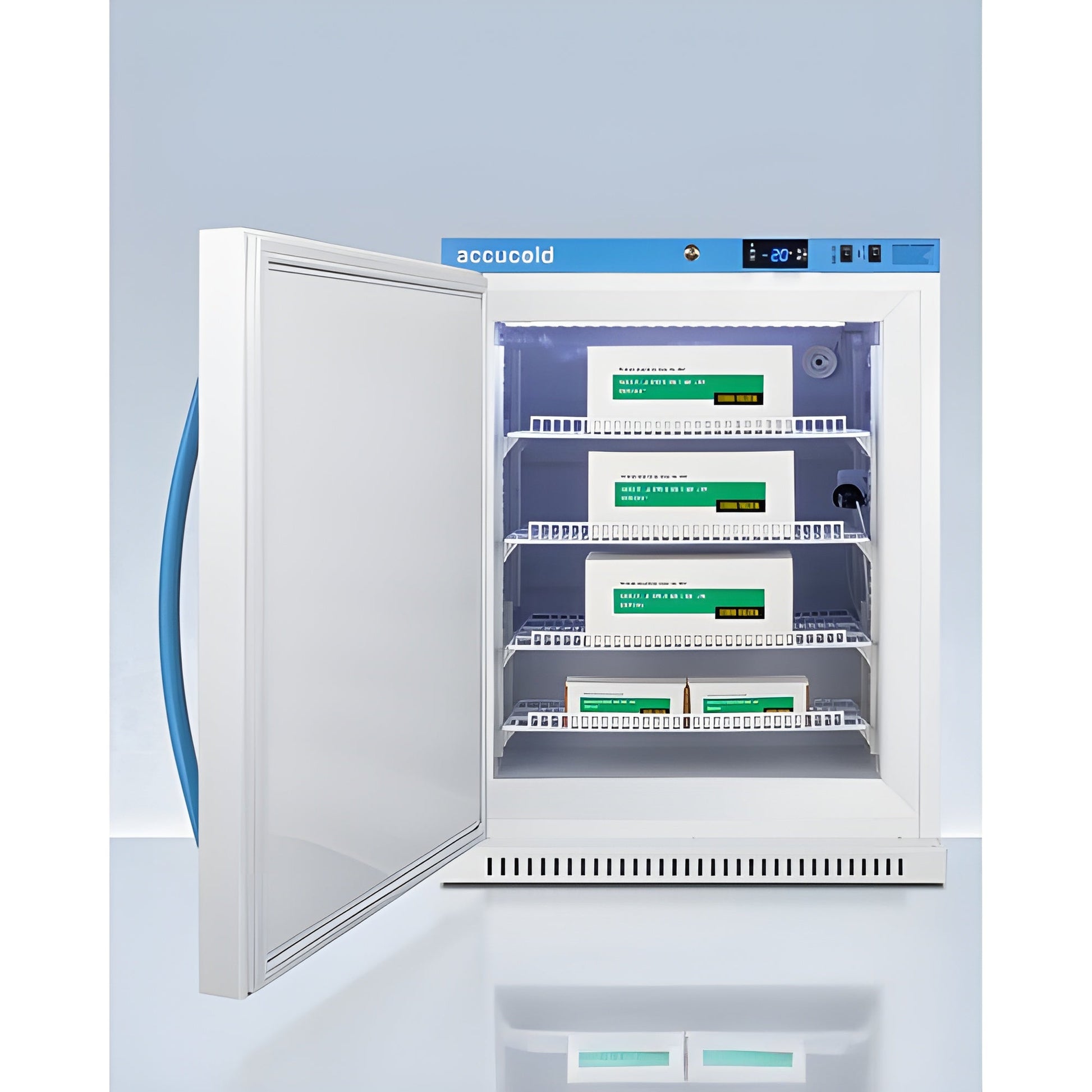

- Adjustable Shelves: Plastic-coated wire shelves can be positioned with a front lip or flat.
- Interior Light: Energy-efficient LED lighting with internal on/off switch.
- Access Port: Pre-installed 1/2" probe hole for monitoring equipment.
Safety & Compliance:
- Hospital-Grade Cord: Secure three-pronged cord with 'green dot' plug.
- Commercial Design: Meets UL-471 commercial refrigeration standards.
- 100% CFC Free: Eco-friendly refrigerant with no ozone-depleting chemicals.
- CARB Compliant: Uses hydrocarbon-based refrigerants to meet current regulations.
- Eco-Friendly: Reduces environmental impact with energy-efficient components.
Additional Features:
- Extended Warranty: 2 years parts & labor / 5 years compressor.
- Usage Stickers: Includes removable warning labels for proper handling.

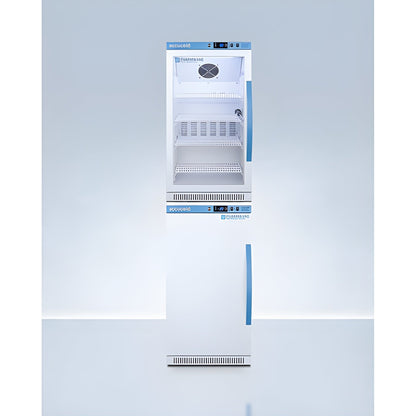

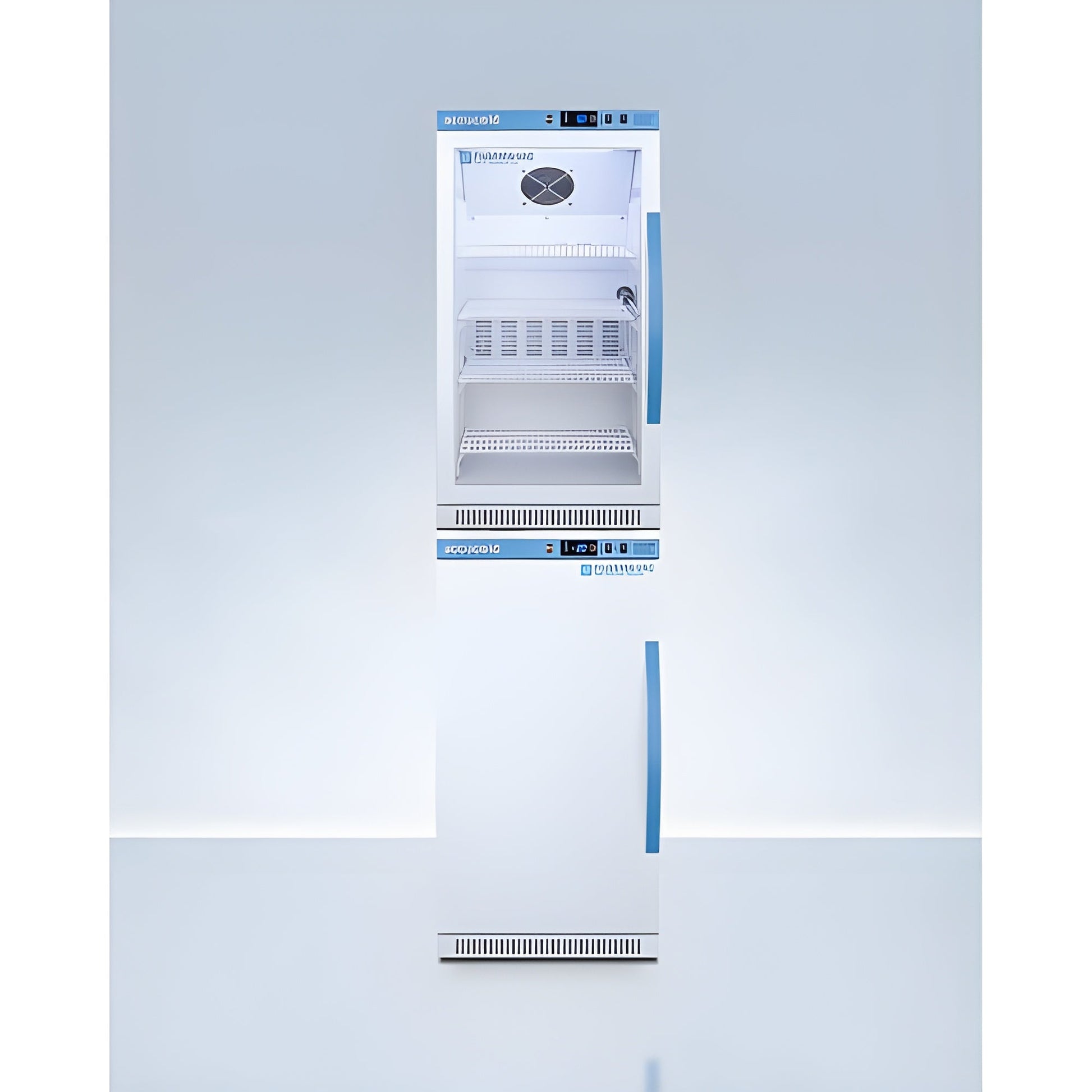

- Matching Refrigerator Available: Can be paired with compatible Accucold units.
- Versatile Compatibility: Works with Pyxis®, Omnicell®, and AcuDose RX® systems.
Manual
What Our Experts Think
- 4 Cu. Ft. capacity designed for compact, reliable vaccine storage.
- ADA-compliant height ensures easy access for all users.
- Precise digital temperature control ensures safe vaccine storage conditions.
- Self-closing, lockable door enhances security and energy efficiency.
- Durable stainless steel construction ensures longevity and ease of maintenance.
Q&A
Q: What is the Accucold AFZ5PVBIADADL2B?
A: A 4 cu. ft. vaccine freezer designed for secure and reliable storage of vaccines and medical materials, with ADA-compliant height for easy accessibility.
Q: What is the temperature range?
A: Maintains a stable freezing temperature, ideal for storing vaccines and other temperature-sensitive medical items.
Q: What is the capacity of this unit?
A: Provides 4 cu. ft. of storage space, offering efficient storage for vaccines in medical facilities.
Q: Is this unit ADA-compliant?
A: Yes, it meets ADA height guidelines for accessibility.
Q: Where can this unit be used?
A: Perfect for hospitals, pharmacies, vaccination centers, and clinics requiring secure vaccine storage.
Q: Does it require special installation?
A: No, it is a freestanding unit that is ready for use and easy to install.
Maintenance Tips
- Clean Regularly – Wipe down the interior and exterior with a soft cloth and mild detergent.
- Defrost When Necessary – Prevent ice buildup to ensure efficient cooling.
- Check Door Seals – Ensure seals are tight to maintain proper temperature.
- Monitor Temperature – Keep the temperature within the recommended range for safe vaccine storage.
- Ensure Unobstructed Airflow – Keep vents clear for efficient performance.
- Inspect Coils – Clean the condenser coils periodically to enhance energy efficiency.
