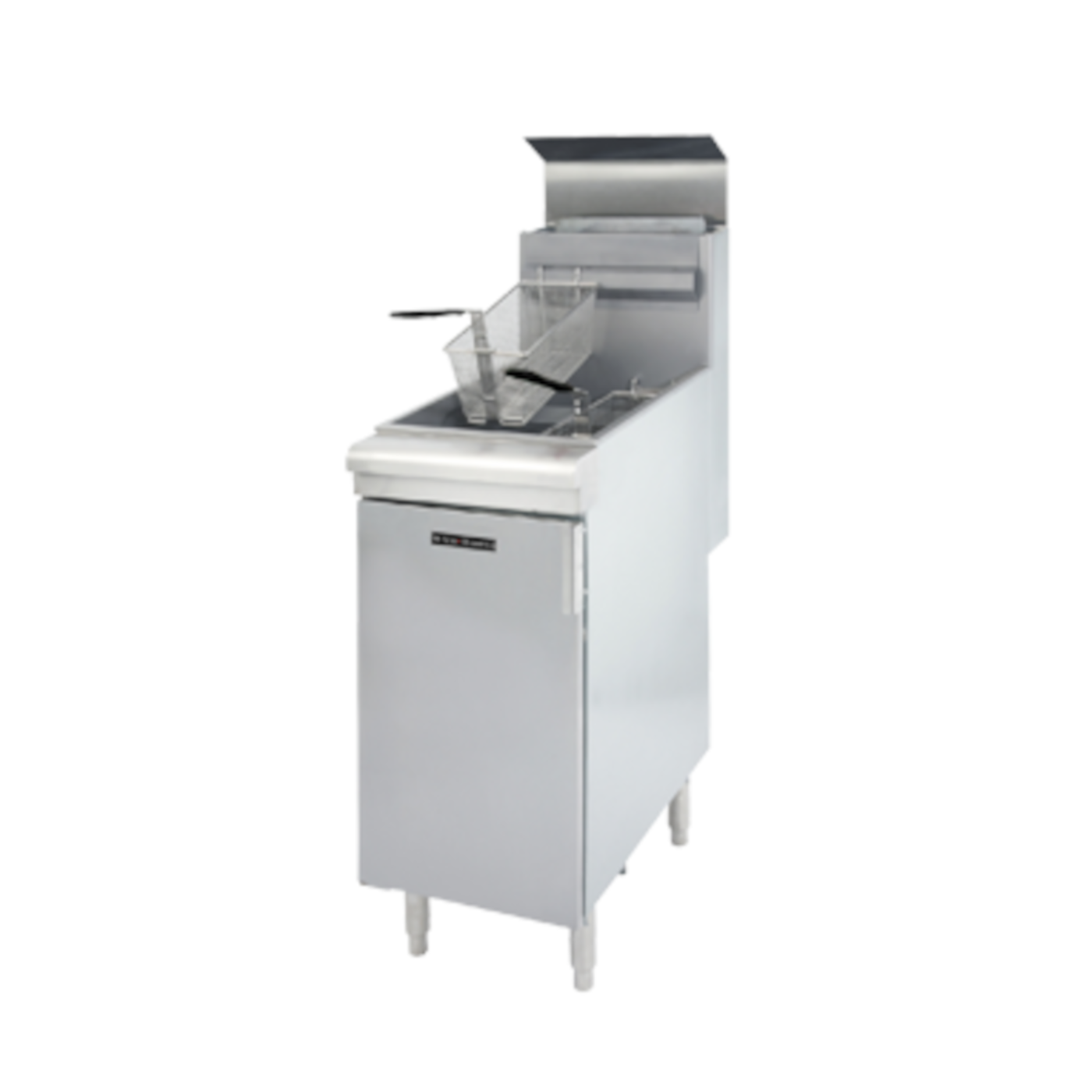

Adcraft BDGF-90/NG Black Diamond 90K Gas Deep Fryer NG -  BDGF-90/NG

90,000 BTU floor standing gas deep fryer is constructed of a 16 gauge stainless steel tank and has a thermostat range of 200° F (93°C) to 400°F (204°C). Long lasting stainless steel baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency. A standing pilot light design provides an instant ignition source when heat is required and an automatic shut off function if the fryer temperature exceeds 450°F (232°C). This fryer comes complete with two nickel plated oblong wire mesh baskets, one nickel plated tube rack, drain extension, built-in heat deflector and 6" adjustable legs. Black Diamond fryers are manufactured with Robert Shaw components that are made in the USA. 35-40 lb oil capacity. Set up for use with Natural Gas (NG). ETL and ETL Sanitation Listed. 1 year warranty on parts and labor and 5 year warranty on stainless steel tank.

Features
  • Welded 16 gauge stainless steel tank with a super smooth machine finish ensures easy cleaning
  • Long lasting baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency
  • Standing pilot light design provides a ready flame when heat is required
  • Cabinet is constructed with a stainless steel front and door with galvanized sides and back
  • Thermostat maintains temperature between 200° (93°C) and 400°F (204°C)
  • Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator and automatic main valve
  • Gas control valve prevents gas flow to the main burner until pilot is established and shuts off gas flow automatically if the pilot flame goes out
  • Temperature limit automatically shuts off all gas flow if the fryer temperature exceeds 450°F (232°C)
  • Includes Robert Shaw components that are made in the USA
  • Standing pilot and thermostat maintain temperature automatically at the selected temperature (between 200°F (93°C) and 400°F (204°C))
  • Front 1-1/4” drain for quick draining
  • Two nickel plated oblong wire mesh baskets
  • One nickel plated tube rack
  • One drain extension
  • Built-in heat deflector
  • 6” adjustable legs
Specifications
Model BDGF-90/NG
Total BTU 90,000 BTU
Shipping Dimensions (in.) 15.5" W x 30.25" D x 53.5" H
Net Weight (lbs) 152 lbs
Gross Weight (lbs) 169 lbs
Oil Capacity 35–40 lbs
    What our Experts Think

    • High Capacity & Efficiency: Boasts a 35–40 lb oil capacity and 90,000 BTU output, ensuring rapid heat recovery and consistent frying performance

    • Durable Construction: Features a welded 16-gauge stainless steel fry tank with a smooth finish, complemented by a stainless steel front and door with galvanized sides and back, designed for easy cleaning and longevity.

    • Advanced Safety Features: Equipped with a standing pilot light for immediate ignition, a high-limit temperature switch that shuts off gas flow if the temperature exceeds 450°F (232°C), and an integrated gas control valve for safe operation.

    • Comprehensive Accessories: Includes two nickel-plated oblong wire mesh baskets, a nickel-plated tube rack, drain extension, built-in heat deflector, and 6" adjustable legs, providing all essentials for efficient frying.

    • Ideal Applications: Perfect for high-volume establishments like restaurants, cafeterias, and fast-food outlets, capable of handling large batches of fried foods such as fries, wings, and fish.

    Q&A

    Q: What is the capacity of the Adcraft BDGF-90/NG Black Diamond 90K Gas Deep Fryer?
    A: The Adcraft BDGF-90/NG has a 90,000 BTU capacity, making it ideal for high-volume frying.

    Q: What type of fuel does the BDGF-90/NG fryer use?
    A: This fryer uses natural gas for efficient and reliable operation.

    Q: Is the BDGF-90/NG suitable for commercial kitchens?
    A: Yes, it is designed for high-demand commercial use, perfect for restaurants and foodservice operations.

    Q: How easy is it to clean the Adcraft BDGF-90/NG fryer?
    A: The fryer is designed with easy-to-clean components, including a removable oil tank and drain valve for quick maintenance.

    Maintenance Tips

    1. Regular Cleaning:
      Wipe the exterior with a damp cloth and mild detergent. Disassemble the faucet and keg coupler to soak them in a beer line cleaner solution.

    2. Beer Line Maintenance:
      Clean beer lines every two weeks or with each keg change by flushing them with a cleaning solution and warm water.

    3. Temperature & Pressure Checks:
      Regularly ensure the dispenser’s temperature is between 33°-38°F and adjust pressure for a smooth pour.

    4. Component Inspection:
      Inspect faucets, keg couplers, and seals for wear; replace as needed to maintain optimal function.

    5. Refrigeration System Care:
      Keep the side-mounted compressor clean and free of debris to ensure efficient cooling.

    6. Storage & Usage:
      Store the dispenser in a cool, dry area and avoid overloading to maintain its performance.
