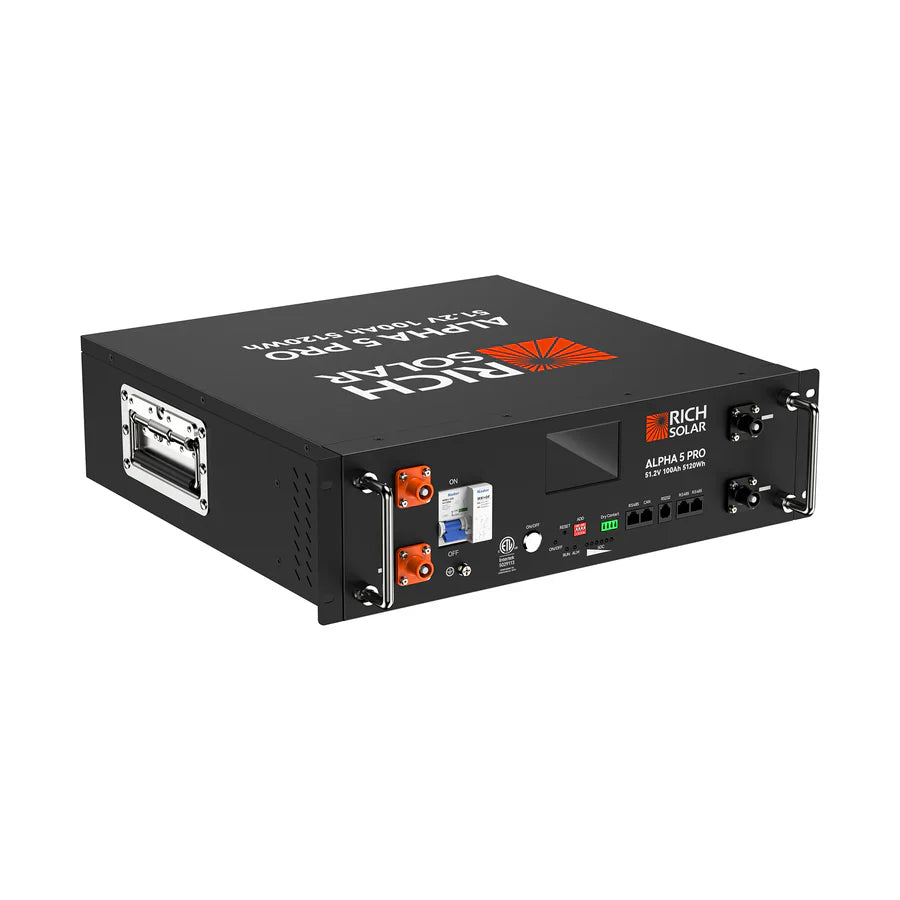

Rich Solar ALPHA 5 PRO Server Rack Battery | 51.2V 100Ah LiFePO4 Battery | 7,000 Lifetime Cycles | 10 Year Warranty | UL1973, UL9540A Certified

The Rich Solar Alpha 5 Pro is a premium 48V 100Ah LiFePO₄ server rack battery engineered for residential, commercial, RV, and off-grid applications. Offering up to 7,000 cycles at 80% depth of discharge and a 10-year warranty, it ensures long-lasting and reliable energy storage.

Key Features:

• High Performance: Delivers 5.12 kWh of energy with a nominal voltage of 51.2V, supporting continuous charge and discharge currents up to 100A.

• Advanced Battery Management System (BMS): Protects against overcharge, over-discharge, over-current, short circuits, and extreme temperatures, ensuring safety and longevity.

• Smart Monitoring: Equipped with a 3.5-inch touchscreen for real-time monitoring and supports remote monitoring via PC software.

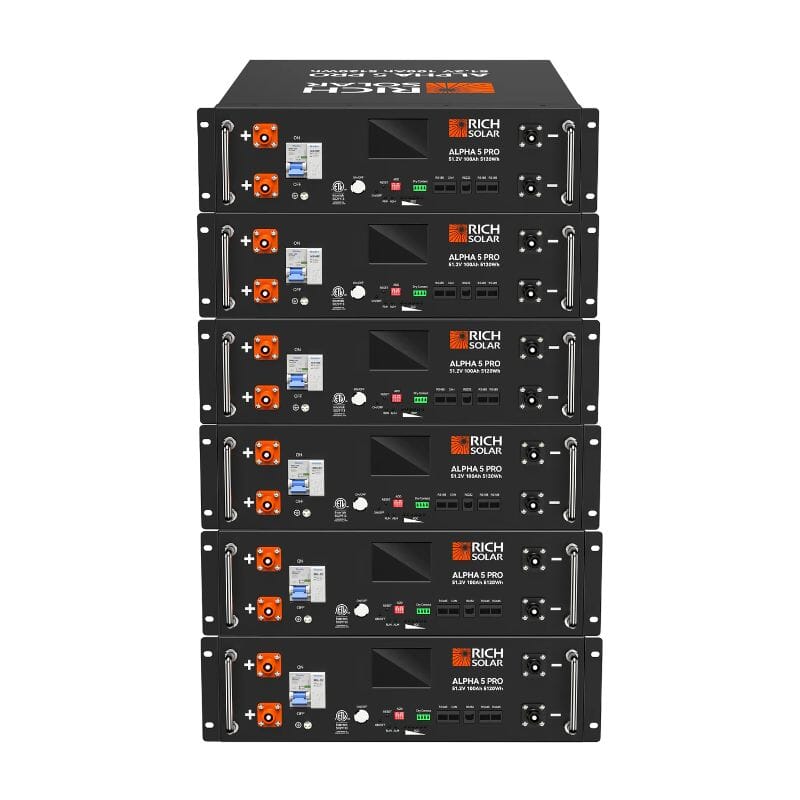

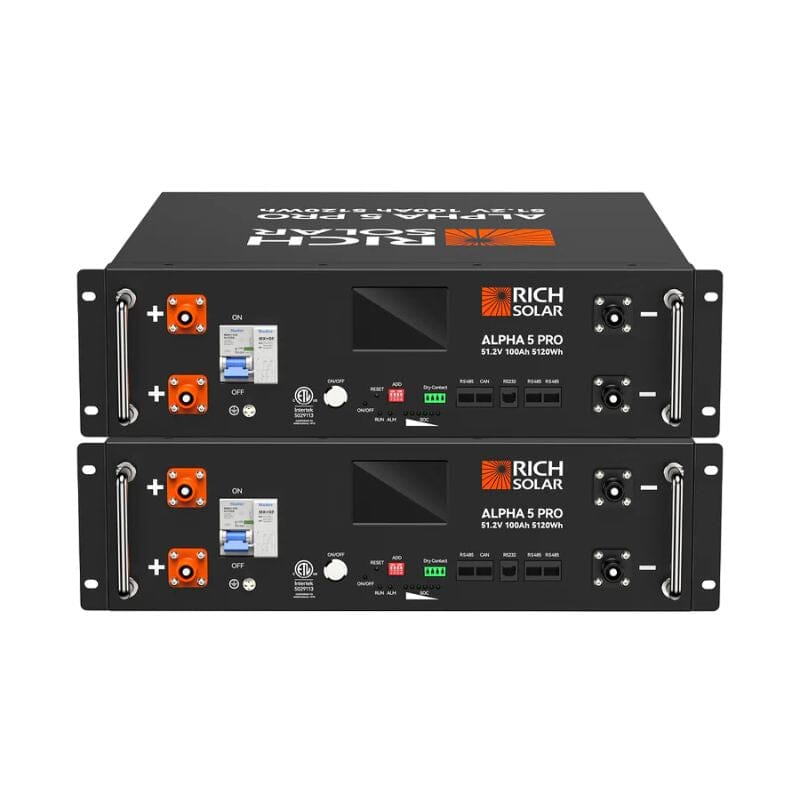

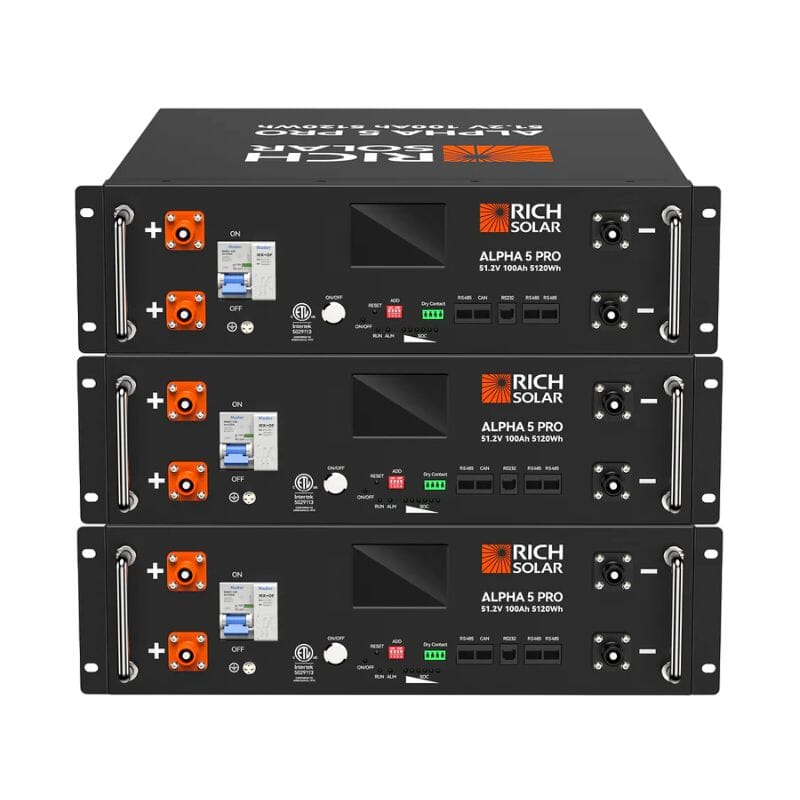

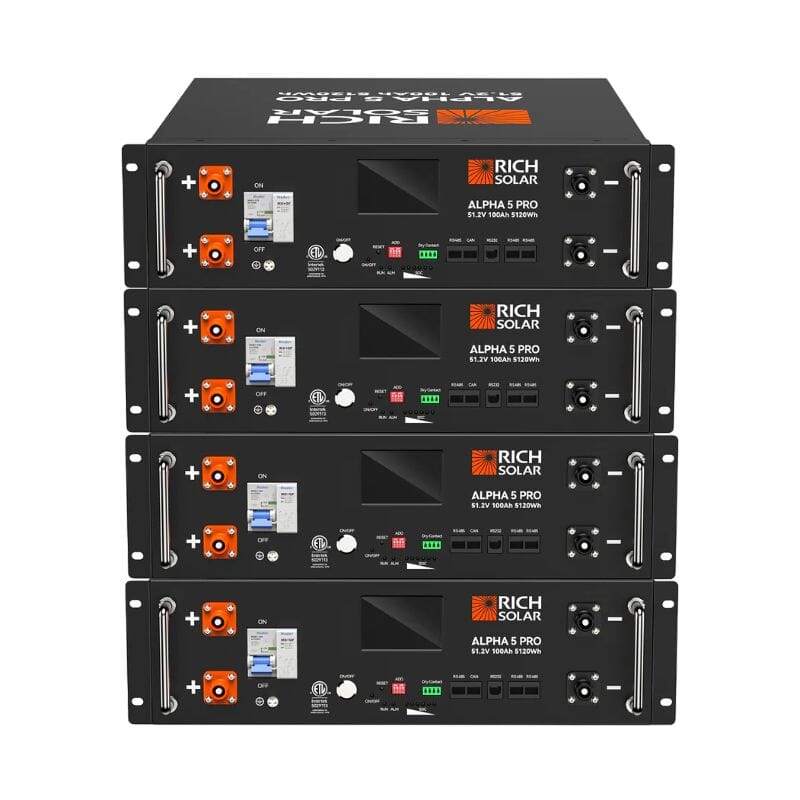

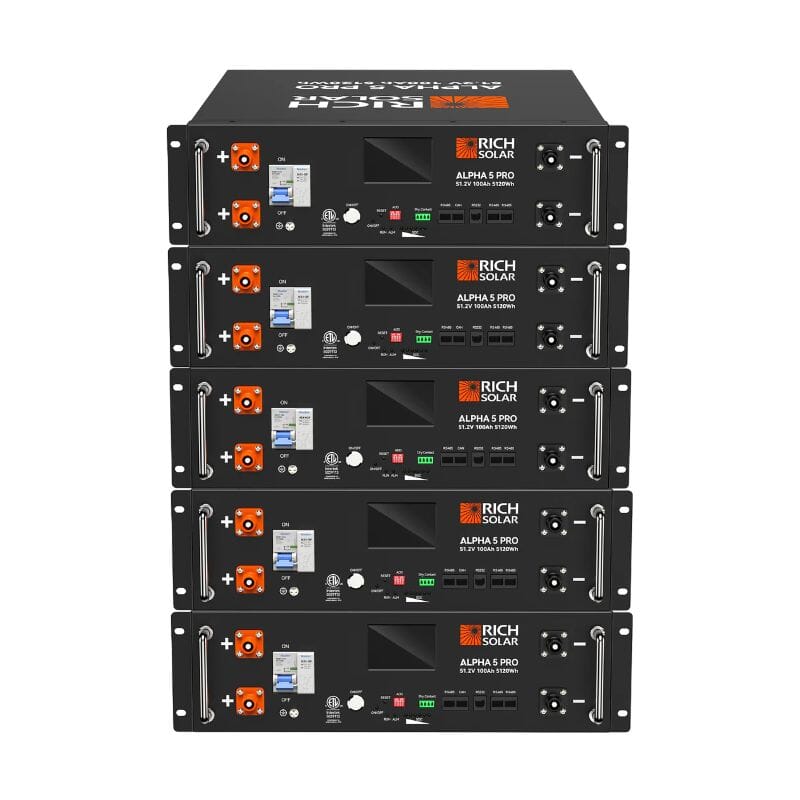

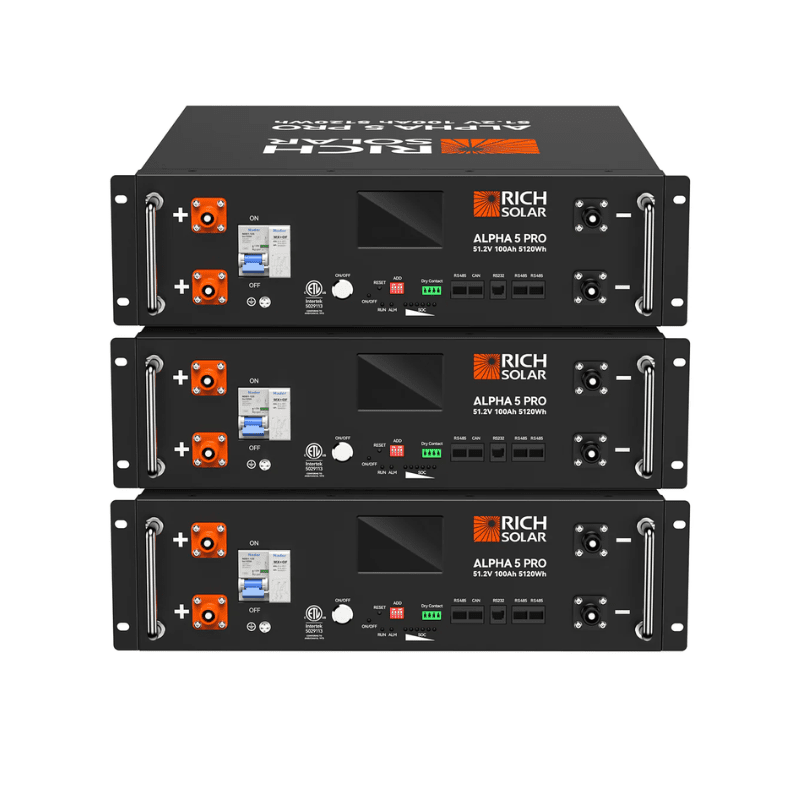

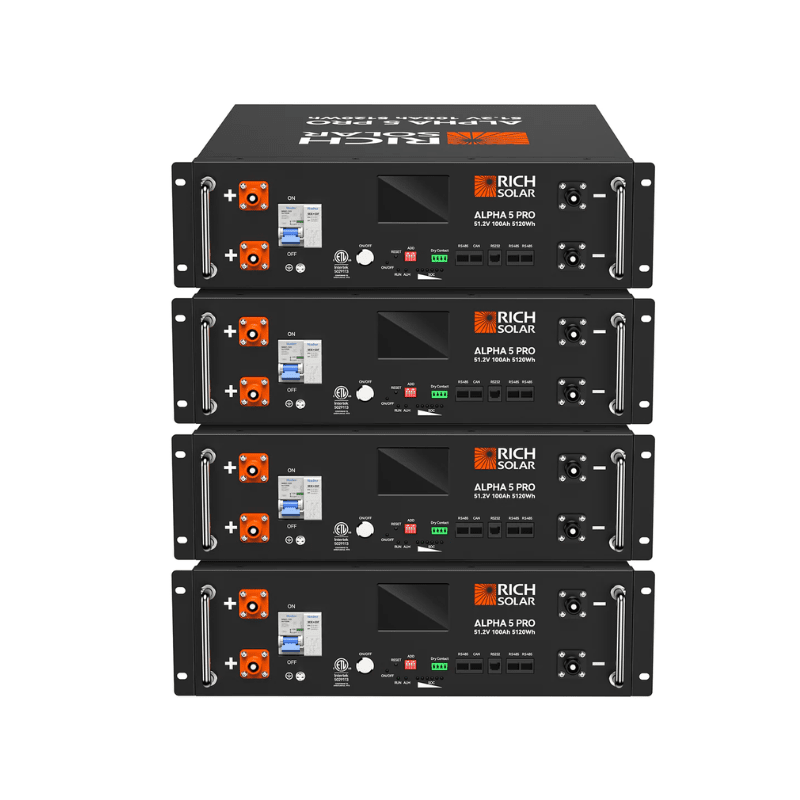

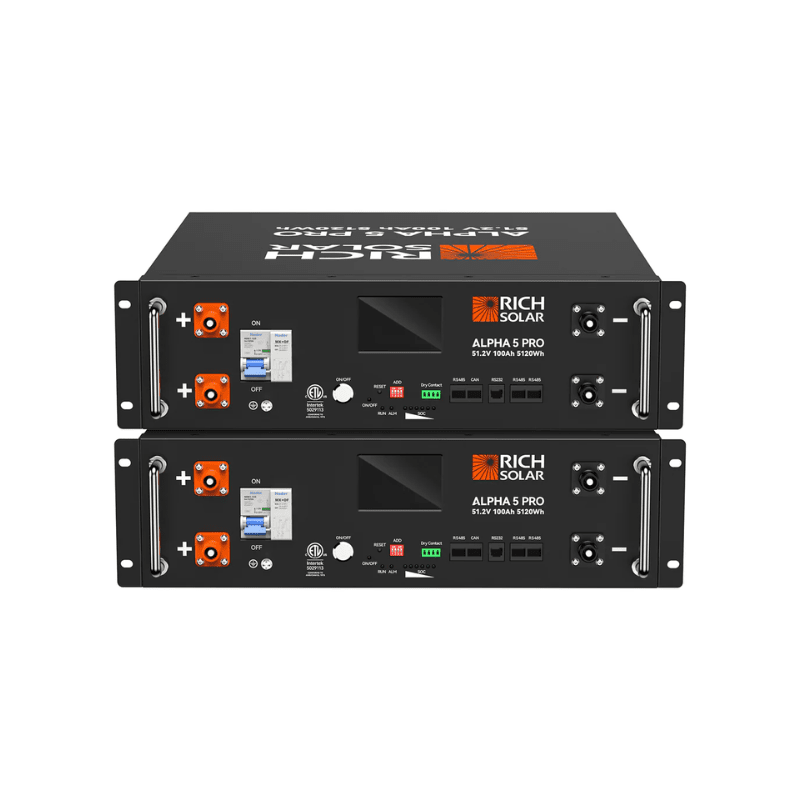

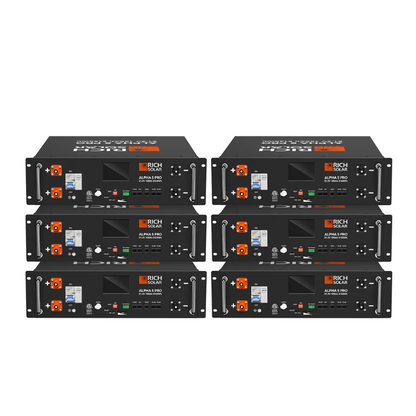

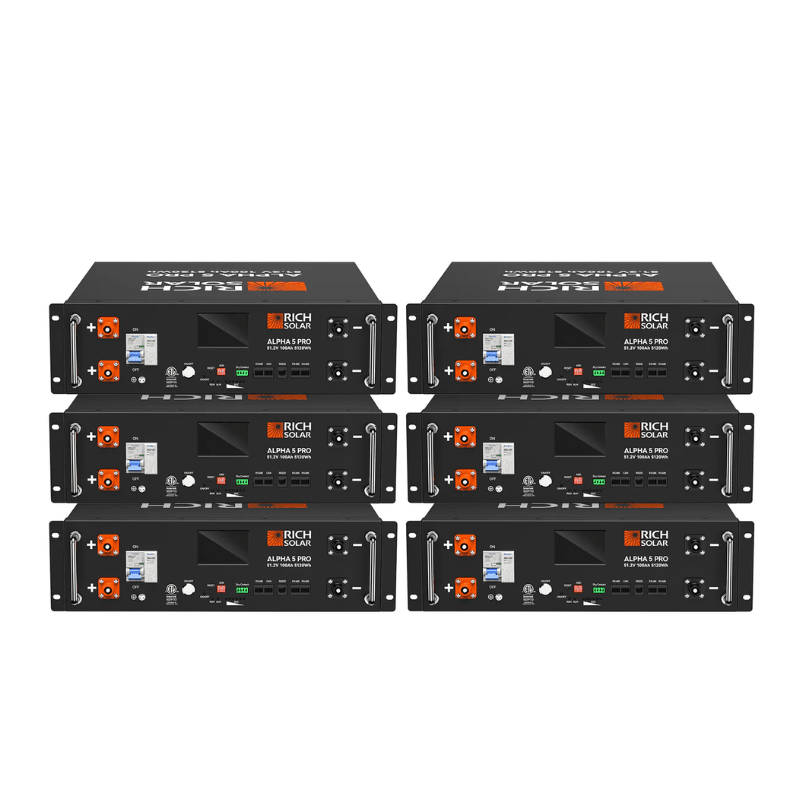

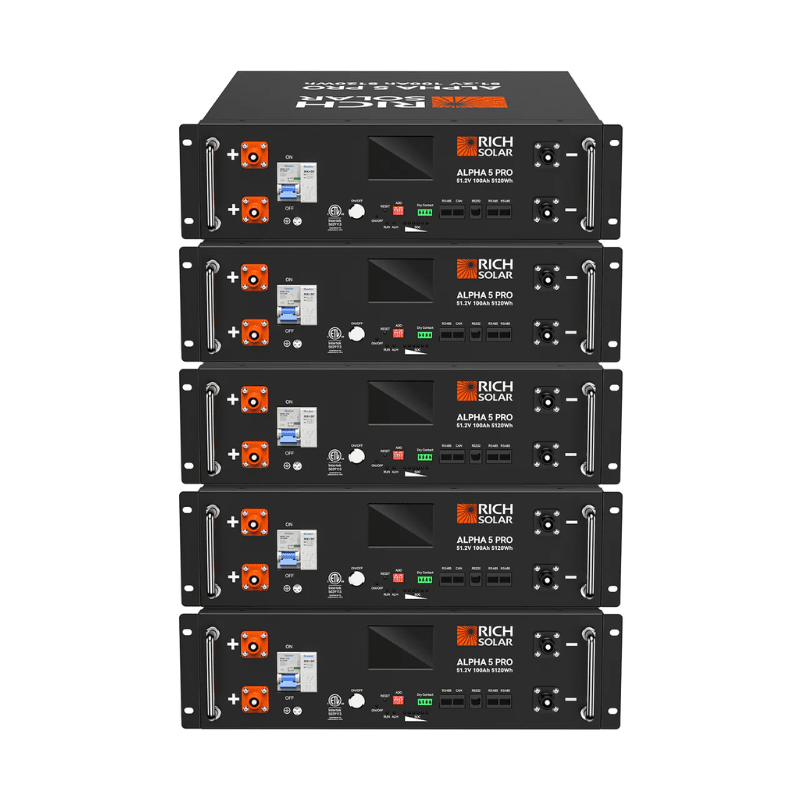

• Scalable Design: Parallel up to 15 units to achieve a total capacity of 76.8 kWh, suitable for large-scale energy needs

• Flexible Compatibility: Supports CAN/RS485 communication protocols, making it compatible with various inverter brands.

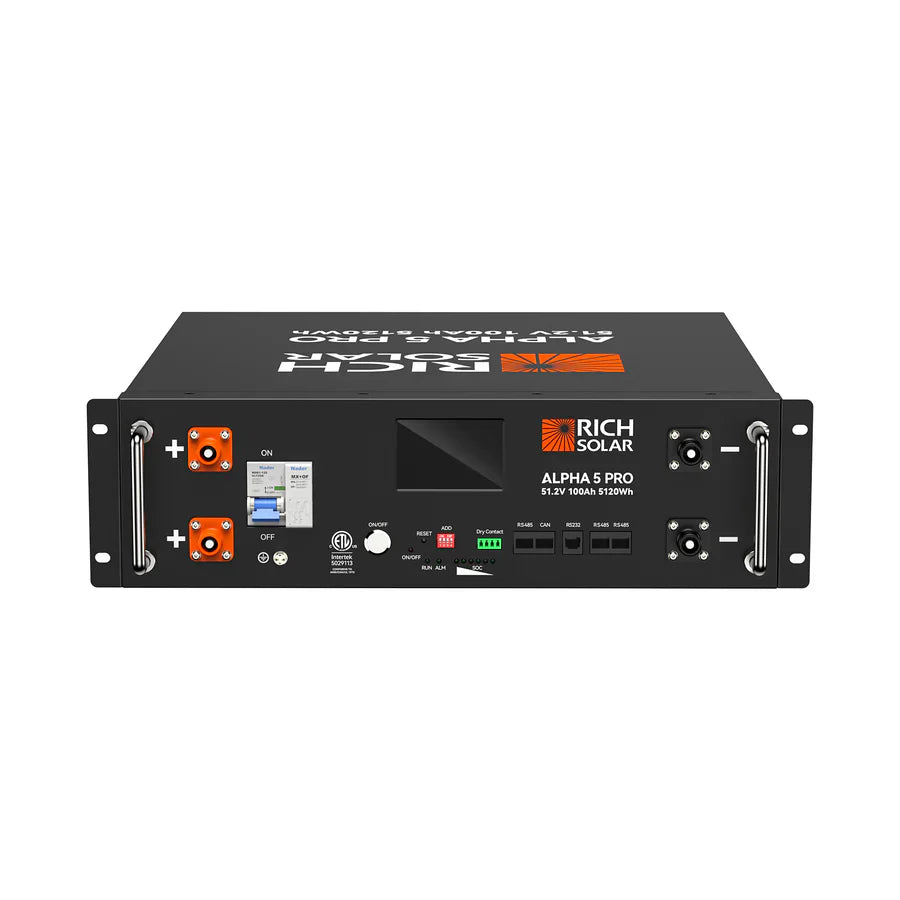

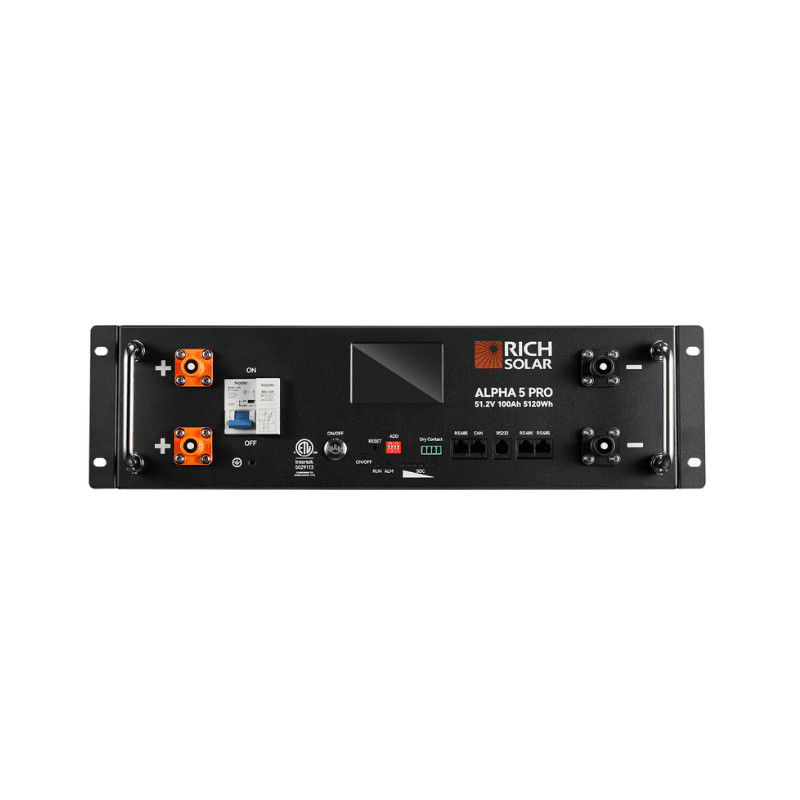

• Durable Construction: Features a 3U rack-mount design with a robust sheet metal casing and removable carry handles for easy installation

Variants:

1. Standard Model: Ideal for typical environments with an operating temperature range of -4°F to 140°F (-20°C to 60°C).

2. Heated Model: Includes an internal heater, allowing safe charging in colder climates by preventing charging below 32°F (0°C)

Certifications:

• UL1973

• UL9540A

• FCC

Dimensions & Weight:

• Dimensions: 17.7" L x 17.8" W x 5.2" H

• Weight: 99.2 lbs

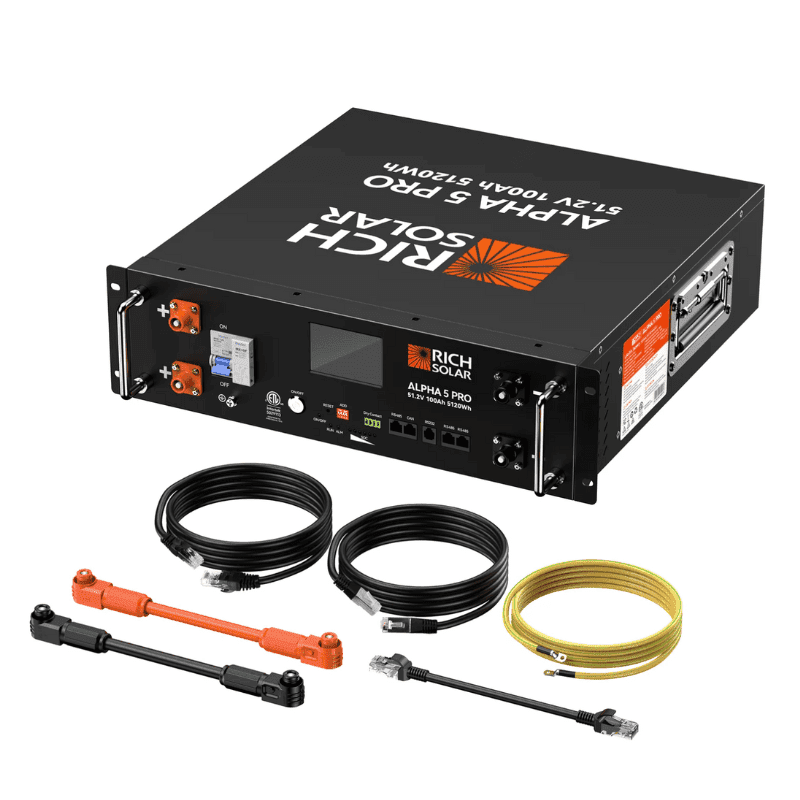

What's Included:

• 1 x Rich Solar Alpha 5 Pro Battery (Standard or Heated)

• 1 x RS485 Communication Cable

• 1 x Set of Parallel Cables

• 1 x User Manual

Ideal For:

• Off-grid homes and cabins

• Residential and commercial backup power systems

• RVs and mobile applications

• Cold climate installations (Heated Model)

User Manual / Specifications:

• Alpha 5 Pro User Manual
• Alpha 5 Pro Product Specifications
