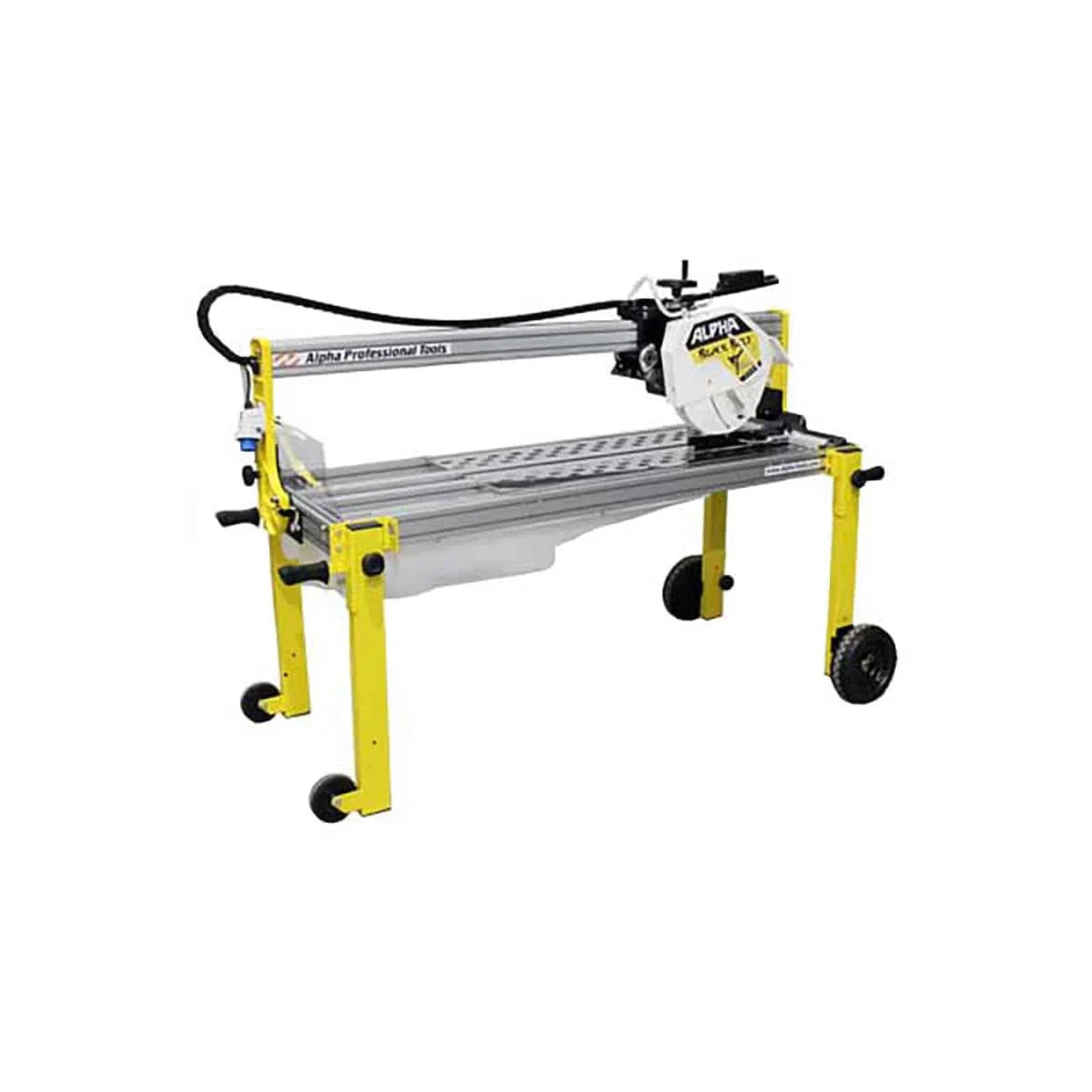

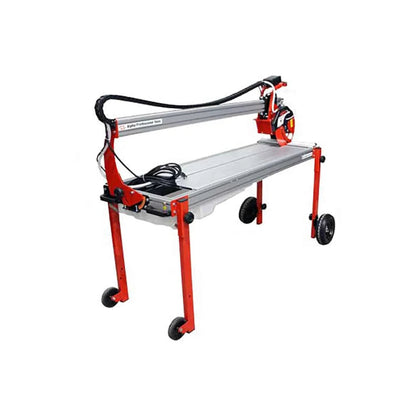

Alpha Black Belt Rail Saw - BBRS-115 Volt

Alpha Black Belt Rail Saw - BBRS-115 Volt

The new Black Belt Rail Saw is a heavy-duty rail saw suitable for tile installers, stone fabricators, and hardscape contractors. It has several features, including a sturdy metal table chassis for reliable operation and a maintenance-free magnetic-induction water pump that supplies plenty of water to both blade sides.

Features

• The cutting head's mechanical vertical tilting system provides cutting depth adjustment
• Stainless steel head rails and adjustable armored ball bearings allow for smooth and precise movement
• The cutting system's side tilt capability eases up to 45 degree cuts (ideal for miter cuts)
• Front, back, and bilateral blade guards minimize blade exposure for safety and to reduce water splash

Specifications

What our Experts Think

• Professional wet rail saw system: Alpha Black Belt Rail Saw (BBRS-115 Volt) is a jobsite-grade tile and stone cutting saw designed for large-format precision work
• Powerful direct-drive motor: 115V system delivers consistent cutting power (~2 HP, up to 2,800 RPM depending on configuration) for stone, porcelain, quartz, and granite applications
• Precision rail-guided cutting: Stainless steel rail system ensures smooth, stable movement for straight and diagonal cuts up to ~51 inches
• Deep cutting capability: Handles up to ~2-1/4” single pass depth (more with step cuts), suitable for thick slabs and large tiles
• Miter and angle flexibility: Cutting head allows up to 45° tilting for bevels and miter cuts, improving fabrication versatility
• Wet cutting system: Built-in water delivery keeps blade cool and reduces dust while extending blade life for cleaner, more accurate cuts
• Heavy-duty build quality: Rugged aluminum chassis with reinforced rails provides stability for professional, repetitive jobsite use
• Jobsite mobility focused: Despite its size, it’s designed for transport and on-site setup by contractors and fabricators
• Best for: Tile installers, stone fabricators, and contractors working on large-format porcelain, granite, quartz, and slab materials
• Key consideration: Requires proper setup, water supply management, and skill—this is a professional fabrication tool, not a DIY saw


Q&A

Q: What is the Alpha Black Belt Rail Saw (BBRS-115 Volt)?
A: It is a professional wet rail saw designed for precision cutting of large-format tile, porcelain, stone, and glass panels, powered by a 115V motor for job-site use.

Q: What materials can this rail saw cut?
A: It is built to cut ceramic, porcelain, granite, quartz, engineered stone, and other dense construction materials with high accuracy.

Q: What is the motor power and speed?
A: It uses a 115V single-phase motor rated around 2 HP (1.5 kW) with speeds up to approximately 2,800–3,500 RPM depending on configuration.

Q: What cutting capacity does it offer?
A: It can cut up to about 51 inches straight and 33 inches diagonally, with a maximum depth of around 2-1/4 inches in a single pass.

Q: Does it support angled or miter cuts?
A: Yes, it features a side-tilt cutting system that allows up to 45° bevel and miter cuts for precise edge work.

Q: What makes the rail system important?
A: The stainless-steel rail system with ball bearings ensures smooth, stable, and vibration-free blade movement for accurate cuts.

Q: Does it use water for cutting?
A: Yes, it is a wet rail saw with a water pump that cools the blade on both sides, reducing dust and extending blade life.

Q: Is it suitable for job-site use?
A: Yes, it includes wheels, retractable legs, and a heavy-duty frame designed for easy transport and on-site installation work.


Maintenance Tips

• Clean after every use: Remove slurry, tile dust, and water residue from rails and table
• Flush water system: Prevent clogging in pump and hoses after wet cutting
• Inspect blade regularly: Replace if chipped, dull, or warped for clean cuts
• Lubricate rail system: Light oil on bearings ensures smooth head movement
• Check alignment: Keep rail straight to maintain cutting accuracy
• Tighten fasteners: Prevent vibration loosening during heavy use
• Inspect electrical components: Ensure cord, switch, and motor stay dry and undamaged
• Store dry: Protect from rust and corrosion when not in use
