Alpha ESC-150 Countertop Trim Kit - 5480-4250

Alpha ESC-150 Countertop Trim Kit - 5480-4250

Introducing the ESC-150 Countertop Trim Kit. It starts with the new ESC-150 Electric Stone Cutter, equipped with a powerful motor capable of cutting 1-1/4” (3cm) s"one slabs in one pass. It comes with a Carriage Assembly (ASC-6CSM), which fits on the 4’ Guide 4'il, a stable application. It also contains an Eclipse II blade (DEE006) for cutting natural and engineered stones. This system can easily cut up to 1-1/4” (3cm) m" materials and is perfect for making precise cuts for trimming countertops.

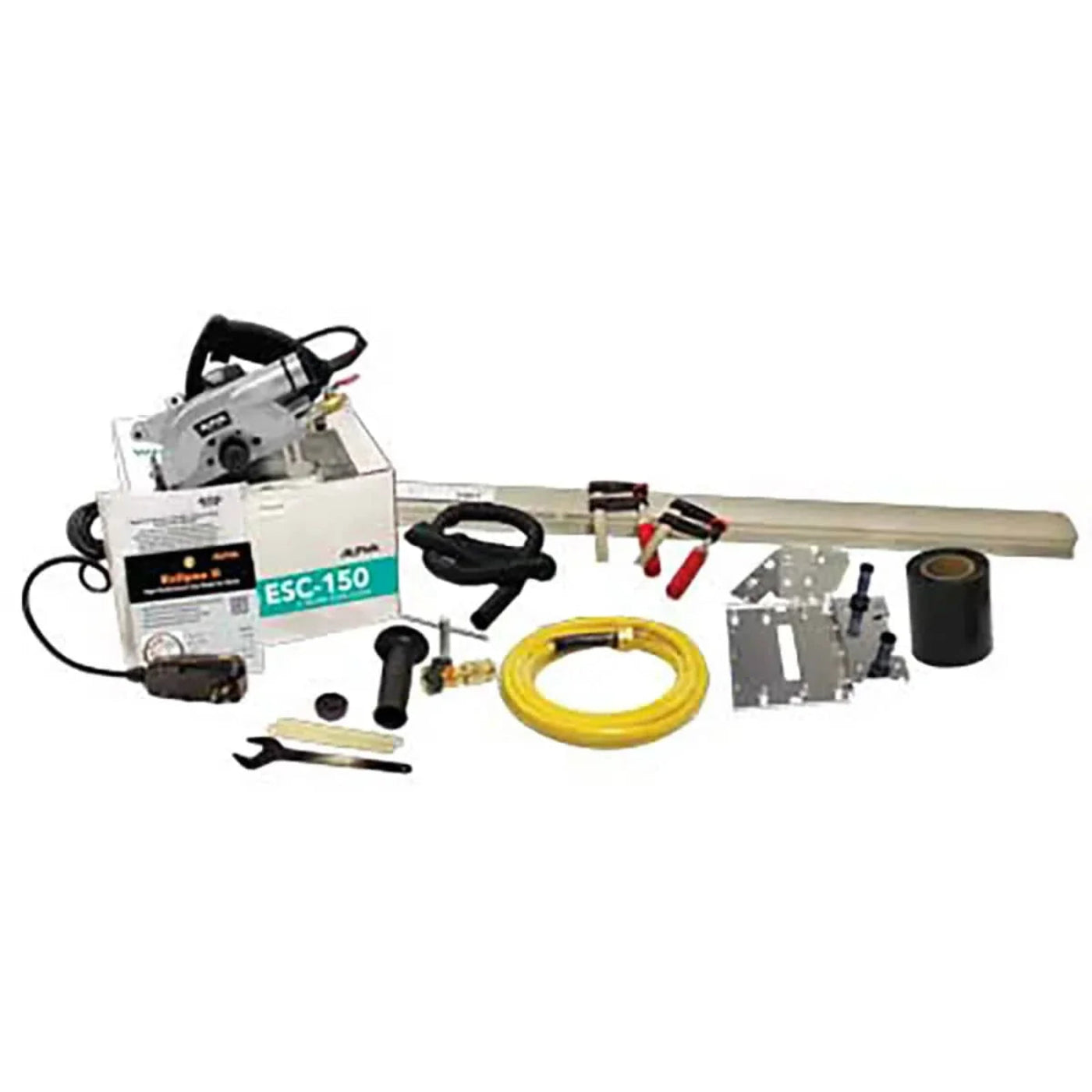

Features

• Recommended for Hard Surfaces
• Perfect for your Stone tile application
• High-End General Purpose Turbo Blade for Stone Fabricators
• Consistent Performance without Chipping

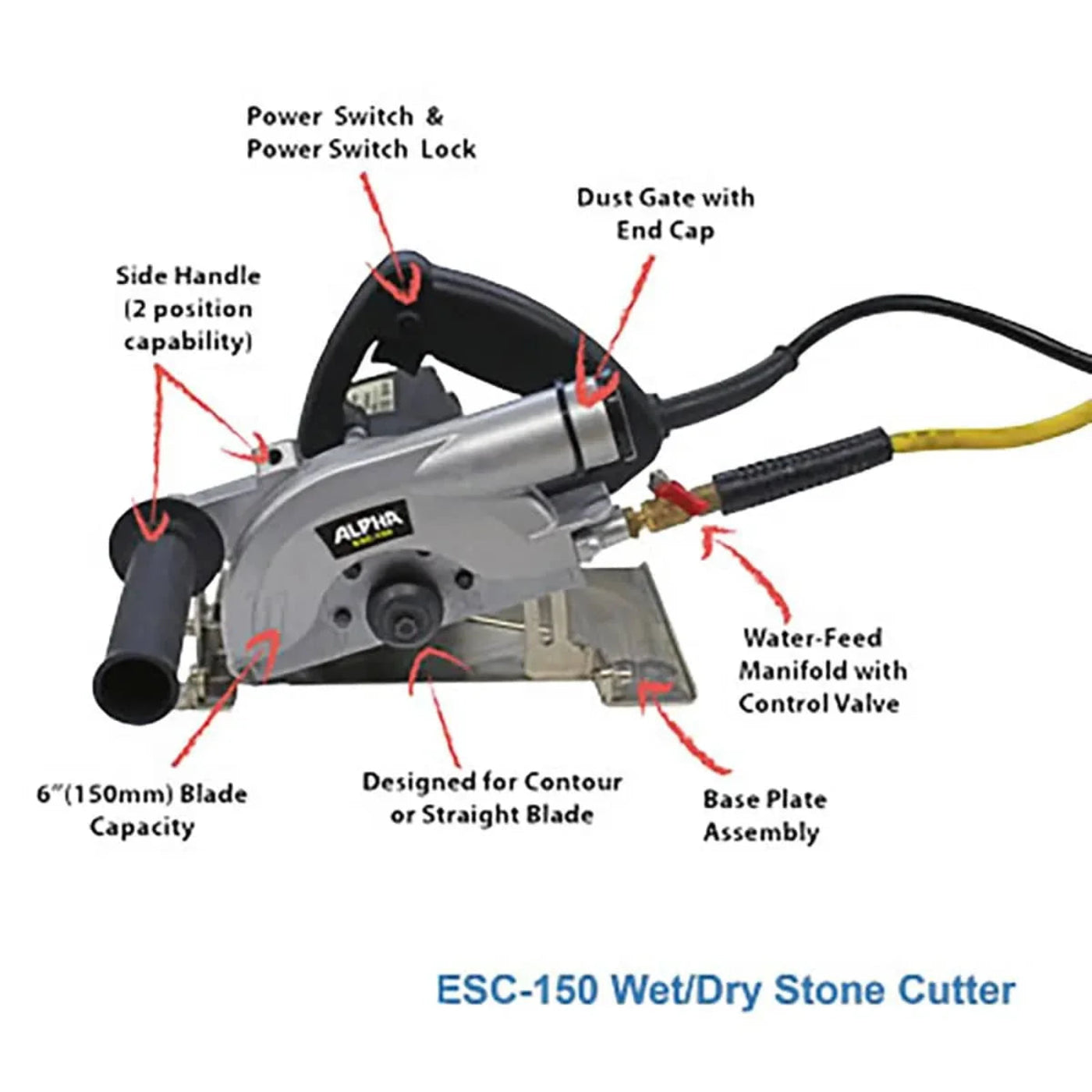

• ESC-150 Wet/Dry Stone Cutter
• 6” Carriag" Assembly (ASC-6CSM)
• 6” Eclipse" II Blade (DEE006)
• 4’ Guide R'il (ASC-GR04)
• Surface Protection Tape (BAB0650)

Specifications

What our Experts Think

• Professional countertop trim solution: Alpha ESC-150 Countertop Trim Kit (5480-4250) is a rail-guided wet cutting system designed for precise countertop fabrication and edge trimming
• High-accuracy cutting control: Engineered for clean, straight cuts on stone surfaces with reduced chipping and improved finish quality
• Powerful stone-cutting performance: Built to handle dense materials like granite, quartz, porcelain, and engineered stone with consistent cutting power
• Guide rail precision system: Includes a track-guided setup that improves stability, repeatability, and straight-line accuracy during fabrication
• Wet cutting advantage: Integrated water feed helps control dust, cool the blade, and extend tool life while improving cut smoothness
• Jobsite-ready design: Portable system designed for on-site countertop adjustments and professional remodeling work
• Best for: Stone fabricators and installers needing a precise, mobile solution for countertop trimming and slab finishing
• Key consideration: Requires proper setup and operator skill for best results—this is a professional fabrication tool, not a general-use saw


Q&A

Q: What is the Alpha ESC-150 Countertop Trim Kit (5480-4250)?
A: It is a professional stone fabrication system designed for cutting, trimming, and finishing countertop edges on granite, quartz, porcelain, and natural stone surfaces.

Q: What does the ESC-150 kit include?
A: The kit includes the ESC-150 wet/dry stone cutter, 6" carriage assembly, 4' guide rail, diamond blade, and surface protection tape for precise countertop trimming.

Q: What materials can it cut?
A: It is designed for stone, quartz, granite, porcelain, and engineered stone slabs, delivering clean, chip-free cuts.

Q: How deep can it cut?
A: The system can cut up to approximately 2 inches (50 mm) in a single pass, depending on material type.

Q: Is it suitable for professional use?
A: Yes, it is widely used by countertop fabricators and stone installers for accurate, on-site trimming and finishing work.

Q: What makes this kit useful on job sites?
A: It combines a rail-guided cutting system with a powerful motor, ensuring straight, controlled, and precise countertop cuts without chipping.

Q: Does it use wet cutting?
A: Yes, it supports wet cutting to reduce dust, improve blade life, and achieve smoother finishes.

Q: Why choose the Alpha ESC-150 trim kit?
A: It provides an all-in-one portable countertop cutting solution, reducing the need for shop fabrication and improving on-site efficiency.


Maintenance Tips

• Clean after every use: Remove stone dust and slurry from cutter housing, blade guard, and rail system.
• Flush wet system: Rinse water feed lines to prevent clogging and mineral buildup.
• Inspect diamond blade: Replace if dull, chipped, or uneven to maintain chip-free trimming.
• Keep rails clean: Dust-free rails ensure smooth, accurate straight cuts.
• Check carriage alignment: Misalignment affects edge precision—tighten fittings regularly.
• Dry thoroughly: Prevent rust on metal components and corrosion on guide rails.
• Protect motor vents: Keep airflow clear to avoid overheating during long cutting sessions.
• Store in dry case: Protect electronics and precision components from moisture and dust.
