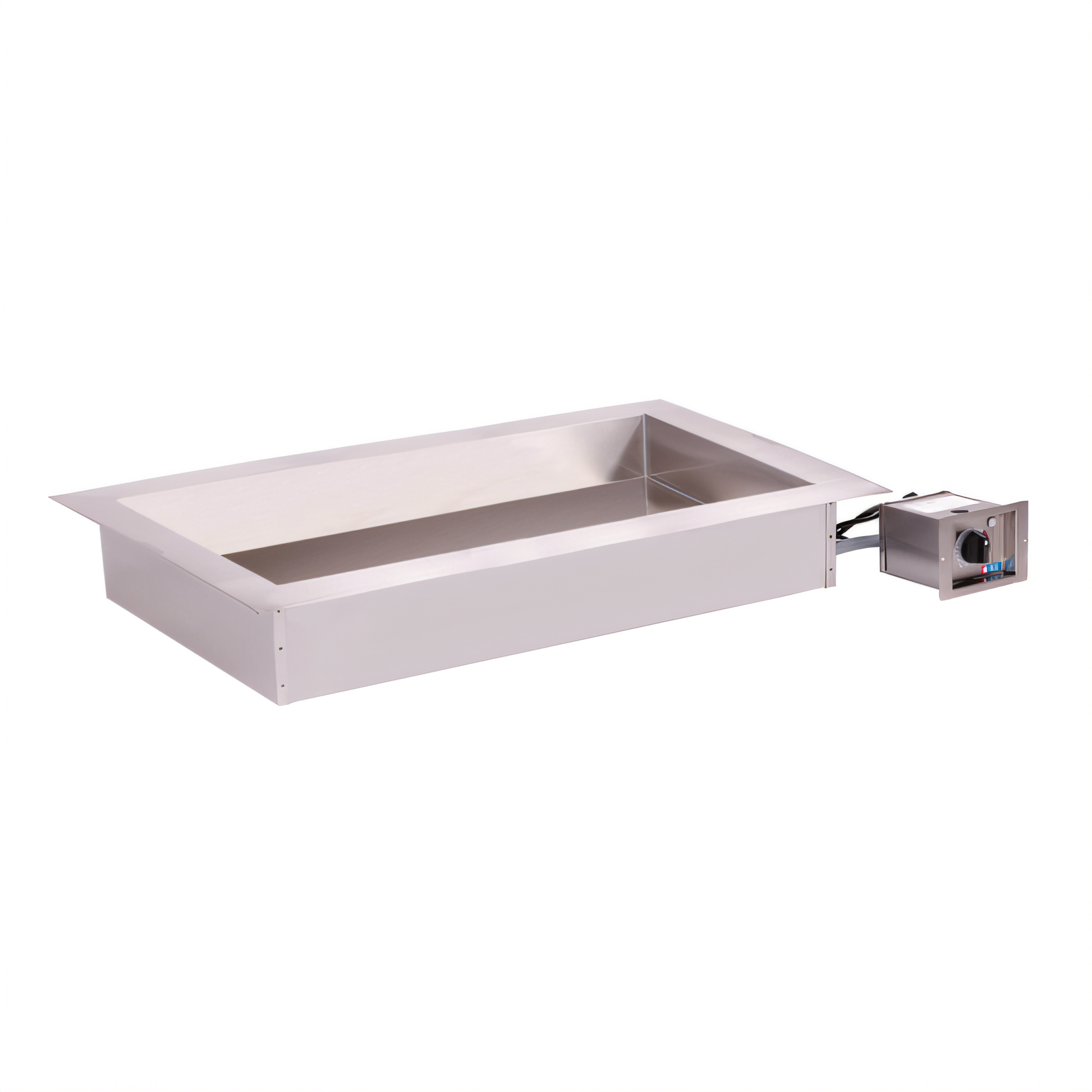

Alto-Shaam Halo Heat Steam Tables & Food Wells - 300-HWILF/D4
Alto-Shaam Halo Heat Steam Tables & Food Wells - 300-HWILF/D4
Couldn't load pickup availability
Alto-Shaam Halo Heat Steam Tables & Food Wells - 300-HWILF/D4
Alto-Shaam Halo Heat Steam Tables & Food Wells - 300-HWILF/D4
Large-flange, 3-pan drop-in unit with independent controlsKeep entrées and sides hot, fresh and picture-perfect without the hassles of steam tables. Alto-Shaam’s patented Halo Heat technology radiates gentle, even heat around each pan—no water, no fans, no hot spots. Lower utility bills, eliminate lime-scale headaches and give your guests the quality they deserve, shift after shift.
Features
- Waterless Halo Heat design extends holding times and prevents dried-out food.
- Large 44-¼" flange speeds installation and gives a clean, flush counter finish.
- (3) independent, front-mounted thermostatic controllers let you fine-tune each pan well.
- EcoSmart efficiency delivers up to 50 % lower operating costs versus traditional steam wells.
- All-stainless construction resists corrosion and wipes clean fast.
- No plumbing, drains or ventilation hoods required—drop it in, plug it in, start serving.
What’s in the box
- 300-HWLF/D4 3-pan hot food well (pans not included)
- (6) half-/third-size stainless steel divider bars
- Factory-installed control box with 9 ft (2.7 m) cord & plug (see power options below)
- Operator’s manual
Specifications
| Pan capacity* | (3) 12 in × 20 in full-size (6) half-size or (9) third-size with dividers |
|---|---|
| Well depth | 4-3/8 in (111 mm) – accepts 4 in (102 mm) deep pans |
| Exterior dimensions (H × W × D) | 7-5/16 in × 44-1/4 in × 27-1/16 in (185 mm × 1123 mm × 686 mm) |
| Interior well size (H × W × D) | 4-3/8 in × 37-7/8 in × 20-3/16 in (111 mm × 962 mm × 512 mm) |
| Net weight | 58 lb (26 kg) |
| Electrical | 120 V / 1 ph / 50-60 Hz – 15.0 A – 1.8 kW – NEMA 5-20P plug 208 V / 1 ph / 50-60 Hz – 6.5 A – 1.4 kW – NEMA 6-15P plug 240 V / 1 ph / 50-60 Hz – 7.5 A – 1.8 kW – NEMA 6-15P plug 230 V / 1 ph / 50-60 Hz – 7.8 A – 1.8 kW – CEE 7/7 plug |
What our Experts Think
- Low-profile high-performance holding: The 300-HWILF/D4 is a drop-in Halo Heat food well designed for space-efficient, front-of-house service lines with professional-grade consistency.
- Independent multi-zone control: Three separate thermostatic controls allow different foods to be held at precise temperatures simultaneously, improving menu flexibility and quality control.
- Halo Heat precision performance: Waterless radiant heat delivers even, gentle warming without steam, fans, or hot spots, preserving food texture and moisture.
- Waterless & plumbing-free design: No drains, no water supply, and no steam system required—reduces installation complexity and long-term maintenance.
- Flexible pan configuration: Supports (3) full-size pans or mixed layouts using divider bars, making it adaptable for changing buffet menus.
- Energy-efficient EcoSmart operation: Insulated construction minimizes heat loss and helps reduce operating costs in continuous service environments.
- Heavy-duty stainless build: Built for constant commercial use with corrosion resistance, easy cleaning, and long service life.
Q&A
Q: What is the Alto-Shaam 300-HWILF/D4?
A: The 300-HWILF/D4 is a commercial drop-in hot food well that uses Halo Heat® technology with independent controls per well and a low-profile insulated, large-flange design for precise hot holding in foodservice lines.
Q: What does “HWILF” mean?
A: “HWI” means independent thermostatic controls for each well, and “LF” means large flange design for a cleaner, flush countertop installation.
Q: What is Halo Heat technology?
A: Halo Heat uses gentle radiant heat instead of steam or fans, delivering even temperatures that help maintain food quality without drying or overheating.
Q: What is the pan capacity?
A: It holds (3) full-size 12” × 20” pans (up to 4” deep) or can be configured into multiple smaller pans using divider bars.
Q: Does it use water or steam?
A: No. It is a completely waterless system, eliminating plumbing, steam production, and scale buildup common in traditional steam tables.
Q: What are the key benefits?
A: It improves food consistency, reduces drying, lowers operating costs, and increases safety by removing hot water and steam from the workstation.
Q: How is temperature controlled?
A: Each well has independent thermostatic controls, allowing operators to set different holding temperatures for different foods.
Maintenance Tips
- Daily cleaning: Wipe stainless steel wells, flange, and exterior after cooling to remove grease and food residue for hygiene and long-term durability.
- Waterless Halo Heat system: Do not add water or steam—this unit uses dry radiant heat, eliminating scale and plumbing issues.
- Immediate spill removal: Clean spills quickly since there is no drain, preventing staining, odors, and hardened buildup.
- Thermostat check: Regularly verify temperature controls to maintain consistent holding performance across all wells.
- Use divider bars correctly: Keep all pan dividers installed to ensure even heat distribution and flexible pan configurations.
- Keep ventilation clear: Ensure surrounding counter space and airflow openings stay free of grease and dust for stable performance.
- Avoid harsh chemicals: Use mild detergents only to protect stainless steel and extend equipment lifespan.
- Electrical inspection: Check cords, plugs, and controls regularly for safe and reliable operation in high-volume kitchens.
- Prevent buildup zones: Focus cleaning on corners, edges, and pan rails where residue accumulates fastest.
- Routine servicing: Schedule preventive maintenance to ensure long-term heating consistency and reduce downtime.
