American Range Gas Charbroilers - ADJF-24
American Range Gas Charbroilers - ADJF-24
Couldn't load pickup availability
American Range Gas Charbroilers - ADJF-24
American Range Gas Charbroilers - ADJF-24

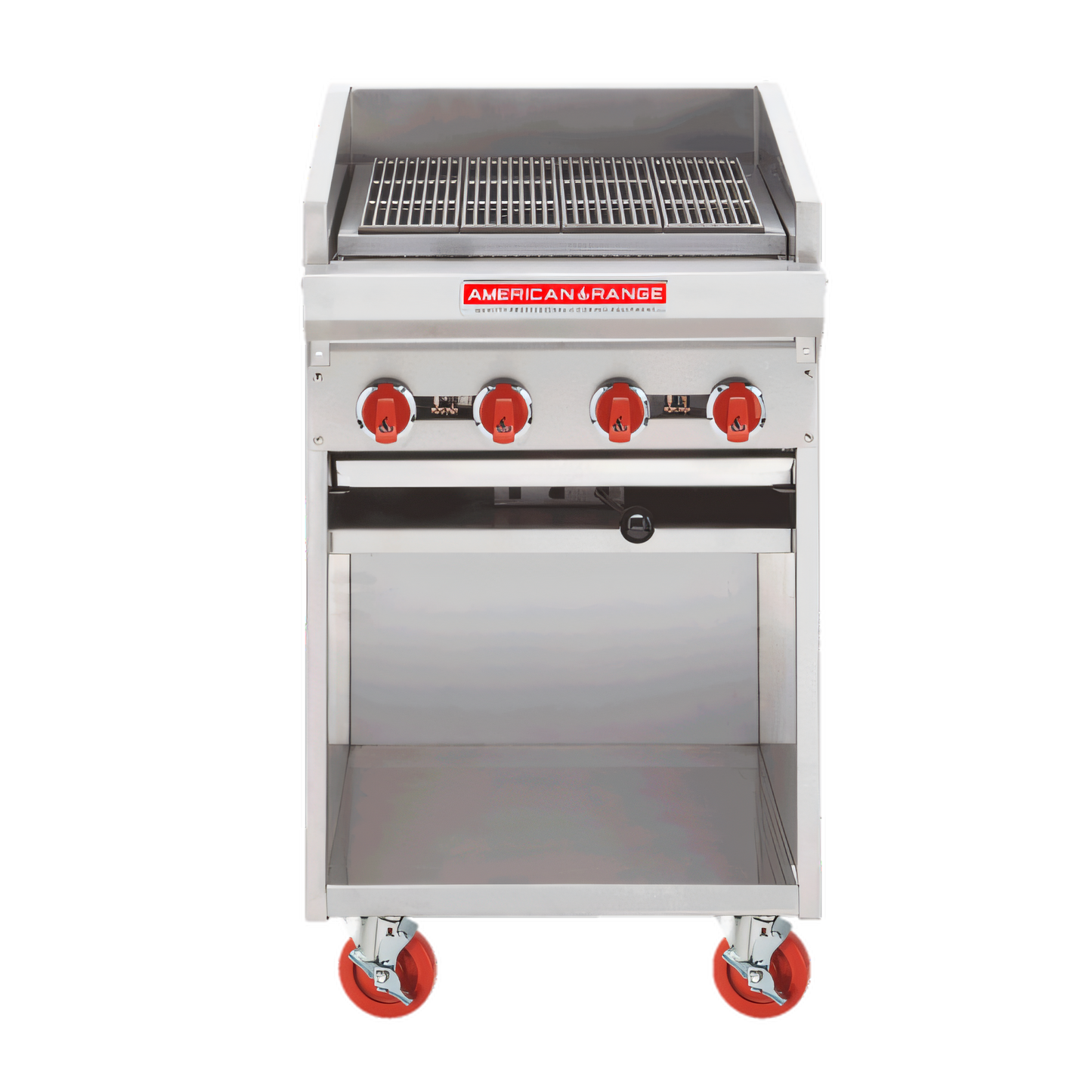

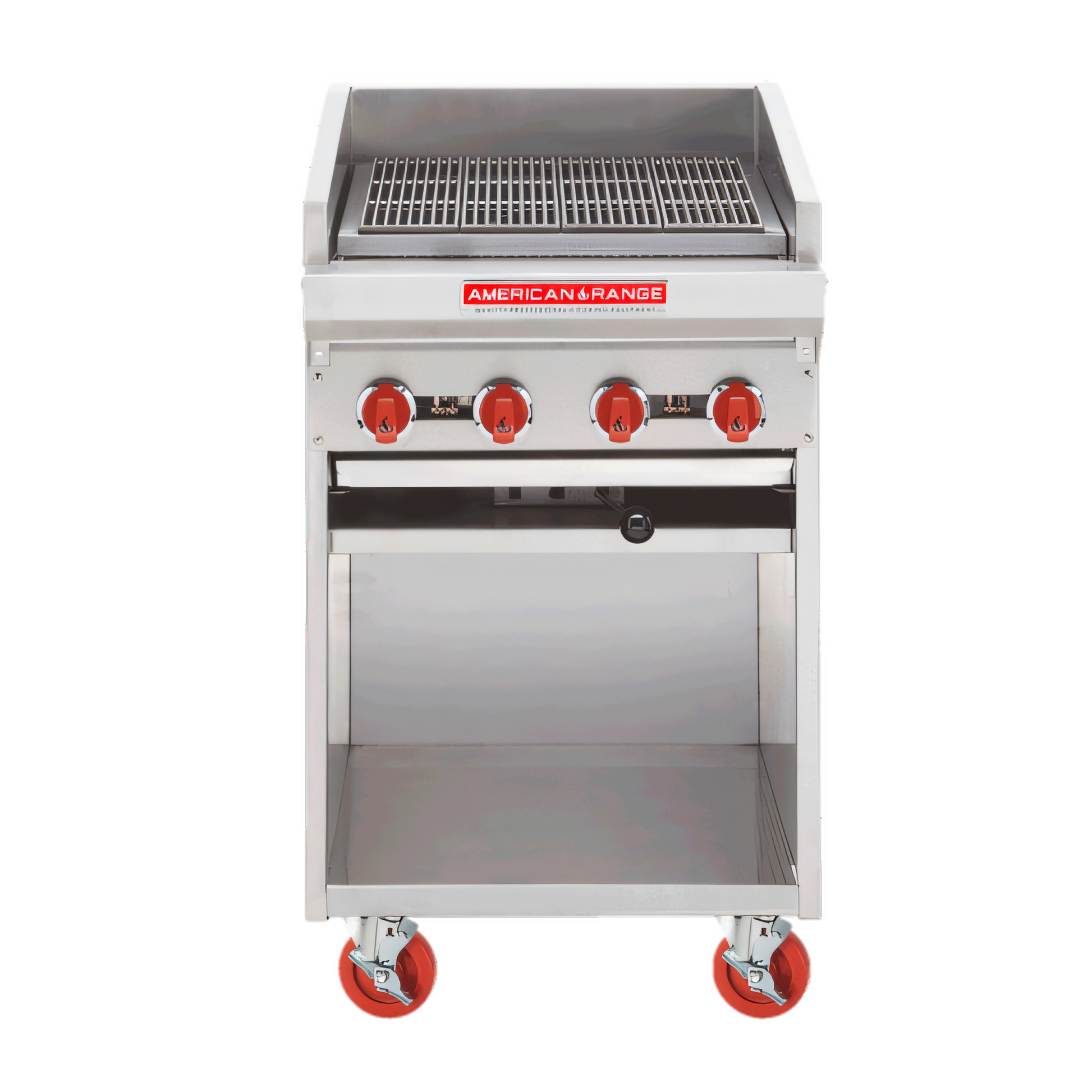

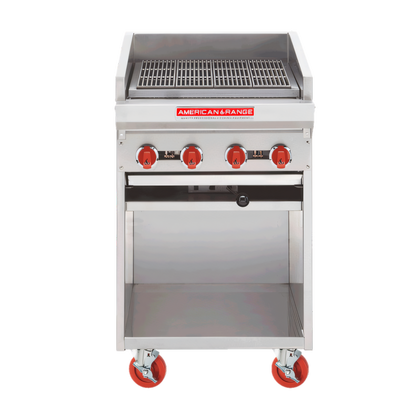

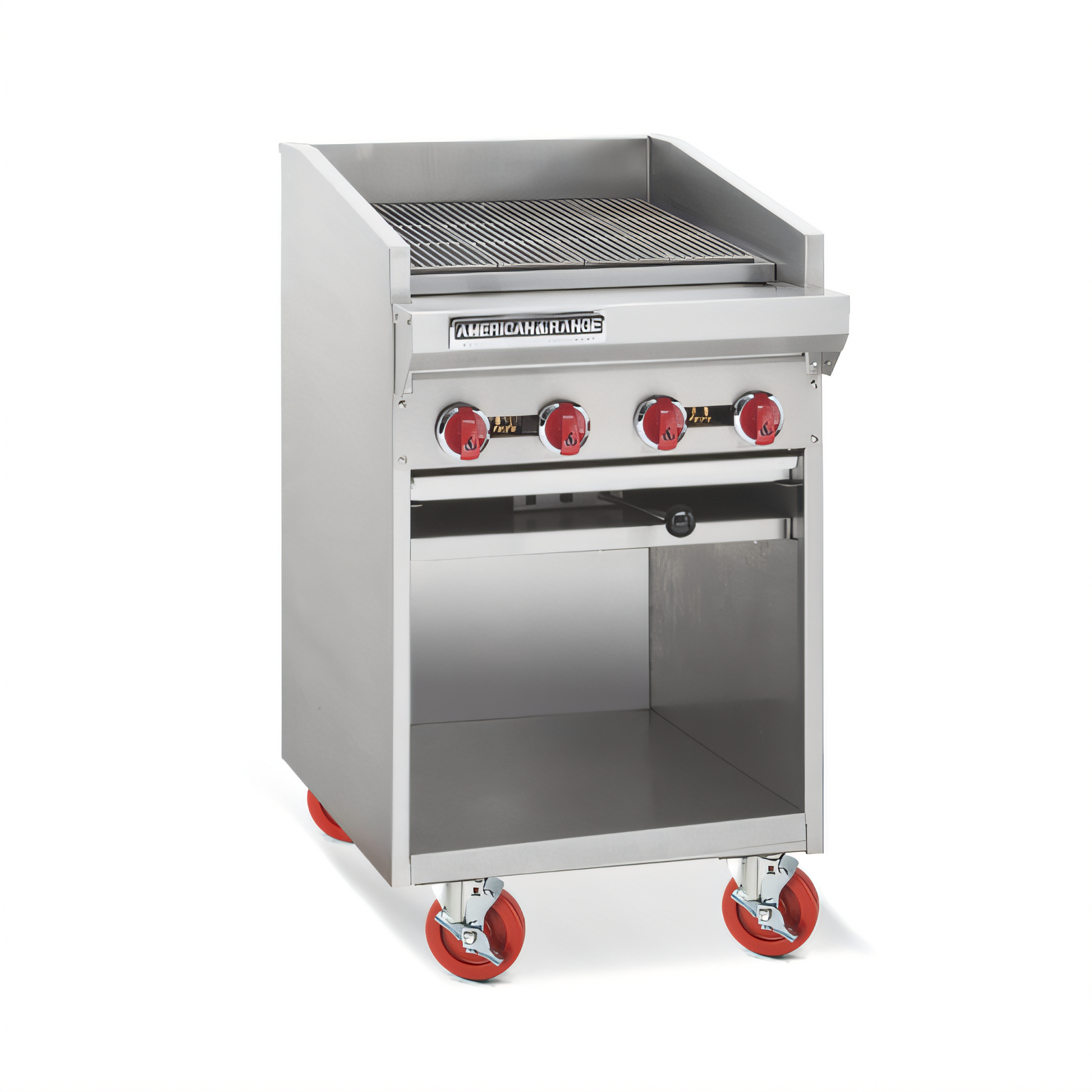

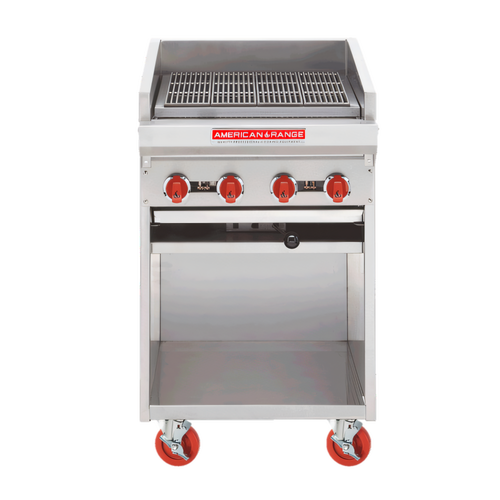

80,000 BTU | Natural or Propane Gas | Made in USAPut steak-house sear marks on steaks, burgers, chicken, and veggies—without giving up precious line space. The American Range ADJF-24 floor-model charbroiler couples four powerful burners with a tilt-adjustable cast-iron grate, delivering the flexibility and rugged durability serious commercial kitchens demand.
Features
- Four 20,000 BTU burners with standing pilots and independent controls (total 80,000 BTU / 23.0 kW).
- Radiant design spreads heat evenly and minimizes flare-ups for consistent results.
- Heavy-duty cast-iron grate adjusts to 3 positions via an easy-lift cool-touch handle.
- Includes one adjustable rack beneath the cooking surface for staging pans or finished product.
- Welded stainless steel exterior with 4″ rear and tapered side splash guards—tough, hygienic, and easy to clean.
- Full-width removable grease tray slides out the front for fast clean-up.
- 6″ adjustable stainless steel legs provide rock-solid stability and proper floor clearance.
- ETL Listed for safety & sanitation compliance.
- Proudly designed & built in the USA; backed by a limited warranty (see below).
Specifications
| Model | ADJF-24 |
|---|---|
| Cooking Surface (W × D) | 24″ × 24″ / 610 × 610 mm |
| Burners | 4 – individually controlled |
| Total Input | 80,000 BTU/hr (23.0 kW) |
| Grate | Cast iron, 3-position adjustable |
| Construction | Stainless steel body, splash guards & legs |
| Overall Width | 24″ / 610 mm |
| Overall Depth | 32-3/8″ / 822 mm |
| Overall Height | ≈45-1/2″ / 1,157 mm (on 6″ legs) |
| Gas Connection | 3/4″ NPT rear |
| Manifold Pressure | NG 5.0″ W.C. | LP 10.0″ W.C. |
What our Experts Think
-
Professional charbroiling performance – High‑output burners deliver strong, consistent heat for perfect searing.
-
Durable commercial build – Heavy‑duty stainless steel and cast iron grates stand up to heavy kitchen use.
-
Even heat distribution – Optimized burner layout ensures uniform cooking across the 24″ surface.
-
Easy to clean & maintain – Removable grates and accessible drip tray simplify daily cleanup.
-
Versatile grilling – Ideal for steaks, chicken, seafood, vegetables, and more.
-
Chef‑trusted reliability – Designed for restaurants, cafés, and catering environments needing performance and longevity.
Q&A
Q: What is the ADJF-24?
A: A commercial gas charbroiler designed for professional kitchens, delivering consistent high-heat grilling performance.
Q: Key features?
A: Heavy-duty stainless steel construction, multiple burners, adjustable grates, and removable drip trays for easy cleaning.
Q: What fuel does it use?
A: Compatible with natural gas or propane, depending on kitchen configuration.
Q: Why choose this charbroiler?
A: Provides even heat, durability, and efficiency for restaurants, catering, and high-volume kitchens.
Q: Is maintenance easy?
A: Yes—grates and drip trays are removable for fast, simple cleaning.
Q: Who is it ideal for?
A: Chefs and commercial kitchens needing reliable gas charbroiling performance.
Maintenance Tips
-
Daily Cleaning: Scrape grates and empty grease trays after each use to prevent buildup.
-
Weekly Deep Clean: Remove burners and grates; clean with warm, soapy water.
-
Gas Line Check: Inspect hoses and fittings for leaks; tighten or replace if needed.
-
Ignition & Safety: Test pilot lights and igniters; replace faulty components promptly.
-
Prevent Rust: Lightly oil cast-iron grates to maintain durability.
-
Ventilation Care: Keep hoods and filters clean to ensure proper airflow.
-
Professional Inspection: Schedule annual service by a certified technician.
