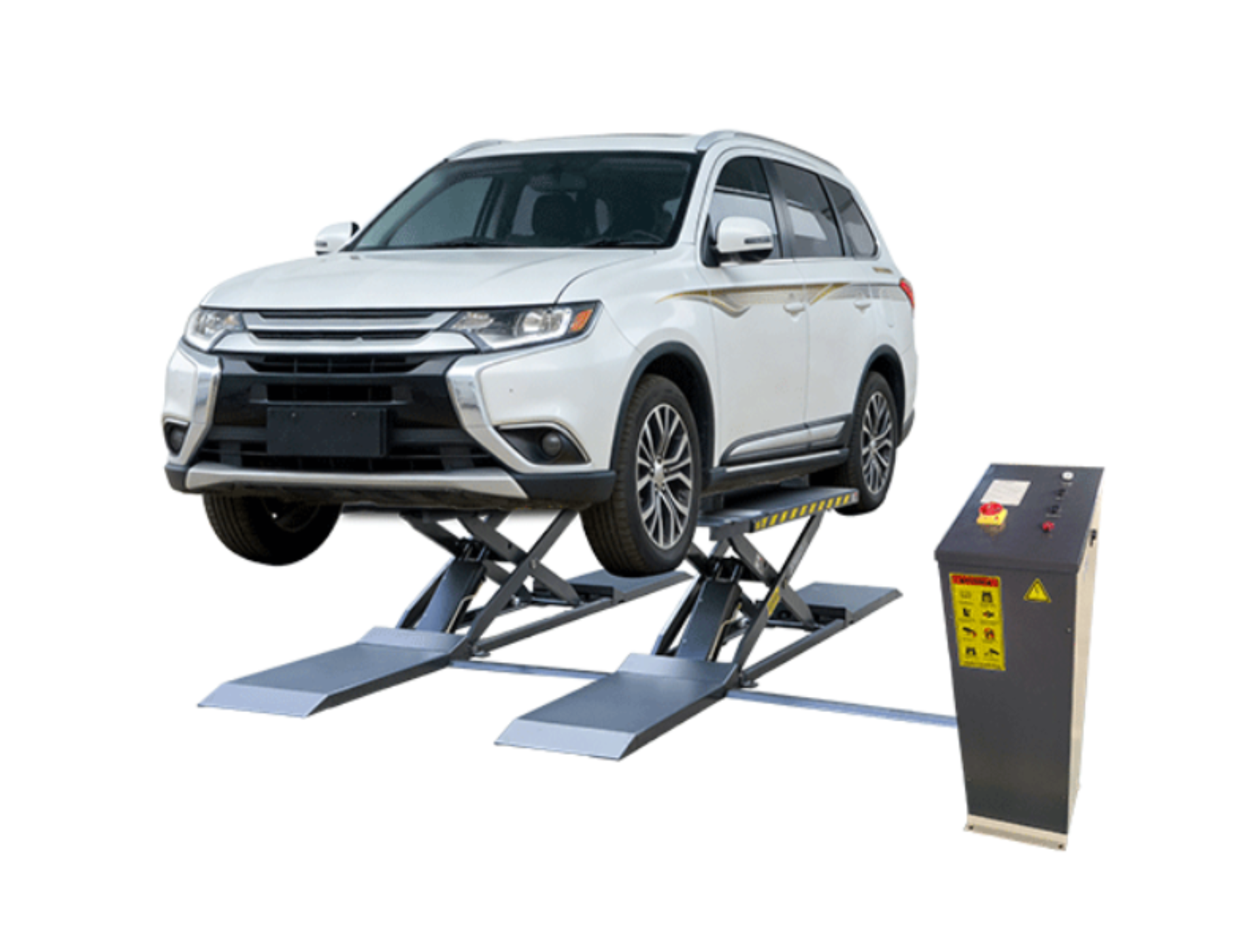

AMGO MRL09 Mid-Rise Scissor Lift - MRL09

AMGO MRL09 Mid-Rise Scissor Lift - MRL09

The MRL09 features a cutting-edge two-stage runway design, providing a sleek, low-profile entrance that allows a wide range of vehicles, including low-clearance cars, to access from either side. With its user-friendly operation and minimal maintenance requirements, it stands out as the perfect mid-rise lift for quick service applications. Let me know if you'd like further refinements!

Features

• 9,000lbs(4000kg) capacity
• Mid rise scissors lift, 24V Safety voltage control
• Dual hydraulic synchronization & hydraulic locking system
• The lifting scissors are made of thickened steel which is more strong
• Adjustable lift platform length, applicable to vehicles with different wheelbases
• Two-stage drive in ramps, suitable for lifting ultra-low chassis vehicles
• Flexible structure design, users can choose either flush mount or surface mount installation
• Standard ETL certificated power unit

What our Experts Think

• A perfect middle ground between low-rise and full-size lifts. The AMGO MRL09 provides excellent under-vehicle access while maintaining a compact footprint, making it ideal for professional shops and serious home garages.
• Strong 9,000 lb lifting capacity. Designed to handle most passenger vehicles, SUVs, light trucks, and fleet vehicles, delivering the versatility needed for a wide range of maintenance and repair tasks.
• Space-efficient scissor lift design. The mid-rise configuration eliminates the need for large columns while keeping the work area open and accessible, especially in garages with limited space.
• Excellent for wheel, brake, suspension, and detailing work. The open-center design improves technician access to critical service areas, helping increase productivity and reduce service time.
• Built with safety and reliability in mind. Multiple mechanical safety locks, heavy-duty hydraulic components, and rugged steel construction provide dependable lifting performance day after day.
• Fast lifting and simple operation. The intuitive controls and efficient hydraulic system allow technicians to position and raise vehicles quickly, improving workflow in busy service environments.
• A practical choice for multi-purpose workshops. Its combination of lifting power, accessibility, and compact design makes it an excellent solution for repair facilities that need flexibility without committing to a full two-post lift.

Q&A

Q: What is the AMGO MRL09 Mid-Rise Scissor Lift?
A: The AMGO MRL09 is a heavy-duty mid-rise scissor lift with a 9,000 lb lifting capacity, designed for quick-service automotive maintenance, tire work, brake service, and general repairs.

Q: What vehicles can the MRL09 lift?
A: The MRL09 accommodates most passenger cars, SUVs, light trucks, and low-clearance vehicles weighing up to 9,000 lbs. Its extendable platforms support a wide range of wheelbases.

Q: How high does the AMGO MRL09 lift?
A: The lift raises vehicles up to 47.25 inches while maintaining a low-profile design for easy vehicle access.

Q: Is the MRL09 suitable for low-clearance vehicles?
A: Yes. The ultra-low-profile design and dual two-stage drive-in ramps make it ideal for sports cars and other vehicles with minimal ground clearance.

Q: What safety features does the MRL09 include?
A: The MRL09 features dual-cylinder hydraulic synchronization, a hydraulic locking system, 24V safety controls, and an ETL-certified power unit for secure and reliable lifting.

Q: Why choose the AMGO MRL09?
A: The MRL09 combines high lifting capacity, low-profile accessibility, adjustable runways, and flexible flush-mount or surface-mount installation, making it an excellent solution for professional shops and high-volume service bays.

Maintenance Tips

• Re-torque anchor bolts monthly to ensure lift stability and safe operation.
• Inspect all fittings, bolts, pins, and fasteners regularly for proper mounting and wear.
• Check hydraulic hoses and connections for leaks, cracks, or damage.
• Verify both platforms lift evenly and adjust lifting level as needed.
• Inspect all moving components every 6 months for wear, interference, or damage.
• Keep scissors mechanisms, pivot points, and working areas clean and free of debris.
• Use only recommended N46 anti-wear hydraulic oil for optimal hydraulic performance.
• Replace hydraulic oil after the first 3 months of use, then annually.
• Perform at least one full raise-and-lower cycle daily to remove trapped air from the hydraulic system.
• Clean and protect hydraulic cylinder rods and dust seals to extend seal and cylinder life.
• Inspect rubber pads regularly and replace worn or damaged pads promptly.
• Follow the manufacturer's maintenance schedule to maximize safety, reliability, and service life.
