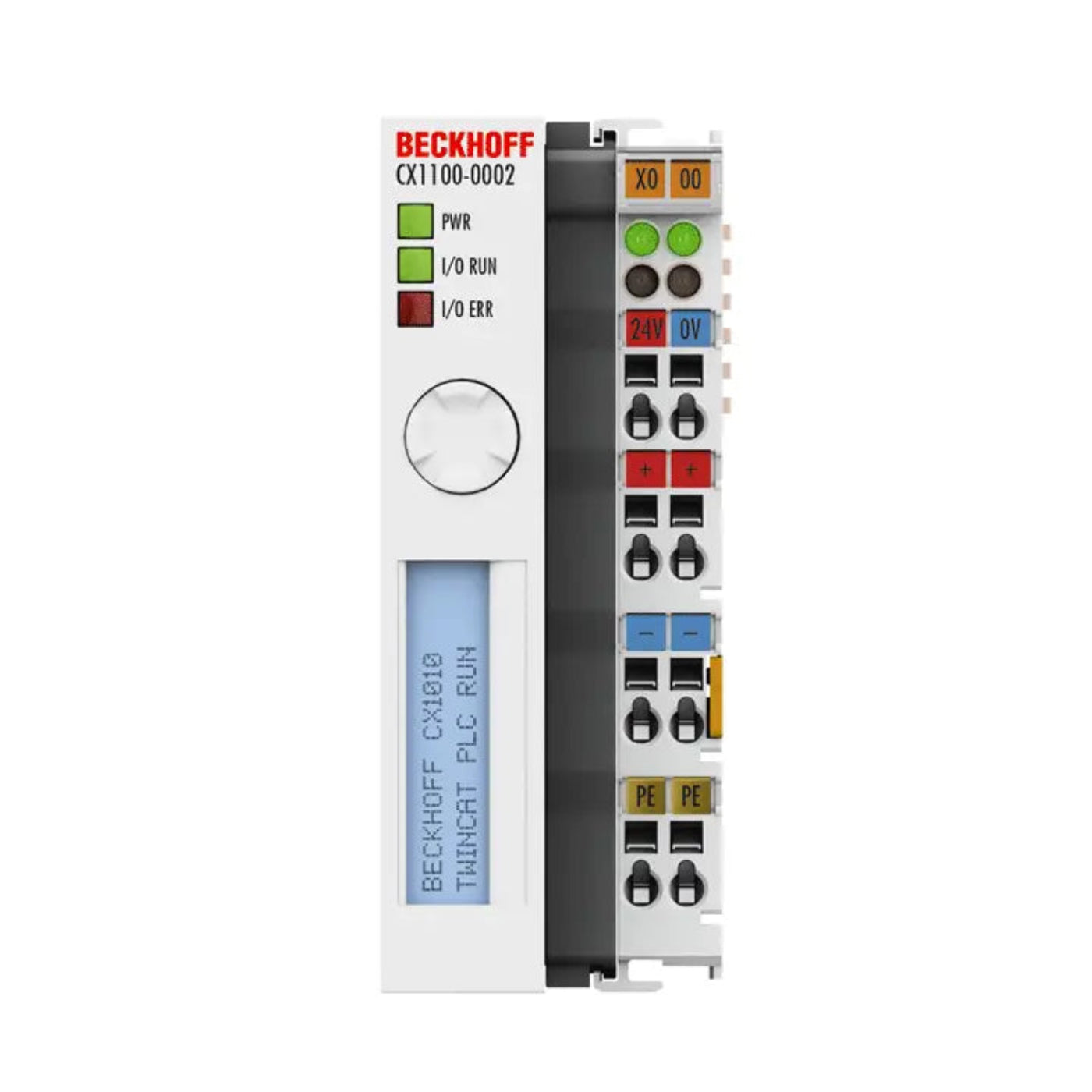

The Beckhoff CX1100-0002 is a 24 VDC power supply module designed for use with CX1010 and CX1020 Embedded PC systems. It provides stable system power, integrated K-bus I/O connectivity, and built-in NOVRAM for secure process data storage in industrial automation environments.
Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX1100-0002 |
| Subcategory | Power Supply Module |
| Input Voltage | 24 V DC (-15% / +20%) |
| Current Supply (K-bus) | Up to 1.75 A |
| Power Consumption | 3.5 W |
| NOVRAM Capacity | 8 kbytes |
| I/O DPRAM | 4 kbytes |
| Display | 2-line FSTN, 16 characters, backlit |
| Diagnostics LEDs | PWR, I/O Run, I/O Err |
| Connection Type | Spring-loaded (adapter terminal) |
| I/O Interface | K-bus connection (adapter terminal) |
| E-bus/IP-Link Connection | Not available |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 compliant |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 compliant |
| Approvals | CE, UL |
| Dimensions (W × H × D) | 40 mm × 100 mm × 91 mm |
| Weight | 0.44 lbs (approx. 250 g) |
What our Experts Think
- A compact, high-performance servo solution, the Beckhoff AM8121-1F20-0000 from the AM8000 Series delivers precise motion control for demanding automation applications.
- 0.16 kW servo power provides efficient performance, making it ideal for smaller machines, positioning systems, robotics, and motion-intensive equipment.
- 48 V DC operation supports flexible machine designs, especially compact systems where space and energy efficiency are priorities.
- Designed for precision motion control, offering accurate positioning, smooth operation, and reliable dynamic response.
- Seamless integration with Beckhoff automation platforms, including TwinCAT and compatible servo drives, simplifies advanced motion applications.
- Compact motor design helps save installation space, enabling efficient machine layouts without compromising performance.
Q&A
Q: What is the Beckhoff AM8121-1F20-0000 Servo Motor?
A: The Beckhoff AM8121-1F20-0000 is a compact 48 V DC servo motor from the AM8000 series, designed for precise motion control in industrial automation systems.
Q: What are the key specifications of this servo motor?
A: It features 48 V DC operation, 0.16 kW rated power, 0.50 Nm rated torque, 2 Nm peak torque, and 3000 rpm rated speed for responsive motion applications.
Q: What applications is the AM8121-1F20-0000 used for?
A: It is commonly used in machine automation, robotics, handling systems, positioning equipment, and compact servo axis applications requiring accurate speed and position control.
Q: Is this motor compatible with Beckhoff motion systems?
A: Yes. The AM8000 series is designed for integration with Beckhoff servo drives and TwinCAT-based automation solutions.
Q: What type of feedback does the motor use?
A: The motor supports encoder-based feedback options for closed-loop control and precise positioning.
Q: Why choose a low-voltage servo motor?
A: A 48 V DC servo motor offers a compact, efficient solution for machines requiring precise motion control in smaller automation setups.
Q: What maintenance does a servo motor require?
A: Keep connectors clean, inspect cables, monitor operating temperatures, and ensure the motor is properly matched with its drive system for reliable performance.
Maintenance Tips
- Keep the motor housing clean and free from dust buildup.
- Inspect motor cables, connectors, and terminals regularly.
- Check for unusual noise, vibration, or temperature increases.
- Verify shaft alignment and mechanical coupling condition.
- Monitor load levels to prevent overheating or stress.
- Ensure proper ventilation around the motor.
- Inspect mounting hardware for tightness.
- Store in a dry, clean environment when not in use
