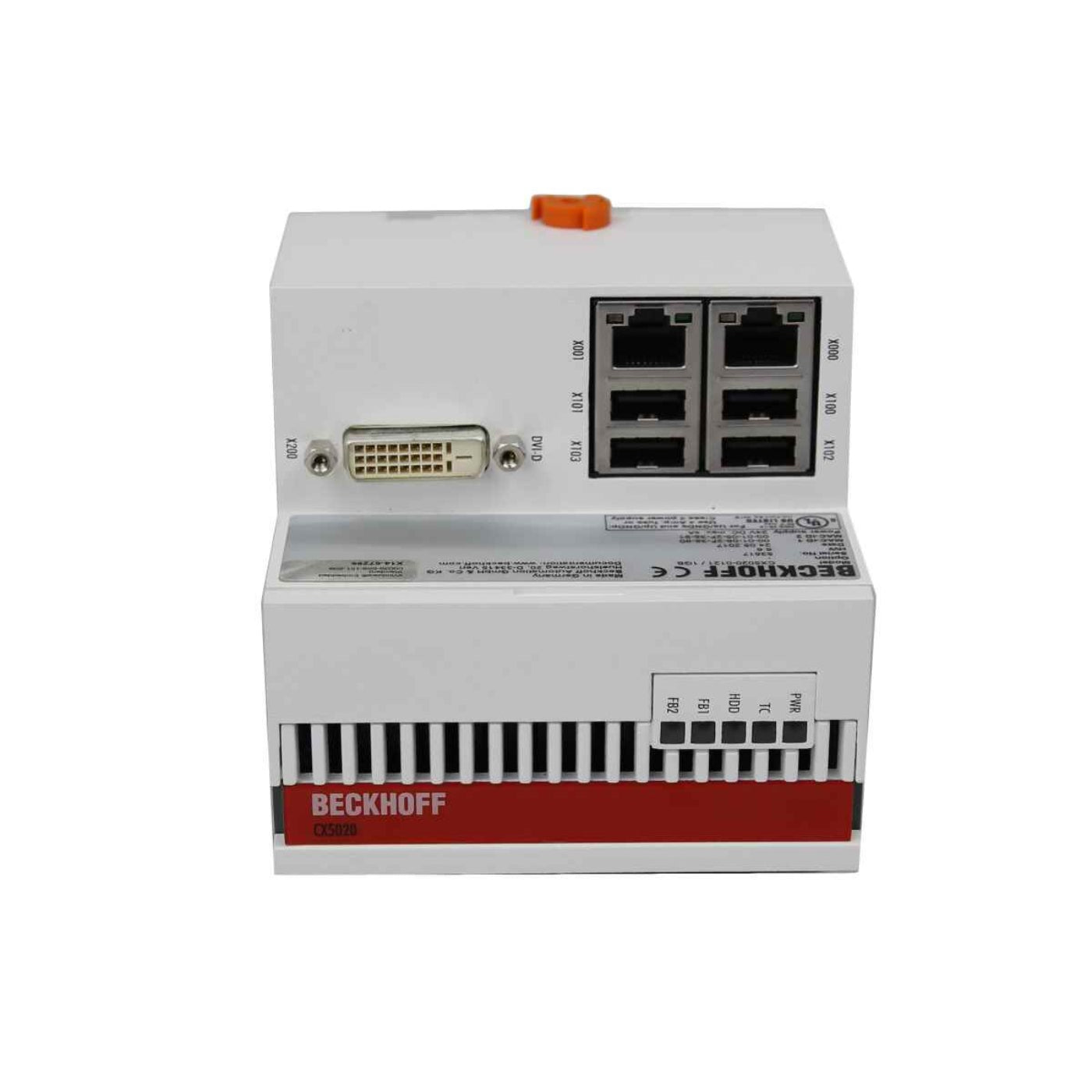

Beckhoff CPU Module - CX5020-0121

 Beckhoff CPU Module - CX5020-0121

The Beckhoff CX5020-0121 is a high-performance embedded control device designed for seamless integration into industrial automation systems. With its Intel Atom Z530 processor running at a clock speed of 1.6 GHz, this compact yet powerful controller is well-suited for demanding control and communication tasks.

Specifications

What our Experts Think

• Compact industrial control PC: The Beckhoff CX5020-0121 is a rugged Embedded PC (CX5000 series) designed for PLC, HMI, and motion control applications.
• Intel Atom performance: Powered by an Intel Atom Z530 (1.6 GHz) processor with efficient low-power operation for continuous industrial use.
• TwinCAT automation ready: Runs TwinCAT 2 runtime (and compatible TwinCAT 3 setups) for flexible PLC, NC, and motion control projects.
• Industrial I/O integration: Supports E-bus / K-bus terminal systems, making it easy to expand with Beckhoff I/O modules.
• Rich connectivity: Includes dual Ethernet ports, USB, DVI output, and optional interface expansion for machine integration.
• Compact and efficient design: Low power consumption (~13 W) and fanless construction make it reliable for cabinet installation.
• Built for harsh environments: Industrial-grade temperature range, vibration resistance, and 24V DC operation ensure stable uptime.

Q&A

Q: What is the Beckhoff CX5020-0121 CPU module used for?
A: The CX5020-0121 is an embedded industrial PC CPU module used for machine control, automation, and real-time PLC applications.

Q: What systems is it designed for?
A: It is part of the CX5000 series from Beckhoff Automation and integrates into DIN-rail mounted control systems for industrial environments.

Q: What applications is it typically used in?
A: It is used in factory automation, motion control systems, robotics, packaging machines, and process control setups.

Q: What are its key features?
A: It offers compact embedded PC design, real-time control capability, fanless operation, and support for TwinCAT automation software.

Q: Is it suitable for industrial environments?
A: Yes. It is built for 24/7 operation with high reliability, vibration resistance, and extended temperature tolerance.

Q: Why choose the CX5020-0121?
A: It provides a compact, scalable, and cost-effective PLC/PC platform for high-performance industrial automation tasks.

Maintenance Tips

• Ensure stable 24V DC power supply and verify correct voltage levels to prevent system instability or data loss.

• Keep ventilation paths clear and ensure proper airflow to avoid overheating of the CX5020 CPU module.

• Regularly inspect DIN rail mounting and connectors to ensure the unit is securely installed.

• Perform routine backup of system data, PLC programs, and configurations to prevent operational downtime.

• Keep firmware and system updates current using official tools from Beckhoff Automation.

• Avoid exposure to dust, moisture, vibration, and corrosive environments inside the control cabinet.

• Check LED status indicators for CPU, power, and error diagnostics during operation and maintenance.

• Ensure proper grounding and shielding of all connected I/O and communication lines to reduce interference.

• Periodically inspect internal storage (CFast/flash) health for early signs of failure or corruption.

• Follow ESD safety precautions when servicing or replacing the CPU module to protect sensitive electronics.
