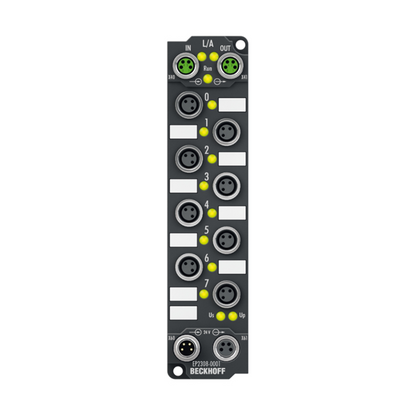

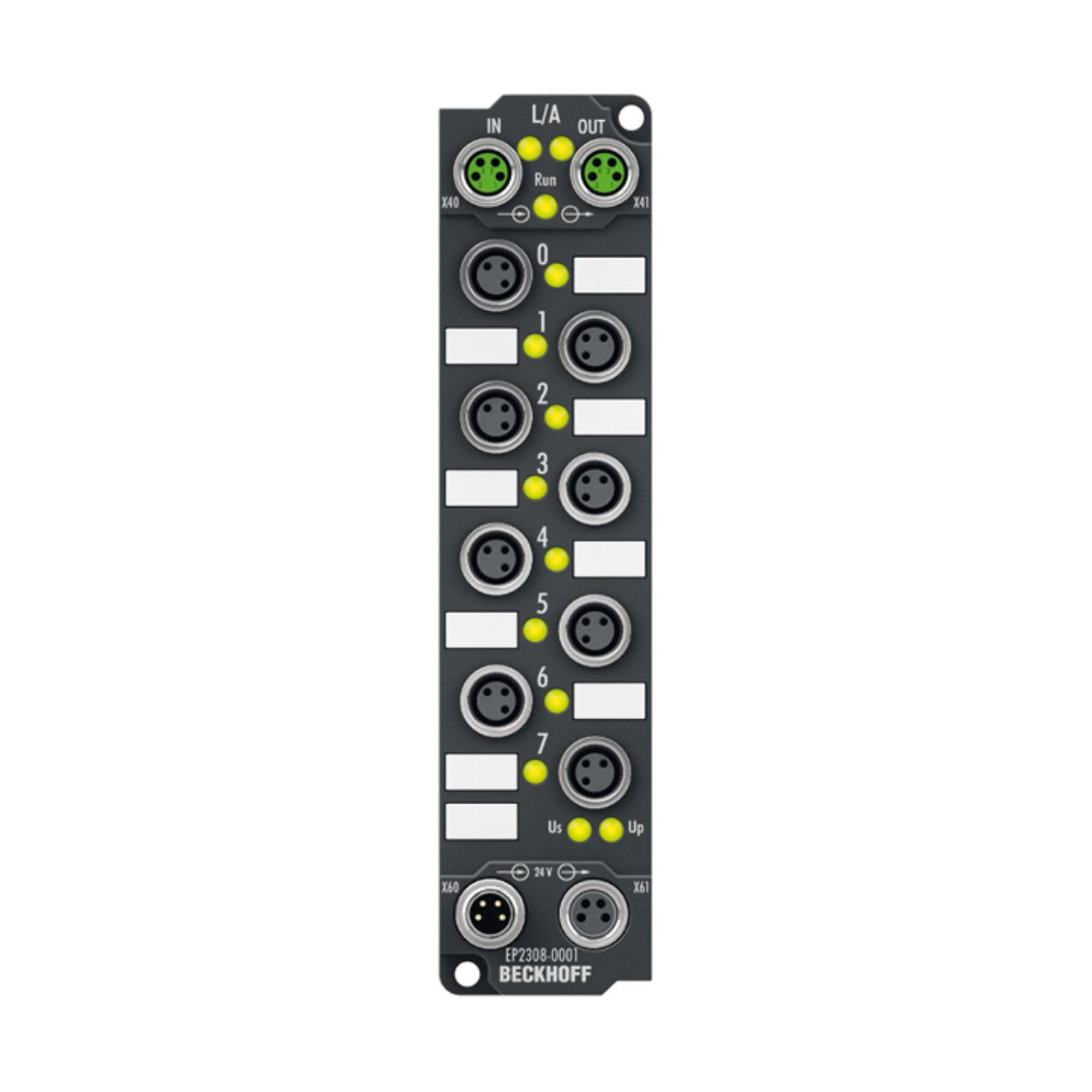

The Beckhoff EP2308-0001 is a compact EtherCAT Box that integrates four digital inputs and four digital outputs in one rugged, field-mounted unit. Operating at 24 V DC with 3 ms input filtering and 0.5 A short-circuit-proof outputs, it provides reliable distributed I/O control with M8 screw-type connections and LED signal indicators.
Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EP2308-0001 |
| Subcategory | EtherCAT Digital I/O Box |
| Protocol | EtherCAT |
| Bus Interface | 2 × M8 socket, 4-pin, a-coded, shielded |
| Specification Standard | EN 61131-2, type 1/3 |
| Number of Channels | 4 digital inputs + 4 digital outputs |
| Connection Type | M8 × 1, 3-pin, a-coded screw connectors |
| Input Filter | 3.0 ms |
| “0” Signal Voltage | -3…+5 V |
| “1” Signal Voltage | 11…30 V (6 mA input current, EN 61131-2 type 3) |
| Sensor Supply | From control voltage, max. 0.5 A, short-circuit-proof |
| Rated Load Voltage | 24 V DC (-15% / +20%) |
| Max. Output Current | 0.5 A per channel, individually short-circuit-proof |
| Switching Times | TON: 50 µs, TOFF: 100 µs |
| Short-Circuit Current | Typ. 1.5 A |
| Load Type | Ohmic, inductive, or lamp loads |
| Distributed Clocks | Not supported |
| Current Consumption | 120 mA |
| Auxiliary Power Current | Typ. 20 mA + load |
| Electrical Isolation | 500 V |
| Power Supply Connection | Feed: M8 male, 4-pin, a-coded; Downstream: M8 female, 4-pin, a-coded |
| Status Indication | LED for each channel (input/output signal) |
| Protection Rating | IP67 |
| Housing Type | Rugged industrial housing for field mounting |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Approvals/Markings | CE, UL |
| Weight | 165 g (approx. 0.36 lbs) |
