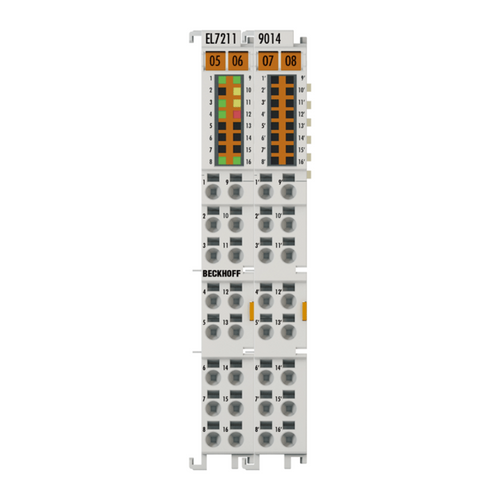

Beckhoff EtherCAT Servo Terminal 1-Channel Motion Interface 48 V DC 4.5 A OCT - EL7211-9014
Beckhoff EtherCAT Servo Terminal 1-Channel Motion Interface 48 V DC 4.5 A OCT - EL7211-9014
Couldn't load pickup availability
Beckhoff EtherCAT Servo Terminal 1-Channel Motion Interface 48 V DC 4.5 A OCT - EL7211-9014
Beckhoff EtherCAT Servo Terminal 1-Channel Motion Interface 48 V DC 4.5 A OCT - EL7211-9014

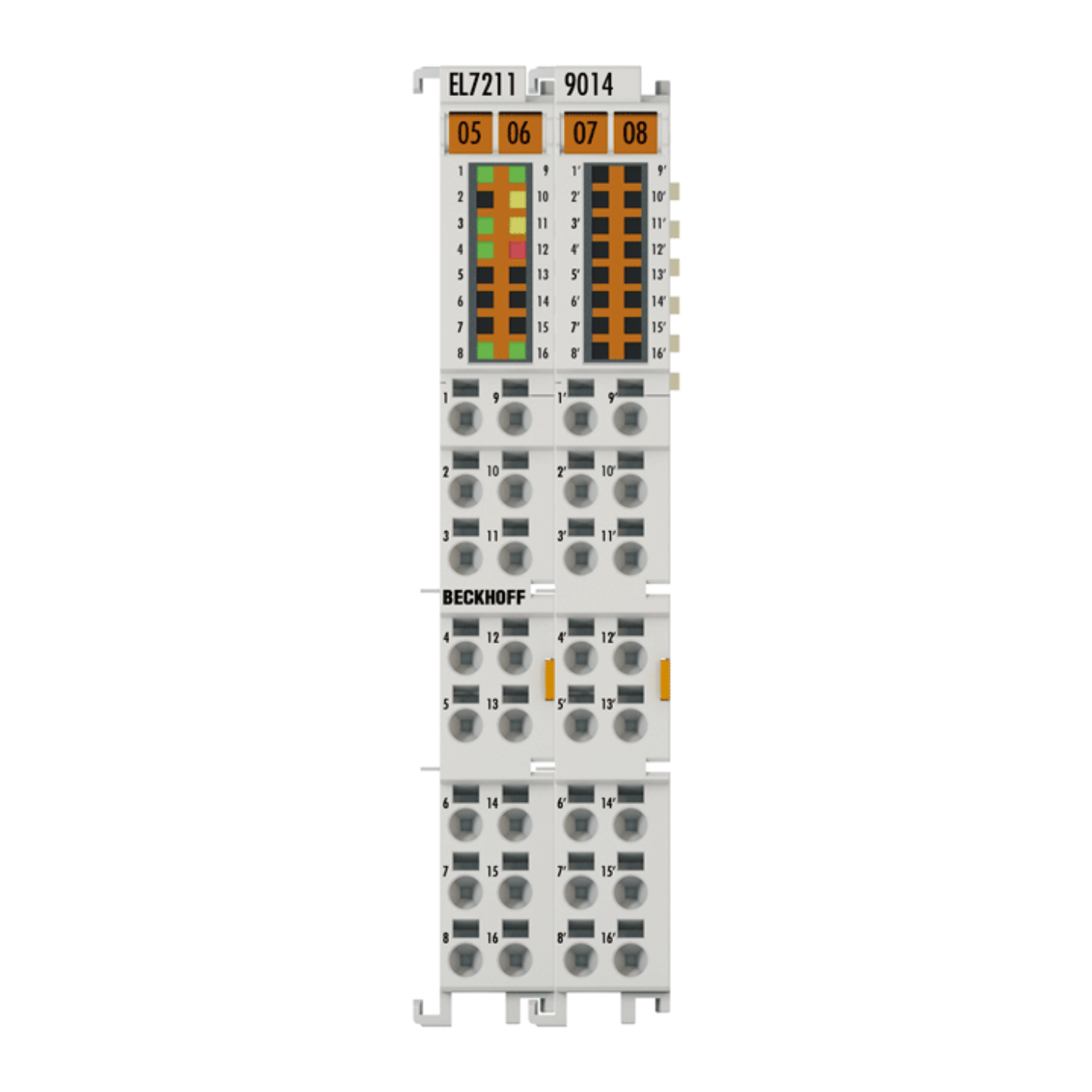

The Beckhoff EL7211-9014 is a 1-channel EtherCAT servo terminal with integrated One Cable Technology (OCT) for compact, high-performance motion control. It supports servomotors up to 4.5 A, providing precise positioning, integrated feedback, and Safe Torque Off (STO) functionality for reliable and efficient servo applications.
Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | EL7211-9014 |
| Subcategory | EtherCAT Servo Terminal |
| Function | 1-channel motion control terminal for servomotors |
| Protocol | EtherCAT |
| Technology | Compact drive technology with OCT |
| Number of Channels | 1 |
| Number of Outputs | 1 × servomotor, 1 × motor brake |
| Number of Inputs | 2 × end position, 1 × feedback, 1 × STO |
| Load Type | Permanent magnet-excited three-phase synchronous motor |
| Supply Voltage (Electronics) | 24 V DC (via power contacts) |
| Supply Voltage (Power) | 8…48 V DC (external) |
| Output Current (RMS) | 4.5 A |
| Peak Current (RMS) | 9.0 A for 1 s |
| Output Voltage (Motor Brake) | 24 V DC |
| Output Current (Motor Brake) | Max. 0.5 A |
| PWM Clock Frequency | 16 kHz |
| Current Controller Frequency | 32 kHz |
| Speed Controller Frequency | 16 kHz |
| Rotating Field Frequency | 0…599 Hz |
| Safe Function | Safe Torque Off (STO), hard-wired |
| Distributed Clocks | Yes |
| Communication Interface | CAN-over-EtherCAT (CoE) |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Diagnostic LEDs | 16 LEDs for status, warning, and error indication |
| Power Loss | Low, regenerative braking supported |
| Current Consumption (E-bus) | Typ. 120 mA |
| Current Consumption (Power Contacts) | Typ. 100 mA + motor brake holding current |
| Weight | Approx. 95 g |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Protection Class | IP20 |
What our Experts Think
- High-performance servo drive terminal: The Beckhoff EL7211-9014 is a 1-channel EtherCAT servo terminal designed for precise motion control of 48 V DC servo motors with up to 4.5 A RMS output current.
- Integrated motion + drive in one module: Combines servo drive electronics and control logic directly in the EtherCAT terminal, eliminating the need for a separate drive unit.
- One Cable Technology (OCT): Supports single-cable motor + encoder connection, reducing wiring complexity and improving installation reliability.
- High dynamic performance: Field-oriented current control and fast PI speed loops enable responsive, accurate positioning for demanding automation tasks.
- Built-in safety functions: Includes Safe Torque Off (STO) capability for compliance with modern industrial safety standards (EN 61800-5-2).
- Advanced diagnostics: Continuous monitoring of overload, temperature, voltage, and motor load (I²T model) helps prevent downtime and protect equipment.
- Compact EtherCAT design: High-density 24 mm terminal housing makes it ideal for space-saving control cabinet designs.
- Optimized for Beckhoff ecosystem: Seamless integration with TwinCAT automation software and distributed EtherCAT architectures.
Q&A
Q: What is the Beckhoff EL7211-9014 used for?
A: The EL7211-9014 is a single-channel EtherCAT servo terminal used to directly control a 48 V DC servo motor with up to 4.5 A RMS current for high-performance motion control.
Q: What type of motion control does it support?
A: It provides integrated servo drive functionality including current, speed, and position control for precise industrial automation and CNC-style motion systems.
Q: What makes the EL7211-9014 unique?
A: It features One Cable Technology (OCT), which combines motor power and feedback in a single cable, reducing wiring complexity and simplifying commissioning.
Q: What safety features does it include?
A: It supports Safe Torque Off (STO) according to IEC safety standards, enabling safe machine shutdown without removing power.
Q: What are its key technical capabilities?
A: It supports 8–48 V DC motor supply, up to 4.5 A RMS continuous output, high-speed EtherCAT communication, and integrated motor parameter auto-configuration for compatible motors.
Q: Where is it typically used?
A: It is used in packaging machines, robotics, CNC systems, and compact automation equipment requiring precise servo positioning.
Q: Why choose the EL7211-9014 over a traditional drive?
A: It reduces system size and wiring, integrates directly into EtherCAT I/O architecture, and simplifies machine design by combining drive and terminal functionality in one module.
Maintenance Tips
• Ensure correct 48 V DC supply within specified limits to maintain stable servo performance and prevent drive faults.
• Verify motor and encoder wiring integrity to avoid miscommunication, positioning errors, or damage to the EL7211-9014.
• Keep the terminal clean, dry, and free of conductive dust inside the control cabinet.
• Regularly inspect motor connectors, shielding, and cable routing to minimize electromagnetic interference.
• Configure drive parameters accurately in Beckhoff Automation TwinCAT, including current limits, motion profiles, and feedback settings.
• Monitor status LEDs for fault codes, overcurrent, or communication issues for early diagnostics.
• Ensure proper grounding and shielding of motor and power cables to reduce noise and improve stability.
• Avoid exceeding rated current (4.5 A) and thermal limits during continuous operation.
• Periodically check mechanical load coupling and alignment to prevent vibration and wear.
• Perform scheduled firmware and system updates to maintain compatibility and performance reliability.
