Beckhoff EtherCAT Terminal, 1-Channel Encoder Interface, Incremental, 5 V DC (DIFF RS422, TTL), 1 MHz - EL5101

Beckhoff EtherCAT Terminal, 1-Channel Encoder Interface, Incremental, 5 V DC (DIFF RS422, TTL), 1 MHz - EL5101

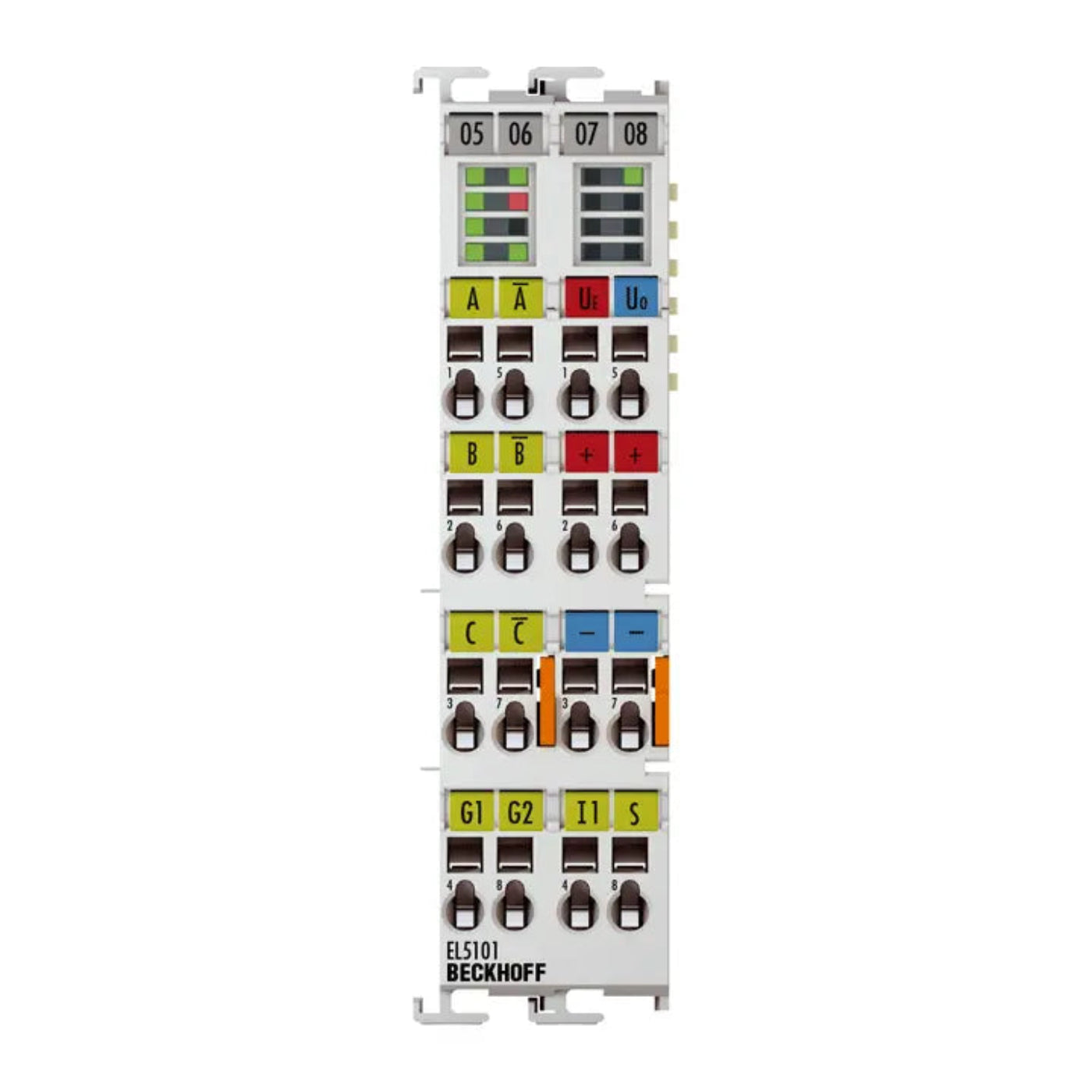

The Beckhoff EL5101 is an EtherCAT terminal designed as an incremental encoder interface for high-resolution position and speed feedback. It reads incremental encoder signals (A, B, and optional Z) and transmits precise position data to the control system.

Specifications

What our Experts Think

• High-speed motion feedback interface: The Beckhoff EL5101 is a 1-channel EtherCAT incremental encoder terminal designed for precise position and speed measurement in industrial motion systems.
• Supports multiple encoder types: Works with both differential RS422 encoders and TTL single-ended signals, making it highly versatile for automation retrofits and new builds.
• Very high input frequency: Capable of processing signals up to 1 MHz (4 million increments/s with quadrature decoding) for high-speed motion applications.
• Precision measurement capability: Enables period and frequency measurement with ~100 ns resolution, supporting accurate dynamic axis control.
• Advanced motion features: Includes microincrement interpolation, timestamping of edges, and distributed clock synchronization for deterministic EtherCAT systems.
• Built-in control functions: Supports latch, gate, and counter functions, allowing events like zero pulses and position capture.
• Industrial robustness: Designed for 24/7 operation with electrical isolation and strong EMC resistance for harsh factory environments

Q&A

Q: What is the Beckhoff EL5101 used for?
A: The EL5101 is a single-channel EtherCAT terminal used to connect incremental encoders and convert their signals into precise position data for industrial automation systems.

Q: What type of encoders does it support?
A: It supports incremental encoders with differential RS422 signals and single-ended TTL signals, commonly used in motion control applications.

Q: What is its key performance capability?
A: It can evaluate input frequencies up to 1 MHz, enabling high-speed, high-resolution position measurement for fast-moving axes.

Q: What are its main features?
A: It includes 4-fold quadrature decoding, integrated frequency/period measurement, latch and gate functions, and optional microincrement interpolation for higher precision.

Q: Can it provide encoder power?
A: Yes. It supplies 5 V DC encoder power directly through the terminal, simplifying wiring in control cabinet setups.

Q: Where is the EL5101 typically used?
A: It is used in CNC machines, robotics, packaging systems, and any automation application requiring precise position feedback.

Q: How does it integrate into control systems?
A: It connects via EtherCAT and works with PLC systems from Beckhoff Automation using TwinCAT software for real-time motion control.

Q: Why choose the EL5101?
A: It provides high-speed, noise-immune encoder signal processing in a compact DIN-rail module, ideal for accurate and reliable industrial motion feedback.

Maintenance Tips

• Ensure correct wiring for TTL/RS422 differential encoder signals to avoid counting errors or signal loss.

• Maintain clean 5 V DC supply within specifications to ensure stable encoder signal processing.

• Keep encoder cables properly shielded and routed away from high-power lines to reduce electromagnetic interference.

• Regularly inspect connectors and terminals for looseness, corrosion, or mechanical wear.

• Configure correct scaling, counting mode, and filter settings in Beckhoff Automation TwinCAT for accurate motion feedback.

• Monitor input frequency limits (up to 1 MHz) to avoid signal overflow or missed pulses.

• Ensure proper grounding of both encoder and control cabinet to improve noise immunity.

• Periodically test encoder feedback accuracy to detect drift, signal degradation, or wiring faults.

• Avoid cable damage from vibration or bending, especially in moving machine parts.

• Keep terminal firmware and system diagnostics updated for optimal performance and fault detection.
