Beckhoff NEMA34 Stepper Motor N3 Frame 5.0 Nm Holding Torque 24–48 V DC - AS1060-0000

 Beckhoff NEMA34 Stepper Motor N3 Frame 5.0 Nm Holding Torque 24–48 V DC - AS1060-0000

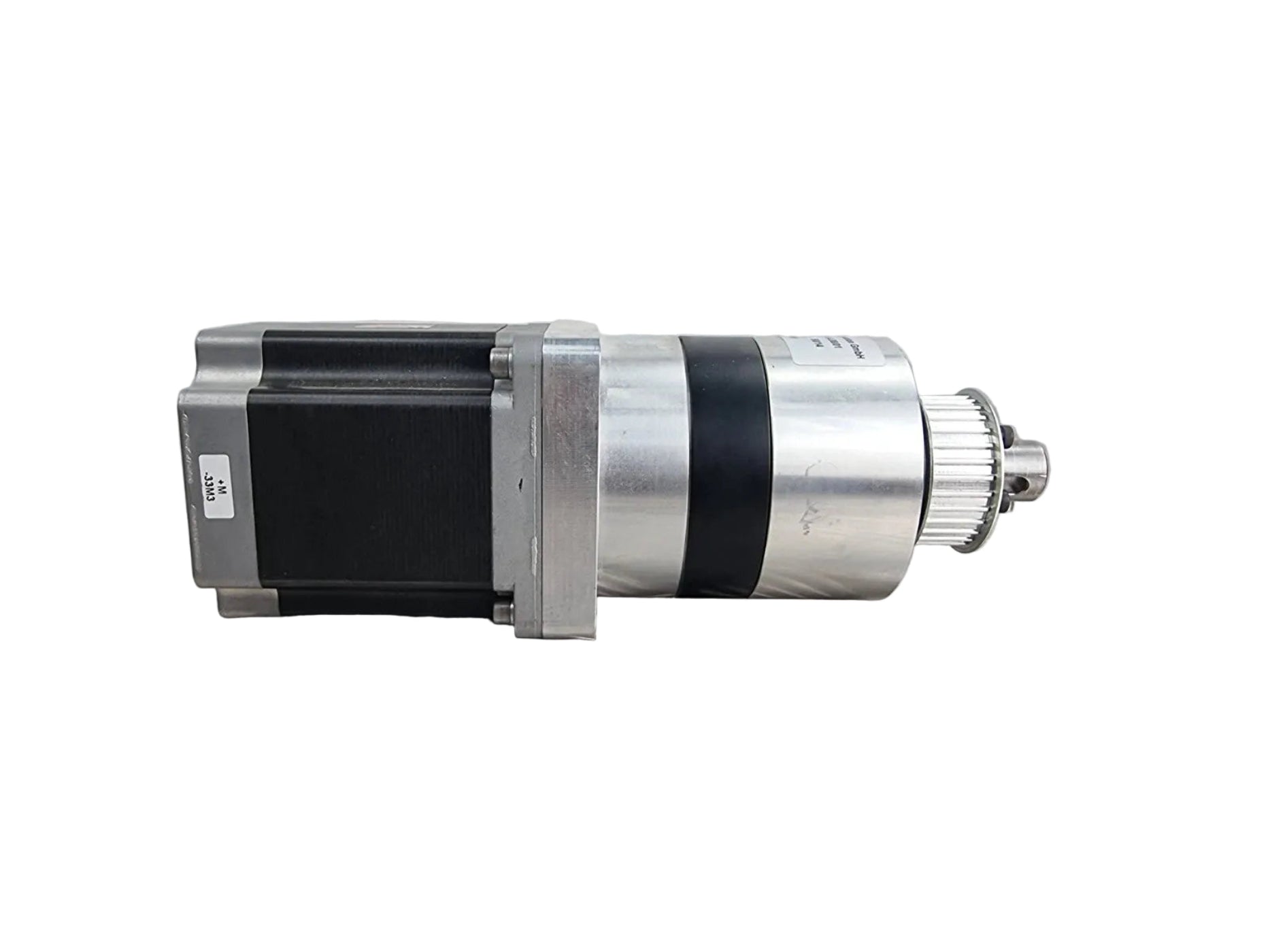

The Beckhoff AS1060-0000 is a high-torque stepper motor designed for precise positioning and auxiliary axis control in industrial automation systems. With a 5.0 Nm holding torque and an N3 (NEMA34/86 mm) flange size, it supports stable, repeatable motion in open-loop applications. It is intended for use with a motion terminal to provide the required power electronics.

What our Experts Think

• High-speed motion feedback interface: The Beckhoff EL5101 is a 1-channel EtherCAT incremental encoder terminal designed for precise position and speed measurement in industrial motion systems.
• Supports multiple encoder types: Works with both differential RS422 encoders and TTL single-ended signals, making it highly versatile for automation retrofits and new builds.
• Very high input frequency: Capable of processing signals up to 1 MHz (4 million increments/s with quadrature decoding) for high-speed motion applications.
• Precision measurement capability: Enables period and frequency measurement with ~100 ns resolution, supporting accurate dynamic axis control.
• Advanced motion features: Includes microincrement interpolation, timestamping of edges, and distributed clock synchronization for deterministic EtherCAT systems.
• Built-in control functions: Supports latch, gate, and counter functions, allowing events like zero pulses and position capture.
• Industrial robustness: Designed for 24/7 operation with electrical isolation and strong EMC resistance for harsh factory environments.

Q&A

Q: What is the Beckhoff C9900-U332-0010 battery pack used for?
A: The C9900-U332-0010 is a 24 V DIN-rail mounted battery pack used as an energy storage unit for industrial PCs with integrated UPS functionality.

Q: What is its main purpose in an automation system?
A: It provides backup power during mains failure, allowing the industrial PC to save data safely and shut down properly without corruption or data loss.

Q: What type of systems is it designed for?
A: It is designed for Beckhoff Industrial PCs (especially Intel Atom–based systems) that include an integrated UPS power supply concept.

Q: What are its key technical features?
A: It offers 24 V DC nominal voltage, 1.2 Ah capacity, maintenance-free VRLA AGM battery technology, and a compact DIN-rail metal housing for control cabinet installation.

Q: How is it installed?
A: The unit is mounted externally on a DIN rail (TS35), typically inside a control cabinet, and connected to the IPC’s UPS power system.

Q: What happens during a power failure?
A: The battery pack supplies short-term energy so the IPC can complete file writes, preserve system state, and perform a controlled shutdown.

Q: Why is it important in industrial automation?
A: It protects PLC programs, machine data, and file systems from corruption, ensuring safe recovery and reducing downtime after unexpected power loss.

Q: What makes it different from a standard UPS?
A: It is a dedicated industrial DC battery module designed specifically for seamless integration with Beckhoff IPC and UPS systems, rather than a standalone AC UPS device.

Maintenance Tips

• Check battery charge status regularly and replace when capacity drops below safe backup thresholds.

• Ensure correct DIN-rail mounting and secure connection to the UPS system for reliable backup switching.

• Keep operating environment within recommended temperature range to extend battery life and prevent degradation.

• Perform periodic discharge tests to verify actual backup time and UPS performance.

• Inspect terminals and connectors for corrosion, looseness, or heat discoloration.

• Avoid deep discharge cycles to maximize lifespan of the 24 V 1.2 Ah battery pack.

• Store spare batteries in a cool, dry environment and follow manufacturer storage guidelines.

• Keep ventilation clear around the UPS system to prevent overheating during charging cycles.

• Replace the battery pack only with approved models from Beckhoff Automation to ensure compatibility and safety.

• Monitor UPS diagnostics for alarms, low-voltage warnings, or charging irregularities.
