Beckoff Analog Output Terminal - EL4001

Beckoff Analog Output Terminal - EL4001

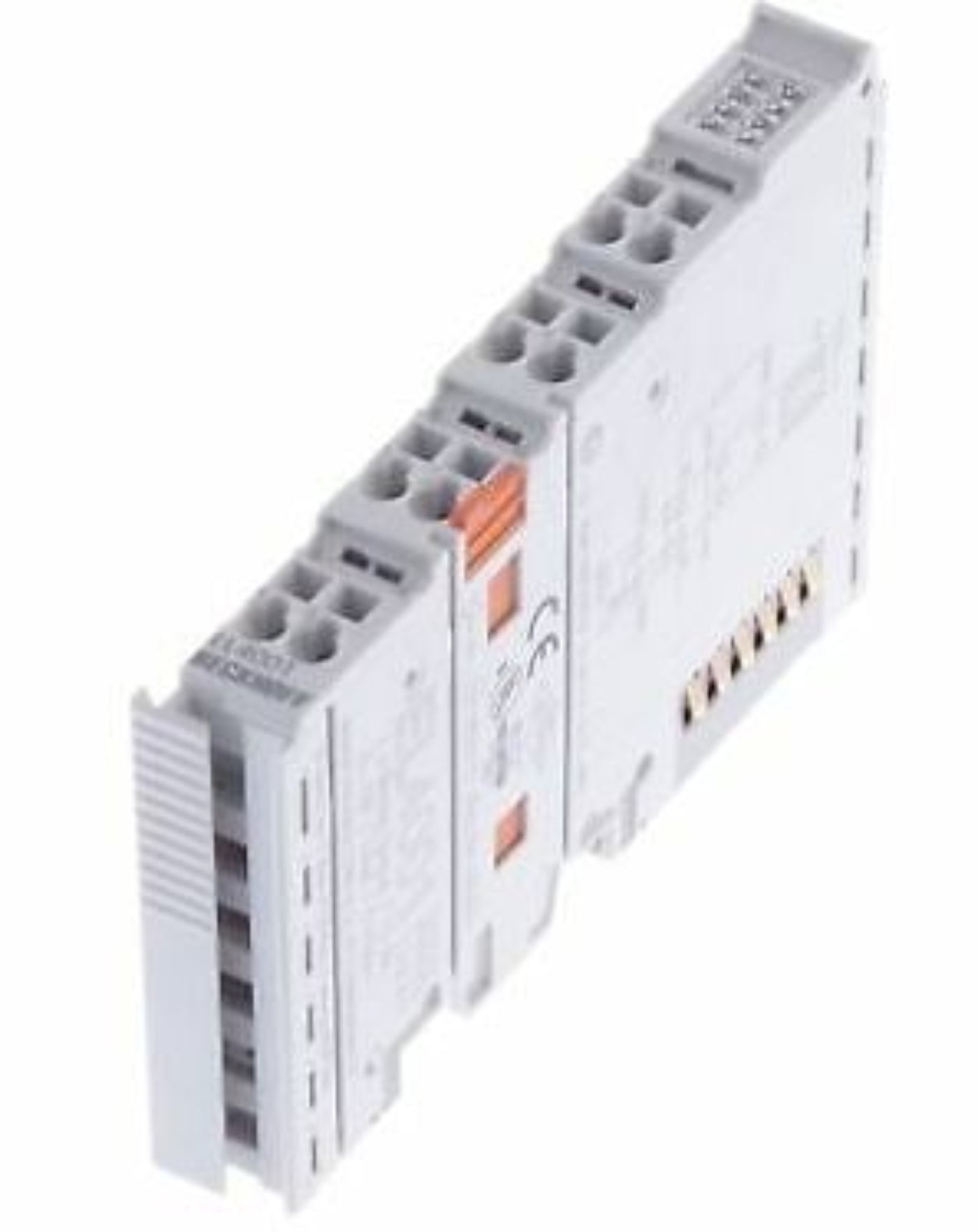

The Beckhoff EL4001 is a single-channel EtherCAT analog output terminal delivering 0 to 10 V signals with 12-bit resolutio

n and electrical isolation, ideal for precise industrial automation and process control.

Specifications

What our Experts Think

• Precise analog signal output: The Beckhoff EL4001 is a single-channel EtherCAT analog output terminal designed to generate accurate 0–10 V control signals for industrial automation systems.
• High-resolution control: Provides 12-bit resolution, ensuring smooth and precise signal scaling for actuators, drives, and process control devices.
• Fast, real-time response: Features a conversion time of approximately 100 µs, making it suitable for fast control loops in synchronized systems.
• Electrical isolation built-in: Includes 500 V isolation between E-bus and signal level, improving noise immunity in harsh industrial environments.
• Stable load handling: Designed for loads above 5 kΩ, ensuring reliable voltage output without signal distortion.
• Compact DIN-rail design: Space-saving terminal housing enables high-density I/O configuration inside control cabinets.
• Ideal industrial applications: Commonly used for valve control, speed reference signals, analog setpoints, and PLC-to-drive communication.

Q&A

Q: What is the Beckhoff EL4001 Analog Output Terminal used for?
A: The EL4001 is a single-channel EtherCAT analog output terminal used to generate precise voltage control signals (0–10 V) in industrial automation systems.

Q: What does the EL4001 do in a control system?
A: It converts digital process data from a PLC into a proportional analog voltage output, typically used to control drives, valves, actuators, and other analog devices.

Q: What are its key technical features?
A: It provides 1 analog output channel, 0–10 V signal range, 12-bit resolution, electrical isolation, and fast conversion time (~100 µs) for precise control response.

Q: Where is the EL4001 commonly used?
A: It is used in machine automation, process control, HVAC systems, and motion control applications where variable analog voltage signals are required.

Q: How does it integrate into a system?
A: It connects via EtherCAT and works with PLC systems from Beckhoff Automation using TwinCAT software for real-time control.

Q: What makes it suitable for industrial use?
A: It offers electrical isolation, DIN-rail mounting, rugged IP20 industrial design, and stable operation in harsh environments.

Q: Why choose the EL4001?
A: It provides a compact, cost-effective, and highly accurate way to generate analog control signals directly from a PLC system.

Maintenance Tips

• Ensure correct 24V DC power supply and verify stable system voltage to maintain accurate analog output signals.

• Check wiring polarity and terminal connections to avoid incorrect output levels or signal distortion.

• Keep the terminal and control cabinet clean, dry, and free from dust or conductive contaminants.

• Regularly inspect output signal accuracy using calibrated measurement equipment to detect drift or faults early.

• Maintain proper grounding and shielding of signal cables to reduce electrical noise and interference.

• Ensure correct configuration in the Beckhoff Automation TwinCAT system for scaling and output range settings.

• Periodically tighten field wiring and check for loose or corroded connections.

• Avoid exceeding specified load limits on analog outputs to prevent damage to the terminal.

• Monitor for overheating or abnormal behavior during continuous operation.

• Perform periodic system diagnostics to verify channel functionality and signal stability.
