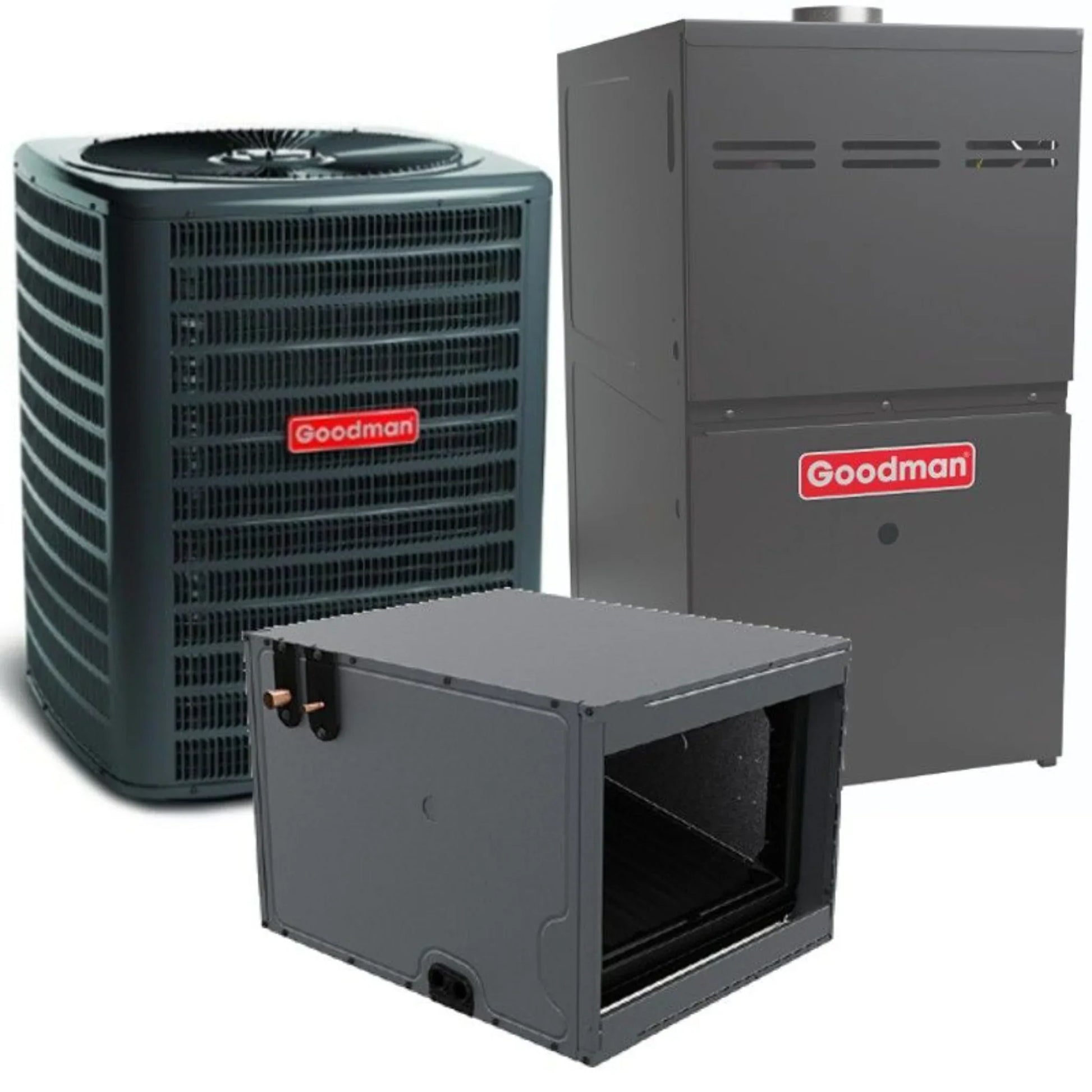

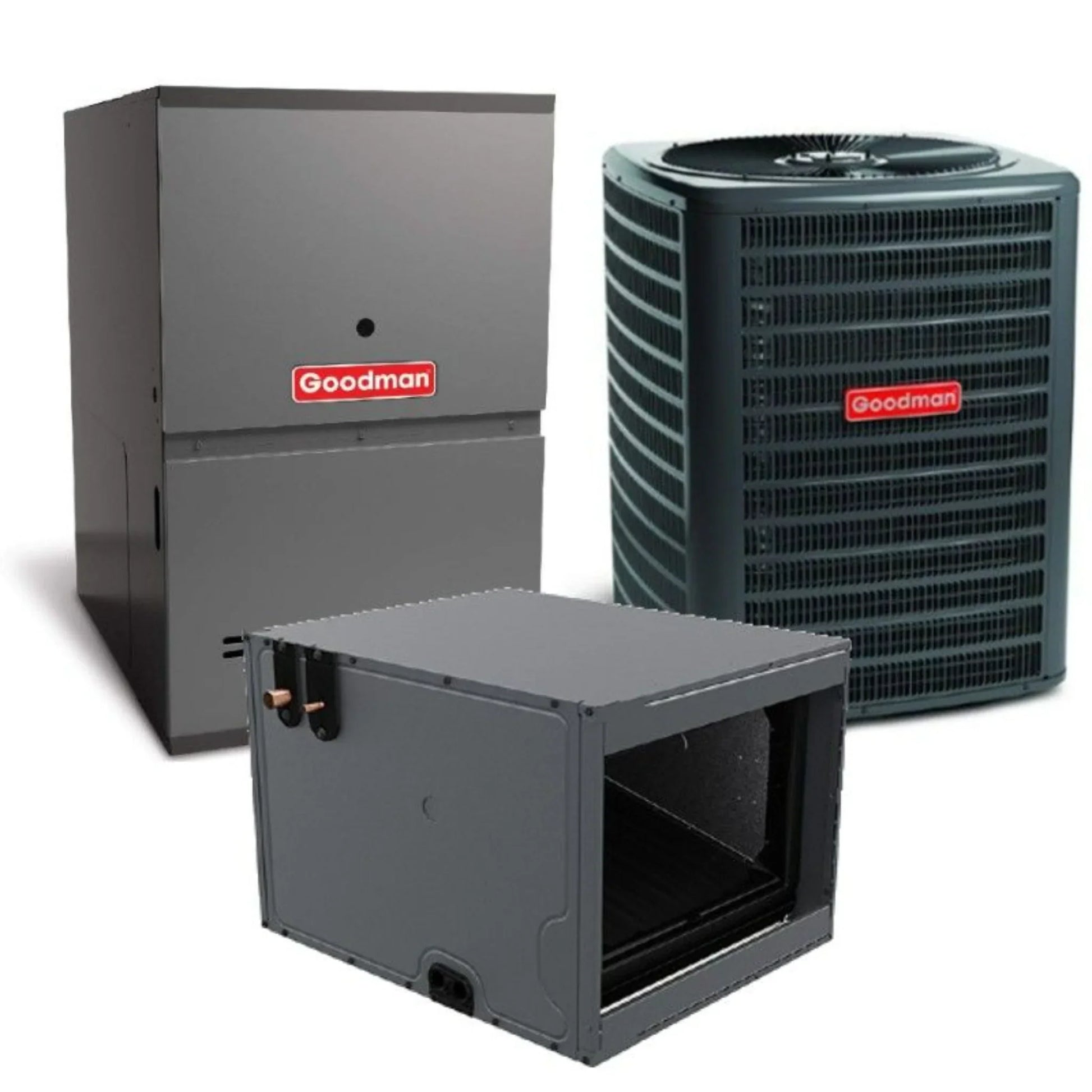

Goodman - 2.5 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3630B3

Goodman - 2.5 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3630B3

$3,456.99
$3,456.99 $4,608.00
SAVE 24% Sold out
Goodman - 2.5 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3630B3

Goodman - 2.5 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3630B3

$3,456.99
$3,456.99 $4,608.00
SAVE 24% Sold out

Goodman - 2.5 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3630B3

A Goodman gas furnace and air conditioner system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman gas furnace and air conditioner system is the perfect choice for all of your heating and cooling needs.

Features
  • Ideal size to cover a medium-sized house

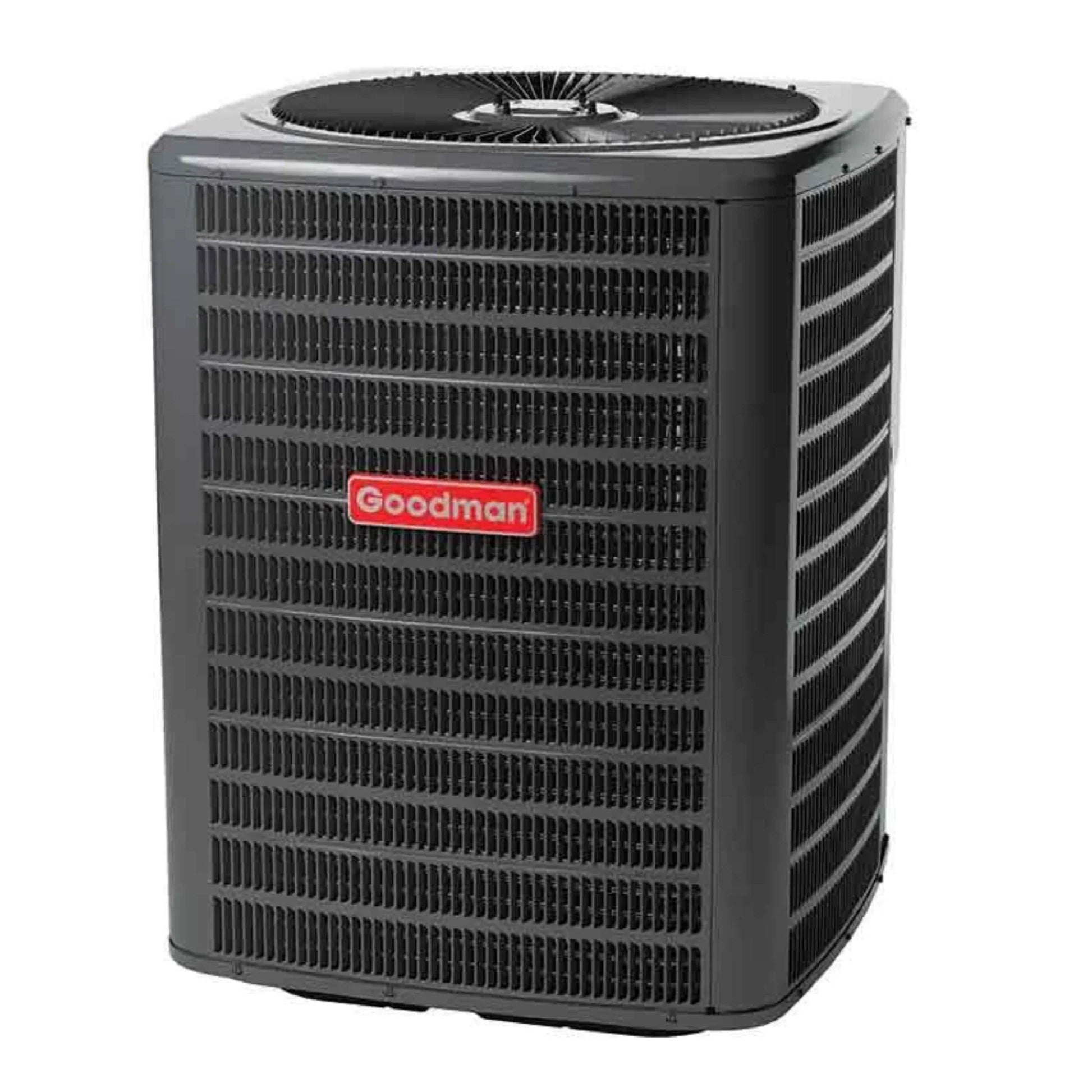

  • 2.5 ton, 13.4 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier

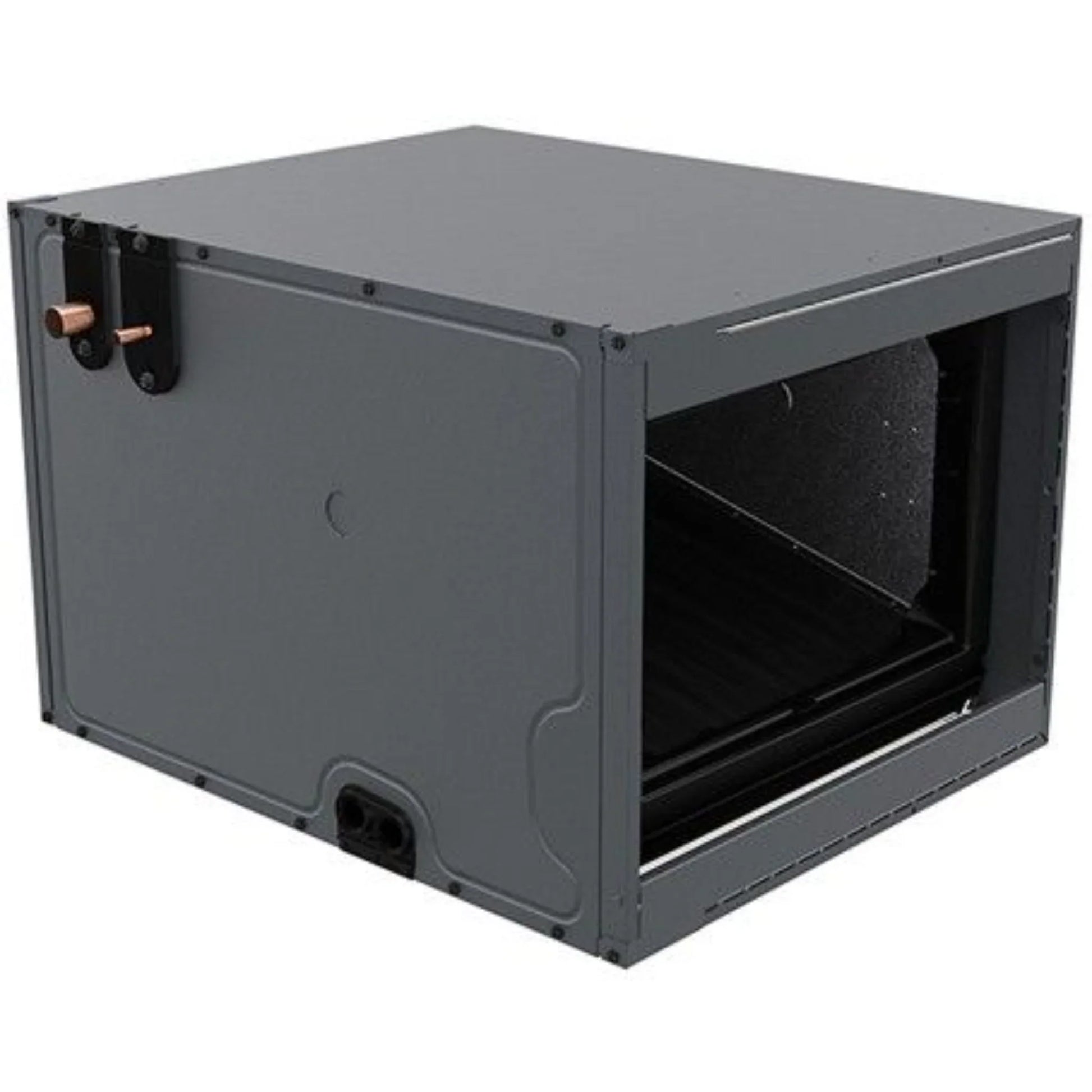

  • 2.5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

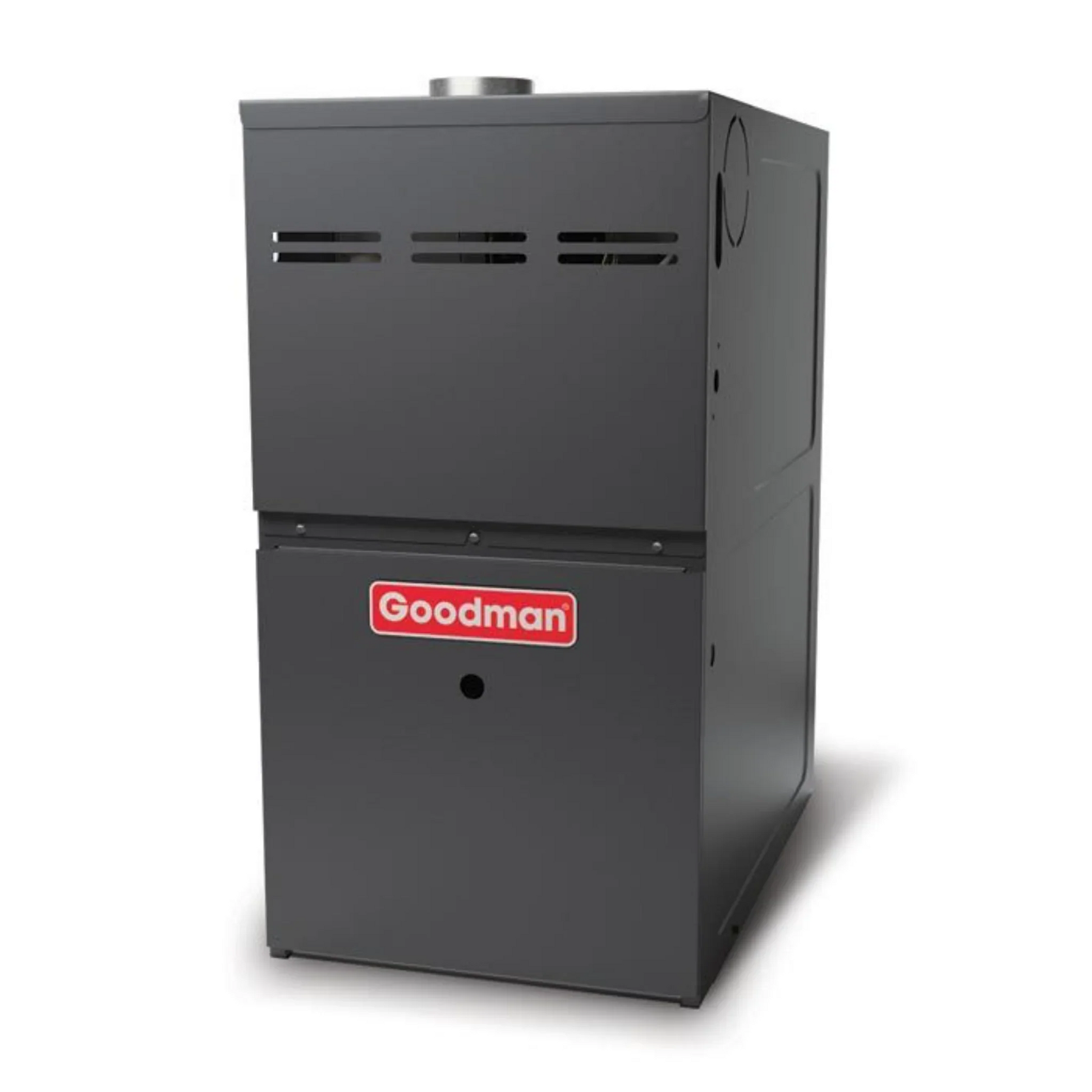

  • This furnace is ideal to heat a medium-sized house (in average climate conditions)

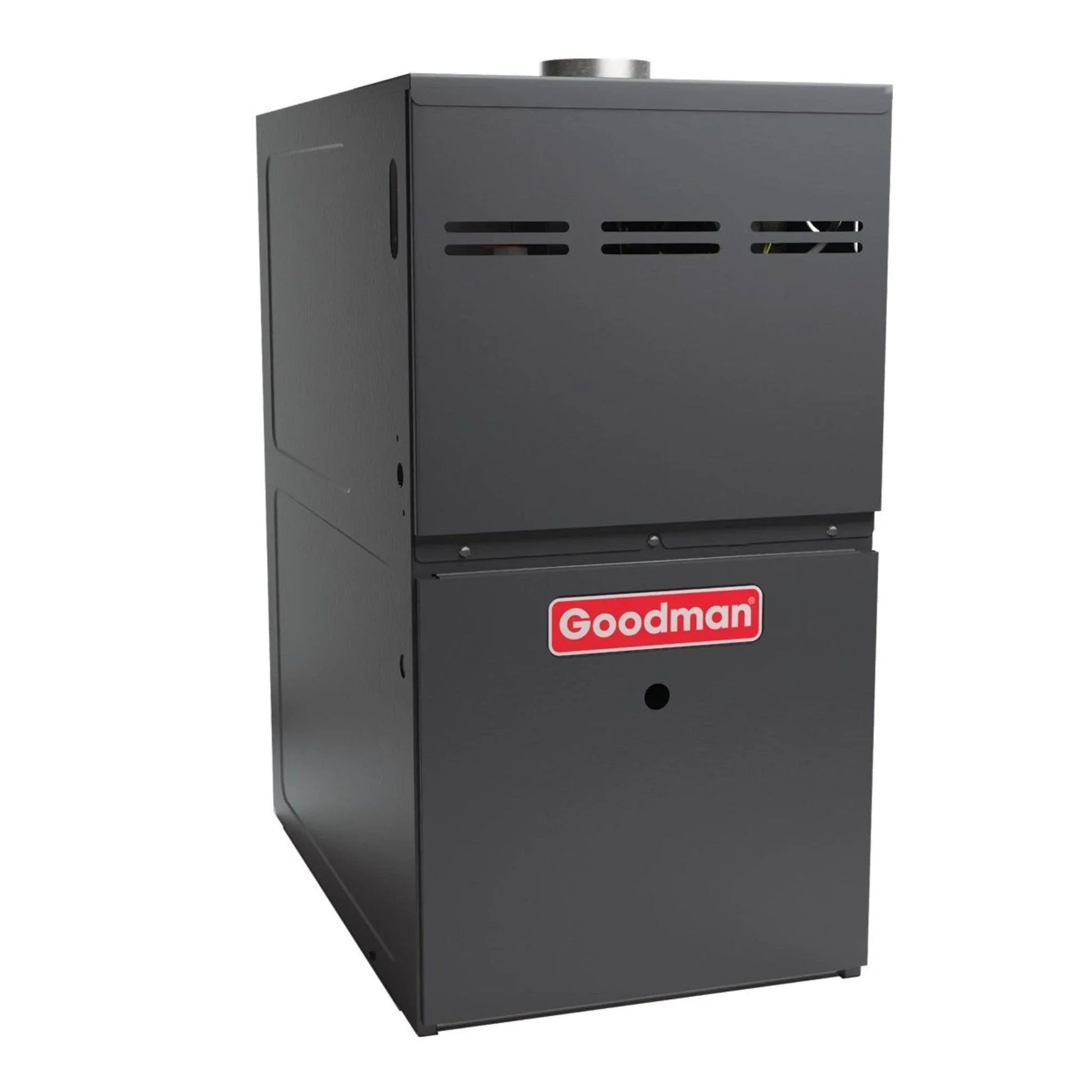

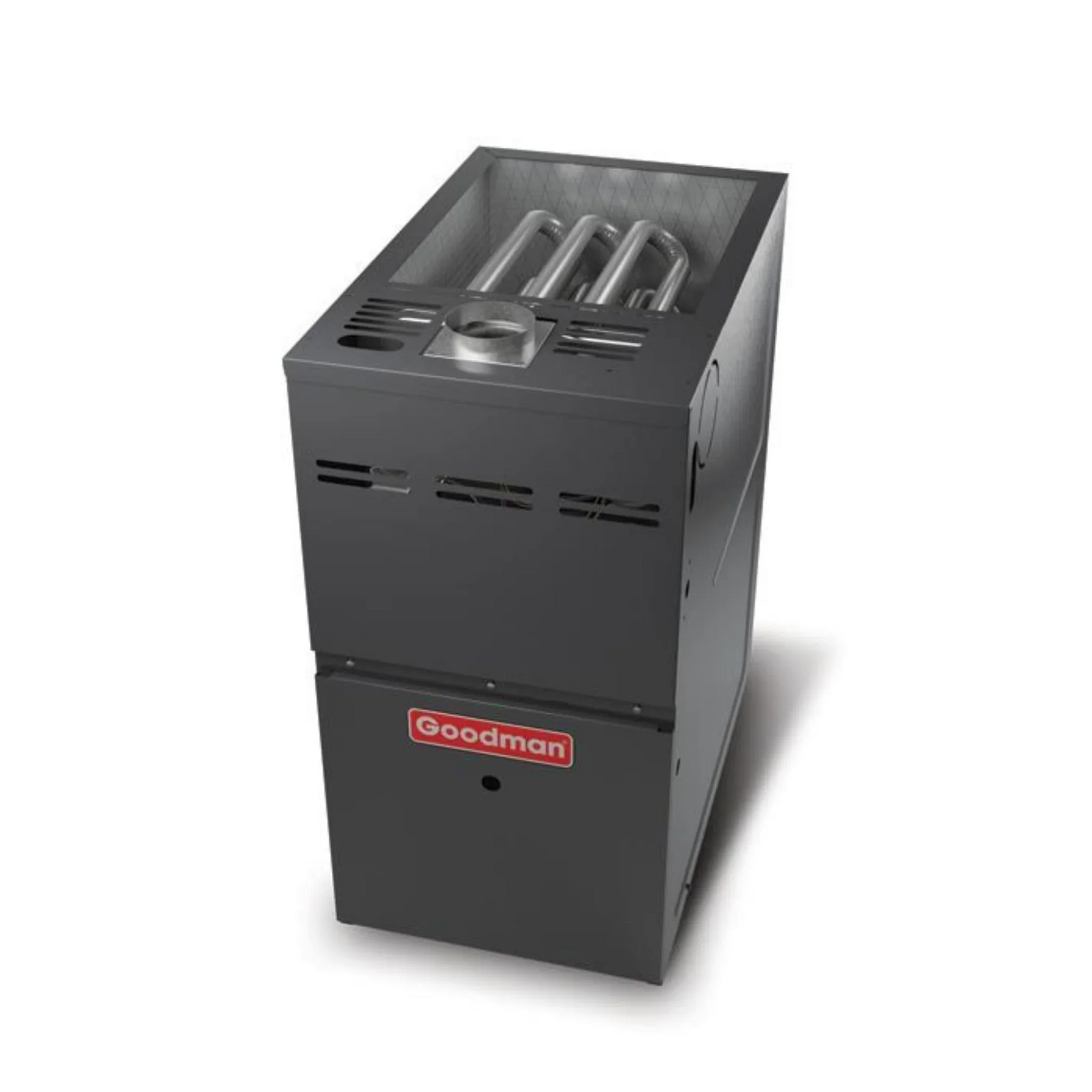

  • 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
Specifications

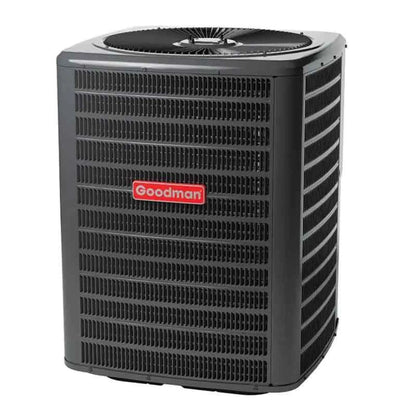

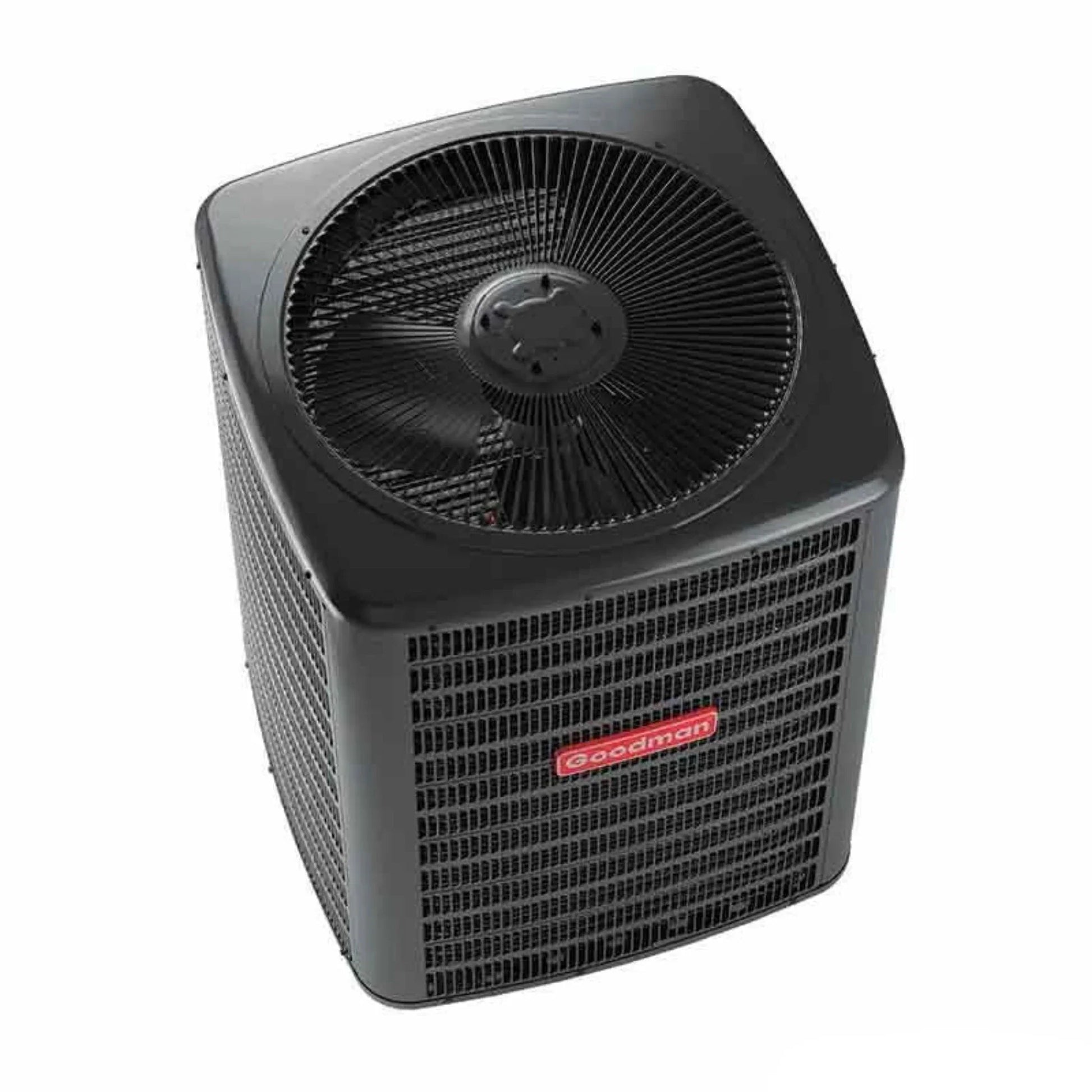

2.5 Ton 13.4 SEER2 Goodman Air Conditioner Condenser - R32
SKU GLXS3BN3010
Weight 149.000000
Manufacturer Goodman
Replaces Add GSX130301 and GSXN3N3010
Product Features New Refrigerant Compliant
Cooling BTU 30,000
Decibel Level (dBA) 74
Horsepower 1/8 HP
Refrigerant R32
SEER2 13.4
Condenser Stages Single Stage
Compressor Type Rotary
Liquid Line 3/8"
Suction Line 3/4"
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208 / 230 V. 1 Phase 60 Hz
Max Breaker Size 25 Amps
Min. Breaker Size 14.7 Amps
Tonnage 2.5 Ton
Connection Sweat
Height 32 1/2"
Width 26"
Depth 26"
Manual
What our Experts Think

  • Whole‑Home Comfort Package: The Goodman CHPTA3630B3 HVAC System pairs an 80% AFUE gas furnace with a 2.5 ton (60,000 BTU) air conditioner, delivering efficient year‑round heating and cooling in one matched system.

  • Reliable Heating Performance: With 80% AFUE, the gas furnace provides steady warmth and dependable performance for moderate climates and everyday use.

  • Efficient Cooling (14.5 SEER2): The air conditioner helps keep summer energy use lower while maintaining comfortable indoor temperatures.

  • Horizontal Installation Fit: Designed for horizontal duct configurations, making it ideal for crawlspaces, attics, or low‑clearance mechanical areas.

  • R32 Refrigerant Advantage: Uses R32 refrigerant, offering improved heat transfer efficiency and a smaller environmental footprint compared with older refrigerants.

  • Matched System Efficiency: Engineered as a coordinated furnace + AC system to ensure consistent airflow, balanced performance, and reliable seasonal comfort.

  • Goodman Value & Durability: Combines solid heating and cooling efficiency with flexible installation, making it a practical, cost‑effective HVAC solution for many homes.


Q&A

Q: What’s included in this HVAC system?
A: This matched Goodman system includes a 2.5 ton 14.5 SEER2 R32 air conditioner condenser, a 60,000 BTU 80% AFUE gas furnace, and a horizontal cased evaporator coil (CHPTA3630B3) for balanced heating and cooling performance.

Q: What cooling capacity and efficiency does the system provide?
A: The air conditioner delivers 2.5 tons (≈30,000 BTU) of cooling with 14.5 SEER2 efficiency — efficient performance for moderate‑size homes.

Q: What does 80% AFUE mean for heating?
A: 80% AFUE means approximately 80 ¢ of every dollar spent on fuel becomes usable heat, offering reliable heating with standard efficiency and lower fuel costs than older models.

Q: What type of refrigerant does this system use?
A: Uses R32 refrigerant, a modern choice that improves energy performance and meets current environmental standards.

Q: Is this system suited for horizontal installation?
A: Yes — the included CHPTA3630B3 horizontal evaporator coil and furnace are designed for horizontal installation, ideal for tight spaces, attics, closets, or crawlspaces with horizontal duct layouts.

Q: Why choose a matched system over separate components?
A: Matched systems ensure optimized airflow, improved efficiency, consistent performance, and warranty compatibility compared with mismatched parts.

Q: Who is this system best for?
A: Ideal for medium‑sized homes needing balanced year‑round comfort, standard‑efficiency heating, and efficient cooling with modern refrigerant compatibility.


Maintenance Tips

  • Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain airflow and protect furnace and AC components.

  • Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for even heating and cooling.

  • Inspect Furnace Venting: Check intake and exhaust pipes for debris or blockages to maintain safe operation.

  • Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.

  • Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for correct operation.

  • Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate maintenance needs.

  • Schedule Annual Professional Service: A licensed HVAC technician should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
