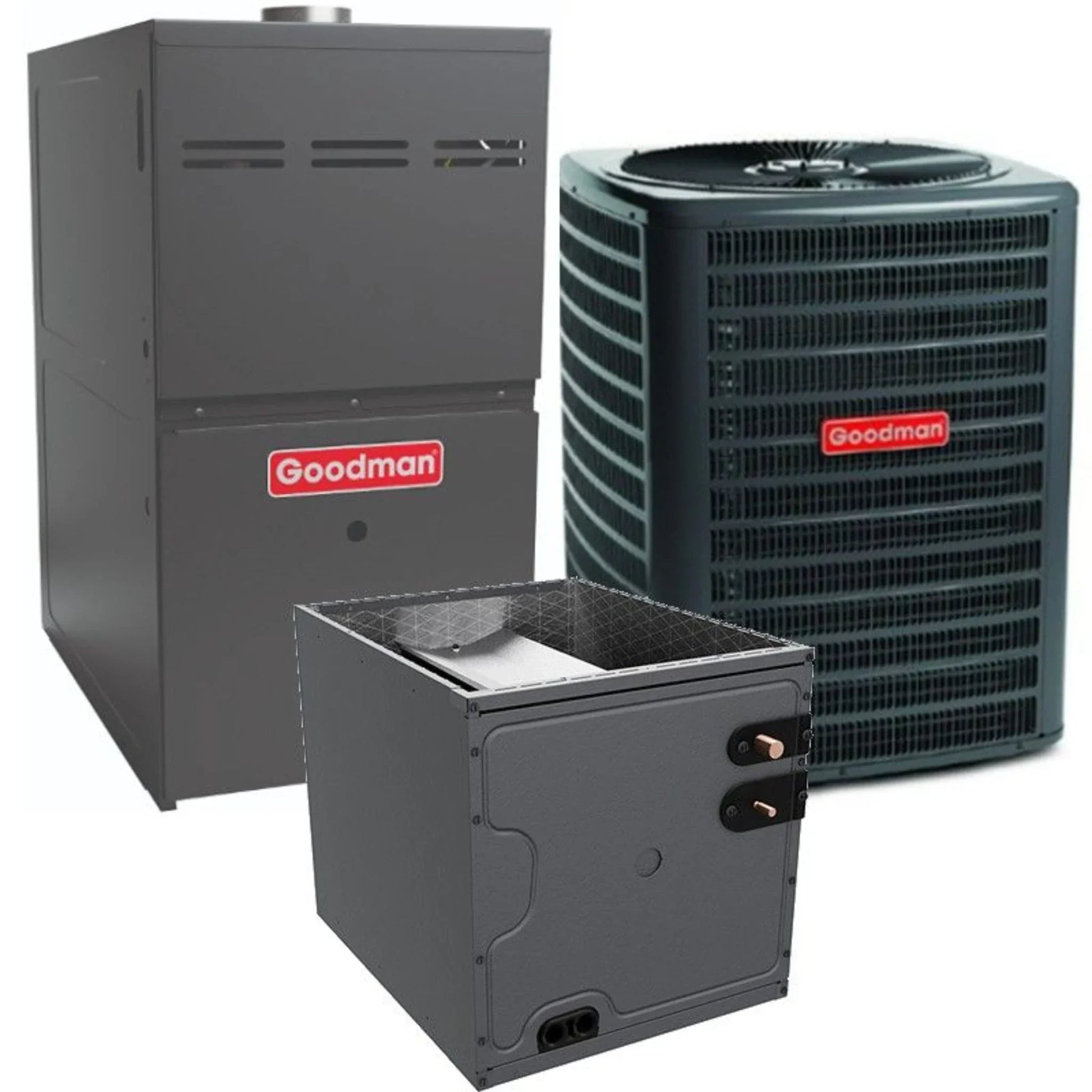

Goodman - 4 Ton/80,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Upflow - 13.5 SEER2 - R32 - GLXS3BN4810 / CAPTA6030C3 / GM9S800805CN

Goodman - 4 Ton/80,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Upflow - 13.5 SEER2 - R32 - GLXS3BN4810 / CAPTA6030C3 / GM9S800805CN

A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.

Features

• All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.

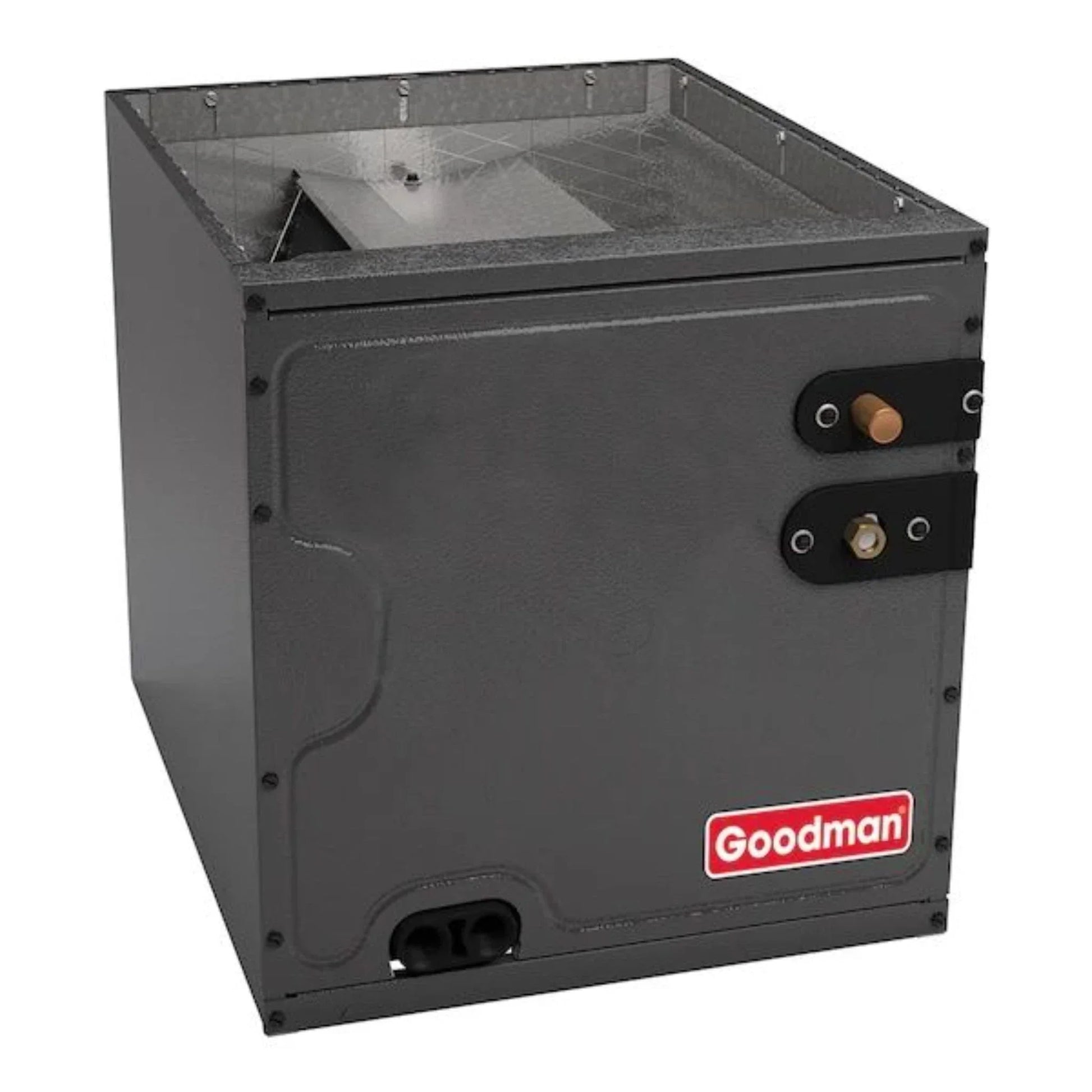

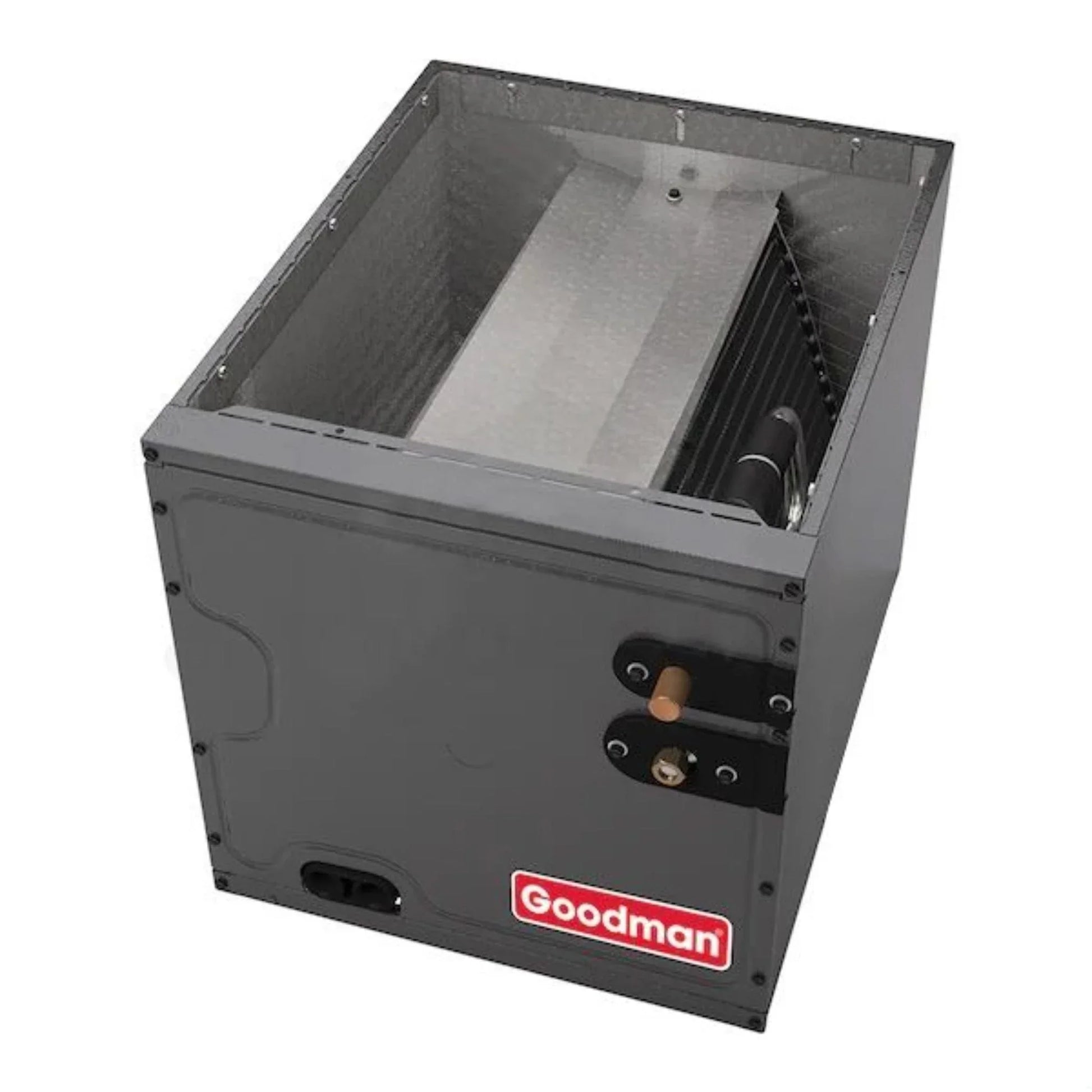

• Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
• Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
• Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
• R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
• 10-Year Limited Warranty


Specifications

Owner's Manual

• GLXS3B Specifications
• GLXS3B Installation Manual
• Warranty Information
• Installation Manual
• CAPTA Specifications Sheet
• Evaporator Coil Warranty
• GM9S80 Installation Manual
• GM9S80 Specifications Sheet


What our Experts Think

• Balanced Year‑Round Comfort
  • The matched 4‑ton AC and 80,000 BTU 80% AFUE gas furnace provide dependable cooling and heating for typical residential spaces.

• Reliable Cooling Efficiency (13.5 SEER2)
  • Mid‑range SEER2 performance keeps seasonal cooling costs reasonable while delivering consistent indoor comfort.

• Robust Heating with Value‑Minded AFUE
  • 80% AFUE heating offers dependable warmth at an affordable price point — a good option if ultra‑high efficiency isn’t a priority.

• Upflow Installation Flexibility
  • Designed for upflow duct configurations — standard in many furnaces, simplifying installation in basements or utility closets.

• R‑32 Refrigerant
  • Uses R‑32 refrigerant, which supports improved efficiency and reduced environmental impact vs older refrigerants.

• Goodman Durability & Serviceability
  • Solid steel cabinets, widely available replacement parts, and straightforward service access make this system easy to maintain over time.

Q&A

Q: What’s included in this HVAC system?

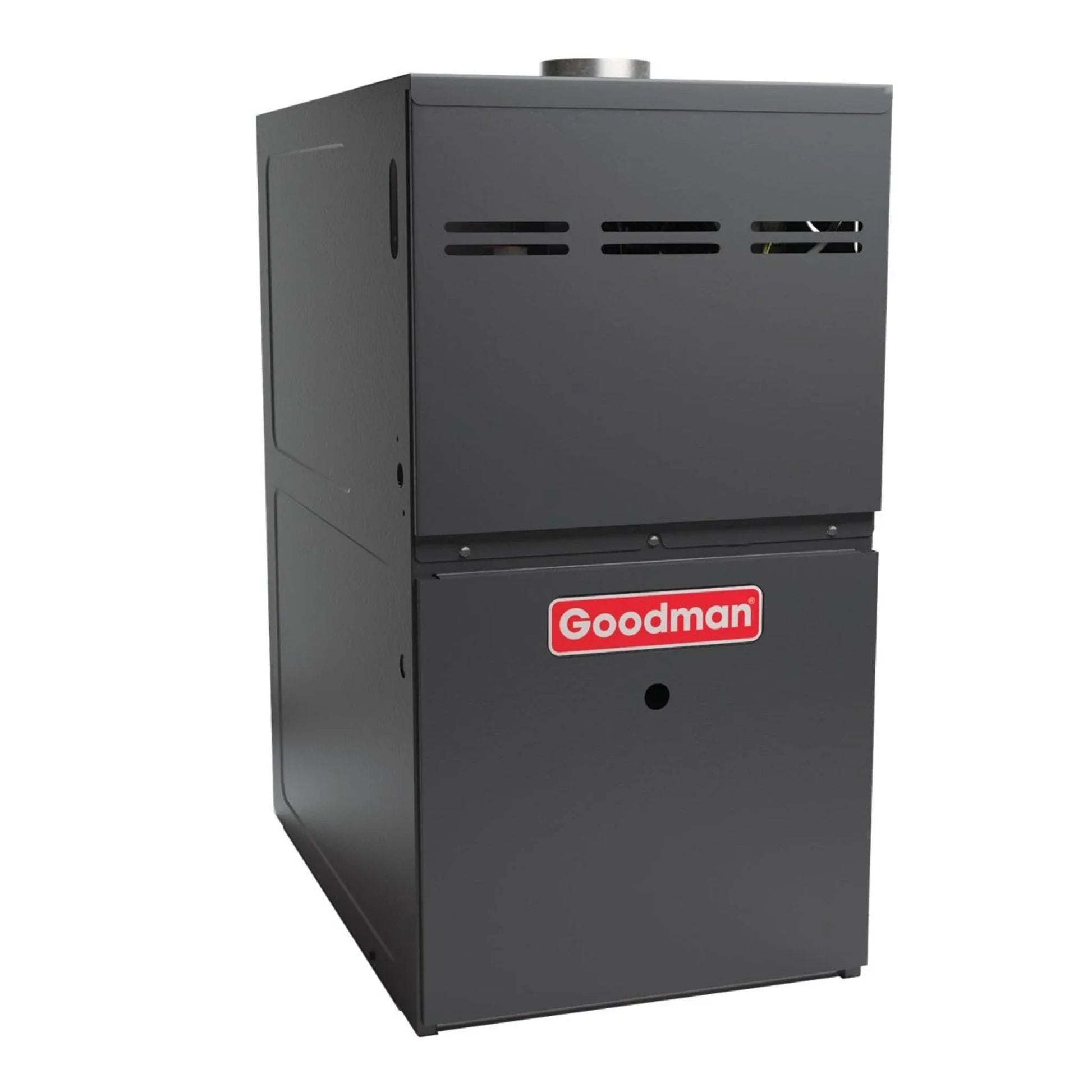

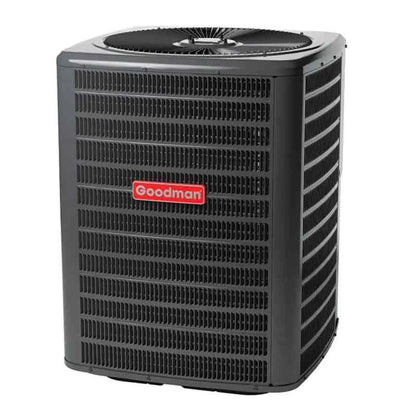

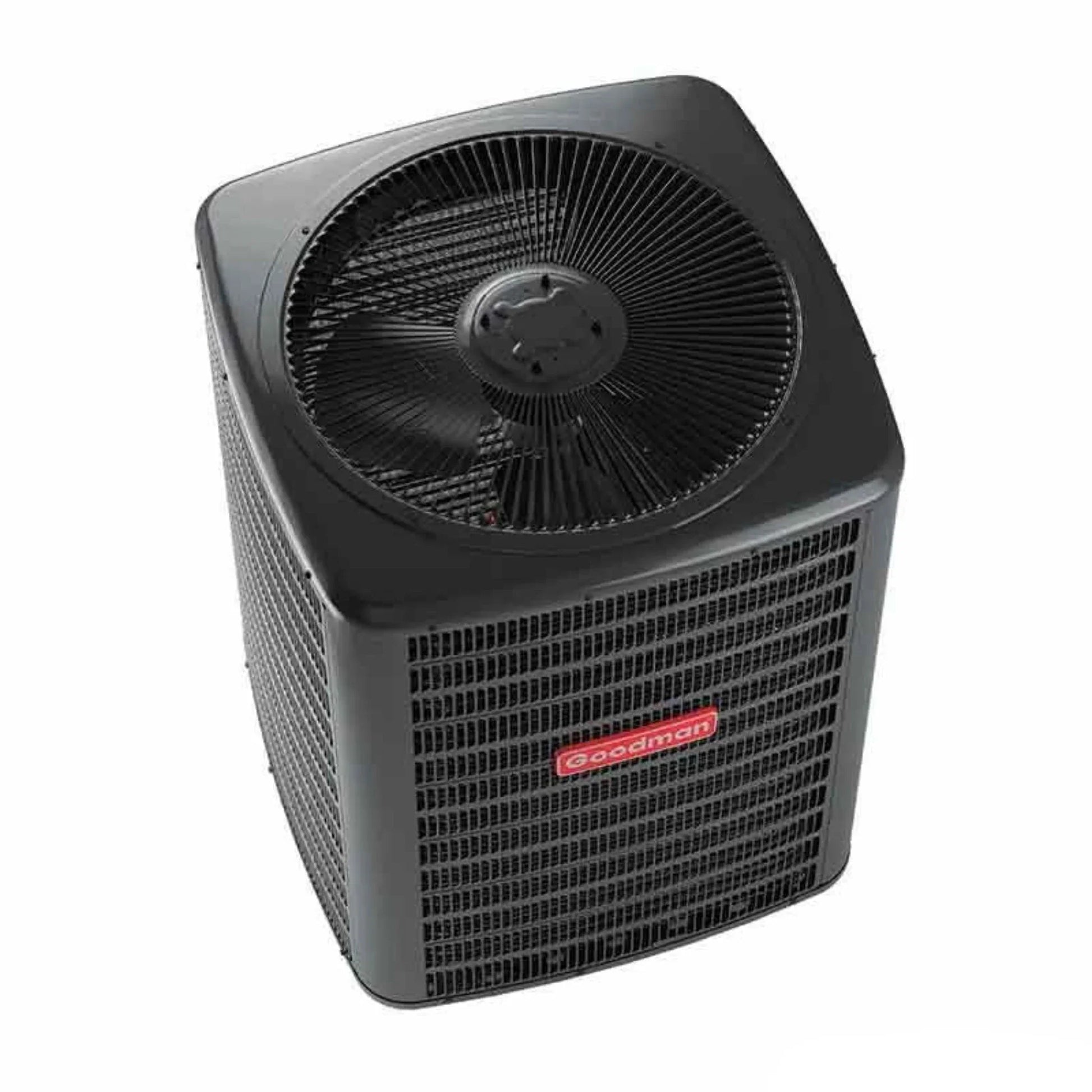

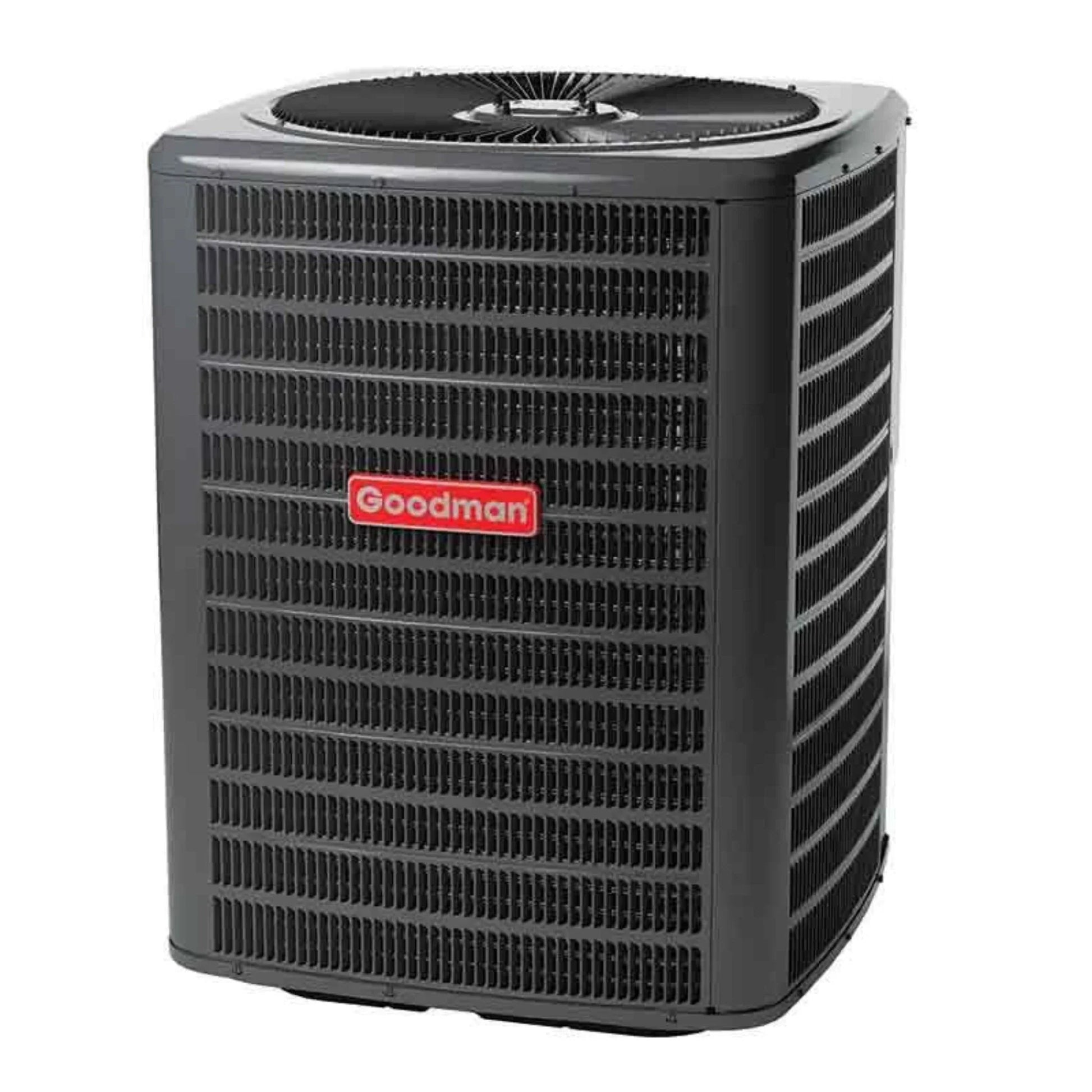

A: This package includes a 4 ton R‑32 air conditioner condenser (GLXS3BN4810), a matched R‑32 evaporator coil (CAPTA6030C3), and an 80,000 BTU 80% AFUE gas furnace (GM9S800805CN) for reliable heating and cooling.

Q: What space size does this system cover?
A: A 4 ton capacity generally covers larger homes (e.g., ~2,000–2,400 sq ft), depending on insulation, layout, and climate conditions.

Q: How efficient is the cooling?
A: The air conditioner delivers ~13.5 SEER2 efficiency with a single‑stage compressor, balancing performance and energy savings.

Q: What heating efficiency does the gas furnace offer?
A: The furnace provides 80% AFUE, meaning 80% of fuel input is converted into warmth, which is standard for reliable mid‑efficiency heating.

Q: What refrigerant does the system use?
A: The system uses R‑32 refrigerant, which offers improved performance and reduced environmental impact compared to older refrigerants.

Q: What installation orientations are supported?
A: The furnace supports upflow or horizontal installation, giving flexibility for basements, closets, or utility spaces.

Q: What blower and airflow features are included?
A: The gas furnace integrates a multi‑speed ECM blower for controlled airflow and better comfort throughout the season

Maintenance Tips

• Replace or Clean Air Filters
  Check monthly; replace every 1–3 months to maintain airflow and system efficiency.

• Clean Condenser and Evaporator Coils
  Dirt reduces cooling performance. Schedule annual professional cleaning.

• Inspect Furnace Burner and Heat Exchanger
  Annual inspection ensures safe operation and proper 80% AFUE performance.

• Check Condensate Drain and Pan
  Clear clogs to prevent water damage and maintain AC efficiency.

• Maintain Outdoor Unit Clearance
  Keep 2–3 ft around the condenser free of debris for proper airflow.

• Verify Thermostat and System Operation
  Ensure correct heating and cooling cycles and thermostat calibration.

• Schedule Annual Professional Service
  A certified technician should inspect refrigerant levels, electrical connections, gas lines, and blower operation to extend system lifespan.
