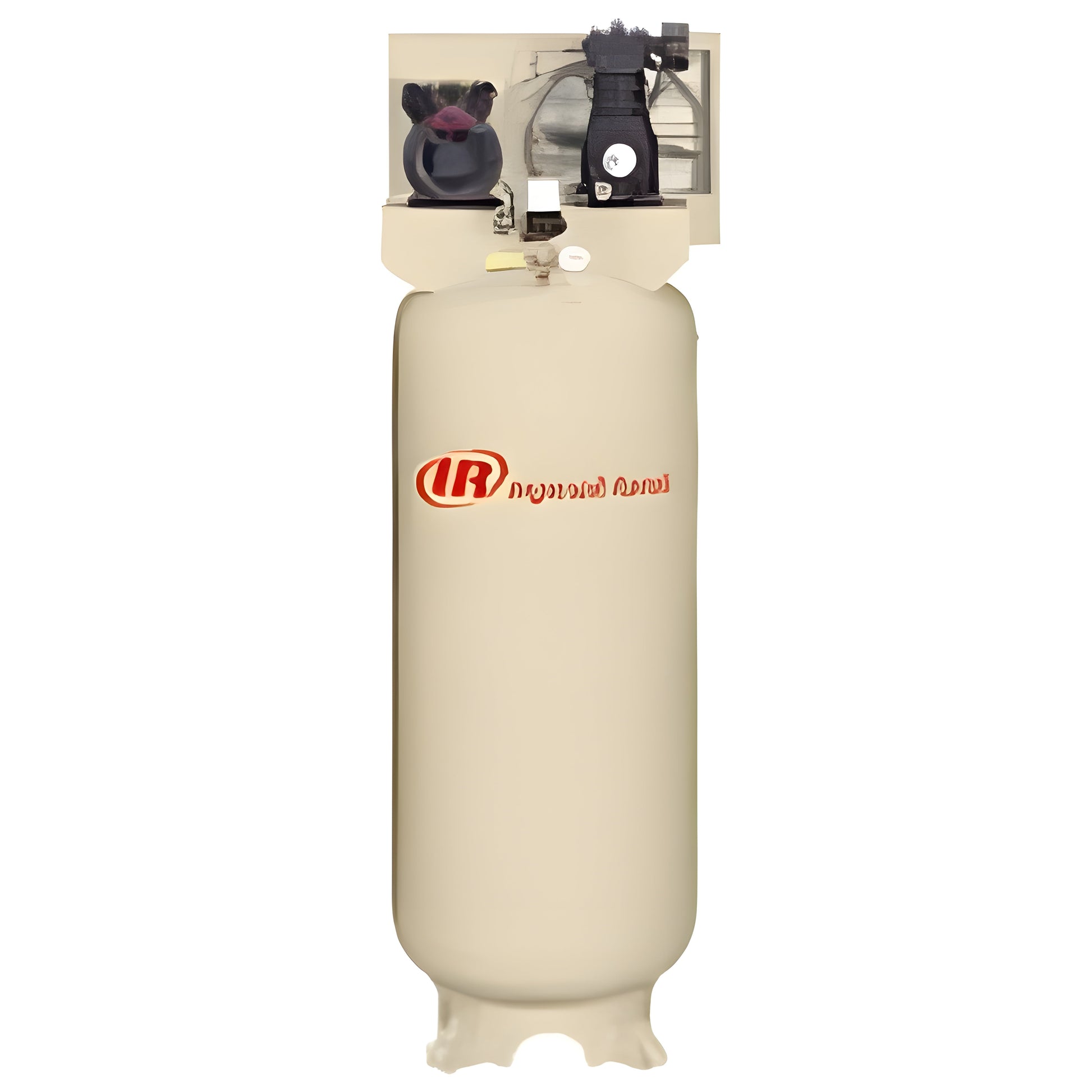

Ingersoll Rand Electric Air Compressor - 1761749603726_104

Electric Air Compressor, Lubrication Type Pressure Lubricated, Air Tank Style Vertical, Number of Stages 2, Output Power 7.5 hp, Free Air Flow Rate @ Maximum Pressure 25.8 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 80 gal, Input Voltage 460V AC, Phase Three, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Reciprocating, Pump Location Top Mount

Features

• PhaseThree
• Overall Length38
• Overall Height74
• StandardsASME, CQPS, CRN
• Overall Width25

What Our Experts Think

• The Ingersoll Rand 7.5 HP Electric Air Compressor (Vertical 80 Gal) delivers industrial-grade performance in a space-saving vertical design.

• Equipped with a two-stage, pressure-lubricated reciprocating pump, it ensures reliable power, cooler operation, and long service life.

• Produces 25.8 CFM at 175 PSI, ideal for workshops, manufacturing, and maintenance operations.

• The 80-gallon vertical tank provides steady airflow while minimizing the compressor’s footprint.

• As a base model, it’s perfect for integration into existing air systems or customized installations.

Q&A

Q: What’s the power and pressure rating?
A: It delivers 7.5 horsepower with a maximum pressure of 175 PSI, suitable for continuous industrial use.

Q: Is it single or two-stage?
A: It’s a two-stage compressor, providing higher efficiency and durability under load.

Q: What type of electrical setup is required?
A: Operates on 460V AC, three-phase, 60 Hz power.

Q: What’s included in the base model configuration?
A: The base model includes the pump and motor assembly, ideal for connecting to an existing system or air network.

Maintenance Tips

• Change oil regularly to maintain lubrication and prevent wear.

• Inspect air filters and belts routinely for clogging or cracks.

• Drain moisture from the tank daily to prevent corrosion.

• Monitor vibration and sound, as sudden changes can indicate component wear.

• Perform scheduled maintenance following Ingersoll Rand’s service guidelines to ensure optimal performance and lifespan.
