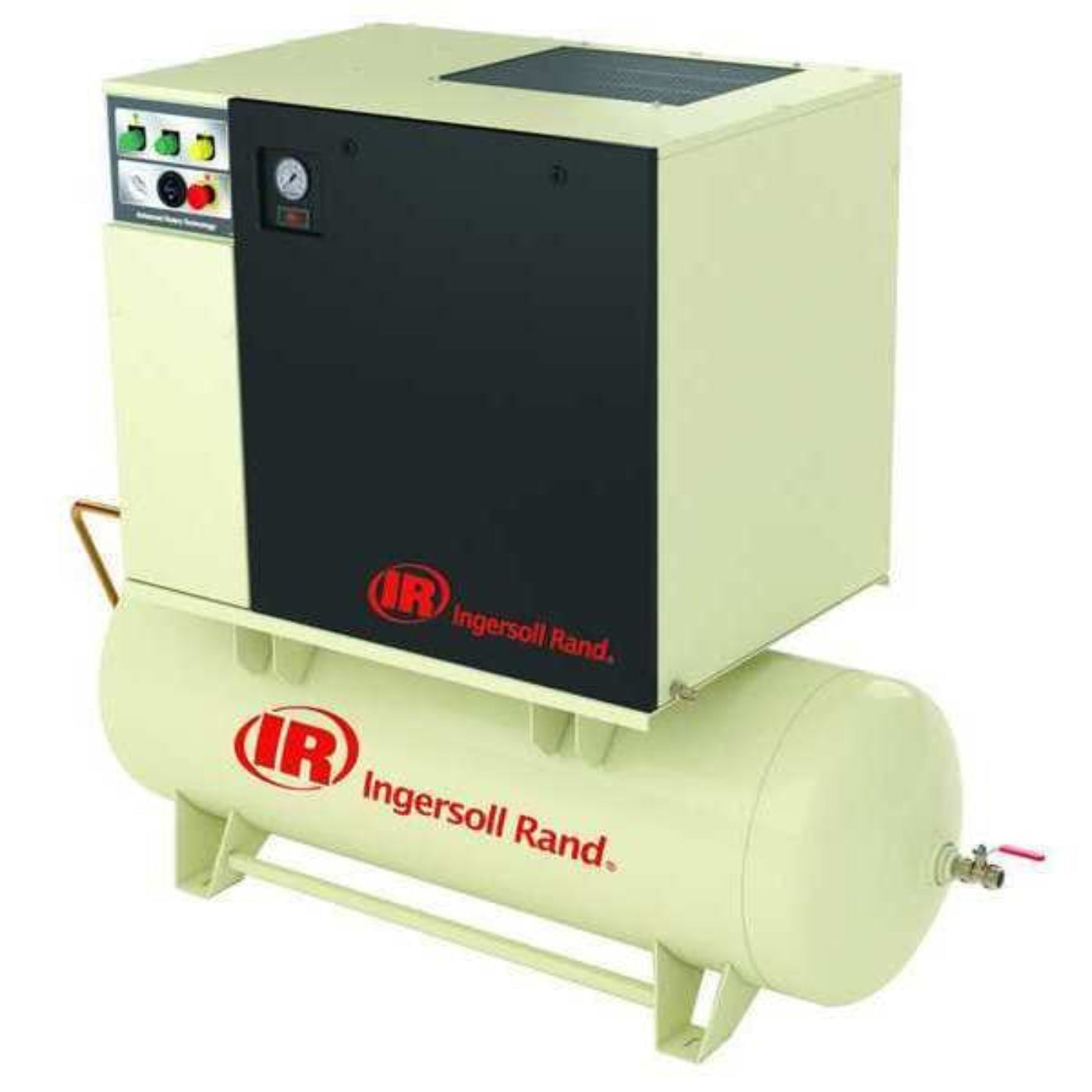

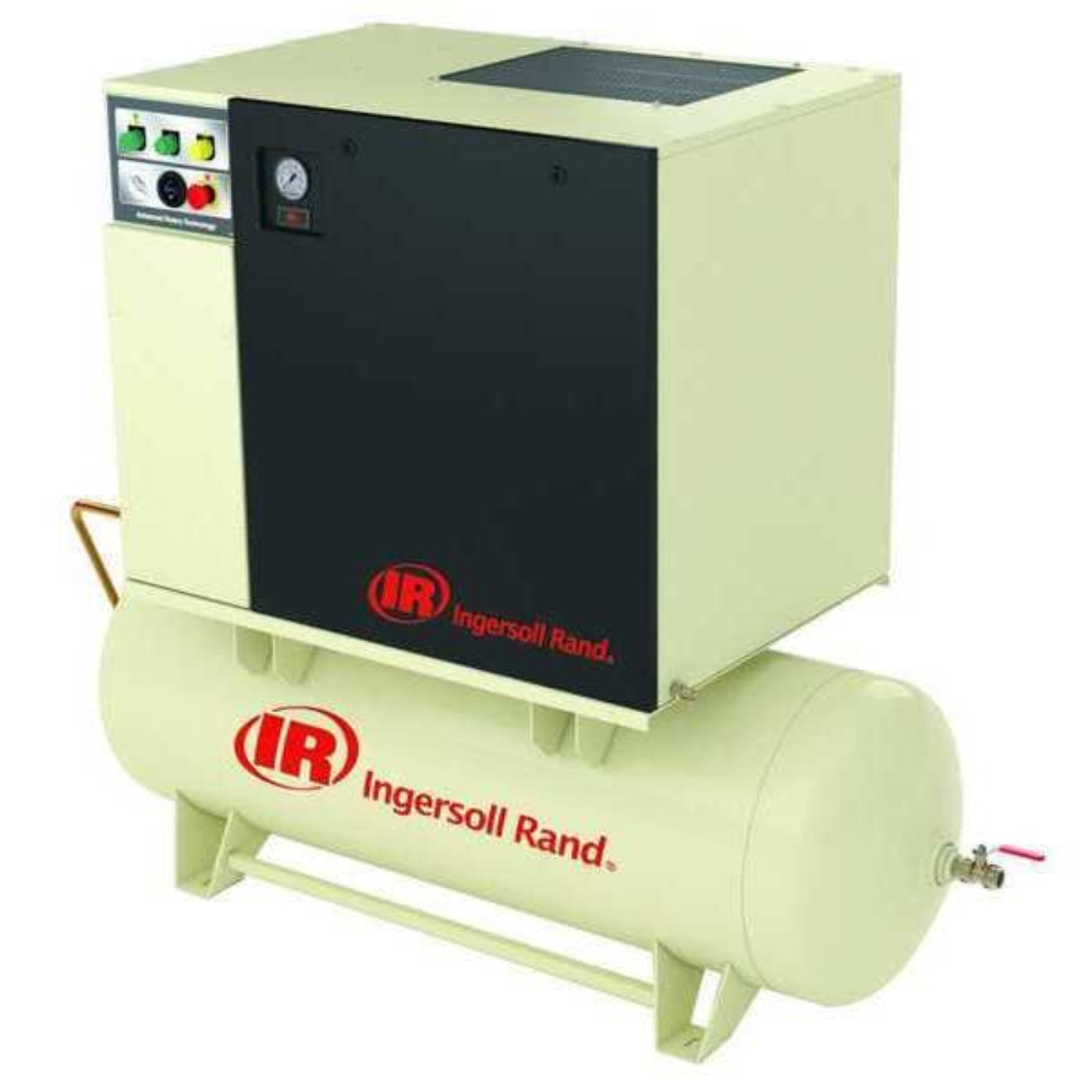

Ingersoll Rand Rotary Screw Air Compressor, Horz, 15 hp - 1761829542193_70

Rotary Screw Air Compressor, Air Tank Style Horizontal, Output Power 15 hp, Free Air Flow Rate @ Maximum Pressure 52 cfm, Maximum Operating Pressure 125 psi, Air Tank Size 120 gal, Phase Three, Input Voltage 460V AC, Air Dryer Included No, Pump Type Rotary Screw, Lubrication Type Synthetic Oil, Current Rating 18.7 A, Frequency 60 Hz, Maximum Speed 3,530 RPM, Duty Cycle Continuous, Sound Level 69 dBA, Enclosure Type Totally Enclosed

 Features

• Item - Air CompressorRotary Screw Air Compressor
• Air Dryer IncludedNo
• HP - Air Compressor15.0 hp
• Phase - Electrical3
• Input Voltage - Air Compressor460V AC

What Our Experts Think

• The Ingersoll Rand 15 HP Horizontal Rotary Screw Air Compressor delivers continuous, high-efficiency compressed air for industrial and workshop applications.

• Features a rotary screw pump with synthetic oil lubrication, ensuring smooth operation and long-term reliability.

• The 120-gallon horizontal tank provides stable airflow and pressure at 52 CFM and 125 PSI.

• Operates quietly at 69 dBA with a totally enclosed motor, ideal for noise-sensitive environments.

• Built for continuous duty, making it suitable for demanding industrial use.

Q&A

Q: What is the air output capacity?
A: 52 CFM at 125 PSI.

Q: Does this compressor include an air dryer?
A: No, air dryer is not included.

Q: What type of power supply is required?
A: 460V AC, three-phase, drawing 18.7 A.

Q: Is this compressor suitable for continuous use?
A: Yes, it’s designed for 100% duty cycle operation.

Q: How loud is the unit?
A: It operates at 69 dBA, offering relatively quiet performance for its class.

Maintenance Tips

• Check and replace synthetic oil at recommended intervals.

• Inspect and clean air filters regularly for optimal airflow.

• Drain the air tank periodically to remove moisture.

• Monitor belts, fittings, and pump for wear.

• Schedule professional maintenance for long-term reliability.
