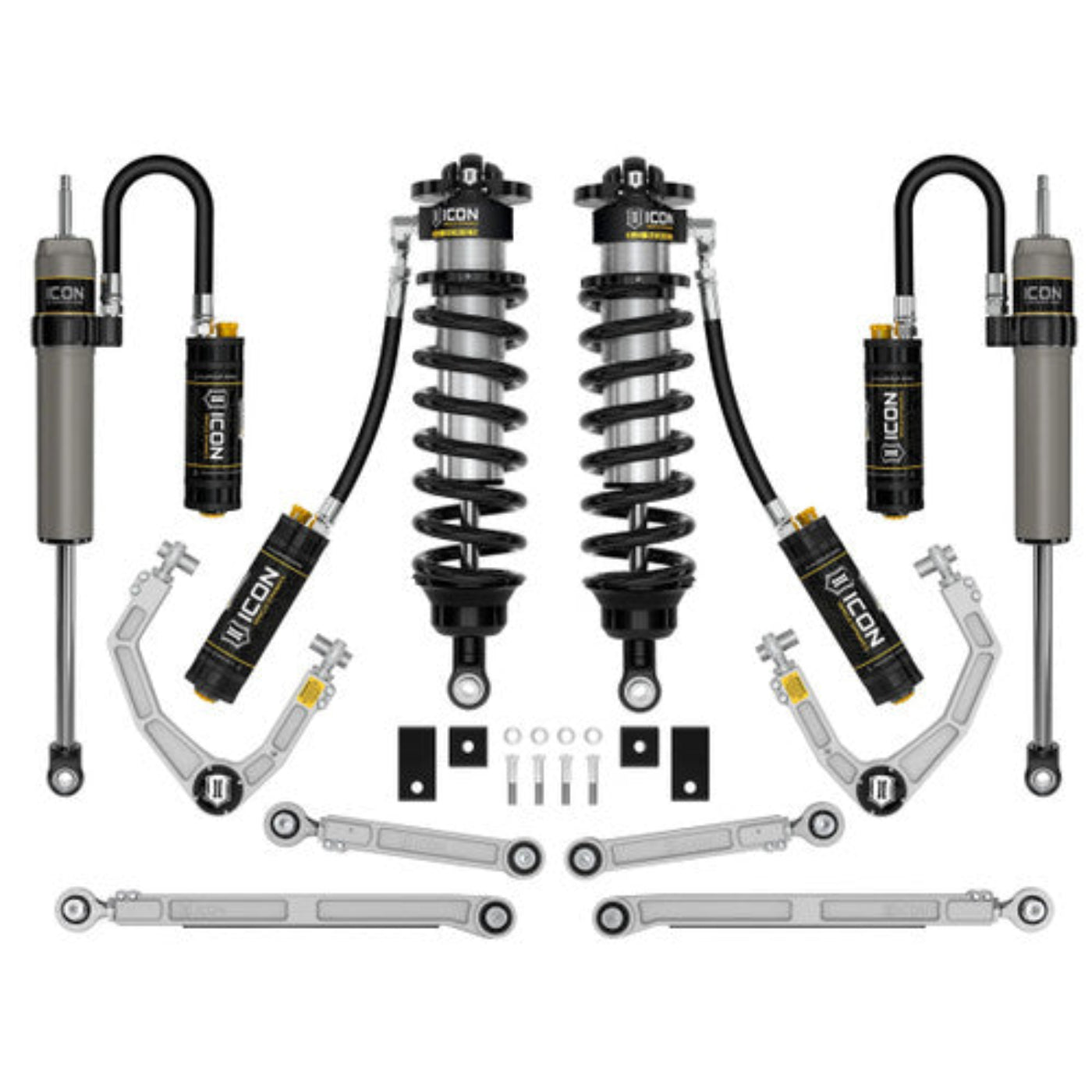

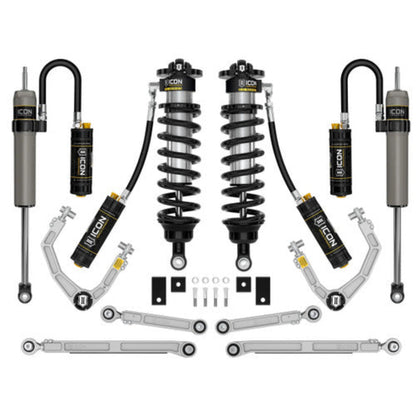

Air Lift ICON Vehicle Dynamics 3.0 Stage 1 Suspension Kit 1.25-3.5" Lift | 2023+ Toyota Sequoia - KIT53211T-2

Air Lift ICON Vehicle Dynamics 3.0 Stage 1 Suspension Kit 1.25-3.5" Lift | 2023+ Toyota Sequoia - KIT53211T-2

The ICON Vehicle Dynamics 3.0 Stage 1 Suspension System for 2023+ Toyota Sequoia features ICON's 3.0 Series precision-manufactured, custom valved remote reservoir front coilover shocks with CDCV to yield up to 40% more front end travel with superior ride quality and suspension performance both on and off-road. In Stage 1, the 3.0 front coilovers are paired with ICON's proven 2.5 VS Remote Reservoir rear shocks, also equipped with CDCV, which yield an additional 20% of rear suspension travel. This kit allows ride height adjustment of 1.25 to 3.5” of front lift and 0 to 1" of rear lift over stock.

The Compression Damping Control Valves (CDCV) control fluid flow under compression, allowing you to achieve the perfect shock tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain.

To accommodate the increased travel and lift height afforded by the ICON Coilovers, this kit comes with Tubular or Billet front Upper Control Arms which provide caster correction and feature ICON's proprietary Delta Joint. Stage 2 also includes billet rear suspension links to free up suspension bind and offer on-vehicle pinion angle adjustment. They're designed with extra ground clearance underneath and replaceable nylon rock sliders.

Features

• 40% more travel
• Vehicle specific design
• Vehicle specific tuned for superior shock damping and control
• 3.0 Body diameter for increased oil and larger piston
• 10” CNC machined 6061 aluminum components with a black anodize finish
• PTFE lined bearings for extended longevity and minimal deflection
• Adjustable lift heights 1.25”-3.5” (front) / Rear Accommodates 0-1" suspension Lift
• 100% Rebuildable and Revealable.
• 7/8” diameter induction hardened, chrome plated shock shaft.
• ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• Fits 2023+ Toyota Sequoia

What our Experts Think

• A premium suspension upgrade for the 2023+ Toyota Sequoia. The ICON Vehicle Dynamics 3.0 Stage 1 Suspension Kit (KIT53211T-2) is built for drivers who want improved ride quality, off-road performance, and adjustable lift capability without compromising daily comfort.
• Adjustable lift and tire clearance. The system provides approximately 1.25-3.5 inches of lift adjustment, allowing you to customize your Sequoia’s stance and accommodate larger wheel and tire setups.
• 3.0 Series remote reservoir coilovers. ICON’s front coilovers feature CDC adjustable damping, helping fine-tune suspension response for highway driving, towing, and challenging terrain.
• More suspension travel and control. Designed to increase front suspension travel by up to 40% over stock, improving stability and control during off-road driving.
• Improved alignment and durability. Includes ICON tubular upper control arms with Delta Joint technology to improve suspension geometry, strength, and alignment after lifting.
• Built for adventure builds. The upgraded components provide better handling, increased clearance, and a stronger foundation for overlanding, trail use, and larger tire upgrades.
• Premium tuning capability. ICON suspension components are designed to be adjustable, rebuildable, and tunable for drivers who want long-term performance from their investment.
• Best for: Toyota Sequoia owners looking for a high-end lift system that delivers adjustable performance, improved off-road capability, and a refined ride for everyday driving.
• Fitment note: Verify compatibility with Adaptive Variable Suspension (AVS), factory air suspension, and required ADAS recalibration before installation.

Q&A

Q: What vehicles does the ICON Vehicle Dynamics KIT53211T-2 fit?
A: This Stage 1 suspension kit is designed for 2023+ Toyota Sequoia models with compatible suspension configurations.

Q: How much lift does the ICON 3.0 Stage 1 kit provide?
A: The kit provides an adjustable 1.25–3.5 inches of lift, allowing you to customize ride height, ground clearance, and vehicle stance.

Q: What is included in this Stage 1 suspension kit?
A: The kit includes ICON 3.0 performance suspension components designed to improve ride quality, handling, and off-road capability.

Q: What are the benefits of upgrading to ICON Stage 1 suspension?
A: It improves suspension control, increases clearance for larger tires, enhances off-road performance, and provides improved stability for daily driving and adventures.

Q: Can I install larger tires with this lift kit?
A: Yes. The additional clearance allows for larger wheel and tire combinations. Final fitment depends on tire size, wheel offset, and vehicle configuration.

Q: Is this suspension kit suitable for daily driving?
A: Yes. The ICON Stage 1 system is engineered to provide improved performance while maintaining comfortable on-road drivability.

Q: Does this kit improve off-road capability?
A: Yes. The upgraded suspension components help improve articulation, ride control, and handling on uneven terrain.

Q: Does this lift kit increase towing or payload capacity?
A: No. A suspension lift improves ride height and handling characteristics but does not increase the Toyota Sequoia’s factory towing or payload ratings.

Maintenance Tips

• Inspect shocks, coilovers, control arms, brackets, and mounting hardware regularly for wear or damage.
• Check all bolts, nuts, and fasteners periodically to ensure proper torque and security.
• Keep suspension components clean and free from dirt, mud, salt, and road debris.
• Inspect suspension parts after off-road driving, towing, or heavy loads for signs of stress.
• Check for unusual noises, vibrations, or changes in ride quality.
• Maintain proper wheel alignment to promote even tire wear and stable handling.
• Inspect tires regularly and maintain recommended tire pressure.
• Verify suspension clearance and check for rubbing or interference with tires and steering components.
• Inspect bushings, joints, and shock mounts for wear or looseness.
• Service shocks and suspension components according to manufacturer recommendations.
• Avoid exceeding your Toyota Sequoia's manufacturer-rated GVWR and suspension limits.
