Air Lift ICON Vehicle Dynamics Stage 2 Suspension System 6" Lift With Tubular UCA | 2022-2026 Toyota Tundra - K53272T

Air Lift ICON Vehicle Dynamics Stage 2 Suspension System 6" Lift With Tubular UCA | 2022-2026 Toyota Tundra - K53272T

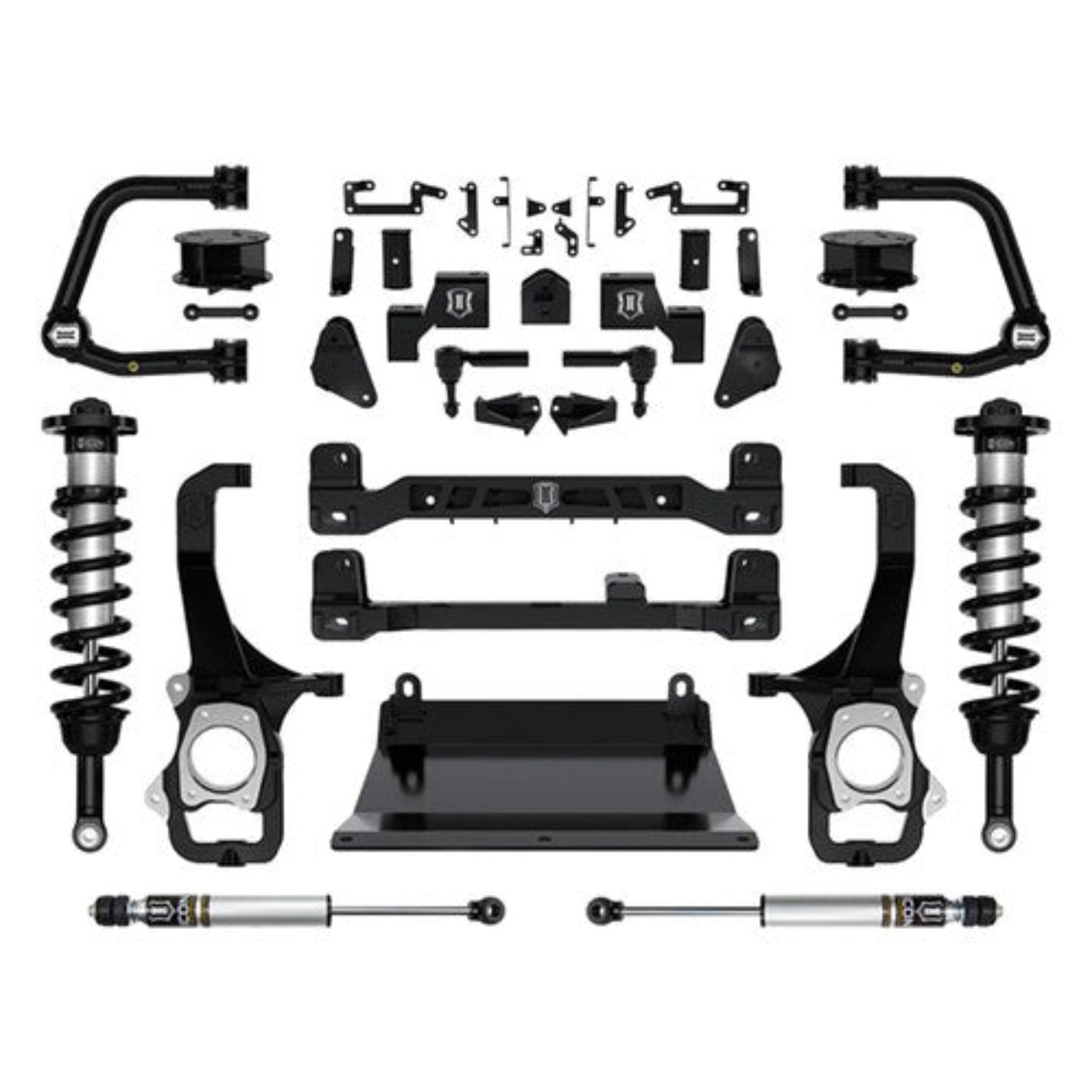

TheYotaGarage is proud to offer the ICON Vehicle Dynamics Stage 2 Suspension System 6" Lift with Tubular UCA for your 2022+ Toyota Tundra.  Experience better off-road performance with the ICON Vehicle Dynamics Stage 2 Suspension System 6" Lift with Billet UCA for the 2022+ Toyota Tundra. It includes 2.5 Series front coilovers with internal reservoirs to improve damping and vehicle control, offering up to 40% increase in front wheel travel. This system fits 37" tires with full articulation and ensures factory track width, while its optimized suspension geometry nearly eliminates bump steer. It also features adjustable 5-6" front lift, and Billet UCAs with Delta Joint Pro to provide strength, durability, and on-vehicle caster/camber adjustment. Get the ultimate driving experience now!

Features

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

What our Experts Think

• A complete 6-inch lift solution for extreme Tundra builds. The ICON Vehicle Dynamics Stage 2 Suspension System (K53272T) is designed for 2022-2026 Toyota Tundra owners who want maximum ground clearance, aggressive styling, and serious off-road capability.
• Built for 37-inch tires. The system is optimized for 37" tires with full articulation when paired with proper wheel fitment, giving your Tundra a commanding stance and improved trail clearance.
• Performance-tuned suspension components. Features 2.5 Series front coilovers with internal reservoirs to improve damping control, ride consistency, and heat management during demanding off-road use.
• Strengthened suspension geometry. Includes tubular upper control arms with Delta Joint Pro technology for improved durability, caster correction, alignment capability, and increased articulation.
• Maintains factory track width. ICON’s high-clearance crossmembers, steering components, and suspension design help preserve predictable handling while adding significant lift height.
• Improves off-road performance. Designed to increase front wheel travel while reducing common lift-related geometry issues, making it ideal for trails, overlanding, and rugged terrain.
• Premium build quality. Includes heavy-duty components such as high-clearance crossmembers, front skid plate, upgraded rear shocks, coil spacers, sway bar drop brackets, and reinforced suspension hardware.
• Important fitment note. Not compatible with Tundras equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS). ADAS recalibration is required after installation.
• Best for: Toyota Tundra owners building a high-performance off-road truck who want a premium 6-inch lift, 37-inch tire capability, and ICON’s advanced suspension engineering.

Q&A

Q: What vehicles does the ICON Vehicle Dynamics K53272T fit?
A: This Stage 2 suspension system is designed for 2022–2026 Toyota Tundra models with compatible suspension configurations.

Q: How much lift does the ICON Stage 2 kit provide?
A: The system provides approximately 6 inches of lift, increasing ground clearance and creating a more aggressive off-road stance.

Q: What is included in the ICON K53272T suspension system?
A: The kit includes ICON performance suspension components and tubular upper control arms (UCA) designed to improve suspension geometry and alignment after lifting.

Q: What are the benefits of this 6-inch lift system?
A: It improves off-road capability, suspension performance, ride control, and provides additional clearance for larger wheels and tires.

Q: Why are tubular upper control arms included?
A: The tubular UCAs help restore proper suspension angles, improve alignment range, and support better handling and durability after installing a 6-inch lift.

Q: Can I install larger tires with this lift kit?
A: Yes. The increased ride height allows for larger tire fitment, depending on wheel offset, tire size, and vehicle setup.

Q: Is the ICON Stage 2 kit suitable for daily driving?
A: Yes. ICON designs its suspension systems to deliver enhanced off-road performance while maintaining comfortable street drivability.

Q: Does this lift kit increase towing or payload capacity?
A: No. A suspension lift improves clearance and suspension performance but does not increase the Toyota Tundra’s factory towing or payload ratings.

Maintenance Tips

• Inspect shocks, coilovers, tubular upper control arms, brackets, and mounting hardware regularly for wear or damage.
• Check all bolts, nuts, and fasteners periodically to ensure proper torque and security.
• Keep suspension components clean and free from dirt, mud, salt, and road debris.
• Inspect suspension parts after off-road driving, towing, or heavy loads for signs of stress.
• Check for unusual noises, vibrations, or changes in ride quality.
• Maintain proper wheel alignment to promote even tire wear and stable handling.
• Inspect tires regularly and maintain recommended tire pressure.
• Verify clearance between tires, steering components, and suspension parts to prevent rubbing.
• Check tubular upper control arms, bushings, and joints for wear or looseness.
• Service shocks and suspension components according to manufacturer recommendations.
• Avoid exceeding your Toyota Tundra's manufacturer-rated GVWR and suspension limits.
