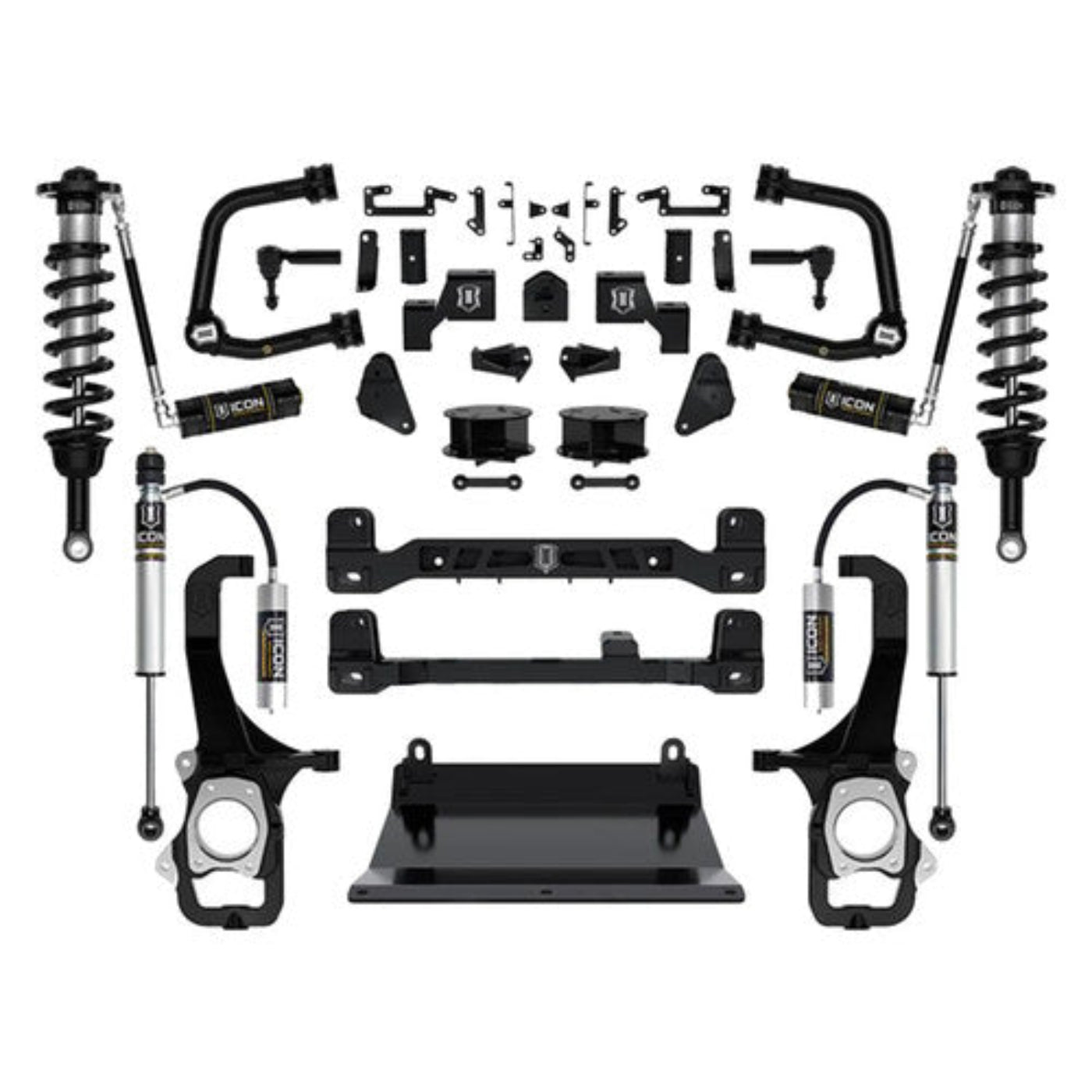

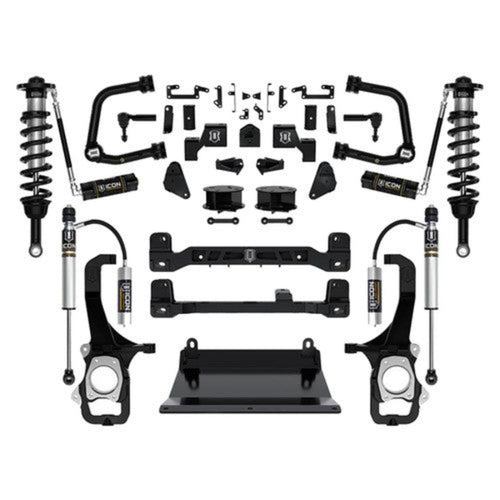

Air Lift ICON Vehicle Dynamics Stage 3 Suspension System 6" Lift With Tubular UCA | 2022-2026 Toyota Tundra - K53273T

Air Lift ICON Vehicle Dynamics Stage 3 Suspension System 6" Lift With Tubular UCA | 2022-2026 Toyota Tundra - K53273T

TheYotaGarage is proud to offer the ICON Vehicle Dynamics Stage 3 Suspension System 6" Lift with Tubular UCA for your 2022+ Toyota Tundra. Experience superior on and off road performance with the ICON Vehicle Dynamics Stage 3 Suspension System 6" Lift. Boasting 2.5 Series coilovers and remote reservoirs for superior damping and vehicle control, this system allows for up to 40% increase in front wheel travel with no overstressing of OEM components. Fit up to 37" tires with full articulation, and enjoy the nearly eliminated bump steer found in a stock Tundra. Plus, the adjustable front ride heights and Billet UCAs with Delta Joint Pro make this system complete. Get the most out of your 2022+ Toyota Tundra!

Features

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

What our Experts Think

Q&A

Q: What does the ICON Stage 3 Suspension System do?
A: It delivers a 6-inch suspension lift, significantly improving ground clearance, wheel travel, off-road capability, and overall vehicle control.

Q: Which vehicles is this kit compatible with?
A: Fits 2022–2026 Toyota Tundra models. It is not compatible with factory rear air suspension or Adaptive Variable Suspension (AVS).

Q: What is included in the Stage 3 kit?
A: It includes 2.5 Series remote reservoir front coilovers, tubular upper control arms with Delta Joint PRO, 2.0 Series remote reservoir rear shocks, high-clearance crossmembers, steering knuckles, skid plates, and installation hardware.

Q: What tire size can this suspension support?
A: The system is optimized to fit 37-inch tires with full suspension articulation. Larger tires may require additional trimming or modifications.

Q: What are the benefits of the tubular upper control arms?
A: The Delta Joint PRO tubular UCAs improve strength, durability, suspension articulation, caster correction, and overall handling.

Q: Are the shocks rebuildable?
A: Yes. The included ICON shocks are fully rebuildable and serviceable for long-term performance and maintenance.

Q: Why choose the ICON Stage 3 Suspension System?
A: It's a premium suspension upgrade for Tundra owners seeking a true 6-inch lift, superior ride quality, increased wheel travel, and exceptional off-road performance while maintaining factory track width.

Maintenance Tips

• Re-torque all suspension hardware after the first 500 miles and inspect it regularly thereafter.
• Inspect coilovers, tubular upper control arms, Delta Joints, bushings, and shock reservoirs for leaks, wear, or loose components.
• Have the vehicle professionally aligned after installation and whenever ride height or tire wear changes.
• Grease the ICON Delta Joints every 3,000–5,000 miles or at each oil change using the recommended grease.
• Clean shocks, springs, and suspension components regularly to remove mud, salt, and road debris, helping prevent corrosion and extend service life.
• Service the rebuildable ICON shocks at the recommended intervals or sooner if leaks, excessive noise, or reduced ride quality develop.
