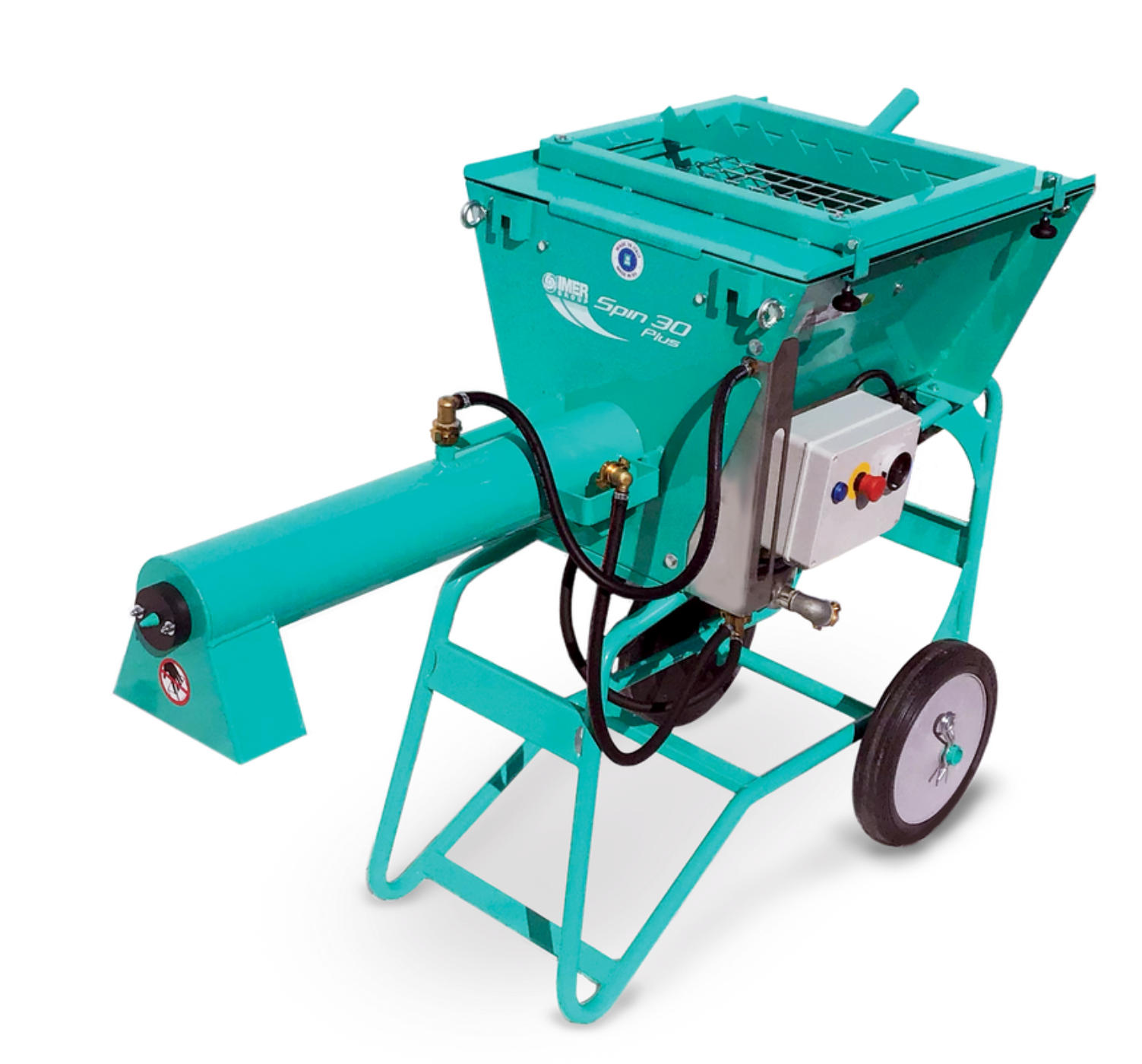

Imer Spin 30 PLUS High-Output Continuous Mixer - 1106152

Imer Spin 30 PLUS High-Output Continuous Mixer - 1106152

Features

• Ideal for quickly and efficiently mixing
• Industry changing, high-output continuous mixers
• 3 hp 220v single phase industrial grade high torque motor
• Oversized solid rubber wheels
• All inclusive model - water flow meter and water pump come standard
• Pair the Spin 30 PLUS with an IMER spray and grout pump for semi-automatic production
• Dust grate utilizes multiple vents and connects to a dry vacuum to pull dust downward
• Includes: iDUST dust grate attachment

Ideal for

• Pre-blended plaster
• Mortar
• Stucco
• Grout
• Self-leveling underlayment
• Pre-blended conventional floor screeds


Specifications

What our Experts Think

• High-output continuous mixing powerhouse
  The IMER Spin 30 PLUS (Ref. 1106152) is a professional continuous mixer designed to produce a steady flow of ready-to-use material, instead of batch mixing—ideal for high-productivity job sites.
• Built for serious contractor workloads
  With a 3 HP motor and ~1 cu ft/min output, it can continuously mix plasters, mortars, stuccos, grouts, and self-leveling compounds without downtime.
• Large hopper = fewer interruptions
  The 500 lb hopper capacity allows extended operation before refilling, supporting sustained workflow on medium to large construction projects.
• System-ready for pumps and spraying setups
  Designed to integrate with IMER spray and grout pumps, turning it into a semi-automatic mixing + application station for large surfaces.
• Consistent mixing quality under load
  A parallel-axis gearbox and controlled water flow system ensure uniform consistency even with dense or fast-setting materials.
• Job-site efficiency focused design
  Oversized wheels, compact frame, and quick-clean coupling system make it practical for daily relocation and fast material changes.
• Dust + water control included
  Comes with iDUST grate and integrated water flow meter, improving cleanliness and mix precision during continuous operation.
• Expert insight
  This machine is not about batch flexibility—it’s about continuous production speed and pump-ready consistency, making it ideal for flooring, plastering, and large-scale finishing crews.

Q&A

Q1: What is the Imer Spin 30 PLUS 1106152 used for?
A: It is a high-output continuous mixer designed for rapid mixing of pre-blended construction materials like mortars, plasters, stuccos, grouts, and self-leveling underlayments on medium to large job sites.

Q2: What makes it a “continuous mixer”?
A: Unlike batch mixers, it continuously mixes and delivers material as dry mix and water are fed into the hopper, providing a steady flow for pumps or direct application.

Q3: What is the output capacity?
A: It delivers about 1 cu ft per minute (approx. 30–35 L/min) and can process multiple 80 lb bags in minutes, making it ideal for high-productivity work.

Q4: What motor does it use?
A: It is powered by a 3 HP industrial-grade single-phase electric motor (220V) designed for continuous job-site operation.

Q5: What is the hopper capacity?
A: It has a large 500 lb (≈110 L) hopper, allowing extended mixing cycles without frequent reloading.

Q6: What materials can it mix?
A: It is designed for pre-blended dry bag materials, including mortars, stuccos, grouts, self-leveling compounds, and floor screeds.

Q7: Can it work with pumping systems?
A: Yes, it is commonly paired with IMER spray and grout pumps to create a semi-automatic mixing and pumping setup for faster installation workflows.

Q8: What features improve job-site efficiency?
A: It includes iDUST dust control grate, water flow meter, integrated water pump, and maintenance-free gearbox, improving cleanliness and consistency.

Q9: Is it portable on-site?
A: Yes, despite its size, it has large rugged wheels and a compact frame design for easy movement across rough construction terrain.

Maintenance Tips

• Flush immediately after use: Run clean water through hopper, mixing chamber, auger, and discharge outlet to prevent mortar or plaster from hardening inside.
• Clean patented mixer coupling daily: Disassemble and rinse the quick-coupling system to keep it free of buildup and ensure fast reassembly.
• Maintain iDUST grate system: Vacuum or wash the dust grate regularly to prevent clogging and keep dust extraction effective.
• Inspect paddles & auger wear: Check for abrasion or bending—worn mixing components reduce output consistency and increase motor load.
• Keep water system clean: Check pump and flow meter to ensure correct water dosing and prevent inconsistent mix ratios.
• Protect gearbox area: The parallel-axis gearbox is low-maintenance, but must be kept dry and free of slurry or impact damage.
• Check hopper daily: Remove leftover dry material to avoid hardened buildup affecting feeding performance.
• Inspect bolts & frame connections: Vibration from continuous operation can loosen fasteners over time.
• Clean motor ventilation: Keep cooling vents free of dust to avoid overheating during high-output mixing.
• Store dry & covered: Prevent corrosion on frame, hopper, and electrical components after job completion.
