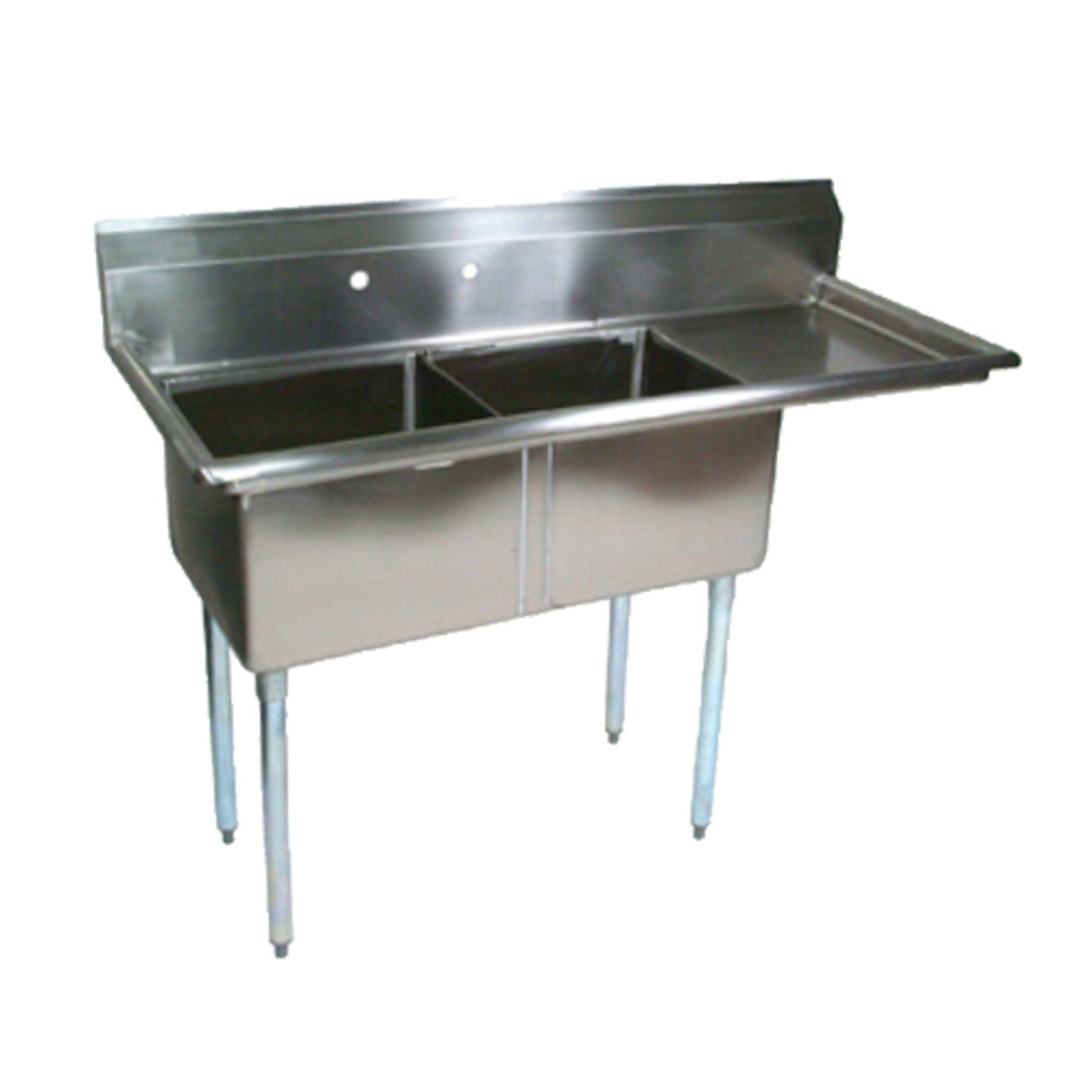

John Boos E2S8-24-14R24 Two-Compartment E-Series Sink with 24" Right Drainboard - JBE2S82414R24

John Boos E2S8-24-14R24 Two-Compartment E-Series Sink with 24" Right Drainboard - JBE2S82414R24

This John Boos E2S8-24-14R24 E-Series Sink is durable, easy to use, and designed for commercial or industrial applications. It has a stainless and galvanized steel construction. The sink top and two bowls are made of 18 gauge, type 300 stainless steel and have been polished with a #4 satin finish. The legs, base, and gussets are galvanized steel. The plastic feet are adjustable for easy leveling. This E2S8-24-14R24 has a full length 10" high boxed backsplash with 1" faucet holes. The faucet is not included. This E-Series Sink does include a 24" right drainboard.

Features

• (2) sink compartments
• (1) 24" right drainboard
• 18 gauge stainless steel
• Type 300 stainless steel with #4 polish, satin finish
• All corners, both vertical and horizontal, coved at 3/4" radius
• Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
• Full length 10" high boxed backsplash
• 2" return to wall at 45-degrees
• 1" tile edge
• 1" faucet holes in backsplash
• All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
• Standard galvanized legs are 1-5/8" in diameter
• Stainless steel sink tops are TIG welded
• Exposed welds are polished to match adjacent surfaces
• Galvanized steel base
• Material
• 18 gauge type 300 stainless steel top and bowls with #4 polish, satin finish
• 1-5/8" Round O.D. galvanized steel legs
• Galvanized steel gussets
• 1" plastic bullet feet

Specifications

What our Experts Think

• Heavy-Duty Stainless Steel: Built for long-lasting, commercial kitchen performance.

• Two-Compartment Design: Allows simultaneous washing and rinsing for faster workflow.

• 24" Right Drainboard: Provides ample drying and prep space, optimizing efficiency.

• Stable & Hygienic: Reinforced frame and corrosion-resistant surface ensure safety and cleanliness.

• Chef-Approved: Trusted by professionals for durability, practicality, and reliable performance.

Q&A

Q: What are the dimensions of the John Boos E2S8-24-14R24 sink?
A: Two-compartment sink with a 24" right drainboard, ideal for efficient kitchen workflows.

Q: What material is the sink made of?
A: Heavy-duty stainless steel for hygiene, corrosion resistance, and easy cleaning.

Q: How many compartments does it have?
A: Two compartments for simultaneous washing and prep tasks.

Q: Is it suitable for commercial kitchens?
A: Yes, perfect for restaurants, cafeterias, and other high-use environments.

Q: What tasks is it ideal for?
A: Ideal for washing, rinsing, and prepping while keeping work surfaces organized.

Maintenance Tips

• Clean daily with mild soap and warm water.

• Avoid abrasive cleaners or steel wool to prevent scratches.

• Rinse thoroughly after each use to prevent water spots and residue.

• Dry surfaces after cleaning to maintain shine and prevent corrosion.

• Regularly inspect and tighten drain fittings and mounting hardware.

• Use stainless steel polish occasionally to preserve appearance and durability.
