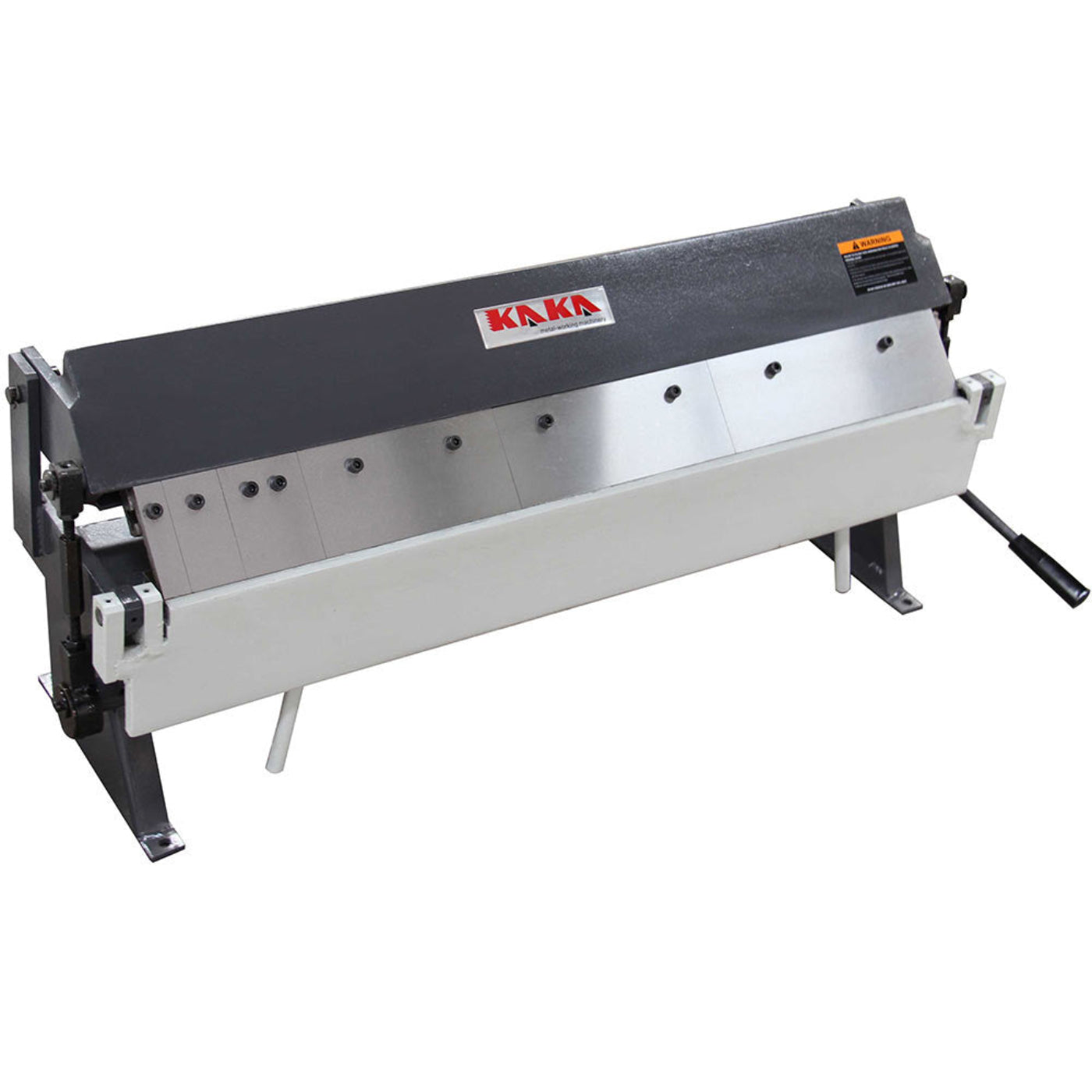

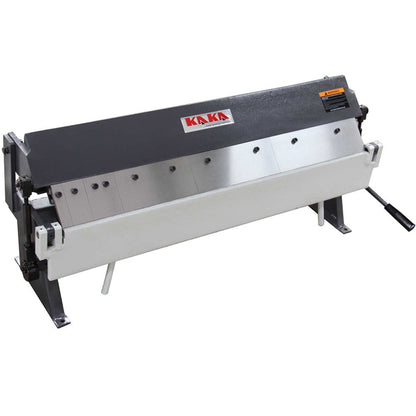

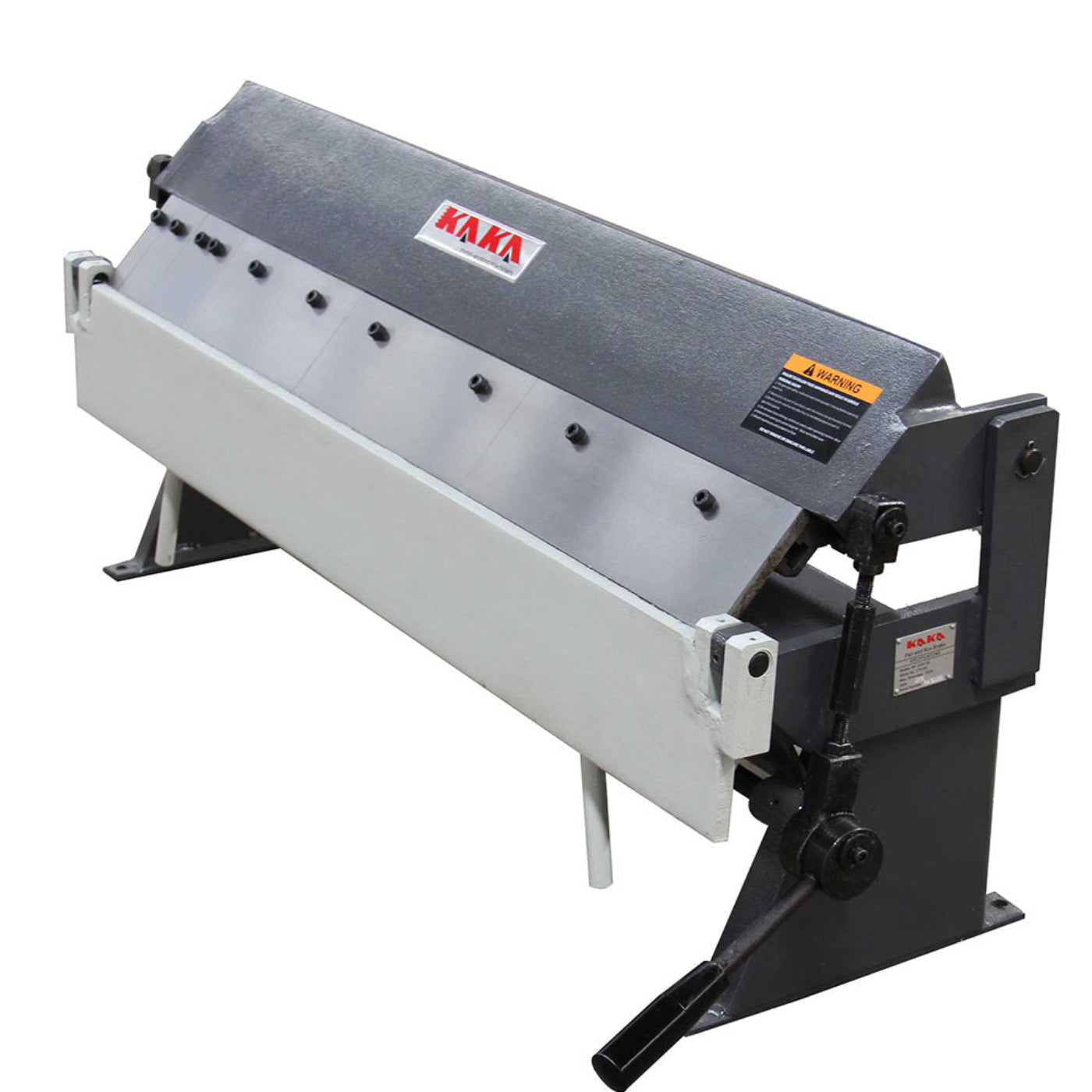

KAKA INDUSTRIAL Box and Pan Brake, 36-Inch Sheet Metal Brake, 20 Gauge Mild Steel Capacity Finger Brake, 0-135 Degree Adjustable Pan and Box Brake with 6 Removable Fingers W-3620A - 173103

KAKA INDUSTRIAL Box and Pan Brake, 36-Inch Sheet Metal Brake, 20 Gauge Mild Steel Capacity Finger Brake, 0-135 Degree Adjustable Pan and Box Brake with 6 Removable Fingers W-3620A - 173103

Features:

1. This Pan & Box Brake is built to take on any serious bending work.
2. Brake angle: 0-135 degrees.
3. Weighs 80kgs.

Specification

• Item No.: 173103
• Model: W-3620A
• Capacity(in)  Length: 36"
•                      Thickness: 20gauge
•                      Angle: 0-135°
• Packing size(in): 46-1/4x13-3/4x17-1/2
• N.W./G.W.（lb）: 154/176

Standard accessories:

No standard accessories

 Optional accessories:

No optional accessories.

 Manual

W-3620A Manual

What Our Experts Think

• The KAKA Industrial W-3620A Box and Pan Brake (173103) is a versatile 36-inch sheet metal bending machine built for precision and reliability in light- to medium-duty fabrication.

• Capable of bending up to 20-gauge mild steel, it’s ideal for forming boxes, pans, and complex sheet metal components.

• Features 6 removable fingers for flexible width adjustments and custom forming operations.

• The adjustable bending range from 0° to 135° ensures smooth, accurate bends with excellent control.

Q&A

Q: What is the maximum bending capacity?
A: It can bend 20-gauge mild steel and thinner materials such as aluminum and copper.

Q: How many fingers are included?
A: The brake includes 6 removable fingers for creating a variety of box and pan shapes.

Q: What is the maximum bending angle?
A: The W-3620A allows for adjustable bends from 0° to 135° for precise fabrication work.

Q: Is it suitable for professional use?
A: Yes, it’s perfect for fabrication shops, HVAC work, and custom metal forming.

Maintenance Tips

• Clean the clamping bar and fingers regularly to prevent dust or metal buildup.

• Lubricate hinges and moving joints to maintain smooth bending performance.

• Check alignment and tighten bolts periodically for consistent accuracy.

• Store in a clean, dry area to prevent corrosion and extend the machine’s service life.
