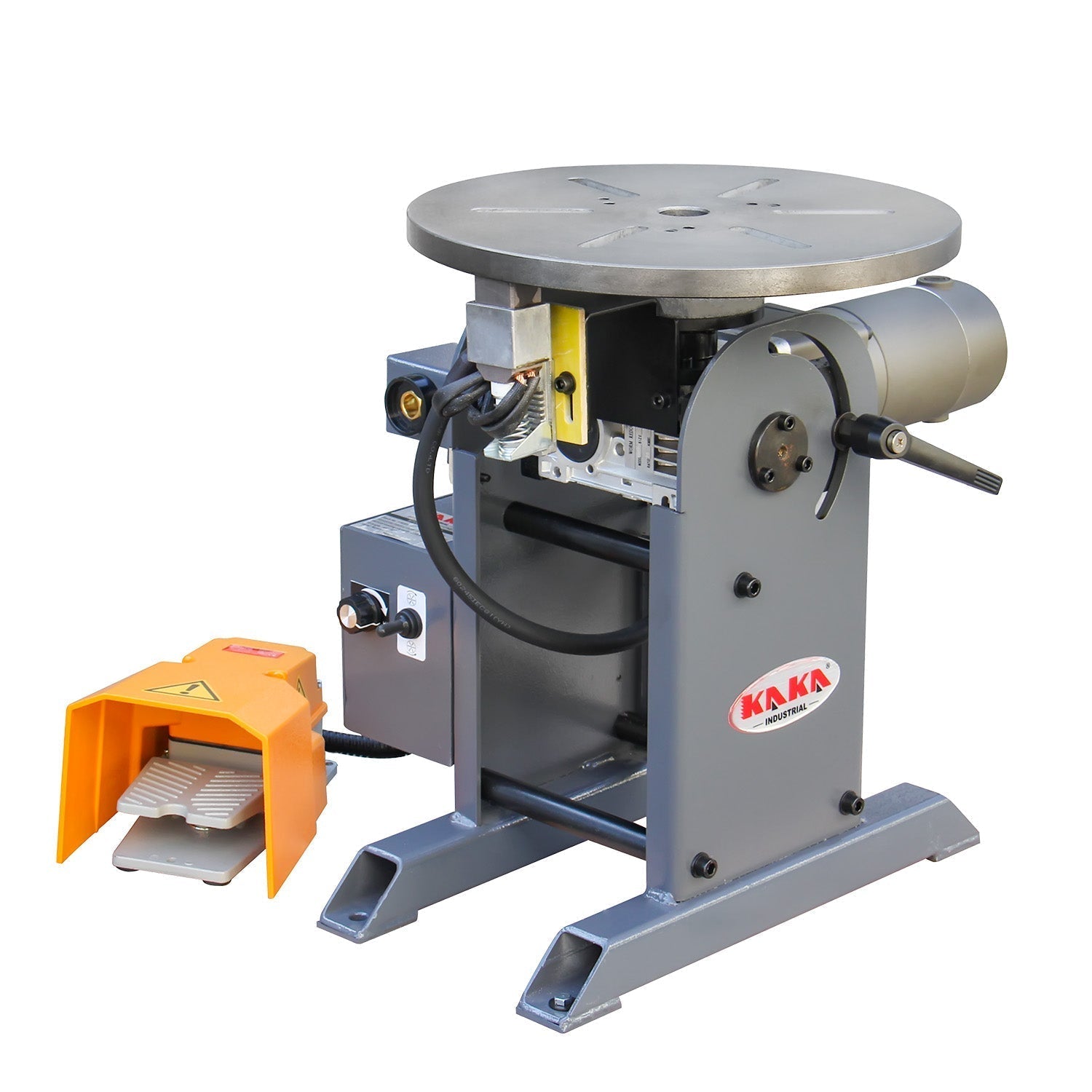

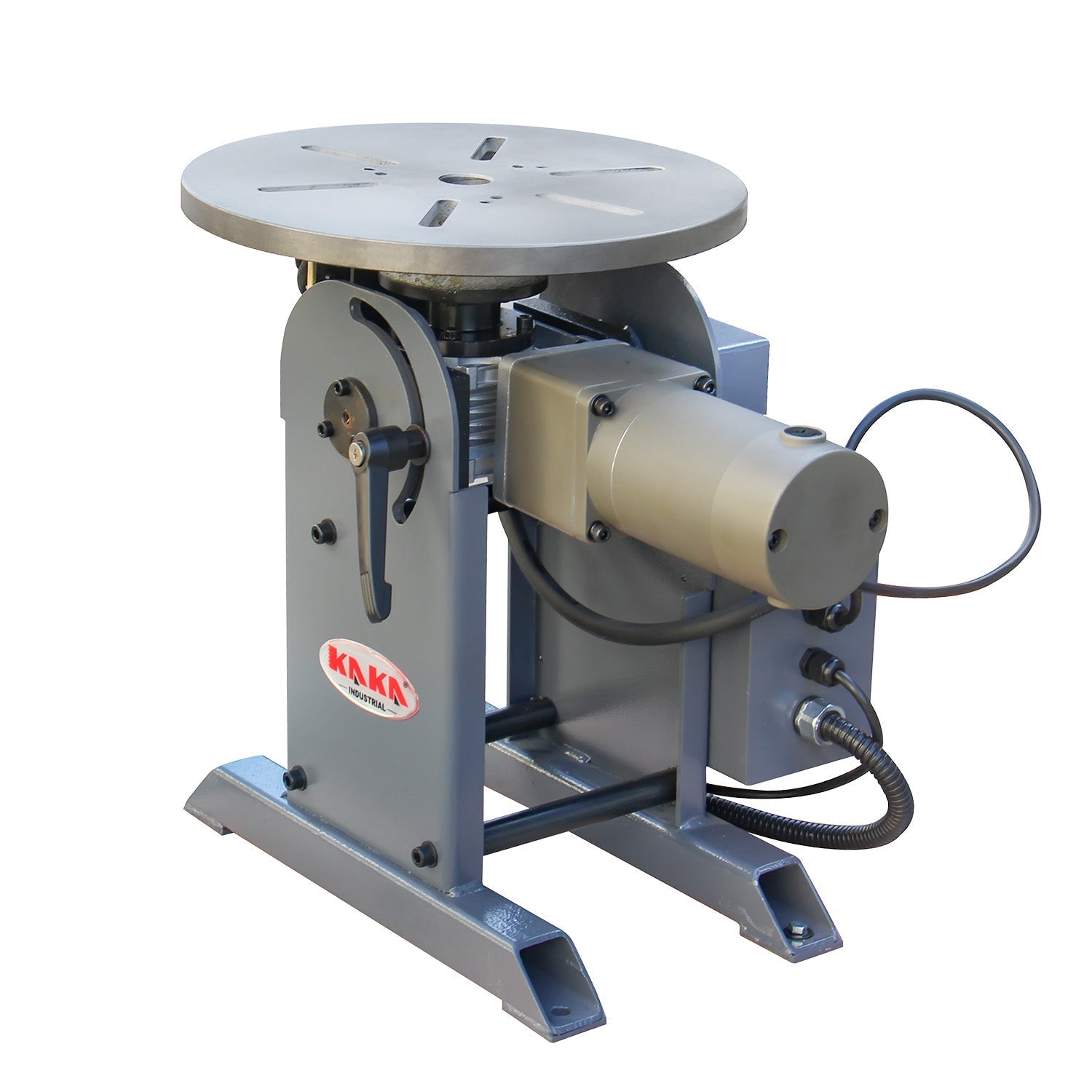

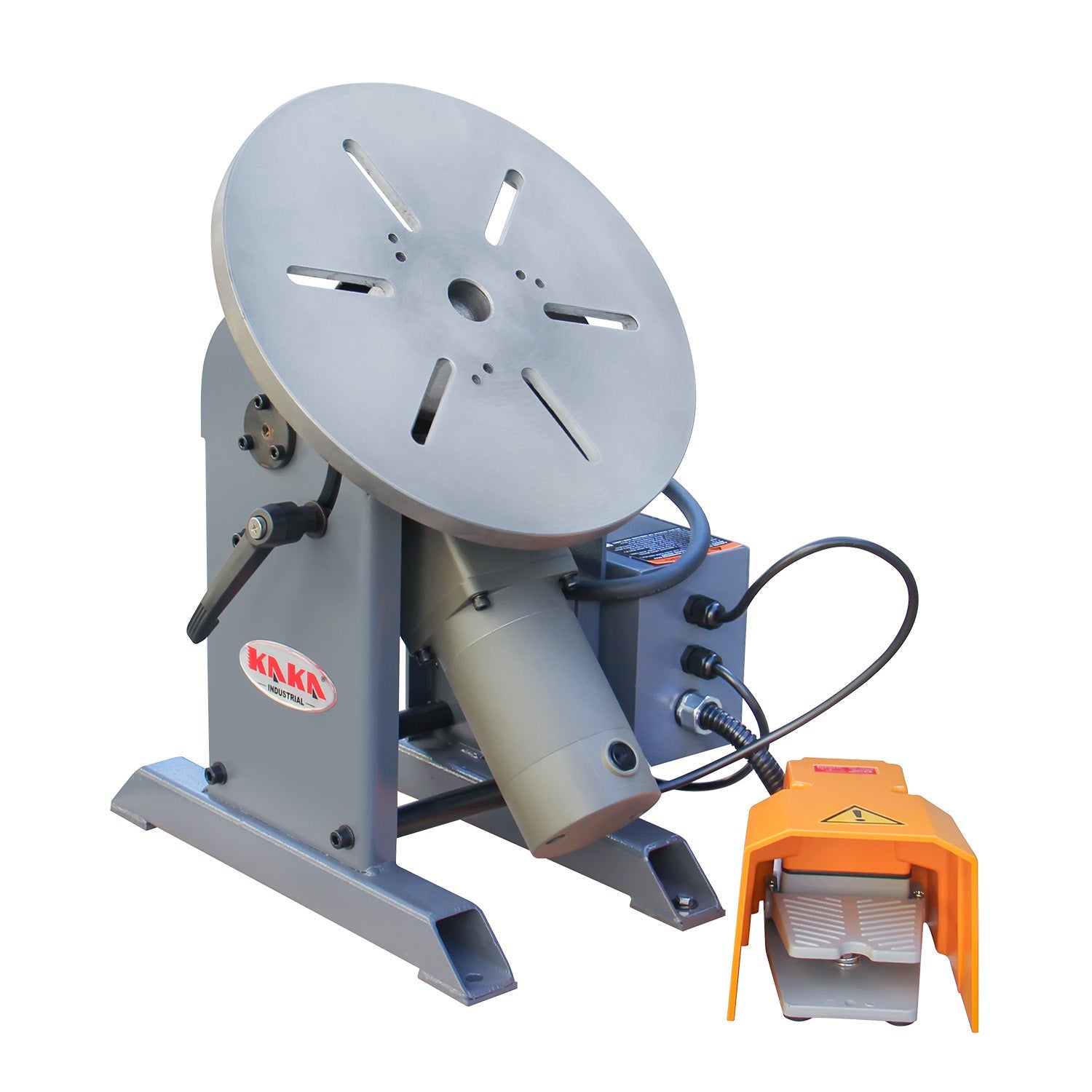

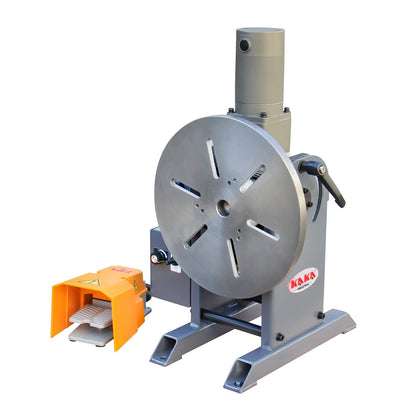

KAKA INDUSTRIAL Welding Positioner 485 lbs Tilt angle 0-135º Rotation motor 125W Rotation speed 0-6 RPM Stepless Speed Control Welder Positioning Machine with Digital Display 110V-60HZ-1PH,WP-220B

KAKA INDUSTRIAL WP-220B Welding Positioner 485 lbs (220KG) Tilt angle 0-135º Rotation motor 125W Rotation speed 0-6 RPM Stepless Speed Control Welder Positioning Machine 110V-60HZ-1PH

• Horizontal loading capacity:481lbs(220KG)
• Vertical loading capacity:220lbs (100KG)
• Working table diameter/ heigh: 13"/17.7"

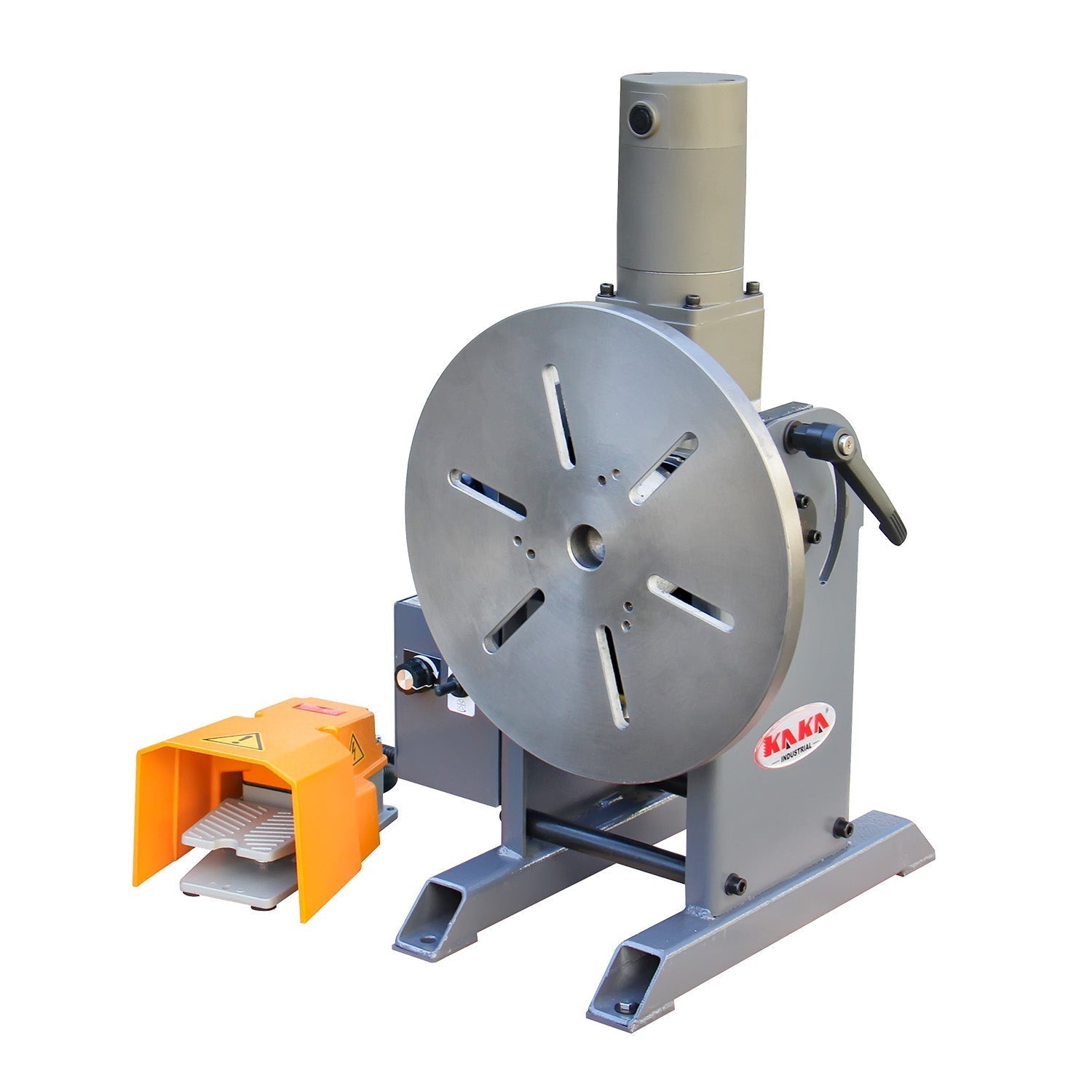

• The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90°. It also can be fixed at any angle you want. Table tilts up to 135° (manual)

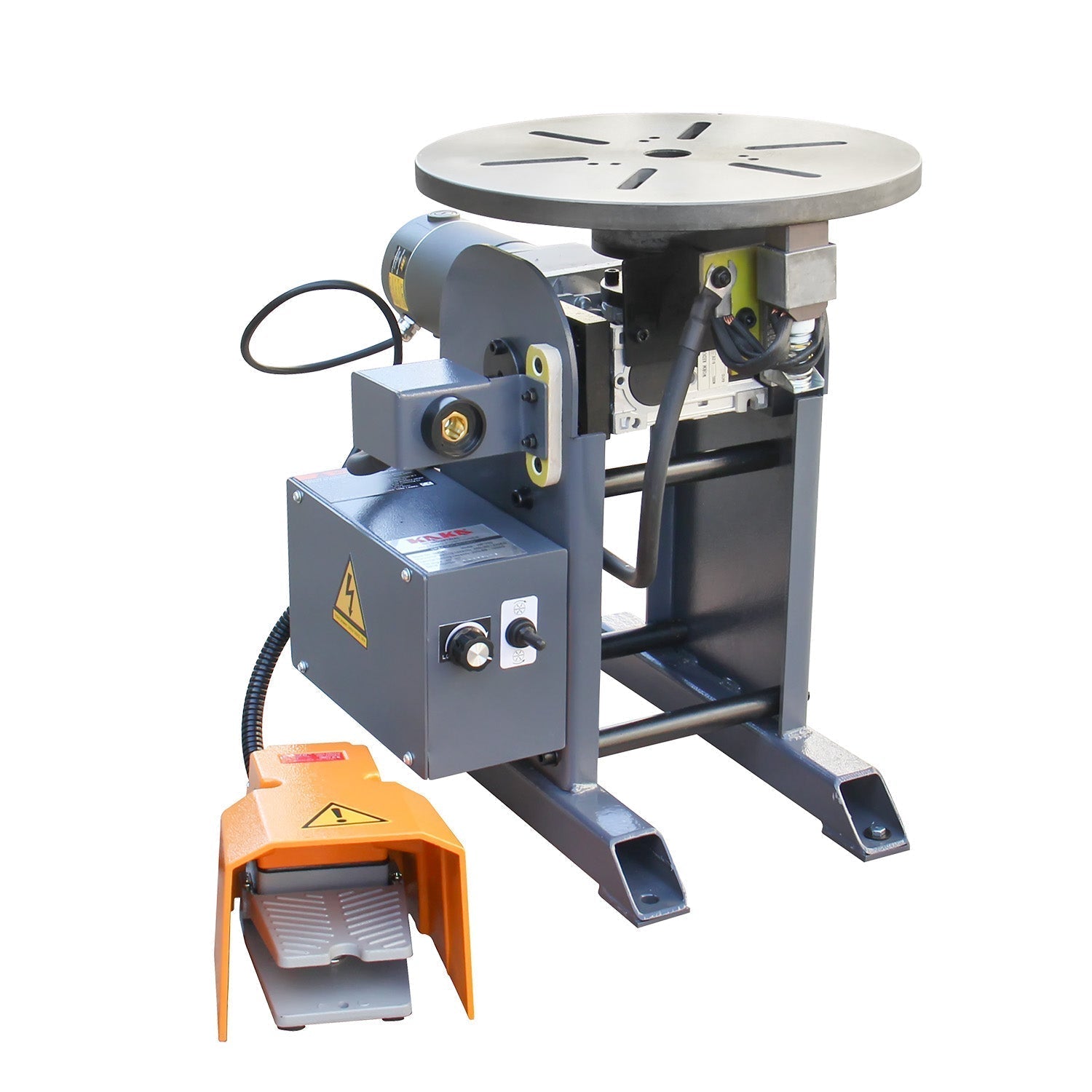

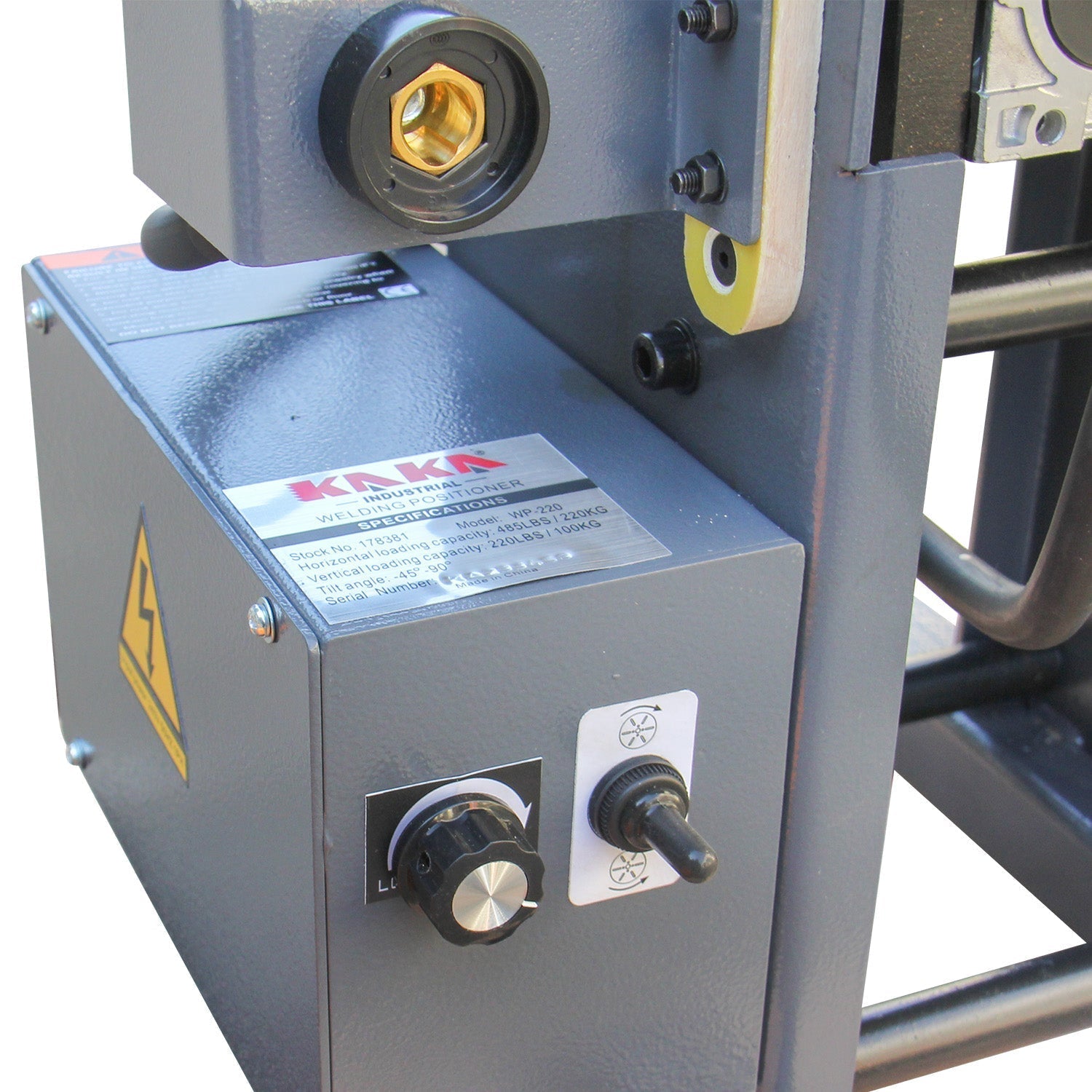

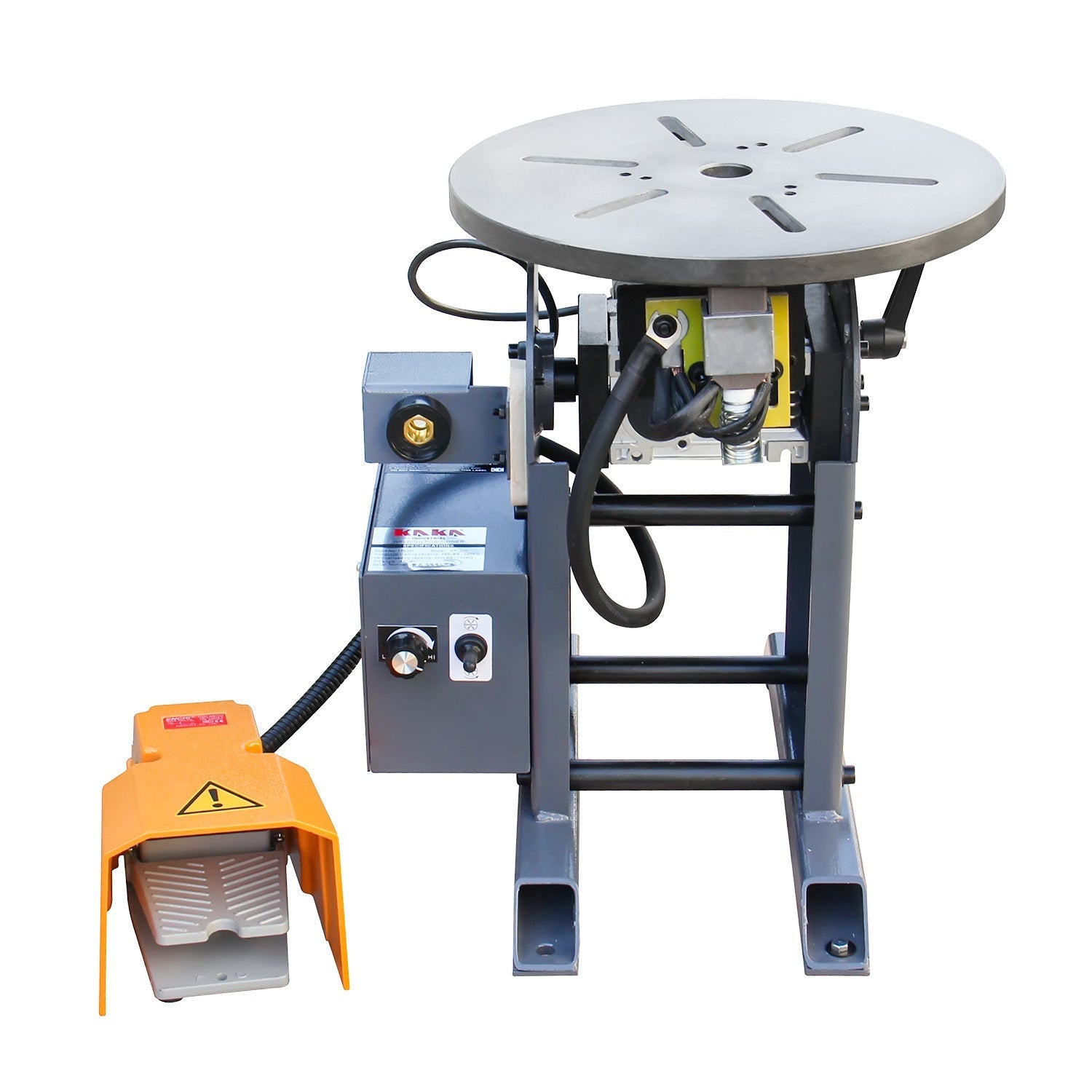

• Using foot switch to control table rotation, the speed is regulated by the knob on the machine(0.5-5r/min stepless speed regulation).
• Slow rotating speed to ensure perfect welding. Time-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
• Single-phase motor, safety earth current from welder is 120A (contact the carbon brush)

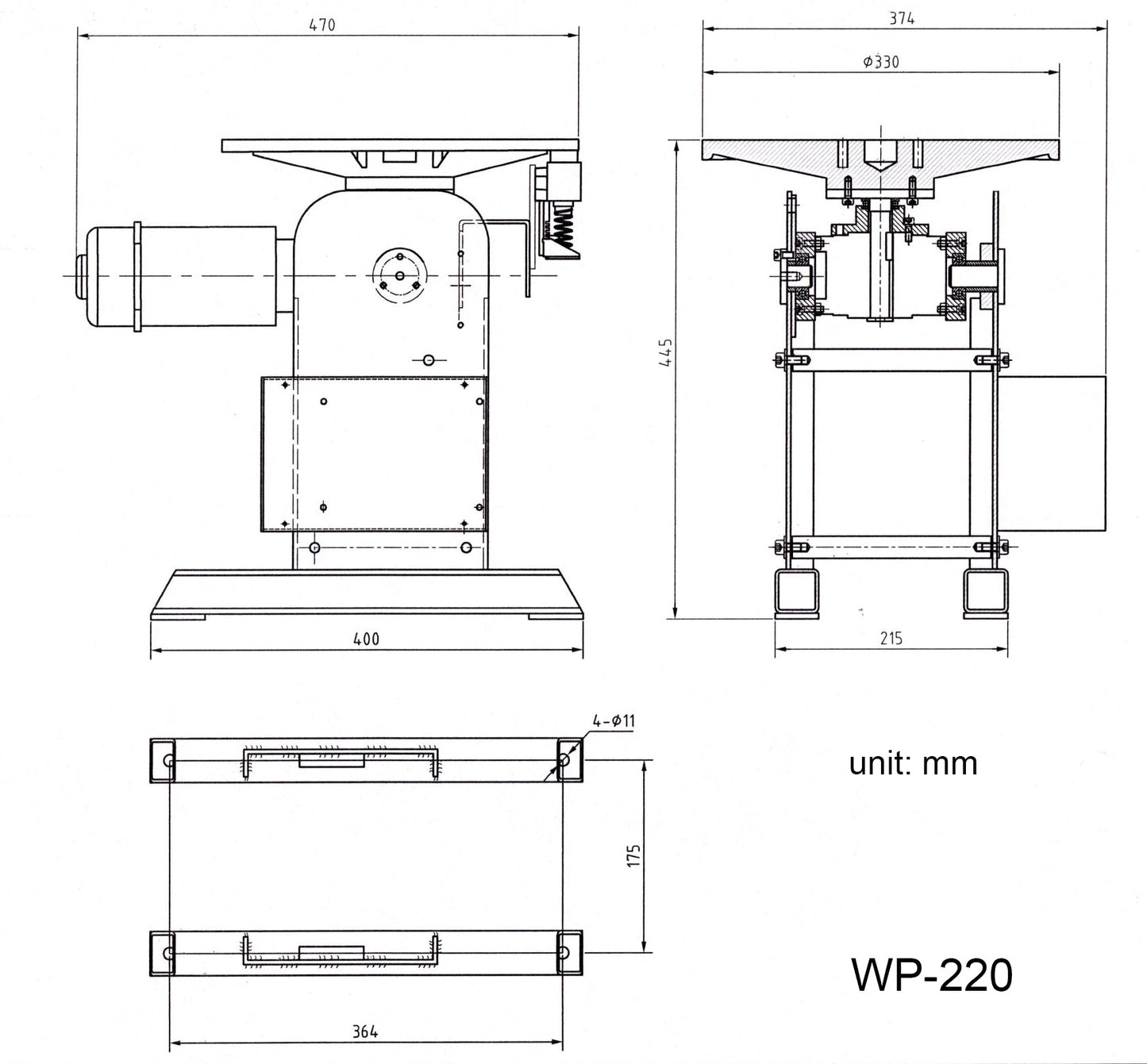

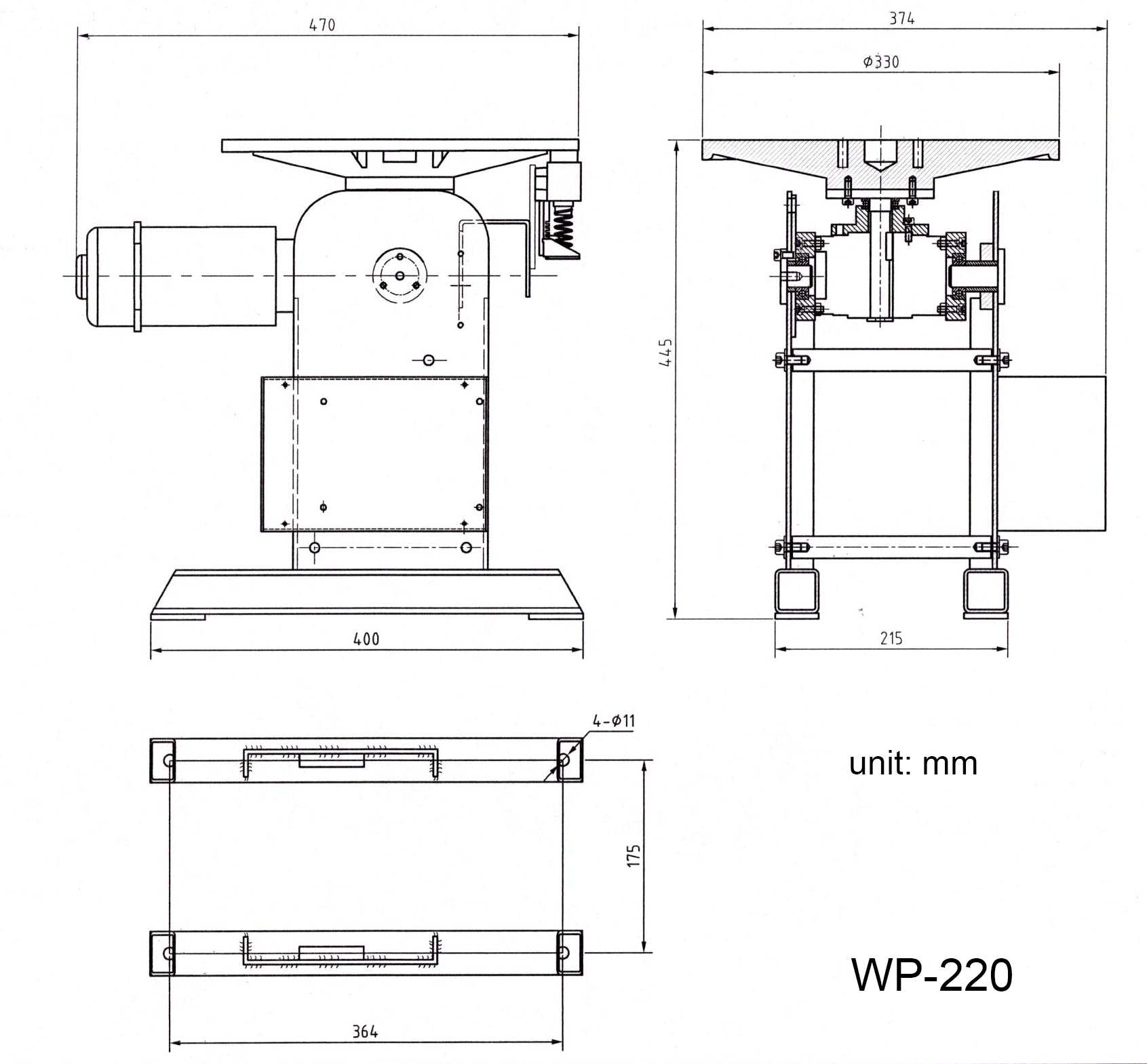

Specifications

• Model WP-220B
• Horizontal loading capacity 485 lbs
• Vertical loading capacity 220lbs

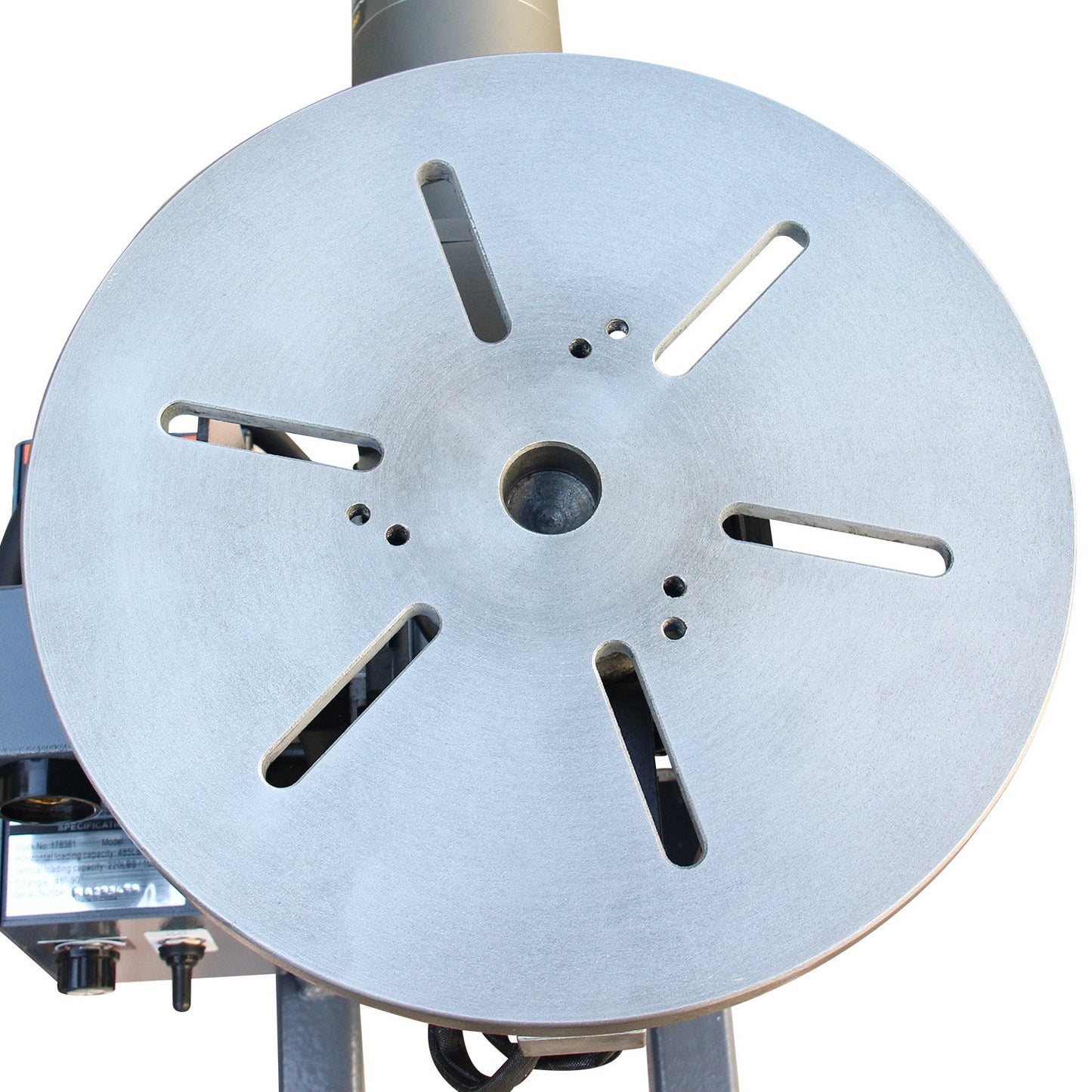

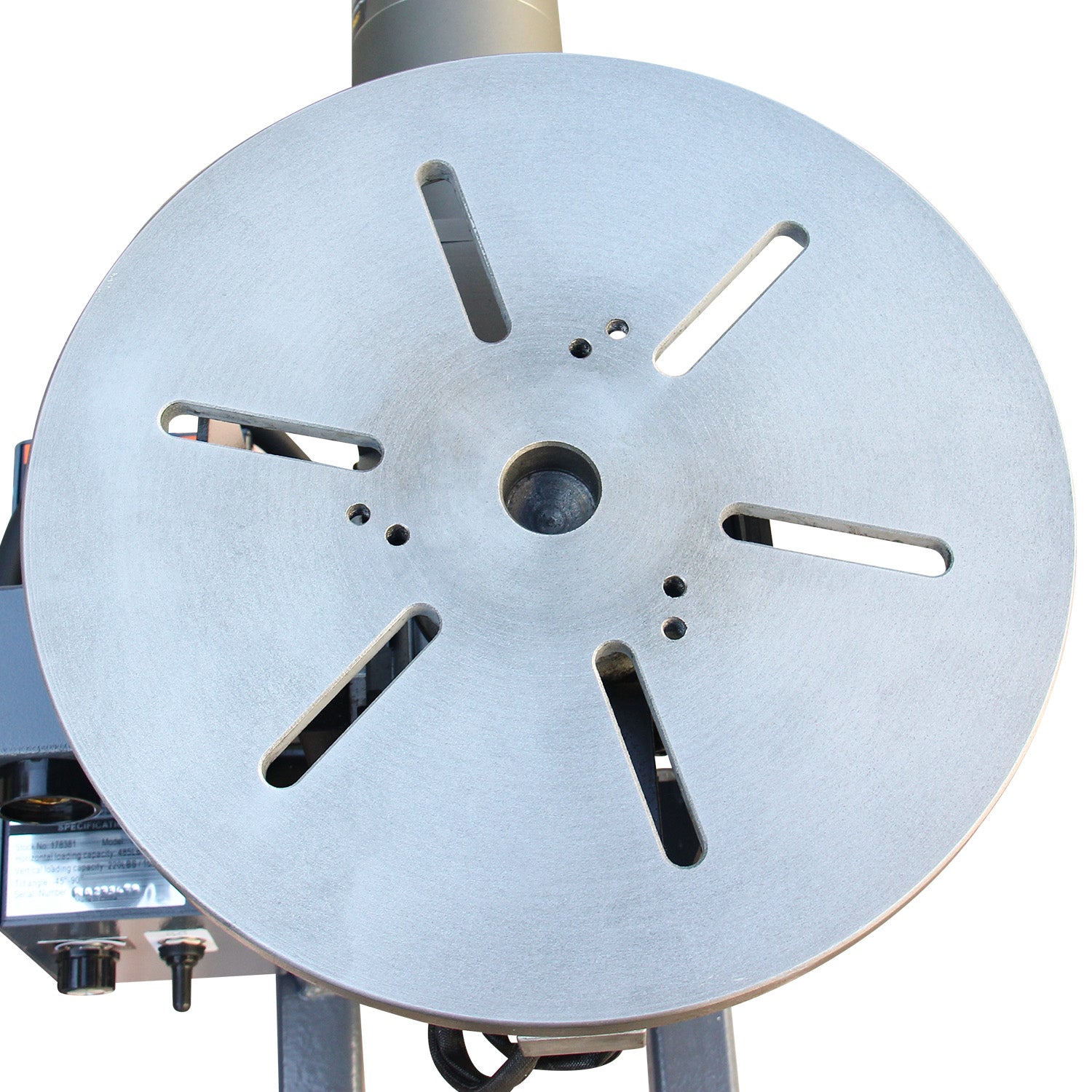

• Table dia. 13"
• Table height 17.7"
• Rotation speed 0-6 rpm
• Tilt angle 0°-135°
• Tilt by Manual
• Rotation motor 125W
• Packing size 25"x20"x25"
• N.W./G.W. 75/106 lbs
