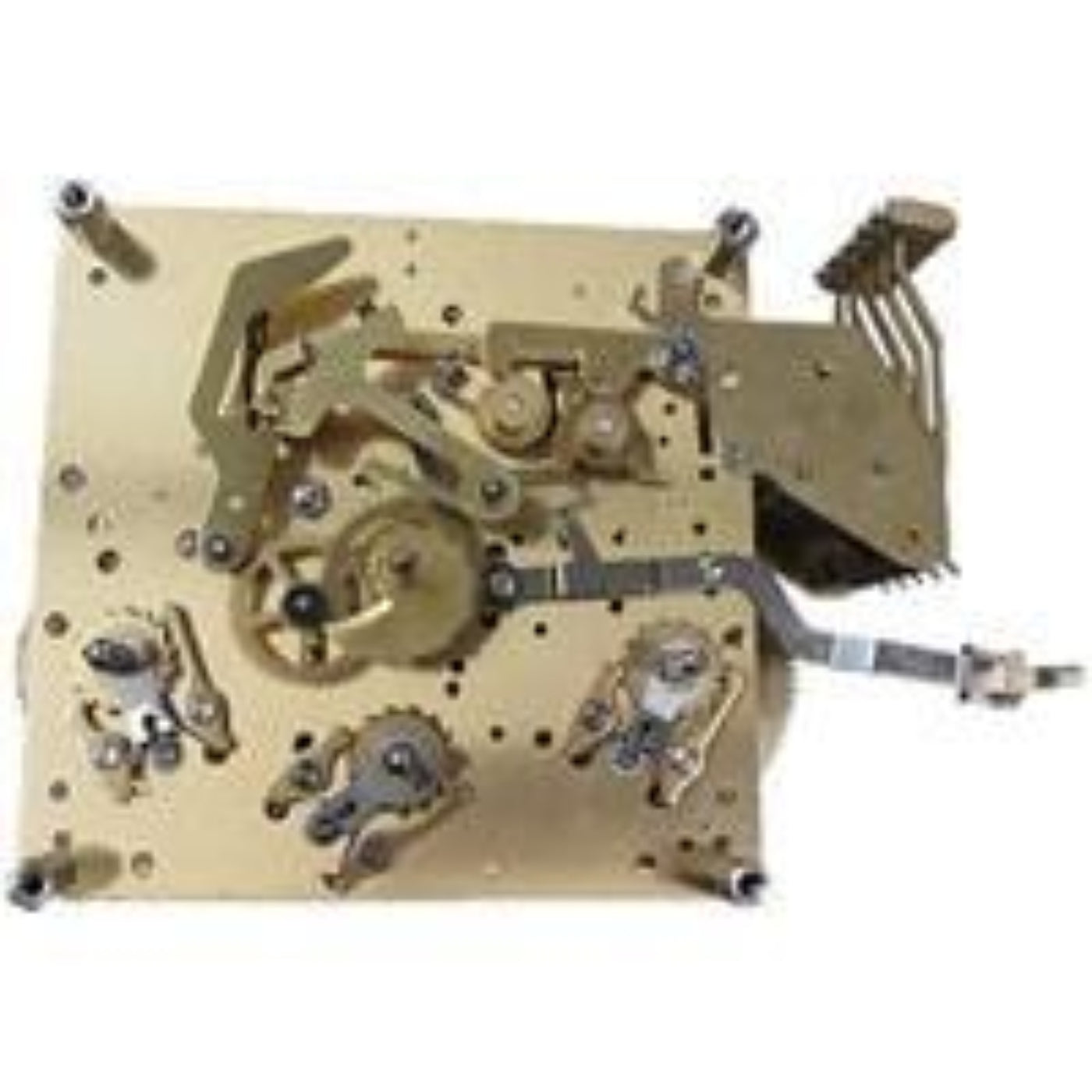

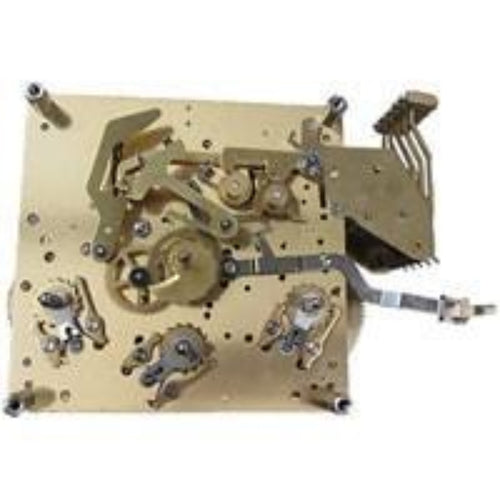

Kieninger Clock Movement with Wesminster Chime - SPS-02

Kieninger Clock Movement  with Wesminster Chime - SPS-02

• Kieninger Clock Movement SPS-02
• Use: KIENINGER-MILLER SERIES
• SPRING Driven
• Westminster Chime
• BPH: 5325
• Hand Shaft: 54 mm
• Pendulum: 36 cm

• Made in Germany
• Fast order processing and FREE ground shipping in the contiguous United States

What our Experts Think

Q&A

Q: What is the Kieninger Clock Movement with Westminster Chime (SPS-02)?
A: The SPS-02 is a German-made Kieninger SPS-series spring-driven mechanical clock movement designed for wall and smaller floor clocks, offering reliable 8-day operation and classic Westminster chime functionality.

Q: What chime does the SPS-02 use?
A: It features the Westminster chime sequence, typically played on a 5-hammer side-mounted striking system, producing a clear but more compact tone compared to larger 8–12 hammer grandfather clock movements.

Q: What are its main features?
A: The SPS-02 is an 8-day spring-driven pendulum movement with three mainsprings, designed for stable timekeeping and consistent chime operation. It includes Westminster-only chime capability and is built for long service life with factory lubrication in key wear points.

Q: What type of clocks is it used in?
A: It is commonly used in smaller grandfather clocks or tall wall/regulator-style clocks, especially when a compact Westminster-only movement is required.

Q: How does it compare to other Kieninger movements?
A: The SPS-02 is simpler than MSU or HTU systems because it is Westminster-only and uses a more compact spring-driven design, making it easier to install and maintain while still maintaining Kieninger’s German precision engineering.

Maintenance Tips

• Perfect leveling required: Keep the clock case precisely vertical for stable pendulum swing and accurate Westminster chime timing.
• Consistent winding schedule: Wind all springs evenly (typically every 7–8 days) to maintain balanced power delivery.
• Lubrication every 3–5 years: Use high-grade clock oil only to reduce friction and extend movement life.
• Dust protection: Keep movement and chime areas clean to ensure reliable strike and smooth operation.
• Humidity control: Maintain a dry, stable environment to protect steel and brass components from corrosion.
• Chime system care (Westminster): Ensure hammer alignment and selector function are smooth for full 5-bell sequence accuracy.
• Avoid overwinding: Stop at natural resistance—never force the winding key.
• Night silence feature (if equipped): Verify automatic or manual shutoff works properly to prevent chime strain.
• Professional servicing: Recommended every 5–7 years for full cleaning, regulation, and calibration.
