Beckhoff Digital Input Terminal - KL1104

 Beckhoff Digital Input Terminal - KL1104

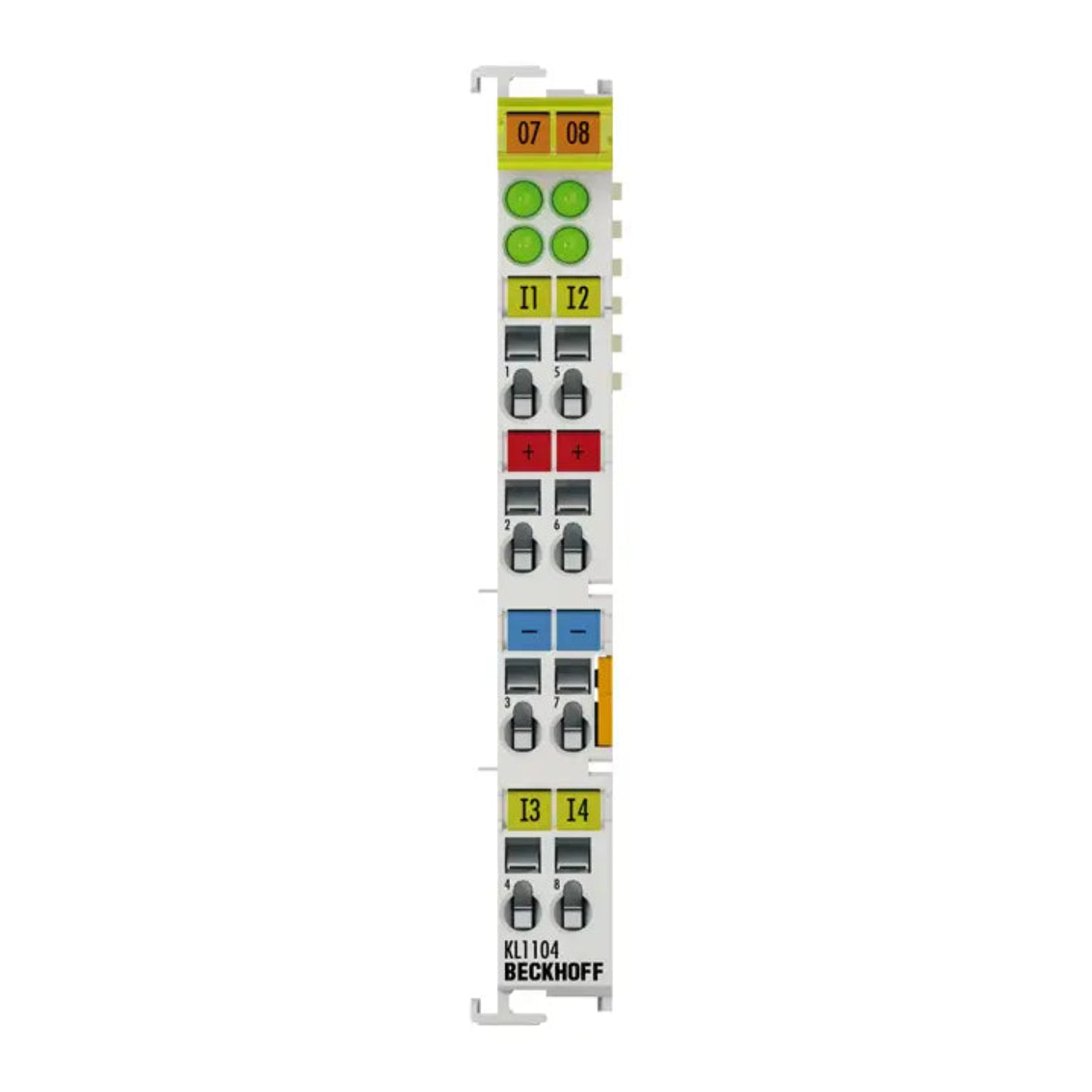

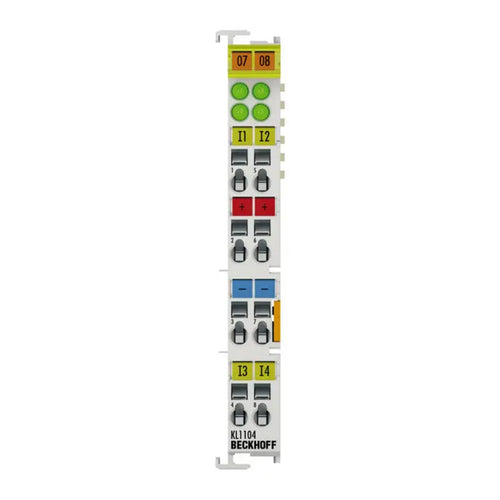

The KL1104 is a Bus Terminal designed for industrial applications, specifically serving as a 4-channel digital input module operating at 24 V DC. This terminal efficiently acquires binary control signals from the process level and transmits them to the higher-level automation unit in an electrically isolated format, ensuring signal integrity.

Specifications

What our Experts Think

• Reliable industrial-grade input module: The Beckhoff KL1104 is a compact 4-channel digital input terminal designed for precise signal acquisition in automation systems.
• Seamless PLC integration: Built for the Beckhoff Bus Terminal system, it enables fast and straightforward integration into distributed control architectures.
• High signal accuracy: Engineered for clean, stable switching detection, reducing noise-related errors in demanding industrial environments.
• Space-efficient design: Slim form factor allows high-density I/O configuration inside control cabinets and machine panels.
• Robust industrial performance: Designed for continuous operation in harsh environments, including vibration, heat, and electrical interference.
• Flexible application use: Ideal for sensors, switches, and binary signal monitoring across manufacturing and process automation setups.
• Cost-effective scalability: Enables modular expansion of I/O points without redesigning the entire control system.

Q&A

Q: What is the Beckhoff KL1104 used for?
A: The Beckhoff KL1104 is a 4-channel digital input terminal designed to interface 24V DC field devices with a PLC or automation system.

Q: What applications is it suitable for?
A: It is used in industrial automation for reading sensors, switches, push-buttons, and other discrete signal devices in machine control systems.

Q: How does the KL1104 work?
A: It converts external 24V DC input signals into process data for a PLC via the Beckhoff Automation bus terminal system.

Q: What are its key features?
A: It offers 4 digital input channels, compact DIN-rail mounting, electrical isolation, and reliable signal acquisition for industrial environments.

Q: Is it compatible with all PLC systems?
A: It is designed for use with Beckhoff Bus Terminal (K-bus) systems and integrates seamlessly with Beckhoff TwinCAT-based control architectures.

Q: What voltage does it support?
A: It supports standard 24V DC industrial input signals commonly used in automation and control panels.

Q: Why choose the KL1104?
A: It provides a cost-effective, compact, and reliable solution for expanding digital input capacity in modular PLC systems.

Maintenance Tips

• Ensure stable 24V DC supply and periodically verify voltage quality to prevent input signal errors.

• Keep DIN rail mounting secure and check that the KL1104 terminal is firmly seated in the EtherCAT/terminal assembly.

• Inspect and tighten all field wiring connections to avoid loose contacts or intermittent digital input signals.

• Maintain proper grounding and shielding practices to reduce electrical noise and improve signal integrity.

• Keep the terminal and control cabinet clean, dry, and free from dust, oil, or conductive contaminants.

• Regularly check LED status indicators on the KL1104 for fault diagnosis and input signal verification.

• Follow ESD precautions when handling terminals to protect sensitive electronic components.

• Periodically inspect for overheating, discoloration, or physical damage in the terminal housing.

• Ensure proper cable routing away from high-voltage or high-noise equipment to avoid signal interference.

• Use system diagnostics via Beckhoff Automation control software to monitor input performance and system health.
