Katool KT-Hydraulic Truck Tire Changer - TV910

Name: Katool KT-Hydraulic Truck Tire Changer - TV910
Brand: Katool
Price: 4724.99 USD
Availability: InStock

$4,724.99

$4,724.99 ~~$6,299.00~~

SAVE 24% Sold out

Product variants

$4,724.99

$4,724.99 ~~$6,299.00~~

SAVE 24% Sold out

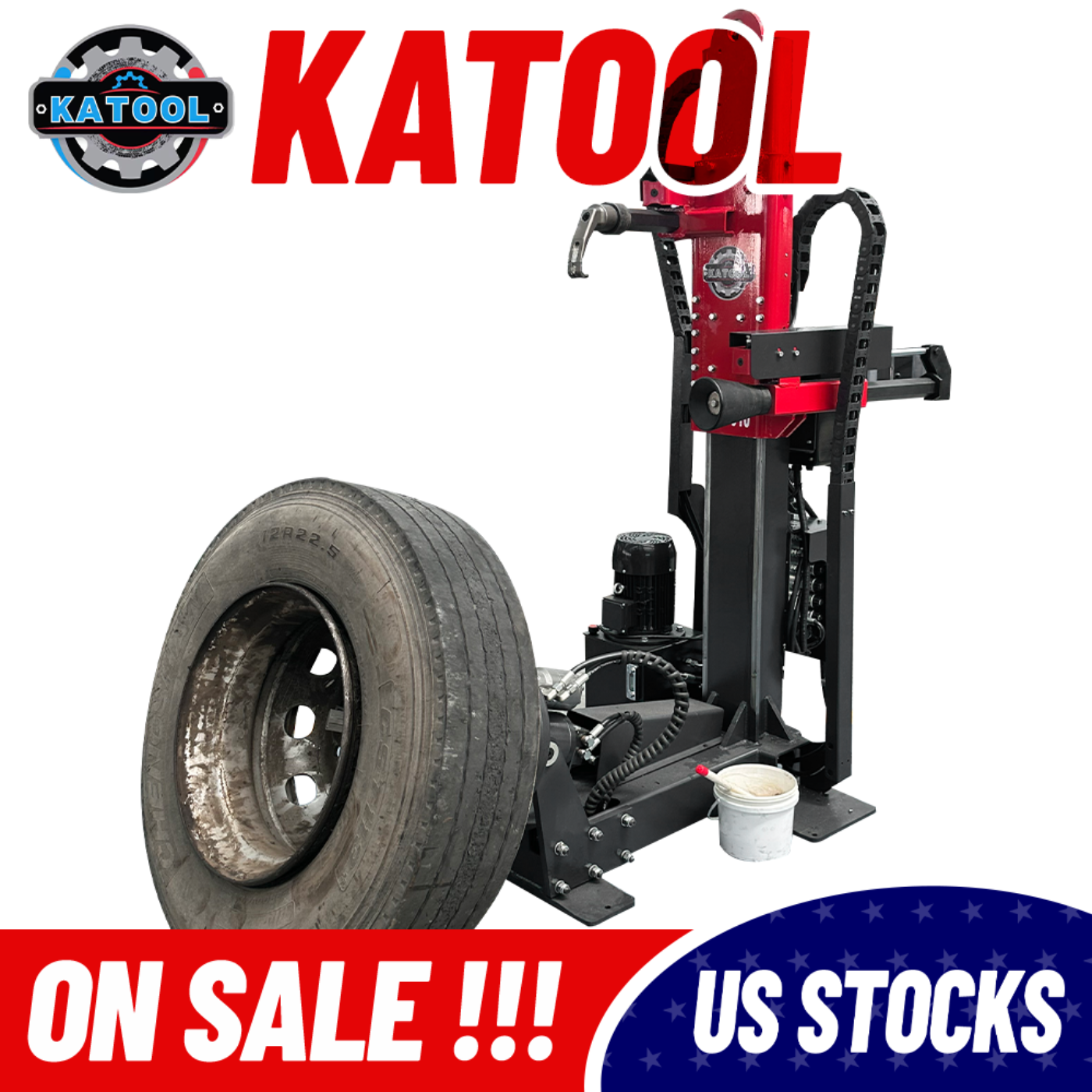

KT-TV910 Heavy Duty Truck Tire Changer Machine

Heavy-duty electro-hydraulic tire changer for Trucks, Busses, tractors, and earth-moving vehicle tires
Large clamping capacity to externally clamp wheels up to 42 inches or as small as 14 inches in diameter to maximize service flexibility.
Multifunctional control, allows the user to operate in any position safely
Powerful, precise, and quick: a beak and disk- it ensures the bead on wheels is particularly strong, even on the most delicate rims
Ergonomically positioned foot pedals and helper controls located at the point of use minimize training and opportunities for error.
Low voltage electric components ensure user complete safety

Outer Rim	14'' - 42''
Max Wheel Diameter	55''
Max Wheel Width	31'' / 780mm
Working Pressure	≤130 bar
Power Supply	220V 1PH/60HZ
Hydraulic Motor	3.0 KW (*4.0 HP Motor*)
Max Flow of Oil for Hydraulic Motor	315
Max Tire Weight	3306lbs / 1500KG
Net Weight	1256lbs / 570KG
Shipping Weight	1388lbs / 630KG
Shipping Dimension	51'' x 43'' x 72'' / 1300mm x 1100mm x 1830mm)
Noise Level	< 70 DB(A)

Built for heavy truck tires
Designed specifically for large commercial truck, bus, and off‑road tire service
Powerful hydraulic operation
Smooth, strong clamping and bead breaking for tough tire jobs
User‑friendly controls
Intuitive layout speeds up service and reduces operator fatigue
Durable construction
Heavy‑duty steel components stand up to frequent professional use
Improves shop efficiency
Faster tire changes mean more throughput and less downtime
Safer tire handling
Stable base and secure grip reduce risk of slippage or damage
Versatile compatibility
Works with a wide range of truck tire sizes and rim types

Q: What tires can this changer handle?
A: Heavy‑duty truck, bus, tractor, and industrial tires.

Q: What wheel sizes does it support?
A: Rim diameters 14″–42″, wheel diameters up to 63″, widths up to 31″.

Q: What is the maximum wheel weight capacity?
A: Up to 3,306 lbs (1,500 kg) per wheel for large commercial service.

Q: What power does it require?
A: Standard 220 V single‑phase, 60 Hz electrical supply.

Q: How is operation controlled?
A: Ergonomic hydraulic controls and foot pedals for safe, efficient operation.

Q: How is bead breaking handled?
A: Hydraulic beak and disk system for strong, precise bead engagement and removal.

Q: Is this machine shop‑ready?
A: Yes — designed for professional tire shops, fleets, and heavy equipment service.

Q: How is it delivered?
A: Shipped by freight to commercial addresses; unloading gear (e.g., forklift) recommended.

Q: Why choose the TV910?
A: Combines high capacity, wide size range, and hydraulic precision for demanding tire changing needs.

Clean After Use: Wipe down surfaces and bead breaker area to remove dirt, tire debris, and lubricant buildup
Inspect Moving Parts: Check turntable, clamps, and hydraulic arms for wear or damage
Lubricate Regularly: Grease pivot points, slide rails, and movable arms for smooth operation
Hydraulic System Check: Monitor fluid level and condition; replace hydraulic oil per manufacturer schedule
Check Hoses & Fittings: Look for leaks, cracks, and loose connections
Tighten Fasteners: Periodically tighten bolts and nuts on base, turntable, and bead breaker
Test Safety Devices: Ensure pressure relief valves and safety locks work properly
Maintain Air Supply Line: Keep air lines clean and dry; drain moisture from compressor/air tank
Store Properly: Keep in a dry, covered space to prevent rust and corrosion
Service Log: Record maintenance and repairs to extend equipment life
