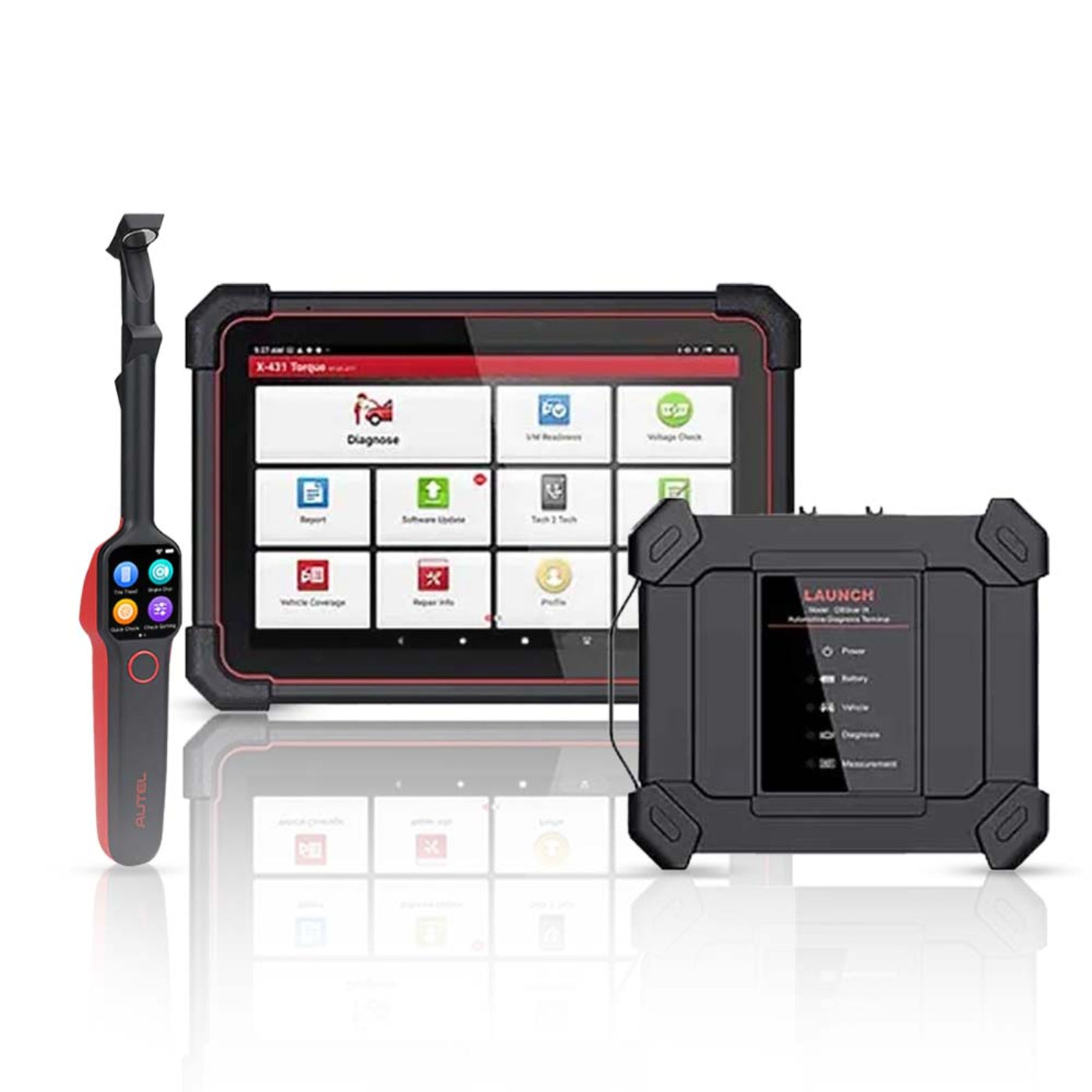

Launch  Vehicle Diagnostic Device with Autel  Laser Tread Depth and Brake Disc Examiner - LNCH-X431-TORQUE-5-TBE200

X-431 Torque 5 is an advanced intelligent vehicle diagnostic device developed based on Android 10.0 system. It adopts 2.0GHz 4-core high-efficiency processor, 10.1-inch color display, 4GB ram + 128GB ROM large storage, and is equipped with high endurance battery to run faster, more stable and longer.

X-431 Torque 5 supports full-system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD/DOIP diagnostic protocol.

Features
  • Full system & full function diagnosis
  • Auto Detect VINs in minutes
  • Bi-Directional Control/ Remote Diagnostic Function
  • Dual band 5G & 2.4 G wireless connection with ultra-fast speeds
  • Advanced vehicle protocols including Doip (external diagnostic cable) CAN FD etc.
  • Code Assist Database by identifix
  • Support X431 Fix repair information, driven by motor
  • SGW Security gateway approved by FCA
  • Supports 2-channel oscilloscope and multimeter functions
  • More available software can be purchased via in-app Mall
  • One-click upgrade for car models software
  • Support USB Type C, USB Type A interface, etc
  • OE Level U.S vehicle coverage as well as Asian, European coverage from 1996 and newer
Specifications
  • Android 10.0
  • 10.1 inch touch screen 1280*800
  • Rear 8 MP, Front 5 MP
  • Battery: 47880mWh (7.6V, 6300mAh)
  • CPU 2.0 GHz Quad-core
  • Memory and Storage:4GB+128GB
  • StorageTemperature: -20℃--70℃-
  • Working Temperature: 0℃--50℃
  • Connectivity：WiFI/Bluetooth
  • Size: 274*190*40.5 (mm)/ 10.79*7.48*1.59 (inch)
  • Weight 1.45 kg
  • Front camera host 4 + 128
  • HD15F to OBDII 16 male integrated test connector
  • HDB15F to HDB15F test main line (with DC)
  • X431 DBSCAR IX diagnostic connector
  • HT30 test line
  • Needle Set (Colored 4mm Female+20 needle+2 screw head)
  • Crocodile clip，black
  • Crocodile clip，red
  • Multimeter probe black
  • Multimeter probe red
  • Power adapter
  • Universal PIN envelope
  • Multilingual Quick Start
  • Type A to type C USB data cable
What our Experts Think
  • Complete workshop upgrade solution: This bundle combines the Launch X-431 Torque 5 diagnostic platform with the Autel TBE200, delivering full-system OE-level diagnostics plus precision tire and brake wear inspection in one ecosystem.
  • High-performance diagnostics core: Torque 5 is built for professional environments, offering fast full-system scanning, bi-directional controls, and advanced service functions across global vehicle brands.
  • 4-in-1 workshop capability: Integrates diagnostic scan tool, VCI interface, multimeter functions, and oscilloscope support—ideal for complex electrical and mechanical troubleshooting.
  • Laser precision inspection included: The TBE200 adds 0.1 mm accuracy laser measurement for tire tread depth and brake disc wear without wheel removal, improving inspection speed and safety.
  • Real-time condition analysis: Provides wear curves, uneven tire wear detection, and maintenance recommendations for alignment, rotation, and brake servicing decisions.
  • All-in-one workshop workflow: Combines diagnostics + live data + physical wear measurement, reducing tool switching and improving service throughput.
  • Professional service advantage: Ideal for modern workshops looking to increase upsell opportunities with documented tire and brake condition reports.
  • Built for modern vehicles: Strong coverage for passenger, SUV, and commercial platforms with support for advanced communication protocols and newer vehicle systems.
Q&A

Q: What is the Launch Vehicle Diagnostic Device with TBE200 (LNCH-X431-TORQUE-5-TBE200)?
A: A professional Launch X-431 Torque 5 diagnostic system bundled with the Autel TBE200 laser tread depth and brake disc measurement tool for combined vehicle diagnostics and safety inspection.

Q: What does the diagnostic device do?
A: It provides full-system ECU diagnostics including fault code reading/clearing, live data, active tests, and service reset functions for multiple vehicle brands.

Q: What is the TBE200 used for?
A: It performs fast, non-contact laser measurement of tire tread depth and brake disc wear for accurate safety inspections.

Q: Which vehicles are supported?
A: Wide multi-brand coverage for passenger cars and light commercial vehicles with OBD-II systems.

Q: Does it support bi-directional control?
A: Yes, it enables active testing to control and verify vehicle components during diagnostics.

Q: Who is this kit designed for?
A: Ideal for workshops, tire centers, and inspection stations needing both advanced diagnostics and quick safety measurement in one system.

Q: Is it suitable for professional use?
A: Yes, it is built for efficient, high-accuracy diagnostics and inspection workflows in professional environments.

Maintenance Tips
  • Keep software updated: Regularly update diagnostic system, vehicle coverage, and TBE200 measurement module for accuracy.
  • Protect laser sensor: Keep lens clean, dry, and free from brake dust, oil, and scratches to maintain precision.
  • Calibrate regularly: Perform periodic calibration for consistent tread depth and brake disc readings.
  • Careful handling: Avoid dropping or bending probes and accessories to prevent measurement errors.
  • Clean after use: Wipe with a soft microfiber cloth; avoid chemicals or abrasive cleaners.
  • Stable measurement setup: Always measure on stationary vehicles with properly positioned wheels on flat ground.
  • Battery care: Charge frequently, avoid deep discharge, and unplug after full charge.
  • Port protection: Keep OBD, charging, and accessory ports clean and firmly connected without force.
  • Avoid interference: Use away from strong electromagnetic sources like welders or heavy motors.
  • Safe storage: Store in a dry, shock-resistant case away from heat, moisture, and workshop dust.
