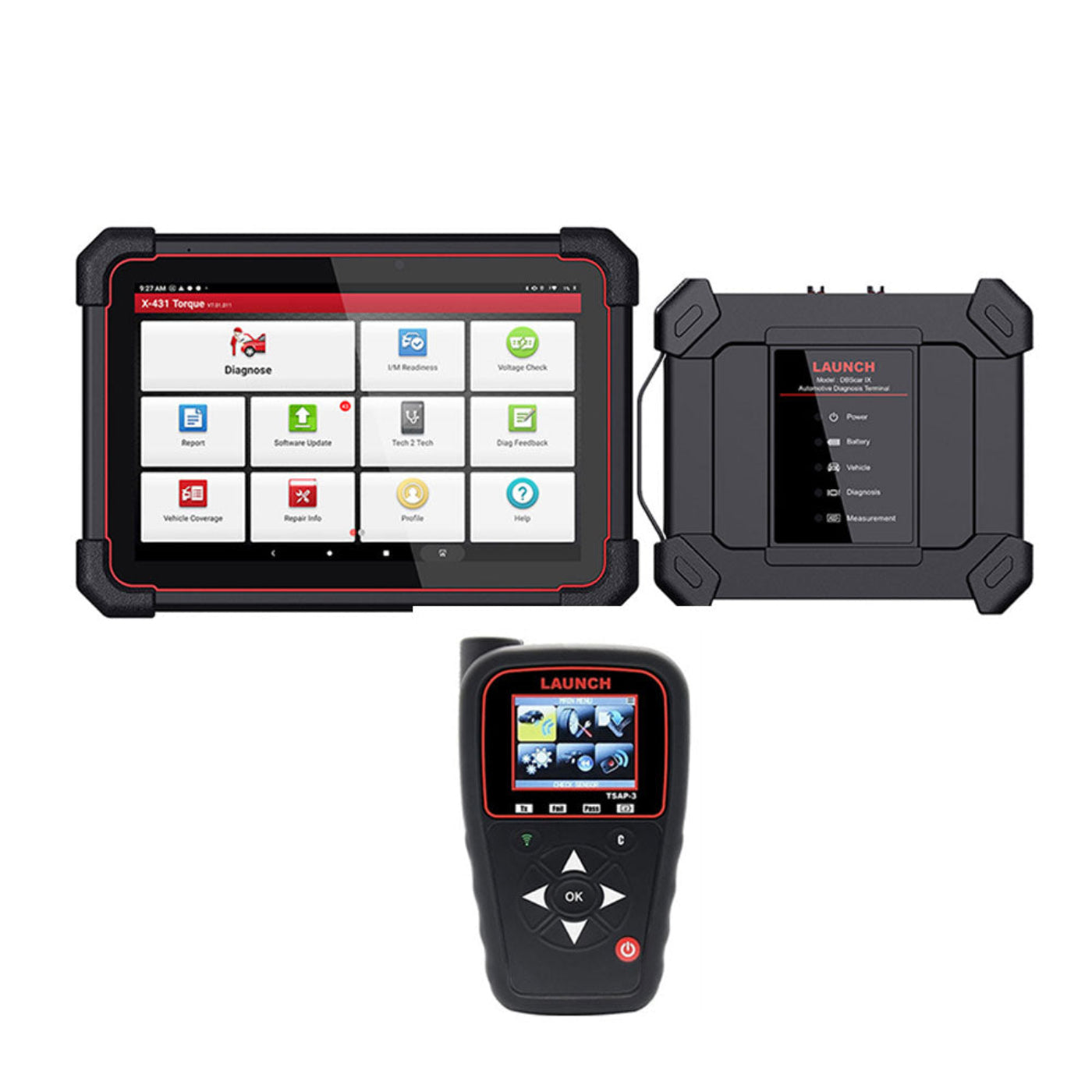

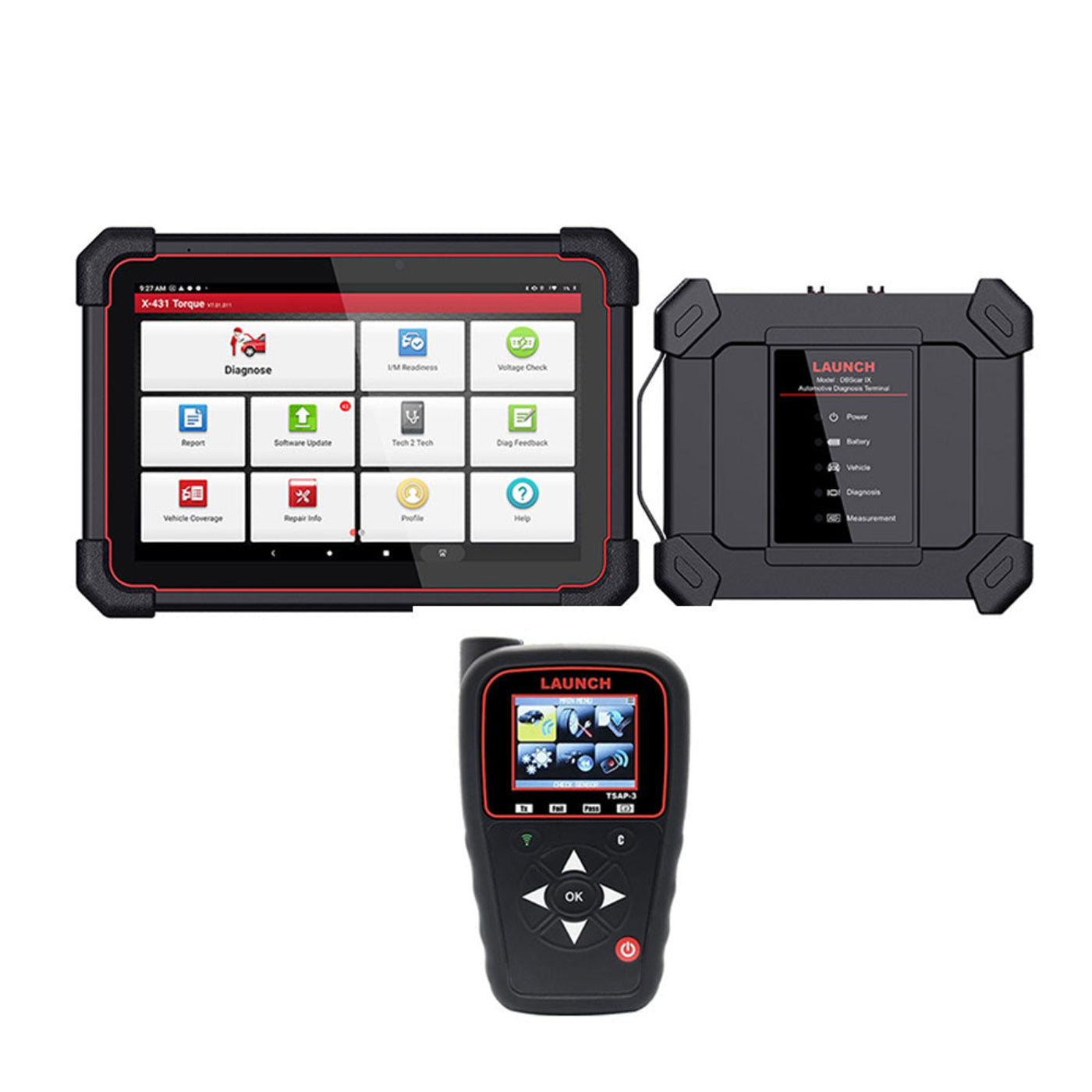

Launch - Advanced Intelligent Vehicle Diagnostic Device with Free TSAP-3 TPMS Tool and 20 LTR TPMS Sensors - LNCH-X431-TORQUE-5-TSAP3-LTR

Launch - Advanced Intelligent Vehicle Diagnostic Device with Free TSAP-3 TPMS Tool and 20 LTR TPMS Sensors - LNCH-X431-TORQUE-5-TSAP3-LTR

X-431 Torque 5 is an advanced intelligent vehicle diagnostic device developed based on Android 10.0 system. It adopts 2.0GHz 4-core high-efficiency processor, 10.1-inch color display, 4GB ram + 128GB ROM large storage, and is equipped with high endurance battery to run faster, more stable and longer.

X-431 Torque 5 supports full-system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD/DOIP diagnostic protocol.

Features

• Full system & full function diagnosis
• Auto Detect VINs in minutes
• Bi-Directional Control/ Remote Diagnostic Function
• Dual band 5G & 2.4 G wireless connection with ultra-fast speeds
• Advanced vehicle protocols including Doip (external diagnostic cable) CAN FD etc.
• Code Assist Database by identifix
• Support X431 Fix repair information, driven by motor
• SGW Security gateway approved by FCA
• Supports 2-channel oscilloscope and multimeter functions
• More available software can be purchased via in-app Mall
• One-click upgrade for car models software
• Support USB Type C, USB Type A interface, etc
• OE Level U.S vehicle coverage as well as Asian, European coverage from 1996 and newer

Specifications

• Android 10.0
• 10.1 inch touch screen 1280*800
• Rear 8 MP, Front 5 MP
• Battery: 47880mWh (7.6V, 6300mAh)
• CPU 2.0 GHz Quad-core
• Memory and Storage:4GB+128GB
• Connectivity:WiFI/Bluetooth
• Size: 274*190*40.5 (mm)/ 10.79*7.48*1.59 (inch)
• Weight 1.45 kg
• Front camera host 4 + 128
• HD15F to OBDII 16 male integrated test connector
• HDB15F to HDB15F test main line (with DC)
• X431 DBSCAR IX diagnostic connector
• HT30 test line
• Needle Set (Colored 4mm Female+20 needle+2 screw head)
• Crocodile clipblack
• Crocodile clipred
• Multimeter probe black
• Multimeter probe red
• Power adapter
• Universal PIN envelope
• Multilingual Quick Start
• Type A to type C USB data cable

What our Experts Think

Q&A

Q: What is the Launch X-431 Torque 5 TSAP3-LTR Diagnostic Kit (LNCH-X431-TORQUE-5-TSAP3-LTR)?
A: A professional Launch advanced intelligent vehicle diagnostic system bundled with a TSAP-3 TPMS tool and 20 Lite TPMS sensors for full diagnostics and tire pressure system servicing.

Q: What does the diagnostic device do?
A: It performs full-system ECU diagnostics including fault code reading/clearing, live data streaming, active tests, and service reset functions across multiple vehicle brands.

Q: What is included in the TPMS package?
A: A TSAP-3 TPMS activation/programming tool plus 20 universal Lite TPMS sensors for replacement or fleet servicing.

Q: What can the TPMS tool do?
A: It activates sensors, reads tire pressure data, performs sensor relearn, and diagnoses TPMS system faults.

Q: Which vehicles are supported?
A: Wide coverage for passenger cars and light commercial vehicles with OBD2 and TPMS-equipped systems.

Q: Does it support bi-directional control?
A: Yes, it enables active testing for component activation and system verification.

Q: Who is this kit designed for?
A: Ideal for professional workshops, tire service centers, and fleet maintenance operations needing both diagnostics and TPMS servicing in one solution.

Q: Is it suitable for professional use?
A: Yes, it is built for high-efficiency automotive diagnostics and tire service workflows in professional environments.

Maintenance Tips

• Keep software updated: Regularly update diagnostic firmware, vehicle coverage, and TSAP-3 TPMS functions for best accuracy and compatibility.
• Protect TPMS sensors: Store 20 LTR sensors in a dry, anti-static case; avoid heat, moisture, and impact damage.
• Correct sensor installation: Ensure proper valve alignment and torque to prevent air leakage and sensor failure.
• Avoid RF interference: Perform TPMS programming in low-interference environments for stable signal learning.
• Battery preservation (sensors): Do not expose sensors to extreme temperatures to extend internal battery life.
• Care for TSAP-3 tool: Keep ports, connectors, and RF components clean, dry, and undamaged.
• Clean regularly: Use a soft microfiber cloth for both diagnostic device and accessories—no harsh chemicals.
• Stable diagnostic conditions: Perform programming and relearn procedures on stationary vehicles with stable power supply.
• Proper storage: Keep device, tool, and sensors in protective foam case away from dust, heat, and vibration.
• Routine system checks: Periodically verify TPMS readings and relearn functions for consistent performance.
