Launch AutoHD PRO Heavy-Duty Vehicle Diagnostic Tool with Autel Laser Tread Depth and Brake Disc Examiner - LNCH-TORQUE-AUTOHD-PRO-TBE200

Launch AutoHD PRO Heavy-Duty Vehicle Diagnostic Tool with Autel Laser Tread Depth and Brake Disc Examiner - LNCH-TORQUE-AUTOHD-PRO-TBE200

$2,633.99
$2,633.99 $3,510.95
SAVE 24% Sold out
Launch AutoHD PRO Heavy-Duty Vehicle Diagnostic Tool with Autel Laser Tread Depth and Brake Disc Examiner - LNCH-TORQUE-AUTOHD-PRO-TBE200

Launch AutoHD PRO Heavy-Duty Vehicle Diagnostic Tool with Autel Laser Tread Depth and Brake Disc Examiner - LNCH-TORQUE-AUTOHD-PRO-TBE200

$2,633.99
$2,633.99 $3,510.95
SAVE 24% Sold out

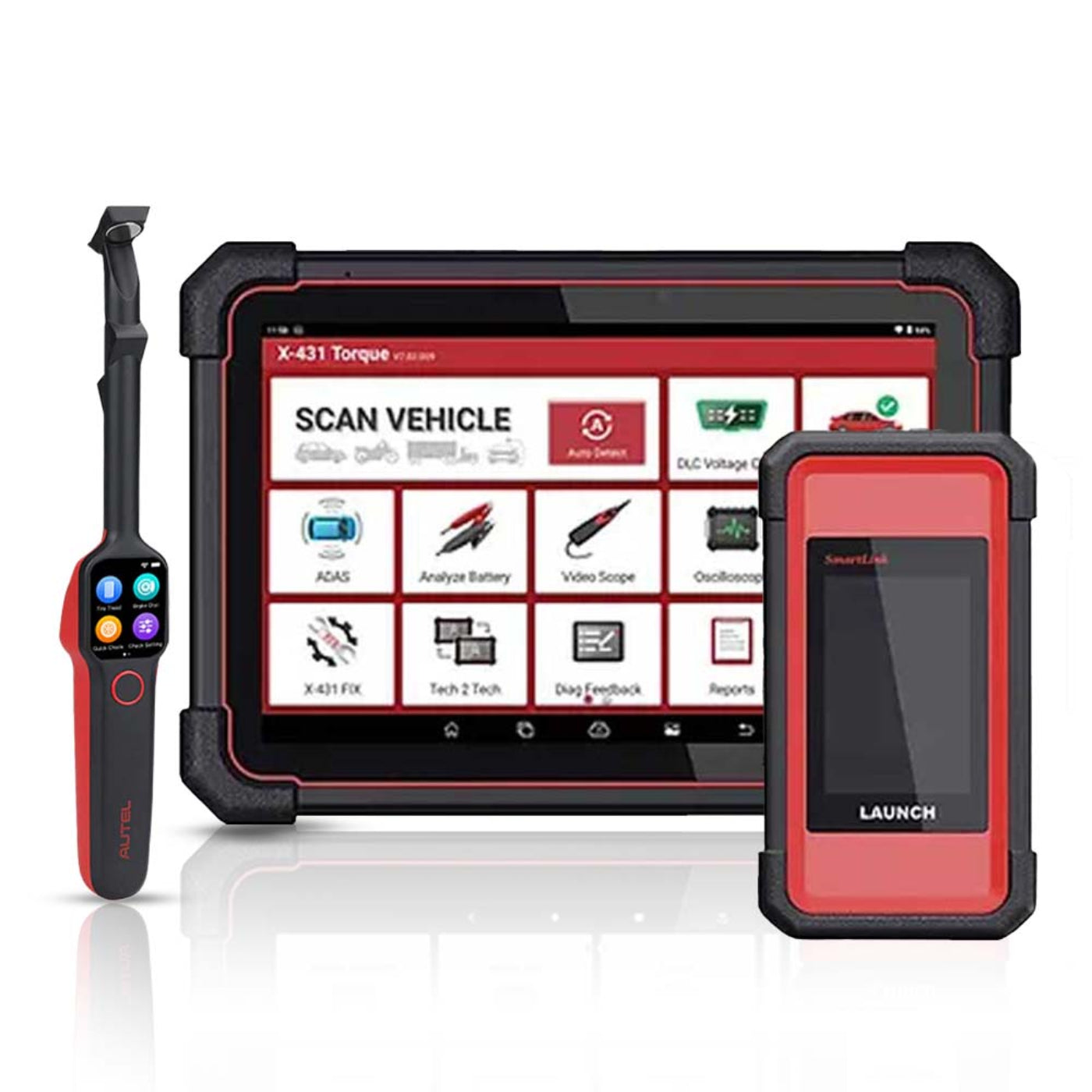

Launch  AutoHD PRO Heavy-Duty Vehicle Diagnostic Tool with Autel  Laser Tread Depth and Brake Disc Examiner - LNCH-TORQUE-AUTOHD-PRO-TBE200

The X-431 Torque AUTOHD PRO is a diagnostic solution that supports Auto and commercial Heavy Duty Truck Diagnostics. The featured service and calibration functions allow for growing the HD truck segment.

Features
  • Integrated with new powerful hardware X-431 Torque Auto HD Pro tablet, and Smartlink VCI,maximum the ability to faster diagnosis
  • OE-level U.S. vehicle coverage as well as Asian, European coverage from 1996 and newer
  • Read and erase DTCs of light, medium and heavy-duty vehicles (Class 4 through 8)
  • Wireless and wired communicates via Bluetooth and USB
  • Works on various systems, including Engine, Transmissions, ABS, and Auxiliary from manufacturers such as Wabco, Bendex, and Allison
  • Support Cummins, Detroit, Freightliner, Fuso, Hino, International, Isuzu, KW, Peterbilt, Sterling, and Volvo
  • Multilingual menu and data display: English, Spanish, French
  • Optional ADAS calibration application to calibrate LOW, RCW, AVM, NV, BSD and ACC system accurately.
  • Guided VW & AUDI functions/OE vehicle approved Security Gateway access by FCA ce (NEW)
  • Code Assist by IDENTIFIX, access most common fixes and repair solutions with corresponding DTC's. (NEW)
  • Monitor the vehicle's voltage in real lime during live dia (NEW)
  • Dpf Regeneration
  • Injection Quantity Adjustment
  • Bleeding The Adblue Circuit
  • Parked Scr Efficiency Test
  • Injector Coding
  • Reset Service (Mil)
  • Maintenance Confirmation
  • Reset Pressure Limiting Valve And Calibration
  • Participate Filter Replacement Reset
  • Trip Reset
  • Dpf Ash Accumulator Reset
  • Reset Pressure Differential Sensor
  • Vgt Electronic Actuator Installation
  • Parked Scr Efficiency Test
  • Idle Speed Adjustment
  • Speed Limit
  • Cruise Control
  • Idle-Stop System
  • PTO
  • Coolant Level Switch
  • Exhaust Brake Valve
  • Intake Air Preheating
  • Vehicle Speed Controller
  • Air Conditioner
  • Oil Pressure Sensor
  • Electronic Fan
  • ABS
  • Automatic Transmission
 Specifications
  • CPU 2.0GHz 4-core
  • Display: 10.1 inch touch screen
  • Memory: 4GB
  • Storage: 128GB
  • Android 10.0
  • Camera: Rear 8MP, Front 5MP
  • Battery: 47.88Wh (7.6V, 6300mAh)
  • Dimension: 200*110*47 (mm)
  • Display: 3.95", 320*480
  • Wi-Fi: 2.4ghz/5ghz
  • Communication: Wi-Fi & Bluetooth & Ethernet
  • Ram: 256gb
  • Storage: 8gb
  • Working Voltage: 9v Dc-36v Dc
  • Dimension: |200*110*47 (Mm)
What our Experts Think
  • Heavy-duty + light-duty full coverage platform: The Torque AutoHD PRO is a flagship Launch diagnostic system designed for Class 1–8 vehicles, giving workshops a single tool for cars, SUVs, and heavy-duty trucks.
  • All-in-one professional diagnostics: Delivers OE-level full-system scanning, DTC reading/clearing, topology-style system access, and advanced service functions for major OEM systems.
  • Smart workshop connectivity: Supports wireless and wired VCI communication with fast data transfer, improving workflow efficiency in busy repair environments.
  • Built for modern truck systems: Strong coverage across engine, transmission, ABS, and auxiliary modules including major HD brands (e.g., Cummins, Detroit, Bendix, Wabco).
  • Advanced diagnostic intelligence: Includes guided functions, OEM-level access, and integrated software features that help technicians pinpoint faults faster and reduce diagnostic guesswork.
  • Laser inspection upgrade (TBE200 included): The Autel TBE200 adds 0.1 mm laser tread depth and brake disc measurement, enabling fast, non-contact inspection without wheel removal.
  • Real-time wear analysis: Provides tread and brake condition curves, uneven wear detection, and service recommendations for alignment, rotation, and brake servicing.
  • Complete service ecosystem: Combines diagnostics + heavy-duty coverage + tire and brake inspection in one workflow, reducing tool switching and improving workshop productivity.
Q&A

Q: What is the Launch AutoHD PRO Heavy-Duty Diagnostic Tool with TBE200 (LNCH-TORQUE-AUTOHD-PRO-TBE200)?
A: A professional Launch heavy-duty diagnostic system (AutoHD PRO) combined with the Autel TBE200 laser tread depth and brake disc measurement tool for comprehensive vehicle diagnostics and safety inspection.

Q: What vehicles does it support?
A: Heavy-duty commercial vehicles such as trucks, buses, and diesel fleets, along with supported passenger vehicle diagnostics depending on configuration.

Q: What diagnostic functions does it offer?
A: Full ECU diagnostics, fault code reading/clearing, live data streaming, active tests, and service reset functions for HD systems like engine, ABS, transmission, and emissions.

Q: What is the TBE200 used for?
A: It provides non-contact laser measurement of tire tread depth and brake disc wear for fast, accurate inspection results in workshop environments.

Q: Does it support bi-directional control?
A: Yes, it enables active testing and component actuation for advanced troubleshooting.

Q: Who is this tool designed for?
A: Fleet workshops, heavy-duty repair centers, and commercial vehicle technicians needing diagnostics plus safety inspection in one system.

Q: Is it suitable for professional use?
A: Yes, it is built for high-demand commercial diagnostics and inspection workflows.

Maintenance Tips
  • Keep software updated: Regularly update HD truck diagnostics, vehicle database, and TBE200 module for full coverage and accuracy.
  • Protect laser sensor: Keep lens clean, dry, and free from brake dust, grease, or scratches to maintain precise readings.
  • Calibrate measurement system: Perform routine calibration for tread depth and brake disc accuracy.
  • Handle heavy-duty connectors carefully: Avoid forcing J1939/J1708 and OBD-HD adapters to prevent pin damage.
  • Clean after every use: Use a soft microfiber cloth; avoid solvents or compressed air directly on sensors.
  • Stable testing conditions: Perform measurements on stationary vehicles with proper wheel alignment on flat ground.
  • Battery care: Charge regularly, avoid deep discharge, and disconnect after full charge to extend lifespan.
  • Cable management: Prevent sharp bends or tension on HD diagnostic cables and probes.
  • Avoid harsh environments: Keep away from extreme heat, moisture, welding equipment, and high RF interference areas.
  • Safe storage: Store in a rugged, padded case to protect from vibration, dust, and workshop impacts.
