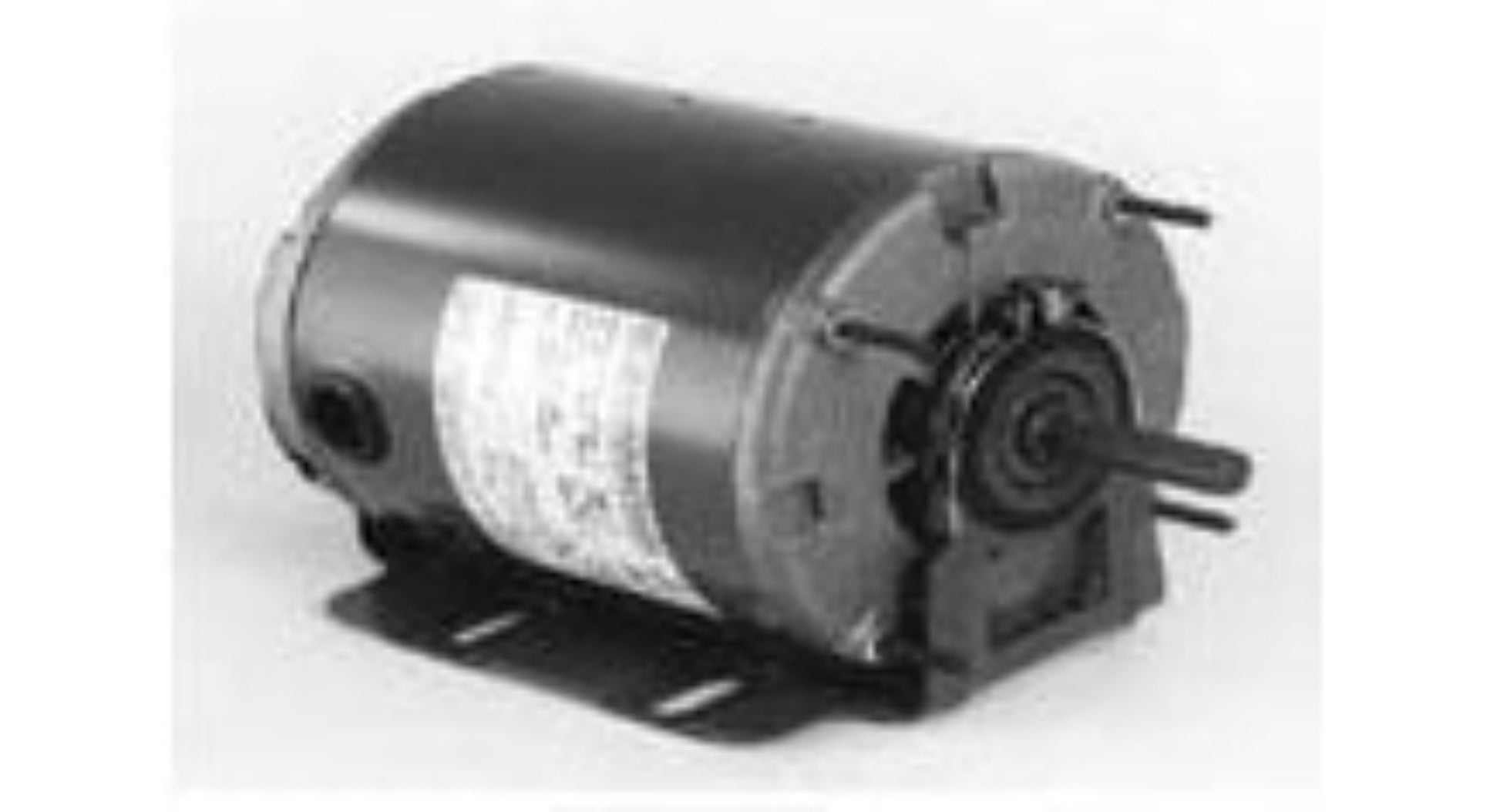

Marathon M4684 4684 Belt Drive Motor 1/2 hp 1725 RPM 115/230 VAC - M4684

Marathon M4684 4684 Belt Drive Motor 1/2 hp 1725 RPM 115/230 VAC - M4684

Marathon Electric M4684 is a belt drive motor designed for various applications. It delivers half a horsepower, operates at 1725 RPM, and functions on either one hundred fifteen or two hundred thirty VAC. This motor features a single split phase and a resilient ring mount, making it suitable for tasks that require durability and efficiency.

• Belt drive with single split phase and one-speed operation
• Rated at half a horsepower with a maximum speed of 1725 RPM
• Open drip proof design with resilient mounting and ball bearing system

Product Highlights

Ideal for HVAC and blower applications, this motor ensures reliable performance and longevity in various environments.

Product Information

• Brand: Marathon Electric
• MPN: M4684
• Horsepower: 0.5 hp
• Speed: 1725 RPM
• Voltage: 115/230 VAC
• Frame Size: 56Z
• Weight: 18 pounds
• Enclosure Type: Open drip proof (ODP)
• Amperage: 8.9/4.5
• Mounting Type: Resilient base
• Motor Type: Split Phase
