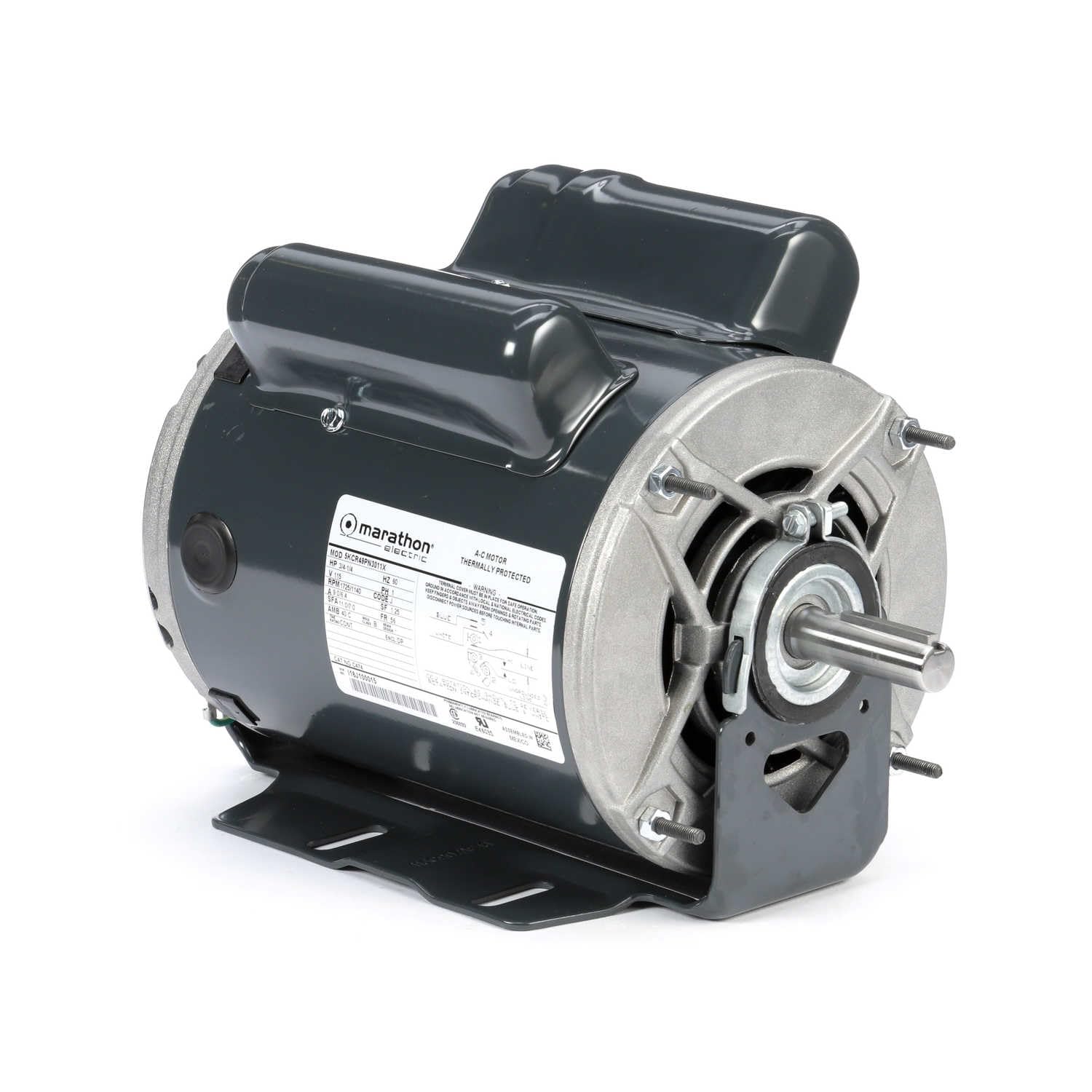

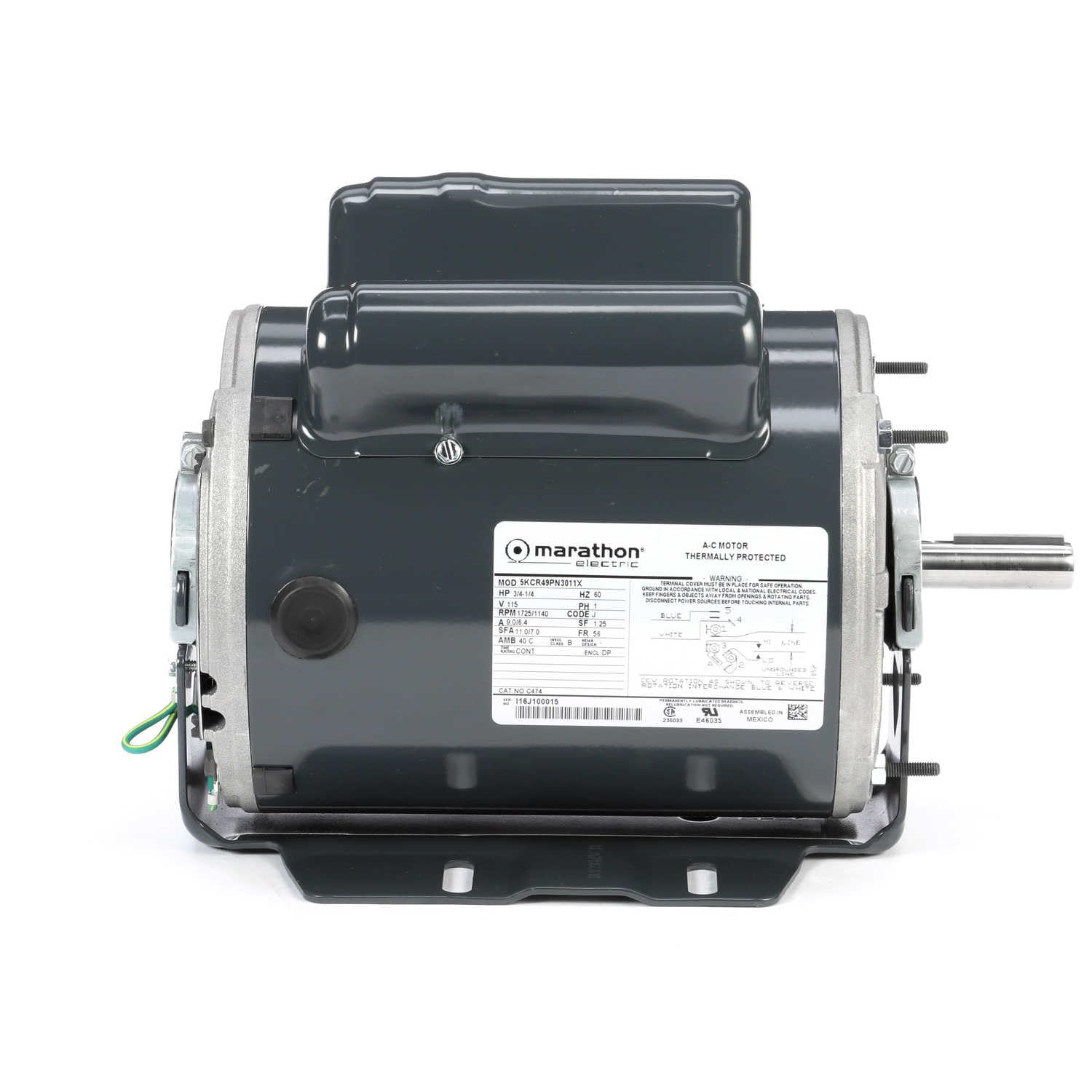

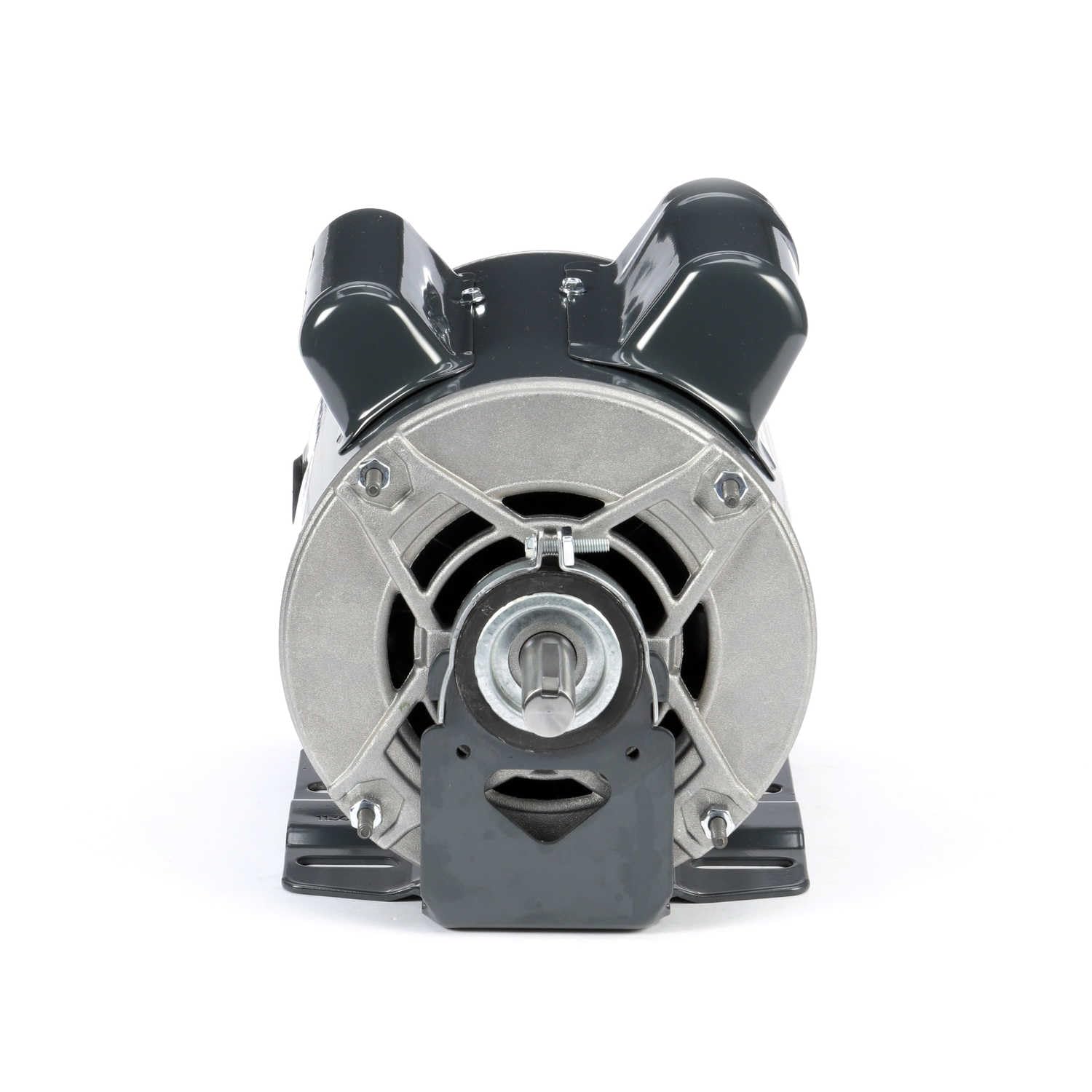

Marathon MC474 General Purpose Motor 0.75 HP 115 Volts 1725 RPM - MC474

Marathon MC474 General Purpose Motor 0.75 HP 115 Volts 1725 RPM - MC474

The Marathon MC474 General Purpose Motor offers reliable performance for various applications. Designed for use in belt-driven systems, this motor features 3/4 horsepower and operates at 1725 RPM. It has an open drip proof enclosure and uses a capacitor start mechanism for efficient operation.

• Three-quarter horsepower motor
• Operates at 1725 RPM and 115 volts
• Single-phase with two speeds

This motor is built to last with rolled steel material and offers automatic overload protection. Its resilient base ensures stable mounting, while the resilient ring mount protects the ball bearings.

Specifications

• Brand: Marathon Electric
• MPN: MC474
• Type: General Purpose Motor
• Frame: 56
• Horsepower: 0.75 HP
• Speed: 1725 RPM
• Voltage: 115 Volts
• Phase: Single
• Diameter: 6.5 inches
• Amperage: 9.0, 6.4
• Mounting Type: Resilient Base
• Material: Rolled Steel
• Enclosure: Open Drip Proof
• Rotation: REV
• Speeds: 2

What Our Experts Think

• 0.75 HP general-purpose motor built for reliable light-to-medium duty applications.

• Runs at 1725 RPM for smooth and efficient operation.

• 115V single-phase design for versatile installation.

• Durable Marathon construction ensures long service life.

• Ideal for fans, pumps, blowers, and small machinery.

Q&A

Q: What is the horsepower of this motor?
A: 0.75 HP, suitable for light to medium-duty industrial and commercial equipment.

Q: What voltage does it operate on?
A: 115V, single-phase.

Q: What is the motor speed?
A: 1725 RPM for consistent, efficient performance.

Q: What applications is it commonly used for?
A: Fans, pumps, blowers, and other small machinery.

Maintenance Tips

• Keep motor clean and free of dust for proper ventilation.

• Inspect wiring and electrical connections regularly.

• Lubricate bearings according to manufacturer’s schedule.

• Avoid overloading to extend motor lifespan.
