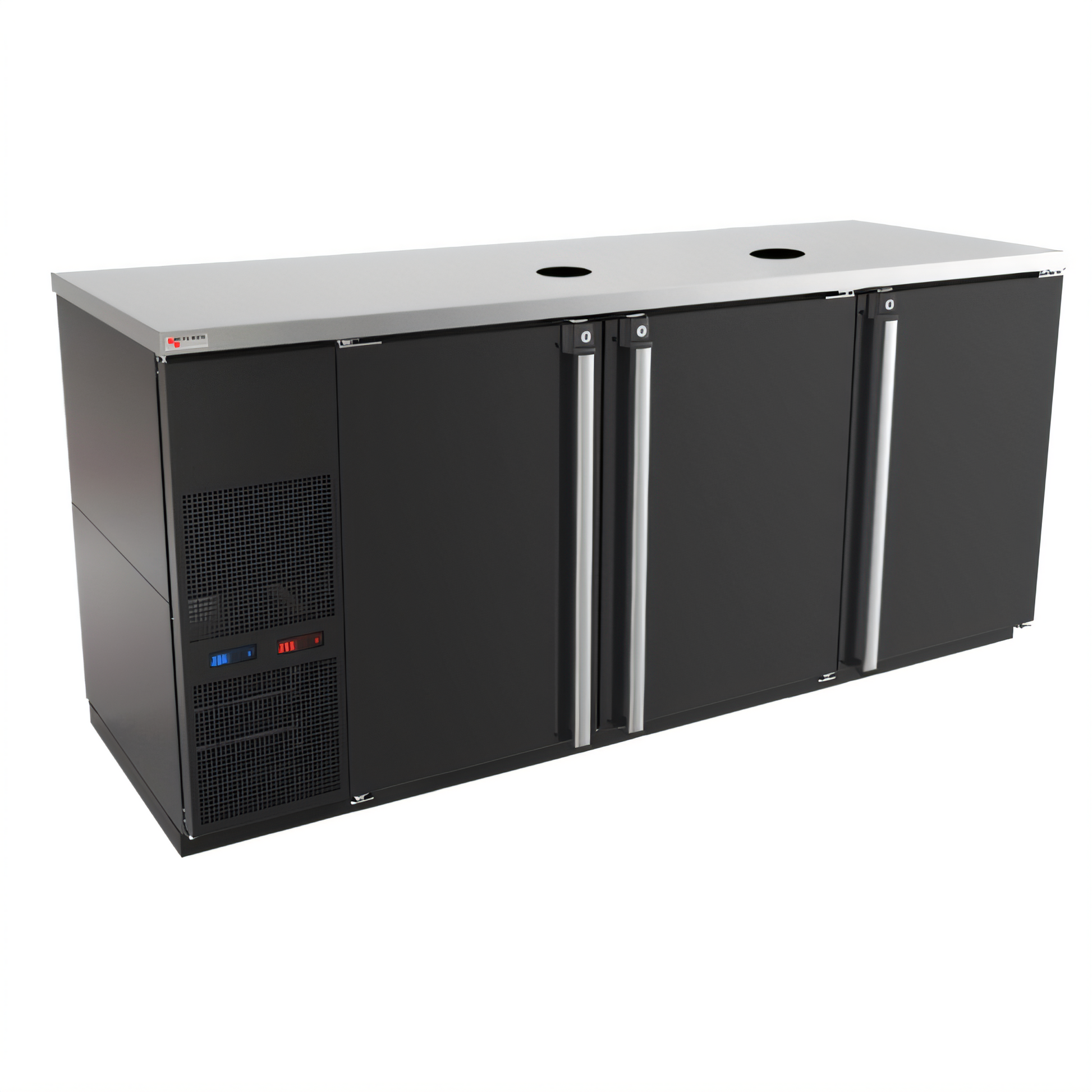

Micro Matic USA Pro-Line Back Bar Coolers - MBB78BC-E

Micro Matic USA Pro-Line Back Bar Coolers - MBB78BC-E

Tap perfectly tempered beer, wine or cocktails from a single footprint. The Pro-Line E-Series Beverage Station combines two independent temperature zones with rugged, food-service construction—making it the ultimate back-bar workhorse for bars, taprooms, resorts and event venues.

Features

• Dual-zone cabinet with two color-coded digital thermostats (blue for cold / red for warm).
• Holds 10 × 1/6 slim barrels on the cold side (32 – 70 °F) & 2 × 1/6 slim barrels on the warm side (40 – 70 °F).
• (2) 4-faucet stainless steel towers included—8 total faucets ready to pour.
• Front-breathing, self-contained refrigeration—ideal for built-in or flush installations.
• Energy-efficient R290 hydrocarbon refrigerant and 1/3 HP compressor (3.0 A).
• Automatic condensate evaporator—no floor drain required.
• Durable 18 ga stainless steel top doubles as a work surface.
• 20 ga stainless interior and 2" CFC-free foamed-in-place insulation for easy sanitation & thermal efficiency.
• (3) lock-ready solid doors with black vinyl exterior and magnetic gaskets.
• Ships plug-and-play with an 8 ft cord & NEMA 5-15P plug.
• cETLus & ETL-Sanitation listed—meets UL & NSF standards.

Specifications

What our Experts Think

• Reliable mid-capacity back bar performance: The MBB78BC-E is a Pro-Line™ E-Series 80" commercial back bar cooler, built for busy bars that need dependable refrigerated storage for beer, wine, and mixers in a compact, efficient layout.
• Strong real-world storage capacity: Experts note its ability to support up to ~30.8 cu. ft. of storage (about 4 half-barrel kegs or 1,000+ cans), making it a strong fit for high-turnover service environments.
• Commercial-grade build quality: Designed with a stainless steel top and interior plus a durable steel exterior, it withstands heavy daily bar use while maintaining hygiene and easy cleaning.
• Front-vented plug-and-play design: The self-contained, front-breathing refrigeration system allows flush installation under counters without rear clearance, simplifying bar layouts.
• Consistent cooling performance: Engineered to maintain optimal serving temperatures (~36–38°F) using a 1/3 HP refrigeration system for stable beverage quality during peak hours.
• Operator-friendly workflow features: Includes three lockable doors, LED lighting, digital thermostat, and automatic condensate evaporation, improving speed, safety, and ease of use.
• Energy-conscious commercial design: Uses R290 refrigerant and efficient insulation, helping reduce operating costs while maintaining strong cooling reliability.

Q&A

Q: What is the Micro Matic MBB78BC-E used for?
A: It is a commercial Pro-Line™ E-Series back bar beverage refrigeration station, designed to store and support draft beer systems, kegs, wine, and mixers in high-volume bars and restaurants.

Q: What are the key specifications of this model?
A: It is an 80" wide, 3-section, dual-temperature unit that holds up to 12 × 1/6 slim kegs (10 cold + 2 warm) and supports an 8-faucet draft system.

Q: What are the dimensions?
A: The unit measures approximately 80” W x 29.5” D x 36.9” H, built for standard back bar installation.

Q: What material is it made from?
A: It features a black vinyl steel exterior with an 18-gauge stainless steel top and stainless steel interior, designed for durability and easy cleaning in commercial use.

Q: Does it have multiple temperature zones?
A: Yes, it uses a dual-temperature design, allowing separate control of cold and warm storage zones for different beverage types (beer, white wine, red wine, cocktails).

Q: What type of cooling system does it use?
A: It uses a self-contained, front-vented refrigeration system with a 1/3 HP compressor and R290 refrigerant, optimized for energy efficiency and commercial reliability.

Q: Is it suitable for commercial use?
A: Yes, it is designed for heavy-duty bar, restaurant, and hospitality environments, supporting continuous high-volume beverage service.

Q: What makes the Pro-Line series important?
A: The Pro-Line E-Series is built for high capacity, efficient workflow, and reliable temperature control, making it ideal for professional draft beverage operations.

Maintenance Tip

• Clean exterior daily: Wipe stainless steel top and black vinyl body to remove spills, condensation, and sticky bar residue for a clean workspace.
• Clean condenser coils regularly: Remove dust and grease buildup to maintain efficient cooling and reduce compressor strain.
• Maintain door gaskets: Inspect and clean seals weekly to ensure tight closure and prevent cold air loss.
• Monitor temperature daily (36–38°F): Keep both thermostats within range for safe beverage storage and consistent performance.
• Keep front ventilation clear: Ensure airflow is not blocked since the unit is front-vented for efficient heat exchange.
• Defrost and clear drain system: Prevent ice or water buildup and ensure condensate evaporator is functioning properly.
• Avoid overloading shelves/keg zones: Maintain proper airflow inside each section for even cooling distribution.
• Deep clean monthly: Empty compartments and sanitize interior stainless steel surfaces, shelves, and floor.
• Check electrical connection: Ensure plug, cord, and outlet remain dry, secure, and undamaged for safe operation.
