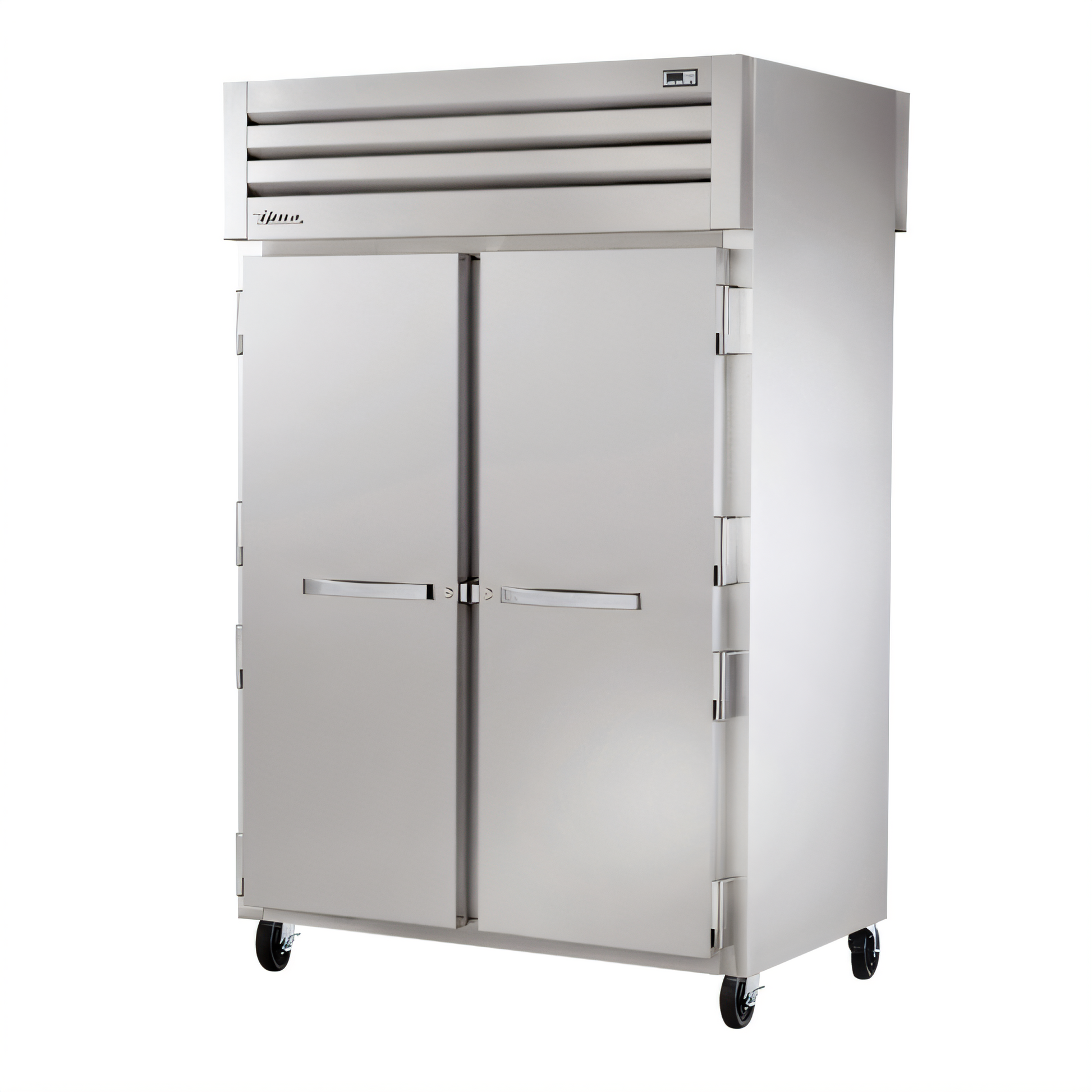

True SPEC SERIES® STR2HPT-2S-2S Pass-Thru Heated Cabinet
All-stainless, two-section | 52 5⁄8" W x 36 1⁄8" D | 3000 W, 208-240 V hard-wiredBuilt in the USA for the most demanding commercial kitchens, True’s SPEC SERIES® STR2HPT-2S-2S keeps plated meals and pans of product at safe serving temperatures on both sides of the line. Dual solid stainless doors, a powerful 3 kW heating system, and premium insulation come together to deliver dependable hot-holding day after day.
Why choose the STR2HPT-2S-2S?
- 140 – 180 °F (60 – 82 °C) holding range maintained by 1 stainless steel heating element per section.
- Pass-thru design speeds service—load in the back, plate up in the front.
- All-stainless exterior, interior & doors resist corrosion and simplify sanitation.
- Exterior digital control & temperature display (°F/°C) plus manual top-mounted vent for humidity management.
- (2) factory-installed Interior Kit #1 sets (9 tray slide runners per section) accommodate 18" x 26" sheet pans or (2) 14" x 18" pans per runner.
- Lifetime-guaranteed cam-lift hinges, bolt-style door locks, and heavy-duty all-metal handles.
- Bright, shielded incandescent interior lighting activated by an exterior switch.
- 5" locking plate castors provide effortless mobility for cleaning and maintenance.
- Foamed-in-place, zero-ODP/GWP polyurethane insulation for exceptional heat retention and energy savings.
Installation note: Unit ships without a cord and must be hard-wired to a 208-240 V, 60 Hz, single-phase, 20 A dedicated circuit (2-pole / 3-wire).
This cabinet is engineered to hold hot, cooked food—do not use to heat cold or ambient product.
Technical specifications
| Model | STR2HPT-2S-2S |
|---|---|
| Sections / Doors | 2 / 4 (solid stainless, pass-thru; locks & self-closing with 120° hold-open) |
| Overall width | 52 5⁄8" (1337 mm) |
| Overall depth | 36 1⁄8" (918 mm) (add 1 ½" for handles) |
| Overall height | 83 7⁄8" (2131 mm) with 5" castors |
| Temperature range | 140 – 180 °F / 60 – 82 °C |
| Heat output | 3000 W total (1 x stainless element per section) |
| Electrical | 208-240 V / 60 Hz / 1-phase, hard-wired, 20 A dedicated circuit |
| Interior configuration | (2) Kit #1 tray-slide assemblies installed; accepts 18" x 26" or 14" x 18" pans |
| Mobility | (4) 5" plate castors, front pair locking |
| Construction | Stainless steel front, sides, back, floor, ceiling & door liners; foamed-in-place insulation |
| Certifications | cULus, UL EPH Classified, NSF-4, Made in USA |
| Warranty | 7-year parts & labor (U.S. & Canada) |
Popular accessories (sold separately)
- Universal, universal-rod or half-section tray slide kits (#2 – #4) for custom layouts
- Additional chrome wire shelves with wall-mount pilasters
- 6" stainless, seismic or flanged legs in lieu of castors
- Security package for high-traffic or correctional environments
Need a different interior or accessory? Contact us for configuration assistance before ordering.
